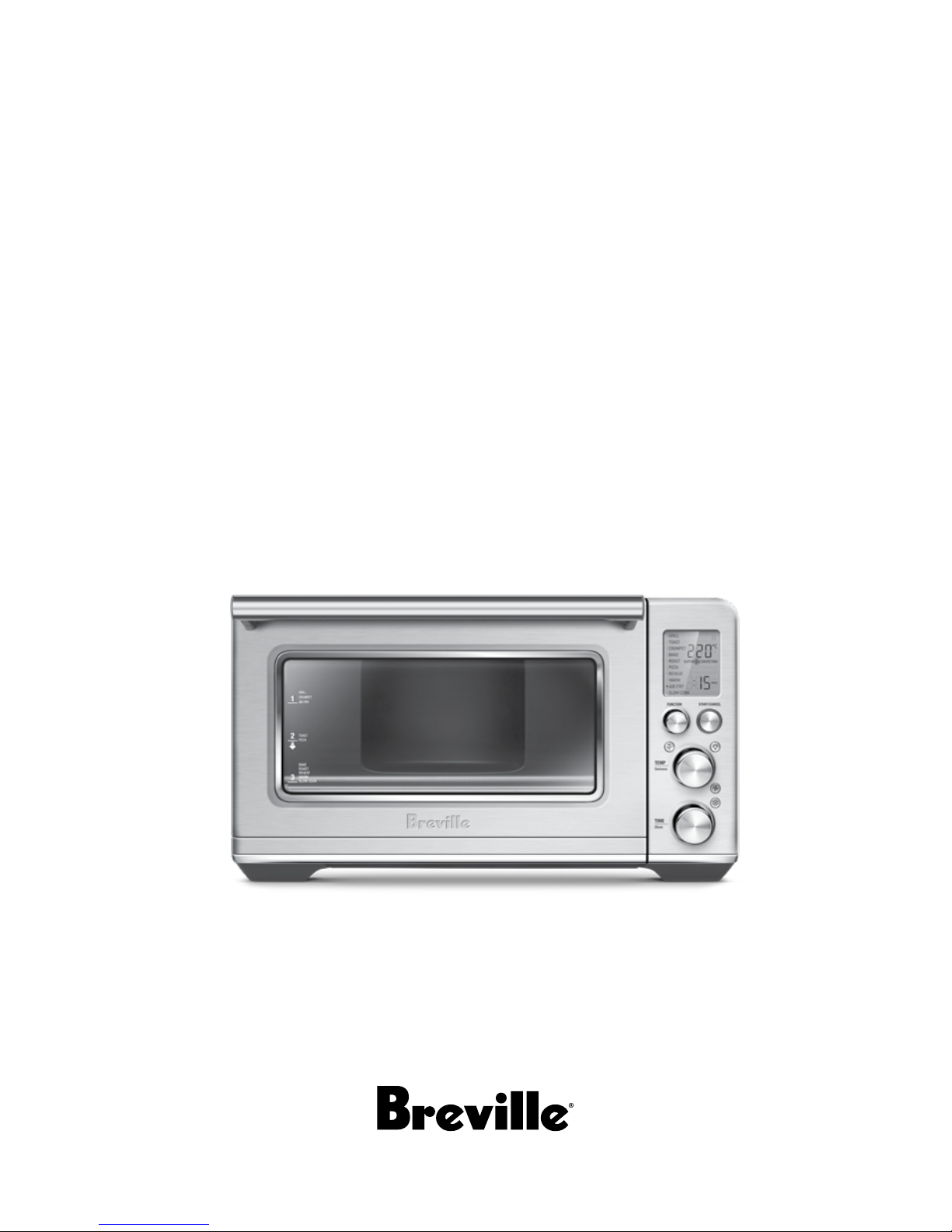

the Smart OvenTM Air Fry

Instruction Book - Suits all BOV860 models

BREVILLE

RECOMMENDS

SAFETY FIRST

At Breville we are very safety

conscious. We design and

manufacture consumer

products with the safety of you,

our valued customer, foremost

in mind. In addition we ask

that you exercise a degree of

care when using any electrical

appliance and adhere to the

following precautions.

IMPORTANT

SAFEGUARDS

READ ALL INSTRUCTIONS

BEFORE USE AND SAVE

FOR FUTURE REFERENCE

When using electrical appliances,

basic safety precautions should

always be followed including:

• Remove and safely discard any

packing materials and

promotional labels before

using the oven for the ﬁrst time.

• To avoid choking hazard for

young children, remove and

safely dispose the protective

cover ﬁtted on the power plug.

• Do not use the appliance near

the edge of a bench top or table.

Ensure the surface is stable,

level, heat-resistant and clean.

2Breville recommends safety first

6Components

8Before first use

10 Functions

– OPERATING YOUR

BREVILLE OVEN

– AUTO EJECT RACK 11

– GRILL 11

– TOAST 11

– CRUMPET 12

– BAKE 13

– PIZZA 15

– WARM 17

– AIR FRY 17

– SLOW COOK 18

– REPLACING THE

OVEN LIGHT 19

21 Care & Cleaning

22 Troubleshooting

Contents

• Do not use on a cloth-covered

surface, near curtains or other

ﬂammable materials.

• A ﬁre may occur if the oven is

covered or touches ﬂammable

material, including curtains,

draperies, walls, and the like,

when in operation.

• Do not use the appliance on

(or close to) a hot gas or electric

burner, or where it could touch

a heated oven or surface.

• Do not let the power cord hang

over the edge of a table or

counter, or touch hot surfaces.

• To avoid electric shock, do not

immerse the cord or plug in

water (or other liquids).

• When operating the oven, keep

a minimum distance of 10cm

of space on both sides of the

appliance and 15cm above.

• The temperature of accessible

surfaces may be high when

the appliance is operating.

Do not touch hot surfaces.

To avoid burns, use extreme

caution when removing pans,

dishes and accessories such as

the included grilling rack and

baking pan, that contain hot oil

or other hot liquids.

• Do not lay cooking utensils,

baking pans or dishes on the

glass door.

• Do not leave the door standing

open for extended periods of time.

• Do not store any item on top

of the oven when in operation

except those described on page

21 of this book.

• Do not place cardboard, plastic,

paper, or other ﬂammable

materials in the oven.

• Do not cover crumb tray or any

part of the oven with metal foil.

This will cause overheating of

the oven.

• Caution should be exercised

when using pans and dishes

constructed of materials other

than metal. Ensure pans and

dishes are oven safe before

using in the oven.

• Caution should be exercised

when using lids in the oven, as

pressure build up in a covered

pan or dish may cause hot

ingredients to expel or the dish

to crack. Do not place sealed or

airtight containers in the oven.

• Oversized foods and metal

utensils must not be inserted in

the oven as they may create ﬁre

or risk of electric shock.

• The use of accessories and

attachments not recommended

or supplied with this oven may

cause injuries.

• This appliance is for household

use only. Do not use in any

type of moving vehicles. Do

not use the appliance outdoors,

or for anything other than

its intended use. Misuse can

cause injury.

• If the appliance is to be: left

unattended, cleaned, moved,

assembled or stored, always

switch the unit off and unplug

the cord from the power outlet

and allow to cool completely.

• Do not clean with metal

scouring pads. Pieces can break

off the pad and touch electrical

parts, creating a risk of electric

shock.

• This appliance is not

intended for use by persons

(including children) with

reduced physical, sensory or

mental capabilities, or lack of

experience and knowledge,

unless they have been given

supervision or instruction

concerning the use of the

appliance by a person

responsible for their safety.

• Children should be supervised

to ensure that they do not play

with the appliance.

• It is recommended to regularly

inspect the appliance and

power cord. Do not use the

appliance if there is damage to

the power cord or plug, or after

the appliance malfunctions or

has been damaged in any way.

Immediately stop use and call

Breville Customer Service.

• The appliance is not intended

to be operated by means of

external timer or separate

remote-control system.

SPECIFIC

INSTRUCTIONS

FOR BOV860

• We recommend the oven is

operated on a dedicated circuit

separated from other appliances.

Consult a licensed and qualiﬁed

electrician if you are unsure.

• To turn off the oven, press the

START/CANCEL button on

the control panel. The oven is

off when the button back-lights

turn off.

• Regularly clean the crumb tray.

To clean the crumb tray:

−Turn OFF the oven,

−Allow the oven to cool

completely and then remove

the power cord from the

power outlet.

−Remove the crumb tray and

clean with warm soapy water.

−Dry the tray completely before

inserting it securely back

in place.

WARNING

To reduce the risk of FIRE,

ELECTRIC SHOCK,

EXPOSURE TO EXCESSIVE

UV RADIATION, OR INJURY

TO PERSONS:

• Always unplug the oven and

let all parts (including the

bulb housing, glass cover and

enclosure) cool completely

before replacing bulb.

• Only use a 25 Watt, 220–240V,

G9 type oven bulb.

• Always use a soft cloth when

handling the bulb and do not

directly touch the surface as oil

from your skin can damage the

bulb.

• Do not look directly at a

glowing bulb.

• Do not remain in the light if

skin feels warm.

• Keep bulb away from materials

that may burn.

• The bulb gets hot quickly. Only

ever use the light button to turn

on the light.

• Do not operate the light if the

bulb housing, glass cover, UV

ﬁlter or enclosure is missing

or damaged.

BREVILLE ASSIST®PLUG

Your Breville appliance comes

with a unique Assist®Plug,

conveniently designed with

a ﬁnger hole to ease removal

from the power outlet.

FOR HOUSEHOLD USE ONLY

SAVE THESE INSTRUCTIONS

Components

A. 30 cm non-stick pizza pan

B. Wire rack

C. Grilling rack

D. 28 x 33.5 cm enamel roasting pan

E. Air fry basket

F. Oven light

G. Door handle

H. Ventilation slots

I. Crumb tray

J. Breville Assist‰Plug

TEMP

Darkness

TIME

Slices

FUNCTION START/CANCEL

G H

K. LCD screen

L. FUNCTION dial

M. TEMPERATURE dial/toast and crumpet

darkness control

N. TIME dial/toast and crumpet selection

O. START/CANCEL button

P. OVEN LIGHT button

Q. CONVECTION button

R. FROZEN button

S. TEMPERATURE CONVERSION button

and volume adjustment button

Accessories sold separately:

TEMP

Darkness

TIME

Slices

FUNCTION START/CANCEL

Bamboo Cutting Board

Pizza Stone Pizza Crisper Pan

PREPARING THE OVEN

Before ﬁrst use, please run the oven empty for

20 minutes to remove protective substances

from the heating elements. Ensure the area is

well ventilated as the oven may emit vapors.

These vapors are safe and are not detrimental

to the performance of the oven.

1. Remove and safely discard any packing

material, promotional labels and tape from

the oven.

2. Remove the crumb tray, wire racks, grilling

rack, roasting pan, air fry basket and pizza

pan from the polyfoam packaging. Wash

them with a soft sponge in warm, soapy

water then rinse and dry thoroughly.

3. Wipe the interior of the oven with

a soft, damp sponge. Dry thoroughly.

4. Place the oven on a ﬂat, dry surface. Ensure

there is a minimum distance of 10cm of

space on both sides of the appliance and

15cm above.

5. Insert the crumb tray into the oven.

6. Unwind the power cord completely

and insert the power plug into a

grounded power outlet.

7. The oven alert will sound and the LCD

screen will illuminate. The function

options will appear with an indicator

on the GRILL setting.

8. Turn the START/CANCEL dial to

the right until the indicator reaches

the PIZZA function.

FUNCTION START/CANCEL

9. Press the START/CANCEL button. The

button backlight will illuminate red, the LCD

screen will illuminate orange and the oven

alert will sound.

10. The LCD screen will indicate a blinking

‘PREHEATING’. Once the oven has

completed the preheating cycle, an alert

will sound.

11. The timer will be displayed and

automatically begin to count down.

12. At the end of the cooking cycle, the oven

alert will sound, the START/CANCEL

button backlight will go out and the LCD

screen will illuminate blue.

13. The oven is now ready to use.

ELEMENT IQTM

The Breville Smart OvenTM Air Fry features

Element IQTM, a cooking technology that

creates the ideal environment for the food

you're cooking. It steers power where and when

it's needed and creates the right kind of heat,

whether even or intense.

Each of the oven’s functions is preset with our

recommended heating element conﬁgurations

and temperatures, that are based on recipes and

testing. However, we suggest experimenting

with these depending on the recipe, amount

of food and your personal taste.

Your customised setting will remain in the

memory of the oven until changed or the oven

is unplugged from the power outlet.

Functions

OVEN FUNCTIONS OVERVIEW

FUNCTION SUGGESTED

RACK

POSITION

OPTIONAL

SETTINGS

PRESETS PREHEAT RANGE

GRILL Top HI

10 MINS

No HI-MED-LO

Up to 20 MINS

TOAST Middle FROZEN Darkness 4

Slices 4

No Darkness 1-7

Slices 1-6

CRUMPET Top FROZEN Darkness 4

Slices 4

No Darkness 1-7

Slices 1-6

BAKE Bottom CONVECTION

TEMPERATURE

CONVERSION

160°C

CONVECTION

30 MINS

Yes 50°C–230°C

Up to 2:00 HRS

ROAST Bottom CONVECTION

TEMPERATURE

CONVERSION

175°C

CONVECTION

1:00 HRS

Yes 50°C–230°C

Up to 2:00 HRS

PIZZA Middle CONVECTION

TEMPERATURE

CONVERSION

FROZEN

210°C

CONVECTION

FROZEN

20 MINS

Yes 50°C–230°C

Up to 2:00 HR

REHEAT Bottom CONVECTION

TEMPERATURE

CONVERSION

165°C

CONVECTION

15 MINS

Yes 50°C–230°C

Up to 2:00 HRS

WARM Bottom CONVECTION

TEMPERATURE

CONVERSION

70°C

KEEP WARM

1:00 HRS

No 50°C–230°C

Up to 2:00 HRS

AIR FRY Top SUPER

CONVECTION

TEMPERATURE

CONVERSION

FROZEN

220°C

15 MIN

SUPER CONVECTION

No 50°C–230°C

Up to 2:00 HRS

SLOW

COOK

Bottom CONVECTION HI

CONVECTION

4:00 HRS

Yes HI-LO

Up to 10:00 HRS

Functions

OPERATING YOUR BREVILLE OVEN

1. Position the wire rack so the spokes face

upward and insert it into the desired

rack position. The rack positions are

conveniently printed on the oven door

window.

2. Turn the FUNCTION dial until the

indicator on the LCD screen reaches the

desired setting. .

3. The top ﬁgure on the LCD screen

indicates the preset cooking temperature

for the selected setting. For the TOAST

and CRUMPET settings it indicates the

darkness level. Turn the TEMPERATURE

dial to the left to reduce the temperature or

to the right to increase the temperature.

REDUCE

TEMPERATURE

INCREASE

TEMPERATURE

ROTATE

TEMPERATURE

DIAL

4. The bottom ﬁgure on the LCD screen

indicates the preset cooking time for

the selected setting. For the TOAST and

CRUMPET settings it indicates the number

of slices. Turn the TIME dial to the left to

reduce the cooking time or to the right to

increase the cooking time.

REDUCE

TIME

INCREASE

TIME

ROTATE

TIME

DIAL

5. For settings without a preheat cycle

(TOAST, CRUMPET, GRILL, WARM), place

the food directly on the wire rack or on the

included air fry basket, pizza pan, grilling

rack and/or roasting pan. Ensure the food

is centered in the oven for the most even

cooking.

a) Close the oven door.

b) Press the START/CANCEL button. The

button backlight will illuminate red, the

oven alert will sound, and the LCD screen

will illuminate orange.

c) The timer will be displayed and begin to

count down. The cooking temperature and

time can be adjusted during the cooking

cycle.

6. For settings that feature a preheat cycle

(BAKE, ROAST, PIZZA, AIR FRY , SLOW

COOK), press the START/CANCEL button

before placing food in the oven. The button

backlight will illuminate red, the oven alert

will sound and the LCD screen will indicate

a blinking ‘PREHEATING’ while the oven is

heating up.

a) When the oven is ready for use, the blinking

‘PREHEATING’ will go out, the oven alert

will sound and the timer will start counting

down. Place the food directly on the wire

rack, or on the included air fry basket, pizza

pan, grilling rack and/or roasting pan.

Ensure the food is centered in the oven for

the most even cooking.

b) Close the oven door.

c) The timer will continue to count down.

The cooking temperature and time can be

adjusted during the cooking cycle.

7. At the end of the cooking cycle, the oven

alert will sound, the START/CANCEL

button backlight will go out and the LCD

screen will illuminate blue.

Autres manuels pour Smart Oven BOV860

Table des matières

Autres manuels Breville Friteuse

Breville

Breville Halo Manuel utilisateur

Breville

Breville BDF500 Manuel utilisateur

Breville

Breville Smart Fryer BDF500XL Manuel utilisateur

Breville

Breville Halo VDF084 Manuel utilisateur

Breville

Breville Halo Manuel utilisateur

Breville

Breville Halo VDF133X Manuel utilisateur

Breville

Breville BDF450 Manuel utilisateur

Breville

Breville Halo+ Manuel utilisateur

Breville

Breville VDF078 Manuel utilisateur

Breville

Breville BDF600XL Manuel utilisateur

Breville

Breville Smart Oven BOV860BTR1BUS1 Manuel utilisateur

Breville

Breville BDF450 Manuel utilisateur

Breville

Breville VDF100 Manuel utilisateur

Breville

Breville Smart Oven BOV86oBSS Manuel utilisateur

Breville

Breville VDF073 Manuel utilisateur

Breville

Breville vdf108 Manuel utilisateur

Breville

Breville vdf069 Manuel utilisateur

Breville

Breville Halo VDF126 Manuel utilisateur

Breville

Breville Halo VDF127X Manuel utilisateur

Breville

Breville BDF450 Manuel utilisateur

Breville

Breville Smart Oven BOV860 Manuel utilisateur

Breville

Breville Smart Oven Air Fryer Pro BOV900 Manuel utilisateur

Breville

Breville the Quick Fry BDF200 Manuel utilisateur

Breville

Breville vdf059 Manuel utilisateur

Manuels Friteuse populaires d'autres marques

Innsky

Innsky 55SA1US Manuel utilisateur

Falcon

Falcon G350/11 Guide de l'utilisateur

GoWISE USA

GoWISE USA GW22612 Manuel utilisateur

Wolf

Wolf IF15/S Manuel utilisateur

Electrolux

Electrolux Thermetic 9CHG583284 Guide rapide

Gourmia

Gourmia GAF799 Manuel utilisateur

DeLonghi

DeLonghi D677UX Manuel utilisateur

SEVERIN

SEVERIN DEEP FRYER - Guide de l'utilisateur

Toastmaster

Toastmaster TMFG18-NAT Manuel utilisateur

Domo

Domo DO465FR Manuel utilisateur

Henny Penny

Henny Penny PFG-691 Manuel utilisateur

Farberware

Farberware FBW FT 43721 B Manuel utilisateur

GERMANICA

GERMANICA GEAF5L3LD Manuel utilisateur

Roller Grill

Roller Grill MF 120 R Manuel d'utilisation

Philips

Philips HD9211 Manuel utilisateur

Linea 2000

Linea 2000 Domo DO536FR Manuel utilisateur

Lakeland

Lakeland 31796 Manuel utilisateur

Dash

Dash Tasti-Crisp DFAF755 Manuel utilisateur
