the Kitchen Wizz™ 11 Plus

Instruction Book - BFP680

IMPORTANT

SAFEGUARDS

At Breville we are very safety conscious. We

design and manufacture consumer products

with the safety of you, our valued customer,

foremost in mind. In addition we ask that

you exercise a degree of care when using

any electrical appliance and adhere to the

following precautions.

BREVILLE

RECOMMENDS

SAFETY FIRST

• Carefully read all instructions

before operating the food

processor for the ﬁrst time

and save for future reference.

• Remove any packaging material

and promotional labels before

using the food processor for the

ﬁrst time.

• Do not place the food processor

near the edge of a bench or

table during operation. Ensure

the surface is level, clean and

free of water, ﬂour, etc. Vibration

during operation may cause the

appliance to move.

• Handle the food processor

and attachments with care -

remember the blades and discs

are razor-sharp and should be

kept out of reach of children.

• Care shall be taken when

handling the sharp cutting

blades, emptying the bowl and

during cleaning.

• Always make sure the food

processor is completely

assembled before operating.

The appliance will not operate

unless properly assembled.

• Ensure the OFF button has been

pressed, and the food processor

is switched off at the power

outlet and unplugged before

attaching the quad blade, dough

blade, disc or processing lid.

• Always secure the processing

bowl onto the motor base before

attaching the quad blade, dough

blade or discs.

• Always operate the food

processor with the processing

lid securely in position.

2Breville Recommends Safety First

6Components

9Assembly

10 Functions

16 Food Processing Guide

18 Care & Cleaning

19 Troubleshooting

21 Recipes

Contents

• Do not push food into the feed

chute with your ﬁngers or other

utensils. Always use the food

pusher provided.

• Keep hands, knives and other

utensils away from moving quad

blade, dough blade or discs.

• Do not place hands or ﬁngers in

the bowl of the food processor

unless the motor, quad blade,

dough blade or discs have come

to a complete stop.

• Ensure the OFF button has been

pressed to switch the motor off

and the appliance is switched

off at the power outlet and

unplugged before removing the

lid from the bowl.

• Do not use attachments other

than those provided with the

food processor.

• Do not attempt to operate the

food processor by any method

other than those described in

this booklet.

• Ensure the motor, blades or

discs have completely stopped

before disassembling. Ensure

the OFF button has been

pressed and the appliance is

switched off at the power outlet

and unplugged when not in use,

if left unattended and before

disassembling, cleaning or

storing.

• Care should be taken when

removing the food from the

processing bowl by ensuring

the motor, quad blade, dough

blade or disc, have completely

stopped before disassembling.

Ensure the OFF button has been

pressed to switch the motor off;

the appliance is switched off at

the power outlet and unplugged,

before removing the lid from

the bowl. The processing bowl

should then be unlocked from

the motor body and the quad

blade, dough blade or discs

carefully removed before

attempting to remove the

processed food.

• Please do not crush ICE in the

large or small processing bowls.

This will cause damage to the

blades (quad or mini blade).

We recommend that you use a

blender for ice crushing.

• Some stiff mixtures, such

as dough may cause the

processing blade to rotate

more slowly than normal. If this

happens, do not process for

longer than 1 minute.

• Do not process hot or boiling

liquids - allow liquids to

cool before placing into the

processing bowl.

• Do not use the food processor

on slippery, unstable or uneven

surfaces such as a sink drain

board.

• To protect against electric shock

do not immerse power cord,

plug or motor base in water or

any other liquid.

• Do not move the food processor

whilst in operation.

• Do not leave the food processor

unattended when in use.

• Do not place any part of the

food processor in the microwave

oven.

• Do not ﬁll bowl above marked

liquid levels or 11 cup dry level

(shredding). Always add drier

or thicker ingredients to the

processing bowl prior to adding

ﬂuids.

• Never remove the lid while the

processor is operating. Always

use the POWER/OFF button

to stop the machine before

removing the lid.

• Keep the appliance clean.

Follow the cleaning instructions

provided in this book.

IMPORTANT

SAFEGUARDS FOR

ALL ELECTRICAL

APPLIANCES

• Unwind the power cord fully

before use.

• Do not let the power cord hang

over the edge of a table, counter,

touch hot surfaces or become

knotted.

• Cleaning and user maintenance

shall not be made by children

without supervision.

• This appliance shall not be used

by children. Keep the appliance

and its cord out of reach of

children.

• Children shall not play with the

appliance.

• Appliances can be used by

persons with reduced physical,

sensory or mental capabilities

or lack of experience and

knowledge if they have been

given supervision or instruction

concerning use of the appliance

in a safe way and understand

the hazards involved.

• It is recommended to regularly

inspect the appliance. Do not

use the appliance if power

supply cord, plug or appliance

becomes damaged in any way.

Return the entire appliance to

WARNING

• To avoid possible malfunction

of the processing bowl’s

auto switch, do not place the

processing lid in the locked

position when the appliance is

not in use.

• The processing blades and discs

are extremely sharp, handle with

care at all times. Do not place

hands, knives or other utensils

into the feed chute. Always use

the food pusher to push the food

down the feed chute.

SAVE THESE

INSTRUCTIONS

the nearest authorised Breville

Service Centre for examination

and/or repair.

• This appliance is for household

use only. Do not use this

appliance for anything other

than its intended use. Do not

use in moving vehicles or boats.

Do not use outdoors.

• The installation of a residual

current device (safety switch)

is recommended to provide

additional safety protection

when using electrical

appliances. It is advisable that

a safety switch with a rated

residual operating current

not exceeding 30mA be

installed in the electrical circuit

supplying the appliance. See

your electrician for professional

advice.

• All maintenance (other than

cleaning) is to be done by an

authorised Breville Service

Centre.

• Authorised Breville Service

Centres can be found on our

website www.Breville.com.au

Alternatively, you can contact

the Breville Customer Care

Centre by phone on

1300 273 845 or email

AskUs@breville.com.au

SPECIFICATION

Power Rating 220–240V~50Hz 1000W

Outside

Dimensions

440mm (H) with bowl

195mm (W)

280mm (D)

Net Weight Approx. 7.5kg

These specifications may change

without notice.

Components

A. Small food pusher

Remove to process smaller ingredients

with improved control. It also doubles as a

measuring cup for ingredients. Note that the

food processor will run continually whether

the small pusher is in or out.

B. Mid food pusher

The food processor will run continually

whether the mid pusher is in or out.

C. Large food pusher

Note that the food processor will not start

unless the large pusher is in place correctly,

as it releases the safety interlock system.

D. Extra wide feed chute

13cm wide, for large ingredients.

E. Safety interlock system

Prevents the motor from operating unless the

bowl and lid are correctly locked in position,

and large feed pusher is inserted.

F. Processing lid

Locks onto the processing bowl and forms

part of the safety interlock system.

G. Bowl coupling

Sintered stainless steel motor connector with

vibration absorption.

H. Processing bowl

11 cup capacity for dry ingredients and

8 cups for thick liquid ingredients (eg. soups).

The processing bowl locks onto the motor

base by turning clockwise.

I. Safety braking system

Rapidly stops Quad®blade if lid is

unexpectedly opened.

J. PULSE button

Press and release for momentary bursts

of power.

K. START | PAUSE button

Once the POWER button has been activated,

this will start and stop the motor.

L. POWER | OFF button

Provides power to the food processor unit,

and puts it into READY mode.

M. Direct drive motor base

Induction motor for high torque and

reliable results.

N. No-skid rubber feet

O. Plastic spatula

For scraping the sides of the bowl helping to

process ingredients evenly

P. Silicone seal

This replaceable seal reduces the chance of

leakage while processing larger volumes of

liquid ingredients.

Q. Dough blade

Blunt blade designed for a softer action of

combining dough ingredients.

R. Quad®blade

Swift action for even chopping, mixing,

whipping and processing a variety of

ingredients. Safety braking system

rapidly stops Quad®blades if lid is

unexpectedly opened.

S. Quad®blade cover

T. Adjustable slicer 0.3mm-8.0mm thickness

U. Fine and coarse reversible shredder

V. Spindle

Use with all blades and discs.

W. Cord Storage

Cord can be pushed into the housing

to reduce length.

BREVILLE ASSIST™PLUG

Your Breville appliance comes with a unique

Breville Assist™ Plug, conveniently designed

with a ﬁnger hole to easy removal from the

wall outlet.

X. Mini processing blade

Used for chopping, mixing, and blending a

variety of ingredients.

Y. Mini processing bowl

For processing small volumes of ingredients.

Storage case

Store all discs and blades safely when

not in use.

Quad®blade

Dough Blade

Adjustable slicer

Fine and coarse

reversible shredder

Plastic spatula

Storage case

Spindle

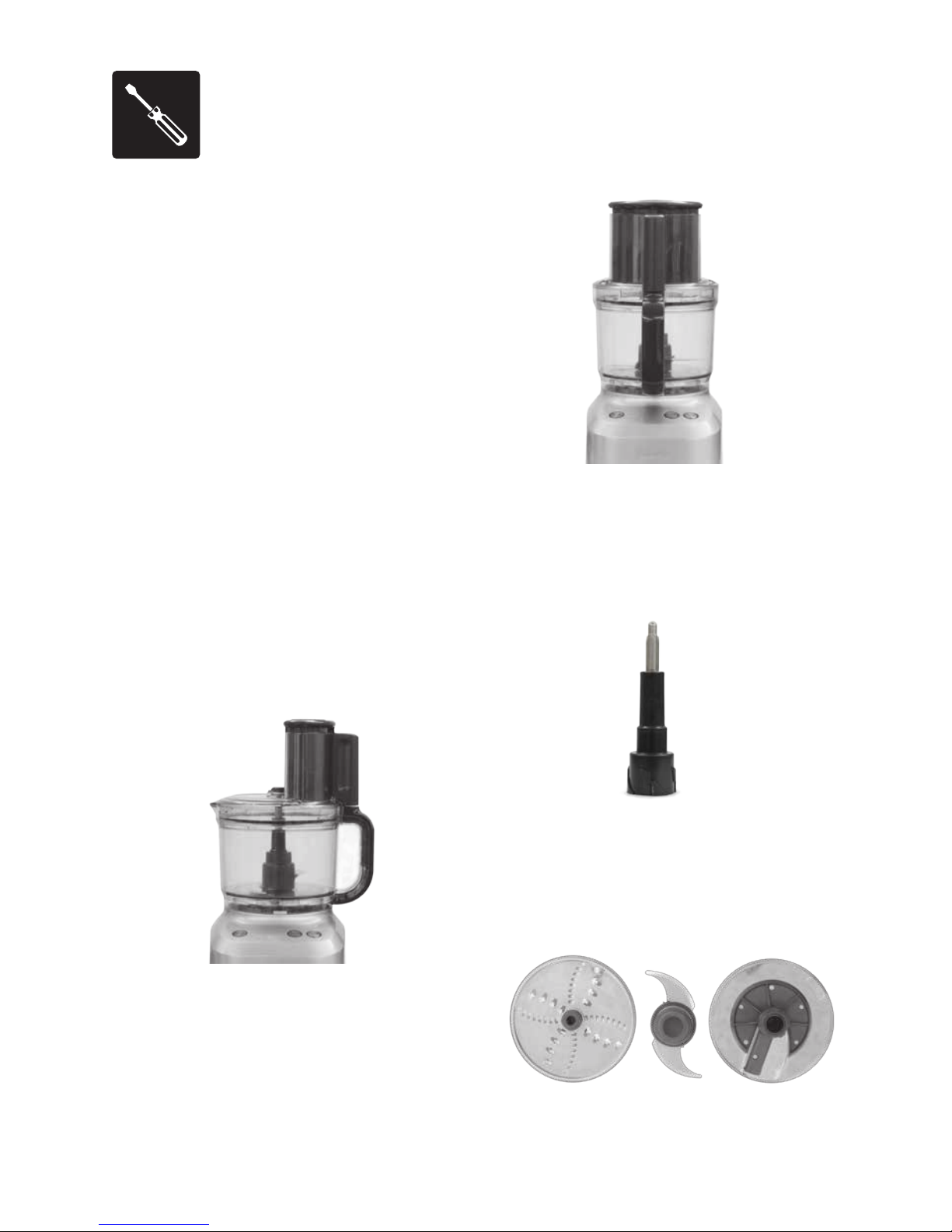

Assembly

BEFORE FIRST USE

• Before using your food processor for the ﬁrst

time, remove any packaging material and

promotional labels. Ensure the POWER button

is OFF and the food processor is unplugged.

• Be careful when handling the blades and discs

as they are extremely sharp.

• Wash the processing bowl, processing lid

and all attachments in warm soapy water with

a soft cloth. Rinse and dry thoroughly. The

attachments may be washed in the dishwasher.

• When ﬁrst using your food processor, you may

notice an odour coming from the motor. This is

normal and will dissipate with use.

• Always use the food processor on a dry, level

work surface.

ASSEMBLY

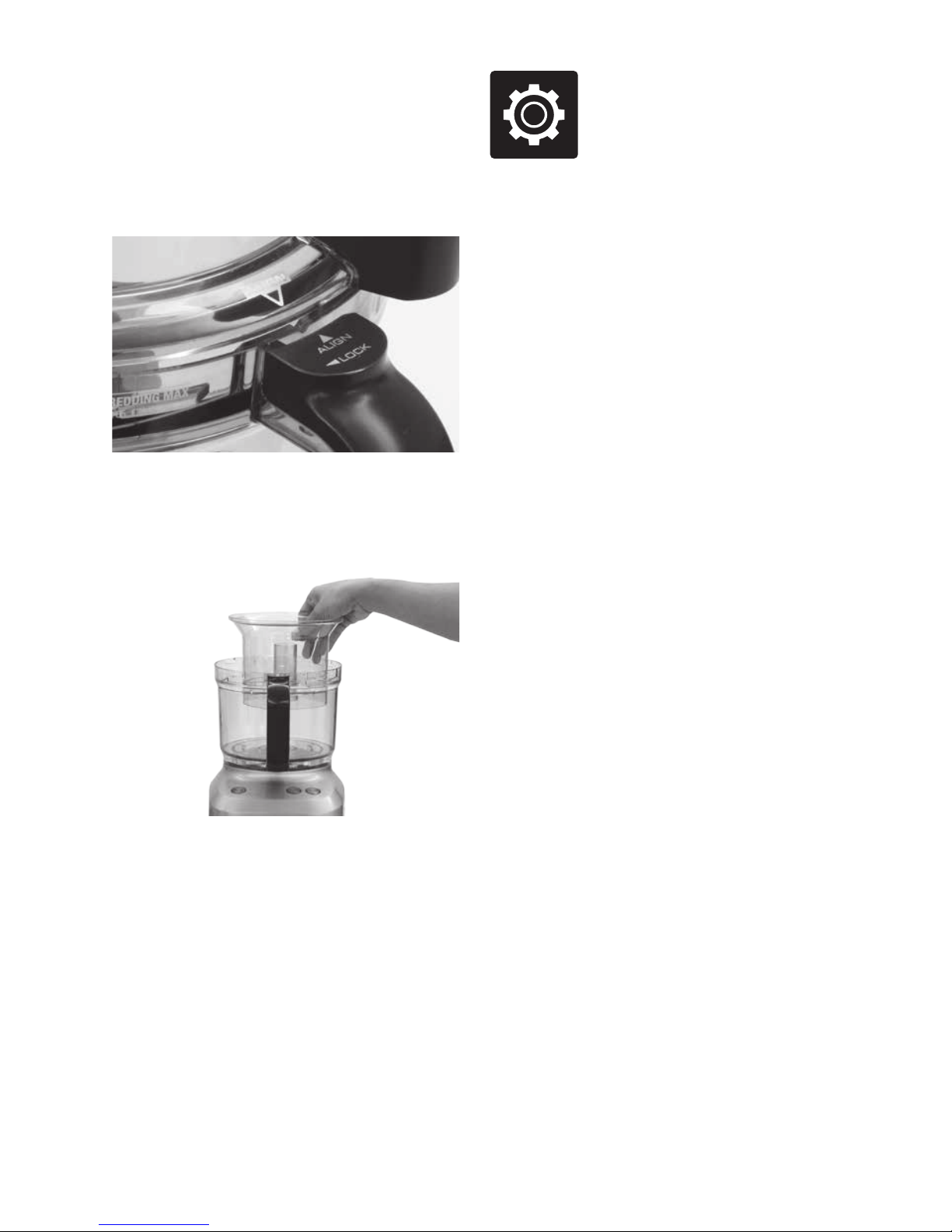

1. Position the processing bowl onto the motor

base with the handle in line with the ALIGN

HANDLE graphic on the motor base.

2. Turn the bowl clockwise until the handle

locks to the front. The processing bowl

should now be securely locked into position.

The food processor will not operate unless

the bowl is locked into position correctly.

3. The spindle is required when using ALL

discs and blades EXCEPT the mini bowl

and mini blade. Failing to use the spindle

will damage the parts, and incorrect use this

way may cause the parts to fuse together.

4. Before placing the lid onto the processing

bowl, position the spindle over the coupling

in the center of the processing bowl. Then

position your chosen blade or disc over it.

The blades drop down lower than the discs.

5. Place lid onto the processing bowl so that

the ALIGN | LOCK graphics on the lid

and handle align. To LOCK the lid, hold

the chute and turn clockwise so that the

handle parts align. Locking the lid correctly

will engage the interlocking safety catch

on the handle, and allow the motor to run.

MINI PROCESSING BOWL

• The mini processing bowl ﬁts inside the

main bowl.

• The mini processing blades give you

maximum control for small quantities.

• Do not use the spindle, or the processing discs.

• The mini blades cannot be used in the main

processing bowl.

Functions

OPERATION

• The food processor will only operate when

the processing bowl, lid and large pusher are

correctly assembled. This engages the safety

interlock, and allows the motor to run.

• The POWER | OFF button illuminates red

when the machine is connected to power and

is ready to run.

• The START | PAUSE button allows the motor

to run continuously until pressed again. If the

lid, bowl or large pusher are removed while

the motor is running, the button will ﬂash. The

motor will resume running when the bowl, lid

and large pusher are assembled and the safety

interlock is engaged, the button light will be

solid (no longer ﬂashing).

• The momentary PULSE button is ideal for

processing foods that need sudden bursts of

power. It also encourages ingredients to move

around the bowl. PULSE is also best when

processing foods that only require processing

for a short period of time.

• Use a combination of the START | PAUSE

and PULSE buttons for control when

processing food.

• The chute has a MAX CHUTE FILL graphic to

indicate the maximum volume of food that can

be placed in the chute for the pusher to activate

the safety locking catch.

• After processing, wait until the blades/discs

have stopped moving before unlocking the

lid. To ensure safe handling, turn off at the

POWER button and unplug at the power outlet

before handling the blades.

• When removing blades/discs, lift by carefully

grip the plastic hub in the centre.

Table des matières

Autres manuels Breville Robot culinaire

Breville

Breville the Sous Chef 12 Manuel utilisateur

Breville

Breville the Sous Chef BFP800XL Manuel utilisateur

Breville

Breville Kitchen Wizz BFP400 Manuel utilisateur

Breville

Breville Kinetix Wizz BFP450 Manuel utilisateur

Breville

Breville BBL915 Manuel utilisateur

Breville

Breville Kitchen Wizz 11 Plus Manuel utilisateur

Breville

Breville BFP800 Manuel utilisateur

Breville

Breville Kitchen Wizz 15 Pro BFP800 Manuel utilisateur

Breville

Breville BFP50 Guide rapide

Breville

Breville BSB530XL Manuel utilisateur

Breville

Breville BFP680 Manuel utilisateur

Breville

Breville Wizz BFP250 Guide rapide

Breville

Breville All In One BSB530 Manuel utilisateur

Breville

Breville BSB530 Manuel utilisateur

Breville

Breville Paradice 16 Manuel utilisateur

Breville

Breville VFP009 Manuel utilisateur

Breville

Breville All In One Manuel utilisateur

Breville

Breville BFP800 Manuel utilisateur

Breville

Breville Kitchen Wizz 8 Manuel utilisateur

Breville

Breville Mini Wizz LFP150 Manuel utilisateur

Breville

Breville BFP800 XL G16 Manuel utilisateur

Breville

Breville BFP800 Guide de dépannage

Breville

Breville Kitchen Wizz 9 Manuel utilisateur

Breville

Breville Anthony Worrall Thompson VFP014 Manuel utilisateur

Manuels Robot culinaire populaires d'autres marques

INNOLIVING

INNOLIVING INN-727 Manuel utilisateur

Berkel

Berkel C32 Manuel utilisateur

Beko

Beko CHP5554W Manuel utilisateur

KitchenAid

KitchenAid 5KFP0719 Manuel utilisateur

QUIGG

QUIGG KM 2017Wi.20 Manuel utilisateur

Lakeland

Lakeland PRESS AND CHOP 31557 Manuel utilisateur

Bosch

Bosch MMR08 GB Series Manuel utilisateur

HOFFEN

HOFFEN Chef Express T9532 Manuel utilisateur

Garland

Garland 852 ZG Manuel utilisateur

Robot Coupe

Robot Coupe CL50 Gourmet Manuel utilisateur

SAPIRHOME

SAPIRHOME SP-1111-K Manuel utilisateur

Moulinex

Moulinex DJ3051 Manuel utilisateur

Bosch

Bosch MUM5 Manuel utilisateur

cecotec

cecotec Mambo Touch Manuel utilisateur

KitchenAid

KitchenAid 9KFC0516 Manuel utilisateur

Black & Decker

Black & Decker hc 300 Instructions d'installation

Gorenje

Gorenje SBR 1000 DV Manuel utilisateur

Arzum

Arzum AR 1128 Manuel utilisateur

Breville the Kitchen Wizz 11 Plus BFP680 Manuel utilisateur

Manuels Robot culinaire populaires d'autres marques
