Bretford CUBE Micro Statio Manuel utilisateur

031-11214 Rev. 1 05/2022 1 of 9

User Guide

031-11214 Rev. 1 05/2022 2 of 9

About Your Product

Product Overview

The CUBE Micro Station® Charging Station

Adapter storage

below the module tray

Removable Modules

accommodate up to

14 in devices

9 Foot Power Cable

Lift Handles

Programmable

combo padlock

Courtesy

Outlet

Power Switch

TVS10

TVS16

031-11214 Rev. 1 05/2022 3 of 9

About Your Product

Technical Specifications

CUBE Micro Station®

Model

TVS10PAC CUBE Micro Station® 10

TVS10USBC CUBE Micro Station® 10 Pre-Wired

TVS16PAC CUBE Micro Station® 16

TVS16USBC

CUBE Micro Station® 16 Pre-Wired

Outer Dimensions

(W x D x H)

(TVS10) 18.25 x 17 x 16.5 in / 46.4 x 43.2 x 41.9cm

(TVS16) 27 x 17.75 x 17.63 in / 68.6 x 45.3 x 45cm

Slot Dimensions

(W x D x H)

1.25 x 14 x 9.9 in.

3.2 x 35.6 x 25.1 cm.

Capacity 10 or 16 AC outlets

Weight

TVS10PAC 40 lbs/ 18.1 kg

TVS10USBC 48 lbs/ 21.8 kg

TVS16PAC 54 lbs / 24.5 kg

TVS16USBC

64 lbs/ 29.0 kg

Rating

125V, 12A. 60Hz

Charging

Supports device power adapters up to 65W each, or 1,440W total

Warranty

7- Year

Certifications

ETL Listed to UL 62368

031-11214 Rev. 1 05/2022 4 of 9

Using Your Product

CUBE Micro Station®

Setting the Combination Lock

Your new CUBE Micro Station® comes equipped with a resettable

Combination Padlock. You can program the lock with your own

combination. The lock starts with 0-0-0-0. Follow the directions with the

look for changing the combination. Remember to depress the shackle

before disengaging it from the lock.

Wiring your CUBE Micro Station® (Pre-Wired models can skip section)

1. Shutdown the CUBE Micro Station® using the power switch and

unplug the unit from the wall.

2. Unlock and open the CUBE Micro Station® door.

3. Remove device modules from the unit and set them to the side.

4. Remove the module tray by lifting up from the center cut out.

031-11214 Rev. 1 05/2022 5 of 9

Using Your Product

CUBE Micro Station®

Wiring your CUBE Micro Station® Cont…

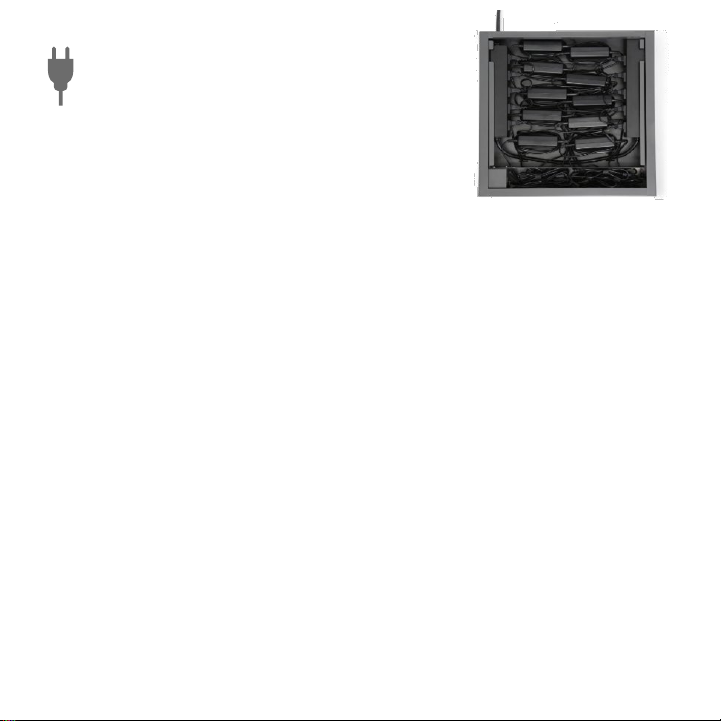

5. One-by-one, plug each AC adapter into one of the AC outlets.

6. Route each power cable through the front, corresponding holes on the

lower portion of the unit.

7. Replace the module tray, making sure to wrap it over the front, back

and side edges. Look for imprinted “R” on the tray. “R” goes in first,

towards the back.

8. Replace the device modules in the unit.Left to right: slots 5, 6, 5

9. Insert devices into the slot dividers, connecting each into a

corresponding AC power adapter.

Note

: Middle divider between device

modules is not intended for storage.

10. Connect the main CUBE Micro Station power cord into the wall

11. Toggle the power switch to ON (“RESET”)

031-11214 Rev. 1 05/2022 6 of 9

Using Your Product

CUBE Micro Station®

Placing your CUBE Micro Station®

Your CUBE Micro Station® can be placed on a cabinet, stacked, daisy-

chained (TVS10 only) or wall mounted. Stacking and wall mounting kits are

available upon request.

Stacking

1. Carefully place two CUBE Micro Station®’s on top of each other to avoid

scratching or denting either station.

2. Locate the stacking brace plate and attach to the back of the units with

the four (4) Torx T-25 screws

Daisy-Chaining (TVS10 only)

Daisy-chaining allows for two CUBE Micro Station® 10 unit to be run off one

outlet.Daisy-chaining feature is not applicable to wall mounted units. The

remaining courtesy outlet can power an additional auxiliary device not to

exceed 100W.

031-11214 Rev. 1 05/2022 7 of 9

Using Your Product

CUBE Micro Station®

Daisy-Chaining Cont…

1. Shutdown both CUBE Micro Stations using the power switch and unplug

each unit from the wall.

2. With two units securely placed in adjacent positions, take the AC power

cord from one CUBE Micro Station® and plug into the rear courtesy outlet

of the adjacent CUBE Micro Station®.

3. Connect the AC power cord from the second CUBE Micro Station® into

the wall.

4. Toggle each CUBE Micro Station® power switch to ON (“RESET”)

031-11214 Rev. 1 05/2022 8 of 9

Important Information

Safety Notice

•

Product for indoor use only

•Do not plug the unit in if the switch or power cord has been damaged.

•For safety purposes, make sure all electrical components do not exceed

the maximum load rating of 12 amps.

•Do not sit on, stand on, or place unreasonably heavy objects on the unit.

•Unplug unit from te wall before moving to a different location.

•Only transport device to a different location if door is securely locked.

•Product must be plugged into a socket with an earthing connection.

031-11214 Rev. 1 05/2022 9 of 9

Additional Resources

Contact Support

Technical support is available by contacting Bretford Customer Care via

phone, email or the web:

Hours of Operation: M-F, 7:30am - 4:30pm CST

Telephone: +1-800-521-9614

Email: [email protected]om

Website: www.bretford.com/contact

Bretford, CUBE, and CUBE Micro Station®are trademarks or registered marks of Bretford Manufacturing,
