SUBSTATION AND CHANNEL
MODEL:
Assembly Instructions
TOOLS REQUIRED
1/2 WRENCH
PHILIPS SCREWDRIVER
3/8 WRENCH
ELECTRIC HAND DRILL
LIQUID WORKSPACE
M-SUBC
Substation Top Cover
Substation Track
P ate
Substation Skin
Substation Skin
Fig. 1
STEP 1
Substation Skirt
Remove Substation Top Cover by pu ing it up. Disassemb e Substation Track
P ate and Substation Skins by removing three Substation Track P ate screws (Fig.
1). Save hardware for reassembly.
Substation
TracP ate
Screw
Note:
Power onne tion using power infeed should be performed by
qualified ele tri ian.
Fig. 2
STEP 2
Lift Substation Skirt up and ho d it in p ace with two wooden b ocks 7 ong (Fig. 2).
Mark bo t ho e pattern (3 ho es) on the f oor using ho e ocations in mounting p ate
as temp ate. Move Substation aside.
Wooden B ock
Mounting p ate
STEP 3
a) For on rete floor:
Recommended hardware is 1/4-20 x 2 concrete expansion anchor. Dri ho es
and comp ete insta ation using hardware manufacturers recommended proce-
dure.
b) For wood floor:
Dri appropriate ho es depending on type of wood for 1/4 x 2 ag screws.
Fasten Substation to the f oor with ag screws.

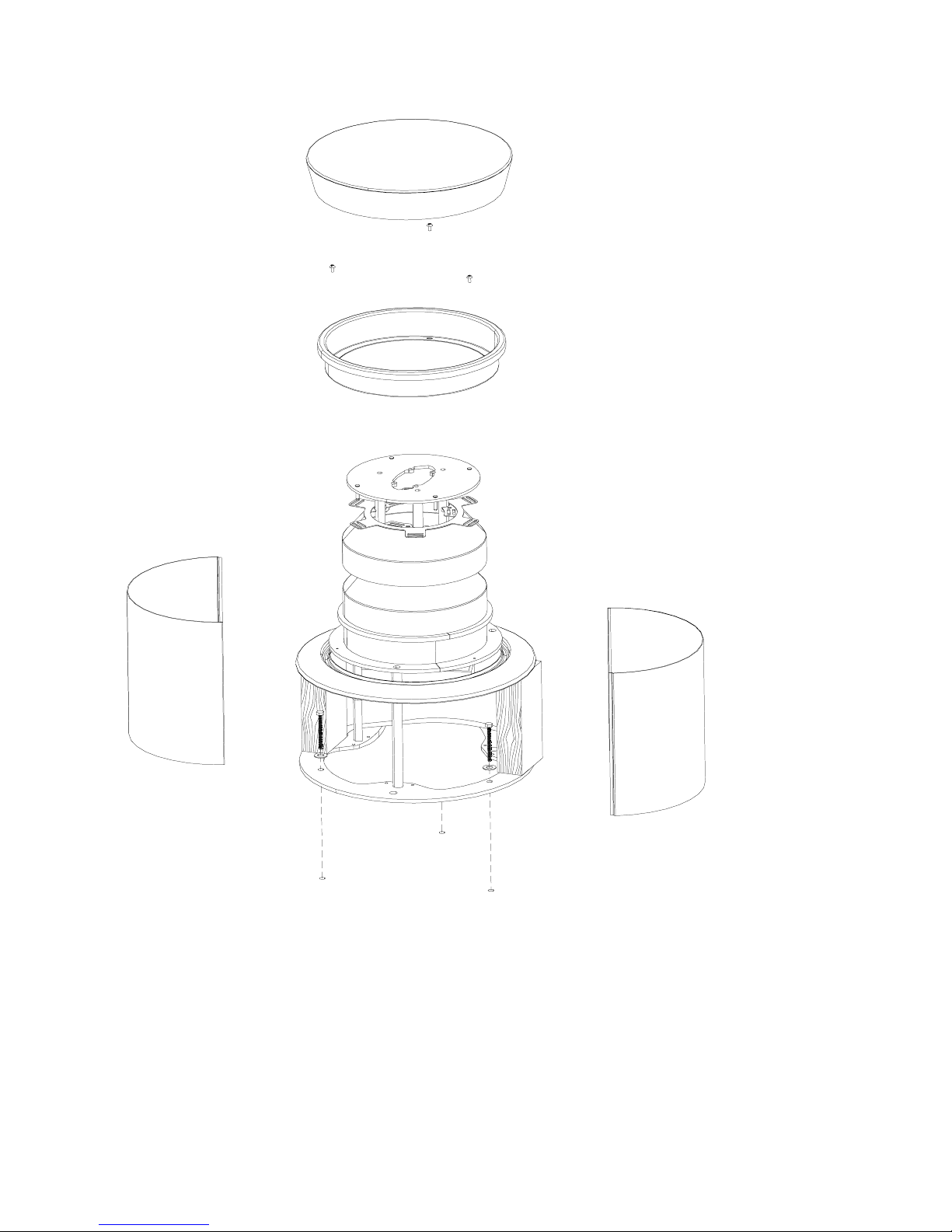

Fig. 3
STEP 4
Remove wooden b ocks. Reassemb e Substation skins and Substation track
p ate.
Fig. 4
Note: If atta hing power hannels do not reassemble
Substation Top Cover at this time.
Cover Pin
P ate
Cover Pin P ate
Hex Bo t
Substation
Spider
STEP 5
Disassemb e Cover Pin P ate and Substation Spider by unfastening the Cover Pin
P ate Hex Bo ts. Save hardware.
Fig. 5
Meta Visua
B ocker
Meta Visua B ocker
Screw
STEP 6
Disassemb e Meta Visua B ocker by unfastening the three Visua
B ocker Screws. Save hardware.
Fig. 6
Fig. 7
Fig 7. Shown with parts
removed for c arity
Channe
Cam Lever
Un ock Position
F ex Tubing
Substation Skin
Open Position
STEP 7
Assemb e P astic Visua B ocker to channe connector bracket. Set Cam Lever in un ock
position. Open both the Substation Skins. Insta the Channe onto Substation Track P ate.
Thread the f ex tubing through the Substation (Fig. 7). Wiring of f ex tubing must be done by a
qua ified e ectrician. C ose the Substation Skins. Reassemb e Meta Visua B ocker, Substa-
tion Spider and Cover Pin P ate. Lock the Channe in desired position to Substation by f ipping
Cam Lever over 180° (Fig. 8). Both ends of hannel must be installed into Substation/
Support before lo king down Cam Lever.
Fig. 8
P astic Visua
B ocker
Data cab e
Channe
To data
input port
Data
bracket
Channe
door
Fig. 9
STEP 8
Snap open Channe door. Run data cab e through the Channe upper compartment. Thread
the data cab e through the s ot to get to the data bracket opening(Fig. 9). Snap c ose
Channe door (Fig. 10).
Fig. 10
Part #031-6766
06.07.04 CH
Note: When repositioning Channel aution should be taken not to obstru t free
movement of flex tubing.
