Bravi Platforms Sprint LUI PKI Manuel utilisateur

Use and Safety Manual

Always keep

this manual in

the machine-

manual box

Braviisol Divisione Meccanica s.r.l.

S.S. 16 Adriatica km. 314,600

60022 Castelfidardo (AN)- Italy

Tel. 0039.071.7819090 Fax

0039.071.7819355

www.bravi-platforms.com

www.bravi-parts.com

Order truck

model

LUI PKI

(SPRINT)

model

LUI MINI P.A.

(SPINGO)

Rev.1

18/11/2019

Original

instructions

INTRODUCTION

This manual is an extremely important element. Always keep it stored on the

machine.

The purpose of this manual is to illustrate, for the owner, users, operators,

firms offering leasing and those subjects receiving leasing of the machine, the

essential precautions and operational procedures for the safe and correct op-

eration of the machine based upon the utilisation anticipated.

Due to the continuous improvements brought about on the products, the firm,

BRAVIISOL DIVISIONE MECCANICA S.R.L, reserves the right to modify the

technical specifications of this machine without any notice.

For updated information, contact

Braviisol Divisione Meccanica s.r.l.

S.S. 16 Adriatica km. 314,600

60022 Castelfidardo (AN) Italy

Tel. 0039071.7819090 Fax 0039071.7819355

HAZARD AND TERMINOLOGY SYMBOLS

This hazard symbol is necessary to call attention to potential

dangers that could cause injuries. To avoid possible serious

injuries or fatal accidents, comply with all of the safety instruc-

tions that follow this symbol

INDICATES AN IMMINENTLY HAZARDOUS SITUATION,

WHICH IF NOT AVOIDED COULD CAUSE SERIOUS INJU-

RIES OR EVEN FATAL ACCIDENTS. THIS ADHESIVE HAS

A RED BACKGROUND.

INDICATES A POTENTIALLY HAZARDOUS SITUATION,

WHICH IF NOT AVOIDED COULD CAUSE INJURIES OF A

MODERATE ENTITY. IN ADDITION, IT MAY BE USED TO

SIGNAL UNSAFE PROCEDURES. THIS ADHESIVE HAS A

YELLOW BACKGROUND.

INDICATES A POTENTIALLY HAZARDOUS SITUATION,

WHICH IF NOT AVOIDED COULD CAUSE SERIOUS INJU-

RIES OR EVEN FATAL ACCIDENTS. THIS ADHESIVE HAS

A BLUE , WHITE OR ORANGE BACKGROUND.

THIS PRODUCT MUST CONFORM TO

ALL OF THE PROCEDURES REGARDING

SAFETY INDICATED IN THE TECHNICAL

BULLETINS.

FOR INFORMATION ON EVENTUAL

TECHNICAL BULLETINS REGARDING

THE SAFETY OF BRAVIISOL DIVISIONE

MECCANICA S.R.L. PRODUCTS BEING

USED, CONTACT BRAVIISOL DIVISIONE

MECCANICA S.R.L., OR ELSE YOUR LO-

CAL AUTHORISED BRAVIISOL DIVI-

SIONE MECCANICA S.R.L. REPRE-

SENTATIVE.

BRAVIISOL DIVISIONE MECCANICA

S.R.L. REGULARLY SENDS TECHNICAL

BULLETINS REGARDING SAFETY TO

THE REGISTERED OWNER OF THE MA-

CHINE.

CONTACT BRAVIISOL DIVISIONE MEC-

CANICA S.R.L TO MAKE SURE THAT

THE INFORMATION RELATIVE TO THE

CURRENT OWNER HAS BEEN UPDATED

AND IS EXACT.

EVENTUAL ACCIDENTS OCCURING

DURING THE USE OF BRAVIISOL DIVI-

SIONE MECCANICA S.R.L. PRODUCTS,

WHICH MAY HAVE CAUSED INJURIES

OR DEATH TO PERSONNEL OR ELSE

SIGNIFICANT DAMAGE TO PROPERTY

OR TO THE SAME BRAVIISOL DIVISIONE

MECCANICA S.R.L. PRODUCTS, ARE TO

BE IMMEDIATELY REPORTED TO

BRAVIISOL DIVISIONE MECCANICA

S.R.L.

For:

• Accident notification

• Publications relating to the safety of

the product

• Updating of the information relative

to the current proprietor

• Questions relating to the safety of

the product

• Information regarding compliance

with standards and regulations

• Questions relating to the special

applications of the product

• Questions relating to the modifica-

tions of the product

CONTACT:

BRAVIISOL

Divisione Meccanica s.r.l.

S.S. 16 Adriatica km. 314,600

60022 Castelfidardo (AN), Italia

Tel. 071.7819090 Fax 071.7819355

Reference Regulations:

2006/42/EG

Dynamic and static tests performed by:

TÜV SUD ITALIA 0948

Document : TUV IT 0948 20 MAC 0168 B

Date : 07/01/2020

Document: 722228860_DC_LUIMINIPA_00_IT

Date: 26.06.2020

DANGER

ATTENTION

WARNING

IMPORTANT

SECTION 1.

SAFETY PRECAUTIONS

1.1 GENERAL INFORMATION

This section illustrates the precautions necessary for the correct and safe use and

maintenance of the machine. To guarantee the correct use of the machine, it is

indispensable to establish a daily routine procedure based on the directions fur-

nished in this manual.

In addition, to guarantee the safe operation of the machine, it is necessary that a

qualified person establish a maintenance program based on the information pro-

vided in this manual and in those for repair procedures and maintenance. Said

program is to be followed scrupulously.

The owner, users, operators, firms offering leasing and those subjects receiving

leasing of the machine must not accept the responsibility for its function before

having read this manual and completed training in the operational procedures,

under the supervision of a qualified, expert operator.

For further information in regard to safety, training, inspection, maintenance, appli-

cation and operation, contact Braviisol Divisione Meccanica s.r.l.

LACK OF OBSERVATION OF THE SAFETY PRECAUTIONS LISTED IN THIS

MANUAL COULD CAUSE DAMAGE TO THE MACHINE , TO PROPERTY AND

SERIOUS OR FATAL INJURIES TO PERSONS

1.2 PRELIMINARY PROCEDURES

Operator Training and Comprehension

• Before using the machine, read the manu-

al thoroughly.

• Use the machine only after having completed training by authorised per-

sonnel.

• Use of the machine is permitted only for authorised and qualified person-

nel, who have carefully read and fully understood the indications of HAZ-

ARD, WARNING and ATTENTION as well as the operating instructions

of the machine found in the manual.

• Use the machine for applications among those anticipated by

BRAVIISOL DIVISIONE MECCANICA S.R.L..

• All operational personnel must become familiar with the commands, con-

trols and emergency functions of the machine specified in the manual.

• Carefully read and obey all of the company rules and local and govern-

mental regulations in force relative to the operation of the machine.

Machine inspection

• Use the machine only after having carried out the functional

inspection checks and verifications. For further indications,

consult Section 2 of this manual.

• Activate the machine only after having carried out all of the

service and maintenance procedures indicated by the re-

quirements specified in the procedure and maintenance

manual.

• Make sure that all of the safety devices function correctly.

Eventual modifications of these devices constitute a violation

of safety regulations.

EVENTUAL MODIFICATIONS OR ALTERATIONS OF THE AERI-

AL WORK PLATFORM MAY BE CARRIED OUT EXCLUSIVELY

SUBJECT TO WRITTEN AUTHORISATION OF THE MANUFAC-

TURER.

• Do not run machines on which the signs or adhesive stickers

indicating safety regulations or instructions are illegible or

missing.

• Avoid accumulations of debris on the floor of the platform.

Avoid that mud, oil, grease or other similar slippery sub-

stances from coming into contact with footwear or the floor of

the platform.

Inspection of the Workplace

• Before using the machine, the operator must take all neces-

sary precautions so as to avoid any hazard in the workplace.

• Do not activate the platform on trucks, semi trailer truck

beds, railroad cars, boats on the water, scaffolds or similar

structures or vehicles, on which BRAVIISOL D.M. SRL has

not approved operation in writing.

• The machine may be operated at temperatures between -20

e 40° C (between 0 e 104° F). Consult BRAVIISOL D.M.

SRL for values relative to operation of the machine at tem-

peratures not included in the range indicated.

WARNING

1.3 OPERATION

General information

• Use the machine exclusively for transport of personnel with

respective tools and equipment for the manual handling of

stock items.

• Do not operate a broken machine. If a malfunction occurs,

turn off the machine.

• Do not suddenly shift the switches or command levers from

one position to the next passing through the neutral position.

Always bring the switch to the neutral position before shifting

it to the position corresponding to the next function. Actuate

the commands using a slow and uniform pressure.

• If there are persons on the platform, allow personnel to re-

lease or activate the machine from the ground only in case

of emergency.

• Make sure that electrical tools are put away properly avoid-

ing their being left hanging by their power cords in the plat-

form work area.

• Before leaving the machine unattended, completely lower

the basket and switch off the machine. Remove the key to

prevent unauthorised use of the machine.

• Transport of passengers on the machine is forbidden.

• During operation, only the operator is permitted to be pre-

sent on the machine.

• The battery fluid is extremely corrosive. Make sure that it

does not come into contact with the skin or clothing.

• Charge the batteries in a well ventilated area.

SECTION 1.

SAFETY PRECAUTIONS

1.4 RISK OF FALLING

• Before using the machine, make sure that all of the safety

railings and gates are attached in their correct positions.

• Keep both feet firmly planted on the floor of the platform.

• Do not set ladders, boxes, steps, boards or other similar

articles on the platform floor in order to increase the range

of action of the same.

• Do not use the lifting group to climb up onto the platform

nor for climbing down from it.

• Pay very close attention when getting onto the platform or

when getting off of it. Make sure that the lifting group is

completely lowered. When getting onto the platform or

when getting off of it, do so facing the machine.

• The operation of the commands, controls and safety sen-

sors, for LUI PKI, have been designed in such a manner

that the operator may always keep "four points of contact"

with the machine: Both hands and both feet MUST BE con-

tinuously in contact with the machine when it is in operation.

• Always keep “three points of contact ” with the machine,

doing so in such a manner that both hands and one foot or

else both feet and one hand are continuously in contact

with the machine when getting on or getting off of it.

1.5 ELECTROCUTION HAZARD

SECTION 1.

SAFETY PRECAUTIONS

The machine is not electrically insulated.

Maintain a distance of at least 3 metres (10 feet) between any part of the ma-

chine and its occupant, with respective tools and equipment, and an electrical

power line or piece of equipment with an electrical charge rated at least 50,000

Volts.

It is necessary to add 0.3 metres (1 foot) for each additional increase equal to or

less than 30,000 Volts.

It is possible to reduce the minimum safe operational distance in presence of

insulating barriers for the prevention of contacts, if those barriers have been ad-

justed to the voltage of the electrical lines they are set to protect.

The barriers must not be a part of the machine nor may they be connected to it.

The minimum operational safety distance may be reduced within the operational

dimensions indicated by the insulating barriers. This distance is to be deter-

mined by a qualified person subject to the company, local and governmental

regulations regarding the undertaking of work operations in the proximity of high

voltage equipment.

1.6 TOPPLING HAZARD

• Before driving the machine, the user must become familiar

with the surface area of the workplace. While driving the

vehicle, do not exceed the slopes or the transversal slopes

permitted.

• Do not raise the platform or drive the machine with the plat-

form raised on a slope or on an irregular or soft surface.

• Before driving onto floors, bridges, trucks or other surfaces,

verify the maximum load bearing values of those.

• Do not exceed the maximum load of the elevated platform.

Distribute cargo uniformly over the cargo compartment and

on the platform.

• Keep the chassis of the machine at a minimum distance of

0.6 metres (2 feet) from holes, rough areas, descents, obsta-

cles, debris, hidden holes and other potential hazards that

may be found on ground level.

• Do not attempt to use the machine as a crane. Do not tie or

bind the machine to any other adjacent structure.

• Do not increase the size of the platform with extensions of

the landing or unauthorised additions. If the area of the ma-

chine exposed to the wind is increased, its stability is de-

creased.

• If the lifting group or the platform become stuck in such a

manner that one or more wheels come off of the ground, it is

necessary to have the operator climb down off of the plat-

form before attempting to free the machine. To stabilise the

machine and have personnel descend from the platform, use

a crane, a fork lift truck or other suitable equipment.

• It is strictly forbidden to go in and out the platform when

raised

VOLTAGE RANGE

(FROM PHASE TO PHASE)

MINIMUM OPERATIONAL

SAFETY DISTANCES m (ft)

From 0 to 50 kV 3 (10)

From over 50 kV to 200 kV 5 (15)

From over 200 kV to 350 kV 6 (20)

From over 350 kV to 500 kV 8 (25)

From over 500 kV to 750 kV 11 (35)

From over 750 kV to 1000 kV 14 (45)

NOTE: These minimum operational safety distances are to be applied

except in cases in which company, local or governmental regulations are

more stringent.

1.7 CRUSHING AND IMPACT HAZARDS

• All personnel, whether operational or on the ground, must wear the

personal safety equipment required by the regulations in force or by

the risk analysis performed in the workplace.

• When the machine is being used or the platform is being raised or

lowered, make sure to observe the distances above, below and on

both sides of the platform itself.

• When the machine is in operation, do not lean out from the platform

railings.

• When driving the machine in areas of limited visibility, have an as-

signed person proceed ahead so as to indicate any eventual hazard.

• When driving, always keep non operational personnel at a distance of

at least 1.8 metres (6 feet) from the machine.

• Adjust the driving speed based upon the following conditions: ground

or floor surface conditions, traffic, visibility, slope, location of other

personnel and any other factors that could constitute a hazard of colli-

sion or personal injuries.

• Keep the braking distances in mind independently of the speed of the

machine.

• Do not drive at high speed in restricted, tight or narrow areas or in

reverse gear.

• Always pay maximum attention so as to avoid that eventual obstacles

collide with the operational commands or the person on the platform

or that they interfere with the same.

• Make sure that the operators of other machines that are elevated or

on ground level are informed regarding the presence of the aerial

platform. Disconnect the electrical power to elevated cranes.

• Advise other personnel not to work, stand, or transit under the elevat-

ed platform. Delineate the floor or ground with appropriate barriers,

as needed.

SECTION 1.

SAFETY PRECAUTIONS

1.8 LIFTING AND TRANSPORT

General information

• During lifting and transport, personnel are prohibited from standing

on the platform.

• Push or tow, for LUI PKI, the machine exclusively in the event of an

emergency, malfunction, power interruption or to load or unload it

and ALWAYS after having unlocked the motor-brake, according to

the instructions found in this manual.

• Before lifting or transport, make sure that the platform has been

completely lowered and is empty.

• During lifting of the machine by way of a fork lift, arrange the forks

exclusively in correspondence to the appropriate areas of the ma-

chine itself. Carry out the lift by way of a fork lift with an adequate

load capacity. For the weights of the machine consult the technical

specifications table in Section 5 - Technical Specifications of the

Machine.

• For lifting information, consult, section 3 - Machine Operation, in this

manual.

10 11

SECTION 2.

PREPARATION AND INSPECTION

2.1 PERSONNEL TRAINING

The aerial platform is a personnel transport device.

Therefore, it is to be used and maintained exclusively by trained and

qualified personnel. Use of the machine is not permitted by persons

under the influence of alcohol or drugs or those subject to attacks of

epilepsy, vertigo or loss of physical control.

Operator training must include what follows:

1. Use and limits of the commands from the platform, from the

ground and emergency commands as well as safety systems.

2. Command and control signage, instructions and warnings at-

tached to the machine.

3. Regulations defined by the employer and by government regu-

lation.

4. Use of the approved anti-fall protection device, when needed.

5. Sufficient knowledge of the mechanical function of the ma-

chine to recognise a true or potential malfunction or break-

down.

6. Safe methods for the use of the machine when encountering

super-elevated obstacles, other equipment or obstacles in

movement, dips, holes and inclined descents.

7. Methods for the avoidance of hazards from unprotected elec-

trical conductors.

8. Requirements for a particular job or a particular application of

the machine.

Training supervision

Training must be given under the supervision of a qualified person, in

an open area, free of obstacles. It must continue until the trainee is

capable of using the machine safely.

Operator responsibility

The operator must be instructed regarding the responsibility and the

authority to turn off the machine in case of malfunction or breakdown or

in the presence of other unsafe conditions, relative to both the machine

and the workplace.

NOTE: The manufacturer or the distributor must make qualified person-

nel available for training both at the time of delivery of

the first units and afterwards, if requested by the end user

or the by assigned personnel.

2.2 PREPARATION INSPECTION AND MAINTENANCE

BRAVIISOL provides information relative to machine inspection, indicated in

the following table 2.3.

For further information regarding the aerial work platforms, consult local

regulations.

The frequency of inspections and maintenance procedures must increase

according to necessity: when the machine is used under adverse environ-

mental conditions, with greater frequency or for difficult or particularly de-

manding jobs.

2.3 PRELIMINARY INSPECTIONS BEFORE START UP

The inspection prior to use includes the following operations:

1.Cleaning – Verify and check for any eventual leaks (oil, hydraulic fluid or

battery acid) or for foreign objects on any of the surfaces.

Warn maintenance personnel of any apparent leaks.

2. Signs and adhesive stickers – Check and verify that these are all clean

and legible.

Check that no sign or adhesive sticker is missing.

Make sure that any sign or adhesive sticker that is not legible is cleaned

or substituted. (See "Application of the adhesive stickers" in Section 3).

3. Use and safety manuals – make sure that the following manuals are

present in the weather resistant compartment (PIC. 2.A):

Use and Safety Manual,

4. Outline of complete daily inspection – (See Section 2.4).

5. Battery – Charge as needed (See Section 3.5).

6. Hydraulic oil – The level of the hydraulic oil in the reservoir can vary

according to the temperature of the oil. That is, in a cold machine, it is pos-

sible that the Oil level will not reach the FULL mark on the dip stick.

Lift and lower the elevator several times to obtain a more precise reading of

the level on the dip stick.

When the hydraulic oil is heated up, verify the reading on the dip stick,

which should indicate a level equal or near the FULL mark.

• DO NOT FILL BEYOND THE FULL MARK.

• ALWAYS TOP UP the oil if its level is below the mark - ADD.

12 13

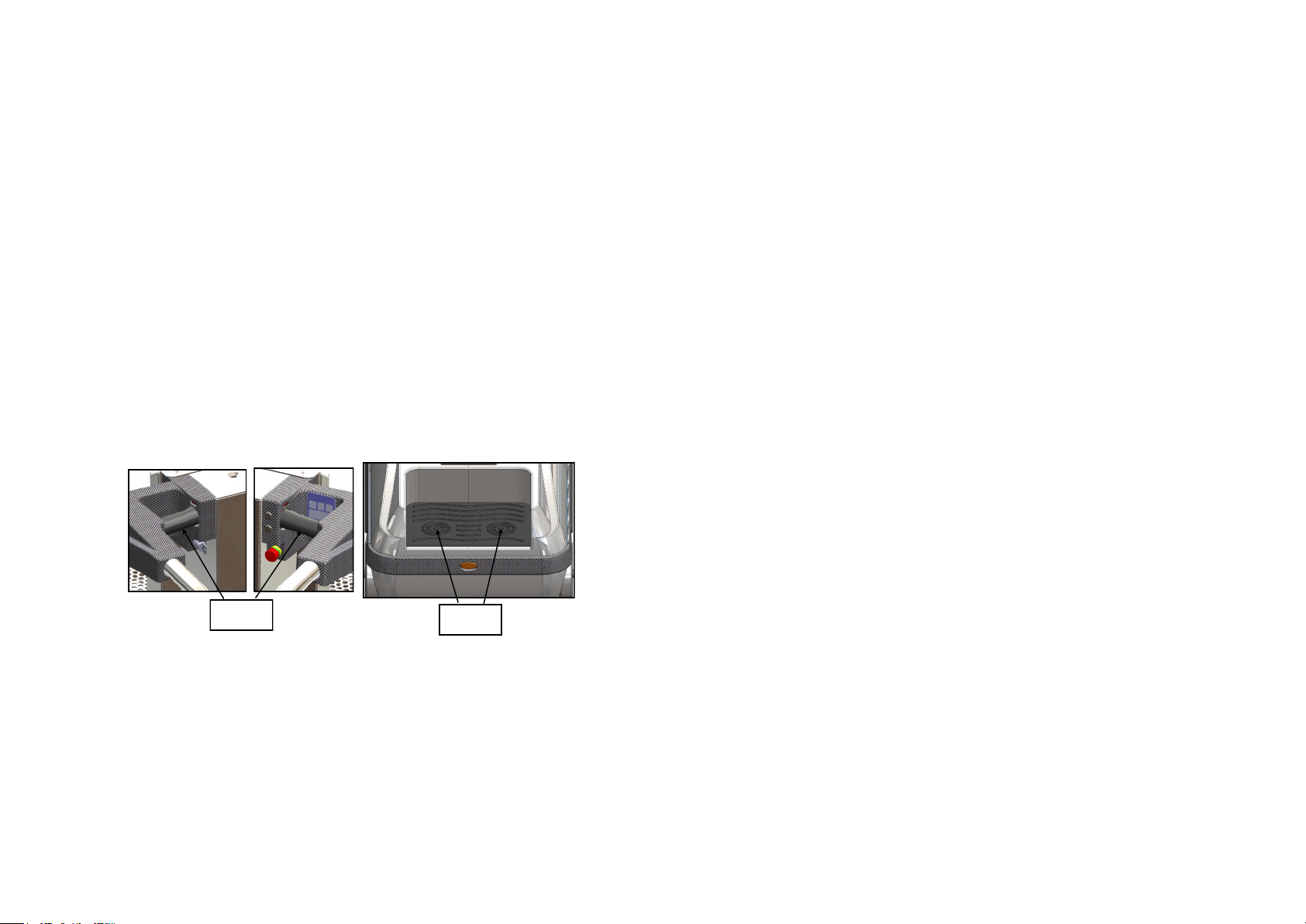

2.A

NOTE:

Check the level of the hydraulic oil with the ma-

chine having the basket lowered, from the sight

glass found under the cover. If necessary, top up

with a mineral oil with a viscosity index of 22 (for

climactic conditions with very cold temperatures,

that is, below -20°C, the use of mineral oil with a

lower freezing point , about –45°C, is rec-

ommended.

Attention Pollution Hazard

Do not dispose of the oil into the environ-

ment.

TABLE 2.3

2.4 COMPLETE DAILY INSPECTION

TO AVOID POSSIBLE INJURIES, MAKE SURE THAT THE ELECTRICAL

POWER SUPPLY OF THE MACHINE IS TURNED OFF DURING THE IN-

SPECTION. DO NOT USE THE MACHINE BEFORE ANY AND ALL MAL-

FUNCTIONS HAVE BEEN REPAIRED.

DO NOT NEGLECT THE VISUAL INSPECTION OF THE LOWER PART OF

THE BASE FRAME.

CHECK AND VERIFY THAT THERE ARE NO FOREIGN OBJECTS OR DE-

BRIS THAT COULD CAUSE SERIOUS DAMAGE TO THE MACHINE.

The operator must not accept the responsibility of operating the machine until

this manual has been read and understood in each of its parts and a first test-

drive of the vehicle has been taken under the supervision of a qualified expert

operator.

Only authorised personnel and qualified operators may operate this machine.

This manual and its attachments must be considered an integral part of this ma-

chine and must remain with the machine at all times.

The manufacturer, BRAVIISOL D.M. SRL, has no direct control over the utilisa-

tion of the machine.

Utilisation of the machine according to safety regulations is the responsibility of

the end user.

It is the responsibility of the operator to make a thorough inspection of the ma-

chine before each use.

The purpose of the complete daily inspection is to check and verify that the ma-

chine is in order, to ascertain the absence of anomalies, faults or malfunctions

and to determine if routine maintenance is required. If any damage or unauthor-

ised changes to the machine, with respect to how it was delivered, are found,

immediately tag it as such and DO NOT USE IT.

TYPE FREQUENCY MAIN RESPON-

SABILITY

QUALIFICATION

FOR SERVICE

REFERENCE

PRELIMINARY

INSPECTION

FOR START

Before each day of

work, or else at

each change of

operator.

User or operator User or operator Safety and Use Man-

ual page 59, 60 and

relative Inspection

Forms

PERIODIC

INSPECTION

At an interval of 3

months or 150

hours, according to

the circumstances,

or else if the ma-

chine has not been

used for over 3

months or else if it

has been pur-

chased used.

Owner, conces-

sionary or user.

BRAVI Qualified

Mechanic

Safety and Use Man-

ual page 57, 58, Ser-

vice and Maintenance

Manual and relative

Inspection Forms

ANNUAL

INSPECTION

Annual, within 13

months from the

last inspection

Owner, conces-

sionary or user.

BRAVI Qualified

Mechanic

Safety and Use Man-

ual page 61 Service

and Maintenance

Manual and relative

Inspection Forms

WARNING

14 15

SECTION 2.

PREPARATION AND INSPECTION

2.5 BEFORE EVERY USE

• Make sure that all of the manuals are in their weather resistant

manual box on board the machine.

• Make sure that the tag with the serial number of the platform as

well as all of the adhesive safety stickers are in their place, and

that they are all perfectly integral and legible.

• Inspect the machine in order to ascertain the absence of anoma-

lies, welding cracks, faults or malfunctions or any damage or

unauthorised changes to the machine, with respect to how it was

delivered by the manufacturer.

• Check and verify the basket, the platform railings, check that the

entry gate functions properly and that it closes completely and

automatically.

• Check the water level in the batteries and make sure that there

are no leaks. The battery cables must be correctly connected to

the terminals. There must not be any corrosion on them.

• Check and verify by testing that all of the safety and personal

protection devices function properly.

• Check and verify that the tires show no damage, abrasions or

deep cuts. Check and verify that there is no debris attached to

the wheels, tires or around them.

• Visually inspect the hydraulic, electrical and mechanical compo-

nents. For each component make sure that all of its parts are

present, not loosened and fixed solidly in their respective posi-

tions and that there are no visible leaks, signs of excessive wear

or damaged areas.

• Check and verify that there are no wires or cables that have

come loose and that hang from the underside of the vehicle.

• Check and verify the correct operation of the key switch in the

basket.

• Check and verify the operation of the emergency stop buttons:

those that are found on the command panel in the basket and

the one on the chassis control panel.

• Check and verify, by testing, the proper operation of the manual

descending emergency lever.

2.6 FUNCTIONAL VERIFICATIONS

At the end of the “complete inspection”, carry out a functional verification of all

of the systems in an area that is free of super-elevated or ground level obsta-

cles.

For further indications on operation, consult Section 3 of this manual.

IF THE MACHINE DOES NOT FUNCTION PROPERLY, TURN IT OFF IM-

MEDIATELY.

NOTIFY THE PERSONNEL ASSIGNED TO MAINTENANCE OF THE

PROBLEM. DO NOT USE THE MACHINE UNTIL IT HAS BEEN DE-

CLARED SUITABLE FOR SAFE OPERATION.

Functional verification elements

1. From the ground command panel, without a load on the platform, per-

form the following operations:

a. Actuate the ground commands: the raising and the lowering of

the platform.

b. Make sure that all of the machine functions have been disabled

when the emergency stop button is activated (pressed).

c. Check and verify the proper function of the manual descending

emergency lever.

2. From the platform command panel, perform the following operations:

a. Raise and lower the platform from 0.61 to 0.92 several times.

Check and verify that the raising and the lowering of the platform come

about in a regular manner. Check and verify that with the raising of the

basket the driving is acti vated in automatic slow safety speed (only for

LUI PKI) or the brake release is deactivated (only for LUI MINI P.A.)

b. Actuate all of the functions and check and verify the correct

operation of all of the limit switches, the general emergency

switches and the actuation switches.

c. Vehicle brakes - (only for LUI PKI) Drive the vehicle on an slope

(not exceeding its nominal operational capacity on the grade)

then stop it, so as to make sure that the brakes will hold on an

incline.

WARNING

16 17

SECTION 2.

PREPARATION AND INSPECTION

SECTION 3.

OPERATION OF THE MACHINE

3.1

THE MANUFACTURER HAS NO DIRECT CONTROL WHATSOEVER ON

THE APPLICATION OR THE OPERATION OF THE MACHINE.

THE USER AND THE OPERATOR ARE HELD TO FOLLOW THE COR-

RECT SAFETY PROCEDURES.

This section provides information necessary for the comprehension of the

operational command functions.

3.2 DESCRIPTION OF THE MACHINE

The order picker is a truck with an elevating operator position intended for

picking operations (manual picking and storage of goods from shelves);

The main command panel is located on the platform.

This lifting device is an electrical, self-propelled (LUI PKI) or push around

(LUI MINI P.A.) vehicle and it is equipped with an aerial work platform,

mounted on a strut elevation mechanism, actuated by a special single hy-

draulic cylinder with a synchronised effect.

From the platform command panel, the operator may drive the vehicle (only

for LUI PKI) and lift up or lower the platform. The LUI PKI is equipped with

an electrically actuated cargo lift area controlled by two easily accessed

buttons located on the side of the machine, which allow the operator to

raise and lower the cargo platform, which is reserved only for objects and

materials, without leaving his or her position.

The LUI MINI P.A. is equipped with a manually actuated cargo lift area con-

trolled by an easily lever located underneath the cargo shelf, which allow

the operator to raise and lower the cargo platform, which is reserved only

for objects and materials.

The LUI PKI has two drive wheels in the rear and two castor wheels in

front.

It is necessary to use the ground programmable command station panel

when the machine is being serviced or functional verifications are per-

formed or in case of emergency, if the operator on the platform is not capa-

ble of lowering it.

The LUI MINI P.A. has two free castor wheels in the rear and two self brak-

ing wheels in front. It is necessary to use the ground command station

when the machine is being serviced or functional verifications are per-

formed or in case of emergency, if the operator on the platform is not capa-

ble of lowering it.

NEVER MANOEUVRE THE LUI MINI P.A. WITH A PERSON INSIDE THE

BASKET

3. Slope alarm limit: with the platform completely lowered, drive the

vehicle on a slope greater than 1.5° in any direction (not exceeding

its nominal operational capacity on a grade). The alarm of the vehi-

cle will indicate a sloped condition in the event of an attempt to raise

the platform.

4. Transmission speed reduction limit: If the platform is raised for

more than 0.4 m (1.5 - 2 ft), the transmission velocity is reduced by 1/4

compared to the transmission speed for the lowering of the platform

( only for LUI PKI)

5. Platform gate opening limit: The entry gate is equipped with springs

on both of its wings that automatically close the entry gate as soon as

they are released.

6. Left/right handle and footswitch sensor - The machine operates (it

moves and it is raised) exclusively if the operator keeps his or her

hand resting on the left and right side handle (pic.A) and with both

heels pressing on the footswitches positioned on the platform (pic.B).

This safety position is to be maintained throughout all operations of the

machine (only for LUI PKI)

7. Make sure that all the machine functions have been

disabled when the emergency stop button is activated (pressed).

18 19

SECTION 2.

PREPARATION AND INSPECTION

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bravi Platforms Système de levage

Bravi Platforms

Bravi Platforms SPRINT LUI MINI T.L. Manuel utilisateur

Manuels Système de levage populaires d'autres marques

morse

morse 82H-124 Manuel utilisateur

Braun

Braun NL955 Series Manuel utilisateur

haacon

haacon 1889.10 Manuel utilisateur

Protekt

Protekt AT 252 Manuel utilisateur

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuel utilisateur

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuel utilisateur

Genie

Genie Z-60/34 Manuel utilisateur

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuel utilisateur

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuel de programmation

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuel de programmation

BERG

BERG BeNomic EasyLeaf Manuel utilisateur

Powermate

Powermate LiftGate LG-3 Manuel utilisateur

Snorkel

Snorkel TM12 Series Manuel utilisateur

Terberg

Terberg OMNIDEKA Manuel utilisateur

Harmar Mobility

Harmar Mobility AL625 Mode d'emploi

Rotary

Rotary SPO16 Manuel utilisateur
