Gas Built-in Domino

Model – TG1089XC

INSTALLATION INSTRUCTIONS

(FOR REGISTERED GAS INSTALLER ONLY)

USER AND OPERATOR INSTRUCTIONS

Installation must be in accordance with manufacturers’ instruction, relevant

Gas Fitting Regulations, AGA Installation Code for Gas Burning Appliances

and Equipment and any codes and regulations.

These instructions should be read carefully prior to initial use and retained in

a safe place in order that full advantage can be taken of the features of your

DOMINO







ANY SERVICING OF THE DOMINO & INSTALLATION MUST

BE CARRIED OUT BY A REGISTERED GAS INSTALLER.







YOUR HOB IS DELIVERED PRE-SET FOR TOWN GAS USE

A – English B - 中文

INSTALLATION INSTRUCTIONS

DATA PLATE DETAILS:

The data plate is located on the front side of the tray.





According to the Gas Safety Regulations of Hong Kong, any gas installation

works including the installation of appliances and connection tubing, must be

undertaken by registered gas installers who are registered for that appropriate

classes and be employed by registered gas contractors.

CHECK THAT THE DATA PLATE SHOWS THAT THE APPLIANCE IS

SUITABLE FOR THE AVAILABLE GAS SUPPLY.

1. Before installing the appliance check that the location provides the required

clearances from combustible materials and if necessary provide protection to

adjacent surfaces as required by the regulations. Make provision for the gas

supply to be connected in the position shown in Diagram A.

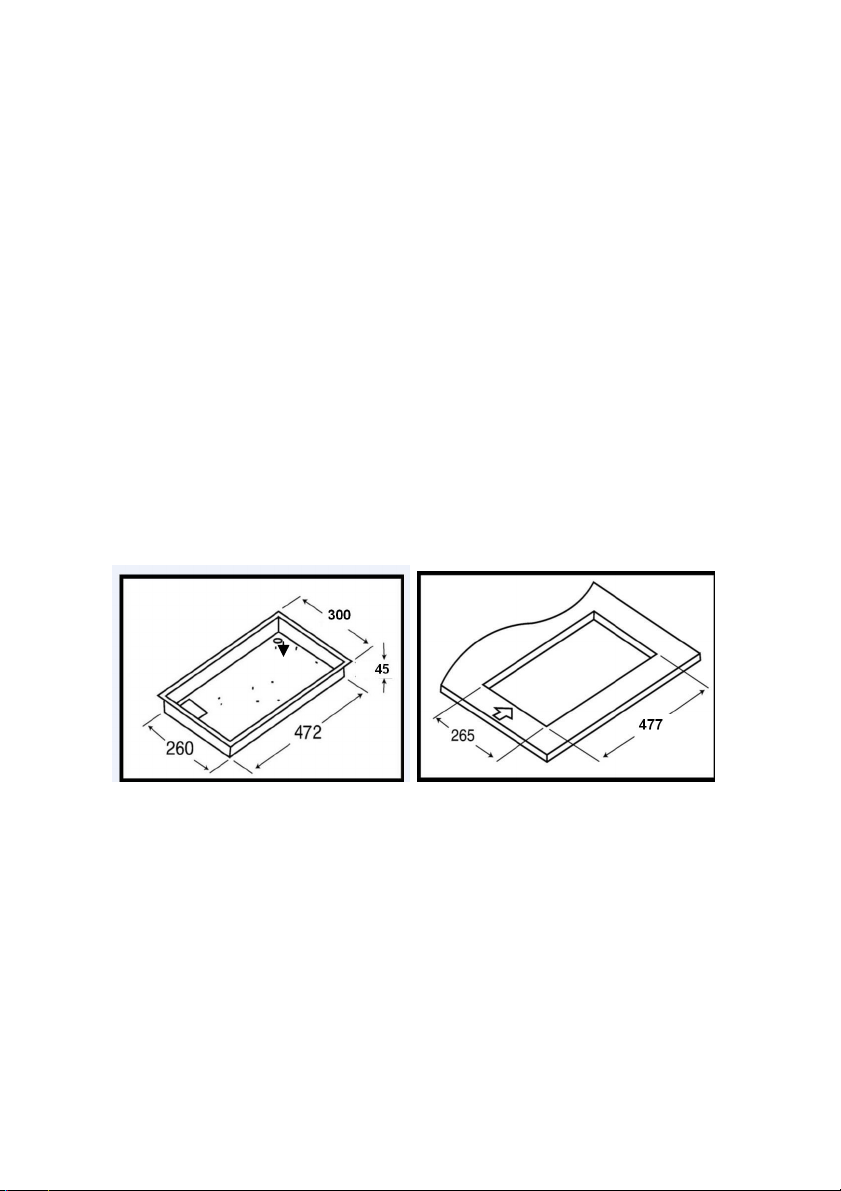

Diagram A Diagram B

Tray Dimensions (unit in mm) Cut out (unit in mm)

2. Cut the opening in the bench top to the dimensions shown in diagram B. The hob

must be built into the worktop of a support cupboard. This worktop must be at least 3

cm thick and heat-resistant or else coated with a heat resistant material. (Refer

Diagram C.) A side-clearance of at least 30 cm should be left to the right and left of

the hob. A tall cupboard or partition too close to the hob would hinder free movement

of kitchen utensils. If a horizontal partition is put under the hob, it must be placed

between 10 and 15 cm from the bottom of the worktop. In any case, do not keep any

sprays or pressurized containers in the compartment, which could be just under the

hob. Place the hob unit into the opening in the worktop by carefully pulling it

onwards you. Put the burners, caps and pan grates back into position.

Gas

supply

Diagram C

Overall dimension

description

If clearance between side

and rear walls and

periphery of the burner is

less than 150mm, the wall

must be protected with a

non-combustible material.

The protection must extend

a minimum distance of

450mm above the burner.

Horizontal surfaces less

than 730mm vertically

above the Domino must

also be protected.

Keep all natural air-vents open or have a mechanical ventilation system installed (a

mechanically ventilated hood).

- Prolonged, intensive use of the hob may require extra ventilation; by opening a window for

example or producing more efficient ventilation by increasing the power of the existing

mechanical ventilation (a minimum air input 2m3/hr per kW of gas energy is required)

For example: 5.0kW (total power) X 2 = 10 m3/h minimum flow rate required

3. Install the Domino in the cut-out (See diagram B).

4. The gas connection to the external gas governor is 1/2”BSP. Please ensure

sealing gasket/washer is in place while connecting to gas supply pipe.

Gas inlet

5. Test the appliance:

•Depress the control knob and turn to full flame setting.

•The burner will ignite. Adjust control knob to desired setting. Normally,

no adjustment should be necessary.

•If any problems occur, refer to the fault isolation chart.

6. Instruct the user to keep the users instructions manual.

If the above test does not produce satisfactory results, the agent’s service department should

be consulted for more specialized assistance.

7. The Domino is fitted with the flame failure device that cuts off the gas supply when

burner flame extinguishes suddenly or abnormally in order to avoid the gas leakage.

8. Room Ventilation

When installing built-in gas hob on top of stove cabinet, please check that there is provision

for ventilation at the cabinet to ensure proper operation of the gas hob.

9. Gas Connection

According to the Gas Safety Regulations of Hong Kong, any gas installation works

including the installation of appliances and connection tubing, must be undertaken by

registered gas installers who are registered for that appropriate classes and be employed by

registered gas contractors.

10. Town Gas Connection

Use approved gas tubing bearing EMSD approval marking (such as :

機電工程署批准

EMSD APPROVAL GTXXXX) for connection to appliances, or other appropriate methods

accepted by EMSD. The appliance shall be connected with external gas governor (brand:

Beckley, model 2300, working pressure 1kPa).

OPERATING INSTRUCTIONS

The Domino is unique in its burner design and layout. It is fitted with the ultra hi-speed

burner. This model is specifically designed for WOK COOKING. It delivers up to one and

a half times the flame heat and spreads compared to normal hi-speed burners. Burner retain

normal simmer cooking facilities. The widely spaced positioning of TG1089XC allows for

the use of large woks.

IGNITION

This Domino is equipped with electronic ignition and is operated by depressing the control

knob and turning it a quarter turn anti-clockwise.

CONTROLS

The Domino has the control knob, which is situated, at the front of the glass plate. A large

and small flame graphic on the glass plate next to the control knob indicates the “full on”

and “pre-set” simmer positions.

BURNER OPERATION

1. Depress the control knob anti-clockwise to the FULL-ON position.

2. When the burner has ignited, adjust the control knob to the required setting. Flame

adjustment is achieved by rotating the control knob further in an anti-clockwise fashion

towards the pre-set simmer position.

3. If the burner flame accidentally goes out, the gas continues to exit for a few moments

before the safety device activates. Turn the control knob to the off position and do not

attempt ignition for at least 1 minute, thereby letting the gas disperse, which could otherwise

be a danger.

BATTERY REPLACEMENT

1. Open the battery holder cover flap

2. Remove old battery

3. Replace with new 1.5 Volt “D” size battery noting correct polarity

4. Close cover flap

CLEANING

-Allow the Domino to cool before attempting to dismantle or clean it. The glass plate is

best cleaned with a cloth, using warm soapy water. Use of abrasive powders and pastes

should be avoided as far as possible, but when necessary use only a mild abrasive. For

removal of hardened grease, very fine steel wool, wetted and liberally soaped, can be

used.

-Caustic solutions, washing soda, aerosol spray cleaners, bleach and some biological

cleaners are detrimental to some surface finishes and care must be taken not to apply

them to the burner bodies and caps.

-Do not wash burner caps in a dishwasher

-For ease of cleaning, remove spillage from the bowls as soon as possible. Control

knobs may be pulled off for cleaning beneath them, but take care not to allow water to

enter the holes in the glass plate.

-When re-assembling the spillage bowl always ensure that it is correctly located over the

spark electrode. Care should be taken to keep the electrode clean and avoid damage to

the porcelain insulator when removing the spillage bowl during cleaning.

HINTS ON THE USE OF THE DOMINO

Utensils should always be placed centrally on the pan supports and over the

burners.

Flames, which extend beyond the bottom of utensils are wasteful and can damage

or overheat handles. Large diameter utensils (greater than 200mm in diameter)

must not be allowed to protrude beyond the perimeter of the Domino, as this could

cause overheating or damage to the adjacent bench.

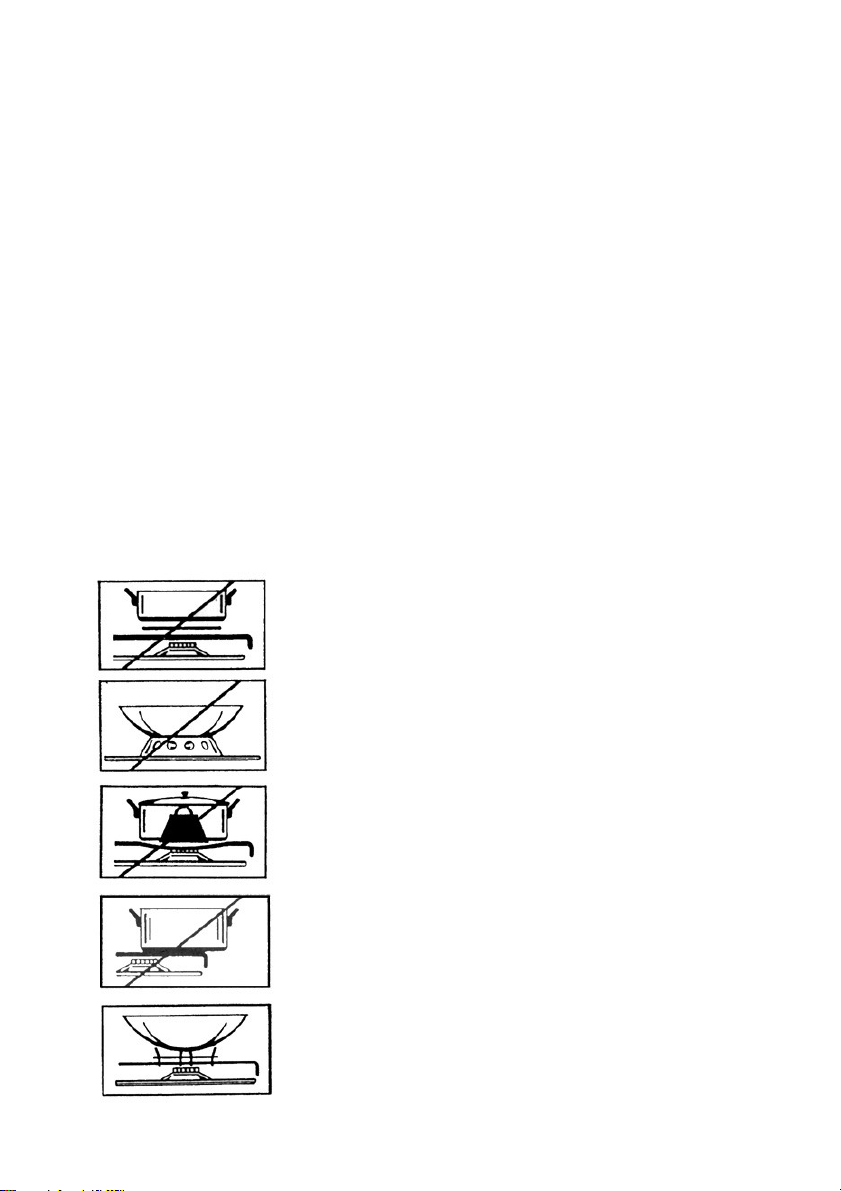

Do not place anything, e.g. flame tamer, asbestos mat,

between pan and pan support as serious damage to the

appliances may result.

Do not remove the pan support and enclose the burner

with a wok stand as this will concentrate the flame and

deflect the heat onto the Domino.

Do not use large pots or heavy weights, which can bend

the pan, support or deflect the flame onto the Domino.

Locate pan centrally over burner so that it is stable and

does not overhang the appliance.

Use only wok support supplied or recommended by the

manufacturer of the appliance.

SAFETY HINTS

Always turn pan handles to the side or back of the Domino – not out into the

kitchen where they can easily be knocked.

Do not wear loose fitting garments while the burners are in operation, due to the

possibility of fabric ignition, which may result in personal injury.

RECOGNISING ABNORMAL OPERATION

In the event of any failure, before calling your service agent,

Please check the following:

NO IGNITION: Check if anything is obstructing the electrode metal tip.

NO GAS: Check that the gas is turned on at the mains meter.

BURNER FLAME

NOT BURNING EVENLY: Check the burner head is sitting evenly and that

the slots in the burner head are not obstructed.

In the event that you are not satisfied with the Domino, the distributor in your

region should be consulted.

IMPORTANT:





ANY SERVICING TO THIS APPLIANCE MUST BE CARRIED

OUT BY A REGISTERED GAS INSTALLER

The glass top is high resistant but not totally unbreakable:

avoid any bumps with saucepan.





SHOULD A CRACK APPEAR ON THE GLASS, PLEASE STOP USING

YOUR APPLIANCE IMMEDIATELY AND CONTACT YOUR AFTER-

SALES SERVICE.

ANY SERVICING TO THIS APPLIANCE MUST BE CARRIED

OUT BY A REGISTERED GAS INSTALLER

D.C. Battery pack

Check the data label affixed to your unit to ensure the

correct model has been supplied.

Design and specification may change due to product improvement. No prior notice will be given.

If there are any queries, please feel free to contact our service center.

Please refer to the English version of this manual as the standards.

WARNING:

-Do not spray aerosols in the vicinity of this Domino while it is in operation.

-Some propellant gases can break down when heated and produce corrosive vapors,

which will attack some materials.

-Do not store any flammable materials, sprays or pressurized containers inside the stove

cabinet.

-The silicone rubber gasket should not be removed under any circumstances. In the

event that any protective rubber gasket is dropped off or damaged, the consumer should

cease forthwith the use of the unit until it is duly rectified.

-Do not store articles within 50mm of the bottom of the Domino casing.

-Do not touch spark igniter while lighting the burner.

-The appliance shall not be used as a space heater.

-The panel of this built-in hob is made of tempered glass which is safer than normal

glass for this application. However, the following safety precautions for using built-in

hob with glass top panel should also be noted in order to prevent the glass top panel

from breaking

：

1. Clean the burner assembly frequently to maintain a clear gas passage on the flame

distributor. Clean and tidy up the flame distributor after spillage of food and liquid

once the burner assembly cooled down.

2. Turn off the gas appliance immediately if abnormal noise propagates from the gas

appliance and contact gas supply company or gas hob importer for inspection.

3. Do not use oversized utensils for cooking.

4. Do not impact the glass surface with hard objects or place heavy objects on the glass

surface.

SERVICING INSTRUCTIONS

(For registered gas installer only!)

MINOR ADJUSTMENTS

Access to By Pass Screw

Access to manifold, gas taps and burner

assembly

Light the burner and turn to minimum

setting (marked small flame).

The flame should be stable on minimum

setting and should not extinguish when

passing from ma

ximum setting to low

setting.

If adjustment is necessary, remove the

control knob by pulling upward. The

bypass screw is accessible via the

control knob spindle. Turn the bypass

screw anti-

clockwise to increase the

turndown rate.

Remove glass hob and co

ntrol knobs.

To remove gas cocks. Unscrew the

locking nut (between cock and

burner). Remove screws, the cock can

now be removed from the manifold. If

access to the barrel is required, remove

two screws, which retain spindle to

body. If lubricating the

mechanism

use Regosine Moly LM or other

approved grease.

FAULT ISOLATION CHART (For registered gas installer only!)

FAULT

CAUSES

REMEDY

Burner will not light

Air in gas line

2. Blockage in line

3. Ignition not sparking

4. Flame failure device faulty

5. Check the battery

(applicable

to DC version)

Purge gas line

2. Trace back and clear

3. Check lead and electrode

4. Replace thermocouple and test

5. Replace the battery

Burner lights back to

injector

Excessive lint up of burner

mixing tube

Excessive gas pressure

Remove and

clean burner

2. Check gas pressure.

Burner has explosive

ignition

Excessive gas pressure

Check gas pressure.

Igniter not sparking

Electrode gap

2. Igniter connections

Check gap, adjust if not

between 4-5mm

2. Check connections to igniter,

replace if faulty.

In case you have any problem or enquiry, please contact the after service team of the

local distributor or gas supplier for assistance

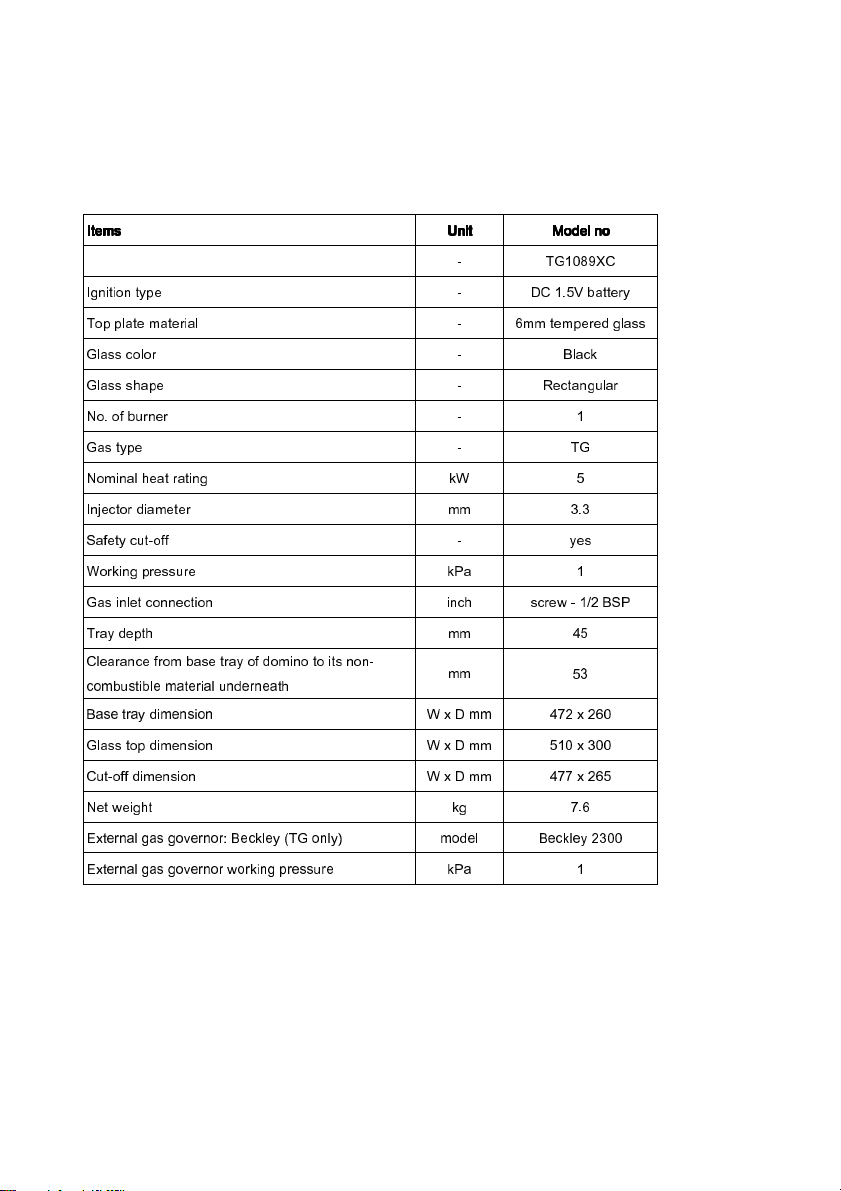

SPECIFICATION TABLE

Items

ItemsItems

Items

Unit

UnitUnit

Unit

Model no

Model noModel no

Model no

- TG1089XC

Ignition type - DC 1.5V battery

Top plate material - 6mm tempered glass

Glass olor - Bla k

Glass shape - Re tangular

No. of burner - 1

Gas type - TG

Nominal heat rating kW 5

Inje tor diameter mm 3.3

Safety ut-off - yes

Working pressure kPa 1

Gas inlet onne tion in h s rew - 1/2 BSP

Tray depth mm 45

Clearan e from base tray of domino to its non-

ombustible material underneath mm 53

Base tray dimension W x D mm

472 x 260

Glass top dimension W x D mm

510 x 300

Cut-off dimension W x D mm

477 x 265

Net weight kg 7.6

External gas governor: Be kley (TG only) model Be kley 2300

External gas governor working pressure kPa 1

Table des matières

Autres manuels Brandt Plaque

Brandt

Brandt TE 602 XF1 Fiche technique

Brandt

Brandt BPI6426X Manuel utilisateur

Brandt

Brandt BPI6413BM Guide de démarrage rapide

Brandt

Brandt IB 61 Manuel technique

Brandt

Brandt TI302BS1 Manuel utilisateur

Brandt

Brandt TE 602 WF1 Fiche technique

Brandt

Brandt BPE3410X Guide de démarrage rapide

Brandt

Brandt TE 1416 Series Manuel utilisateur

Brandt

Brandt TI200 Manuel utilisateur

Brandt

Brandt TV222 Manuel utilisateur

Brandt

Brandt bpi1621ub Manuel utilisateur

Brandt

Brandt TV 1024 Manuel utilisateur

Brandt

Brandt BPI1641PB Manuel utilisateur

Brandt

Brandt TG2231BEL Fiche technique

Brandt

Brandt BPI184HUB Manuel utilisateur

Brandt

Brandt TI213BS1 Manuel utilisateur

Brandt

Brandt BPG3400W Guide de démarrage rapide

Brandt

Brandt TV1021 Guide de démarrage rapide

Brandt

Brandt BPV2320B Manuel utilisateur

Brandt

Brandt TI1033B Manuel utilisateur

Brandt

Brandt TG1120B Guide de démarrage rapide

Brandt

Brandt BPI164HUX Manuel utilisateur

Brandt

Brandt TG528BC1 Manuel utilisateur

Brandt

Brandt BPI6390B Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
