GUIDE FOR INSTALLATION AND USE EN

Cooking gas hob

BPG6220*

Dear Customer,

You have just acquired a BRANDT product and we would like to

thank you.

We have designed and made this product with you, your lifestyle and

your requirements in mind so that it meets your expectations. We

have devoted our know-how, our innovative spirit and the passion

that has been guiding us for over 60 years.

In an effort to ensure that our products meet your requirements

in the best possible way, our Customer Relations department is at

your disposal, to answer all your questions and to listen to all your

suggestions.

Visit our website www.brandt.com where you will ﬁnd our latest

innovations, as well as useful and complementary information.

BRANDT is delighted to assist you every day and hopes you get the

most out of your purchase.

Important: Before using your appliance, read this user guide

carefully to familiarise yourself more quickly with its operation.

Contents

Using your hob in complete safety ................................ page 4

Whats’your hob looks like ................................................. 7

Installation your hob in all simplicity............................... 7

●Fitting recommendations.................................................................... 7

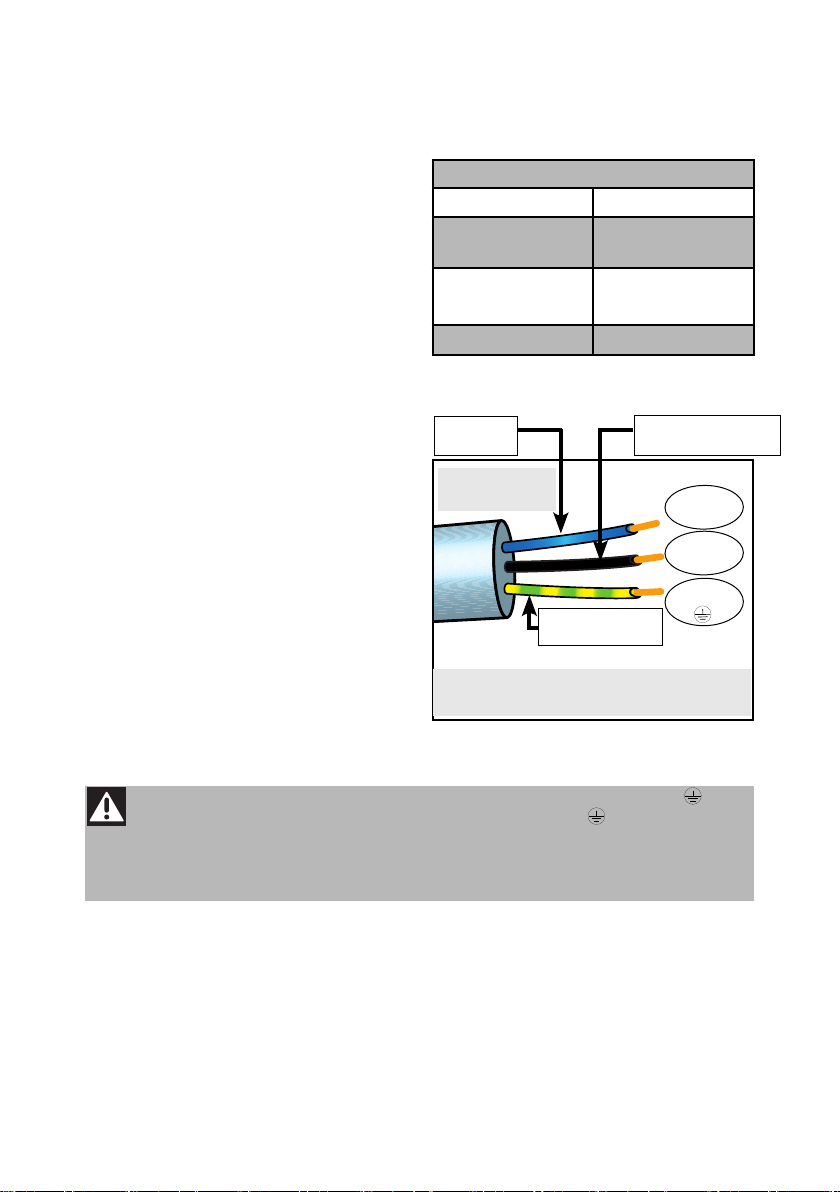

●Electrical connections......................................................................... 10

●Connecting the gas supply................................................................. 11

●Changing the type of gas (LPG)......................................................... 13

Using your hob in all simplicity ........................................... 15

●How to use your gas burners ............................................................. 15

●Pans to use ? ..................................................................................... 16

How to look after your hob ? ............................................ 17

Minor troubleshooting ........................................................ 18

Gas cooking guide ...................................................................... 19

After sales service ..................................................................... 20

In the manual :

Display safety instruction

Display tips and hints

YOUR HOB IS DELIVERED PRE SET FOR USE WITH TOWN GAS 10 mbar

IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND RETAIN FOR

FUTURE USE.

This guide can be downloaded from the brand web site.

WARNING : this appliance may be used by children aged 8 years and older,

and by persons with impaired physical sensorial or mental capacities, or

without experience or knowledge, if they are supervised or have received

priorinstructions on how to use the appliance safely and have understood

the risks involved.

Children must not be allowed to play with the appliance.

Cleaning and maintenance operations must not be carried out by children

without supervision.

Children must be supervised to ensure that they do not play with the

appliance.

It must be possible to disconnect the appliance from the power supply,

either using a plug or by ﬁtting a switch on the ﬁxed wiring system in

accordance with installation rules.

The electrical plug must remain accessible after installation.

If the power cable is damaged, it should be replaced by the manufacturer,

its after-sales service department or by a similarly qualiﬁed person in

order to avoid danger.

Do not use steam cleaning appliances.

The appliance is not designed to be switched on using an external timer or

a separate remote control system.

WARNING : leaving a hob unattended when cooking with fat or oil can be

dangerous and could cause aﬁre.

Never try to extinguish a ﬁre with water but switch off the appliance, then

cover the ﬂame with a lid or a ﬁre blanket.

WARNING : ﬁre risk: do not store any items on the cooking surfaces.

This appliance is not connected to a system for evacuating combustion

products. It must be installed and connected in compliance with current

regulations. Particular attention should be given to applicable ventilation

requirements.

Your hob in complete safety

The use of a gas hob produces both heat and humidity in a room. Ensure

that the kitchen is well ventilated: keep mechanical ventilators open.

Prolonged, intensive use of the hob may require additional ventilation, by

opening a window, for example, or ventilating the room more efﬁciently by

increasing the setting on mechanical ventilation, where installed.

Do not use cookware that overhangs the edge of the hob.

This hob has been designed for use by private persons in their homes.

This appliance must be installed in compliance with current regulations

and only used in a well ventilated area. Consult this guide before installing

and using your appliance.

You should never leave cookingunattended.

These hobs are designed exclusively for cooking drinks and foodstuffs and

do not contain any asbestos-based componentparts.

Never leave any or products in the cupboard beneath your hob (aerosols or

other pressurized cans, papers, recipe books, etc.).

If you have a drawer underneath the hob, we recommend avoiding placing

objects in it that are temperature sensitive (plastics, paper, aerosols, etc.).

Prior to installation, ensure that the local distribution conditions (type of

gas and gas pressure) and the appliance’s settings are compatible.

The settings for this appliance are stated on the label inside the wallet or

on the information plate.

Disconnect your hob from both electrical and gas supplies before carrying

out any maintenance operations.

When connecting electrical appliances to a nearby socket, ensure that

the power supply cable is not in contact with any hot surface on the

appliance.

If a knob is difﬁcult to turn, call your installer immediately.

For safety reasons, after use, do not forget to close the main gas valve

for mains gas lines or the valve on the top of your butane/propane gas

cylinder.

Your hob in complete safety

o The conformity CE mark is applied to all these hobs.

o This appliance should be installed by a qualiﬁed technician / installer.

o Never use aluminium foil for cooking. Never place products wrapped in

aluminium foil or in aluminium trays on your hob. The aluminium will melt

and permanently damage your appliance.

o To ﬁnd your appliance’s references easily, we recommend that you note

them on the “After sales Service and Customer Relations” page (this page

also explains where to ﬁnd them on your appliance).

o WARNING: If a crack appears in the surface of the glass, disconnect your

appliance from the power supply to avoid electric shock.

o WARNING: Use only hob guards designed by the manufacturer of the

cooking appliance or indicated by the manufacturer of the appliance in

the instructions for use as suitable or hob guards incorporated in the

appliance. The use of inappropriate guards can cause accidents.

o This hob complies with standard EN 60335-2-6, as it applies to heat build-

up in class 3 appliances and the implications for their installation (in

compliance with standard EN 30-1-1).

CARING FOR THE ENVIRONMENT

This appliance’s packing materials are recyclable.

Recycle them and help to protect the environment by disposing of them

in the council receptacles provided for this purpose.Your appliance also

contains various recyclable materials. It is therefore marked with this

logo to indicate that, in European Union countries, used appliances

must not be mixed with other waste. Appliance recycling organised by

your manufacturer will thus be carried out in optimum conditions, in accordance

with current European directive on waste electrical and electronic equipment.

Consult your local authority or your retailer to ﬁnd the dropoff points for used

appliances nearest to your home. We thank you for your help in protecting the

environment.

Your hob in complete safety

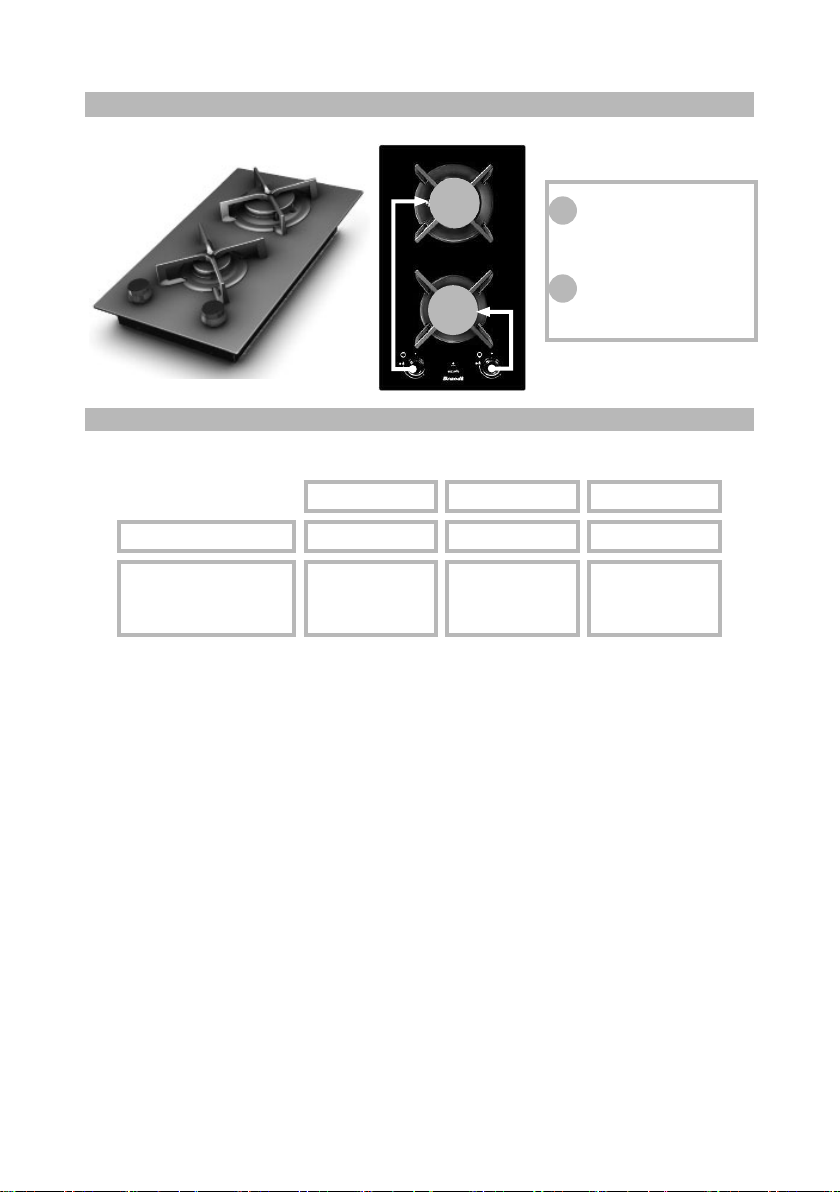

What your hob looks like ?

Installing your hob in all simplicity

2Extra-fast burner

3kW*

1Semi-fast burner

1,5kW*

BPG6220B

Fitting recommendation

Width Depth Height

Standard cutout 26.5 cm 48 cm 5.1 cm

Outside

dimensions above

the work surface

30,5 cm 52 cm 5 cm

According to the Gas Safety Regulations of Hong Kong, any gas installation

works including the installation of appliances and connection tubing, must be

undertaken by registered gas installers who are registered for that appropriate

classes and be employed by registered gas contractors.

Prior to installation, ensure that the local distribution conditions (nature of

the gas and gas pressure) and the adjustment conditions of the appliance are

compatible.

This appliance must be installed and connected in compliance with the regulations

in force, and used only in a well-ventilated area. Consult the instructions before

installing and using this appliance.

Since this appliance is not connected to a combustion products evacuation device,

particular attention should be given to the relevant requirements regarding ventilation.

On this subject, combustion can take place only if oxygen from the air is present, so

this air must be constantly renewed and the combustion products must be evacuated

(a minimum air input of 2 m3/hour per kW of gas energy is required).

E.g.: Hob with 2 gas-rings

Total power: 4.5kW

4.5 kW x 2 = 9m3/h minimum ﬂow-rate.

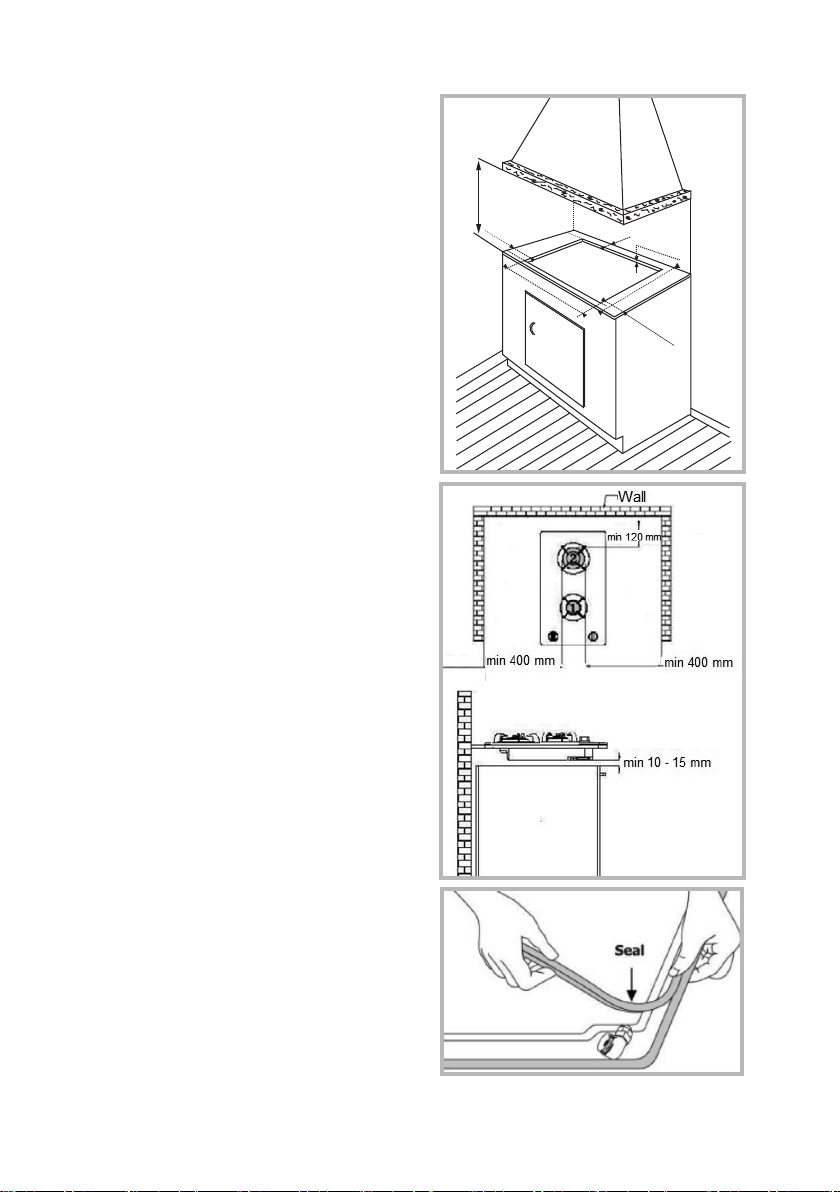

The hob must be built into the worktop of

a support cupboard. This worktop must

be at least 3 cm thick and heat-resistant

or else coated with a heat resistant

material.

Please check that there is provision

for ventilation at the cabinet to ensure

proper operation of the gas hob.

A side-clearance of at least 30cm should

be left to the right and left of the hob,

5.3cm from the rear wall.

And a side-clearance of at least 40cm

should be left to the right and left of the

burner, 12cm from the rear wall.

A tall cupboard or partition too close to

the hob would hinder free movement of

kitchen utensils.

If a horizontal partition is put under

the hob, it must be placed between

10 and 15 mm from the bottom of the

work top. In any case, do not keep any

sprays or pressurized containers in the

compartment which could be just under

the hob.

To ensure sealing between the cupboard

and the worktop follow points below:

1 - Remove the pan support grates, the

burner caps and heads after checking

their position.

2 - Turn the hob over and place it gently

over the opening in the worktop paying

attention not to damage the control

knobs and lighters.

3 - Stick the foam seal around the outside

of the hob.

4 - Put the hob back the right way up and

place the burners, caps and pan grates

back in position.

48 cm mini

3 cm mini

30 cm mini

26,5 cm

5,3 cm mini

70 cm mini

Fitting recommendations (cont’d)

- Place the hob in position in the cutout

on the worktop, pulling it forward as far as

possible.

- Put the bumers, caps and pan grates back

in position.

- Connect the hob power supply cable to the

electrical installation of the kitchen. (See

“Electrical connections”).

- Connect the hob to the gas.

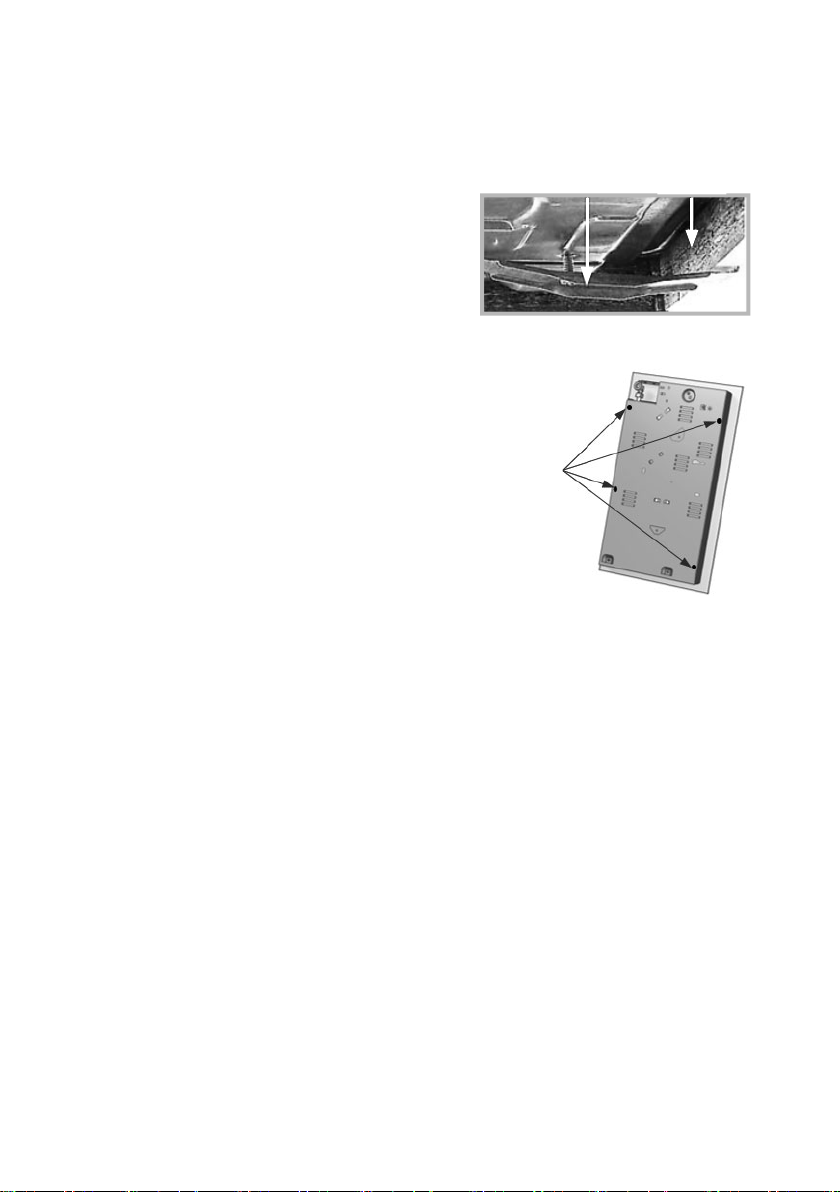

If you wish you can Iock the hob into position

using attachments that come with screws

(see right picture) and are secured to the

corners of the housing.

Only use the holes provided.

Stop screwing when the lug starts to

bend.

Do not use a power screwdriver.

The panel of this built-in hob is made of tempered glass which is safer than normal

glass for this application. However, the following safety precautions for using built-in

hob with glass top panel should also be noted in order to prevent the glass top panel

from breaking :

1. Clean the burner assembly frequently to maintain a clear gas passage on the

ﬂame distributor. Clean and tidy up the ﬂame distributor after spillage of food and

liquid once the bumer assembly cooled down.

2. Turn off the gas appliance immediately if abnormal noise propagates from the gas

appliance and contact gas supply company or gas hob importer for inspection.

3. Do not use oversized ustensils for cooking.

4. Do not impact the glass surface with hard objects or place heavy objects on the

glass surface.

Fixing

lugs Worktop

Holes for

ﬁxing

Electrical connections

Your hob is delivered with a three-

CROSS SECTION OF THE CABLE

TO USE conductor (phase + ground +

neutral) H05WF- T105 or H05V2V2F -

T90 1mm2 section cable, which must be

connected to a 220-240 V~ single phase

mains supply by the intermediary of a two

phase + earth CEI 60083 standardized

neutral plug, or a single pole cut-off

device with a contact opening by at least

3,5mm.

The mains plug must be accessible after

installation.

The safety wire (green/yellow) is connected to the ground terminal of the

appliance and must be connected to the ground terminal of the installation.

The fuse in your set-up must be 5 amperes. If the power cable is damaged, it must

be replaced by a cable or a special kit available from the manufacturer or his After-

Sales Service.

CROSS SECTION OF CABLE TO BE USED

220-240 V~- 50 HZ

Câble H05V2V2F - T90

3 conductors

including 1 ground

Cross section of

conductors in mm21

Fuse 5A

Neutral

(N)

Live

(L)

Ground

Blue wire

H05V2V2F

cable

Black, brown

or red wire

Green/yellow

wire

Connect the wires to the electricity supply

making sure that the different-coloured

wires are in the right order.

Table des matières

Autres manuels Brandt Plaque

Brandt

Brandt TV 1024 Manuel utilisateur

Brandt

Brandt TG1120B Guide de démarrage rapide

Brandt

Brandt BPI1638KB Manuel utilisateur

Brandt

Brandt BPG6210 Series Guide de démarrage rapide

Brandt

Brandt BPV6210B Manuel utilisateur

Brandt

Brandt BPI6413BM Guide de démarrage rapide

Brandt

Brandt TE 1416 Series Manuel utilisateur

Brandt

Brandt ti1000b Manuel utilisateur

Brandt

Brandt BPV2320B Manuel utilisateur

Brandt

Brandt TE217FS1 Guide de configuration

Brandt

Brandt TV1000 Guide de démarrage rapide

Brandt

Brandt BPG6308 Series Guide de démarrage rapide

Brandt

Brandt TV222 Manuel utilisateur

Brandt

Brandt BPE3410X Guide de démarrage rapide

Brandt

Brandt BPI184HUB Manuel utilisateur

Brandt

Brandt TI216 Manuel utilisateur

Brandt

Brandt BPV242 Manuel utilisateur

Brandt

Brandt BPG3400W Guide de démarrage rapide

Brandt

Brandt TI1033B Manuel utilisateur

Brandt

Brandt TI200 Manuel utilisateur

Brandt

Brandt BPG6414 Series Manuel utilisateur

Brandt

Brandt bpi1621ub Manuel utilisateur

Brandt

Brandt BPV6210B Manuel utilisateur

Brandt

Brandt BPV1641B-01 Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
