Direct Connect iPod Adapter
Ford Mustang
Installation Guide
Connection to factory AM/FM/AUX Radio or factory
Satellite Radio
Equipped with Single CD, CD6 or Audiophile RADIO
Or with any of the above plus a SIRIUS SATELLITE RECEIVER
©2007 Brandmotion LLC
1
Contents
1 Congratulations / Contact info
2 Radio Connection
2 Radio Configuration
3 Parts List
3 Tools Required
4 Radio / Adapter Installation Guide
13 Satellite Receiver Connection
13 Satellite Configuration
14 Parts List
14 Tools Required
15 Satellite / Adapter Installation Guide

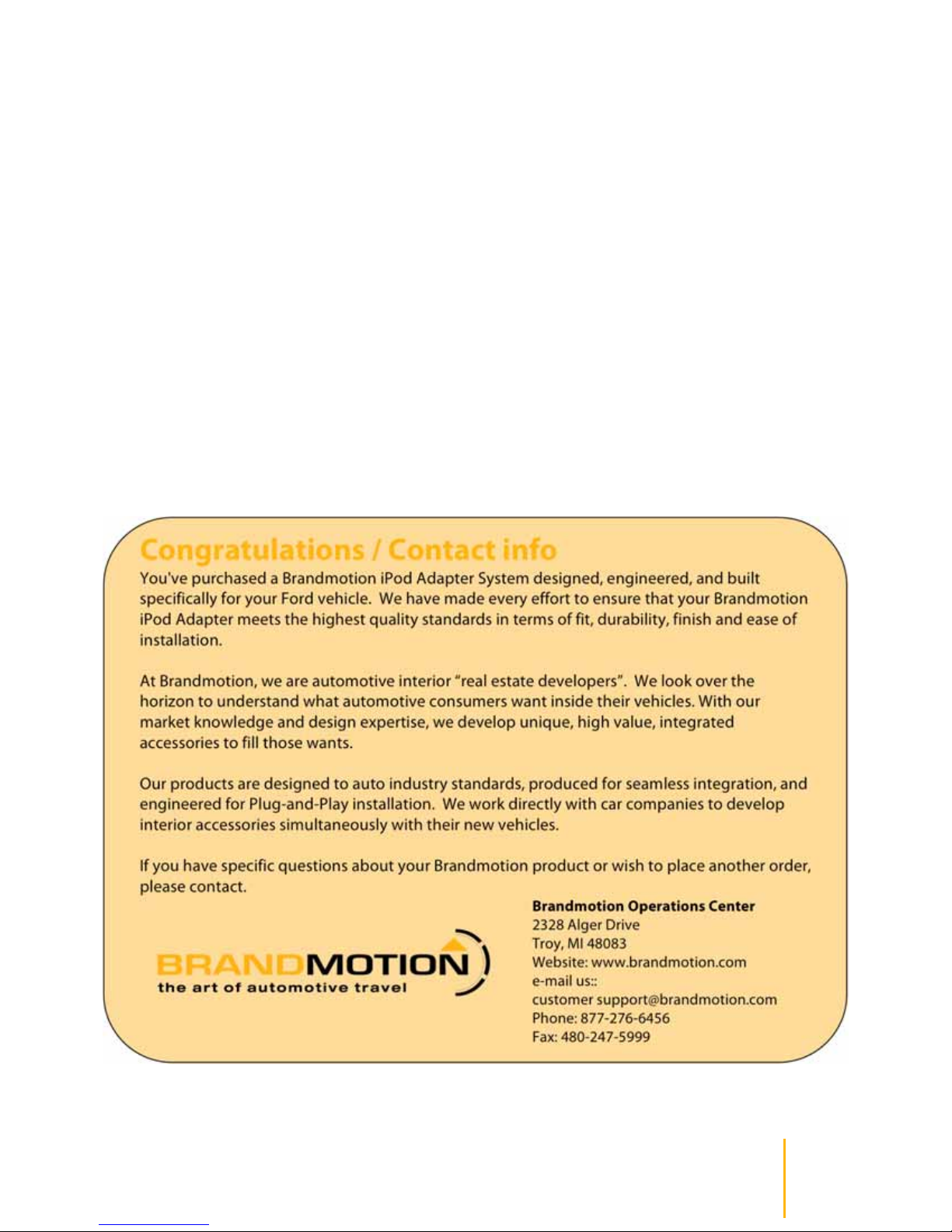

Congratulations / Contact info
You've purchased a Brandmotion iPod Adapter System designed, engineered, and built
specifically for your Ford vehicle. We have made every effort to ensure that your Brandmotion
iPod Adapter meets the highest quality standards in terms of fit, durability, finish and ease of
installation.
At Brandmotion, we are automotive interior “real estate developers”. We look over the
horizon to understand what automotive consumers want inside their vehicles. With our
market knowledge and design expertise, we develop unique, high value, integrated
accessories to fill those wants.
Our products are designed to auto industry standards, produced for seamless integration, and
engineered for Plug-and-Play installation. We work directly with car companies to develop
interior accessories simultaneously with their new vehicles.
If you have specific questions about your Brandmotion product or wish to place another order,
please contact.
Brandmotion Operations Center
2328 Alger Drive
Troy, MI 48083
Website: www.brandmotion.com
e-mail us::
customer support@brandmotion.com
Phone: 877-276-6456
Fax: 480-247-5999
2
Radio Connection
This section pertains to Ford Mustang vehicles that do not have a
factory-installed satellite receiver.
To install the iPod Adapter you will need to access the back of the OEM
radio in your vehicle. Specific instructions for removing the trim in your
vehicle are included in this guide.
If you are not confident that you can safely remove your interior trim to
perform the installation, contact your dealer or a competent mechanic
for assistance.
Radio Configuration

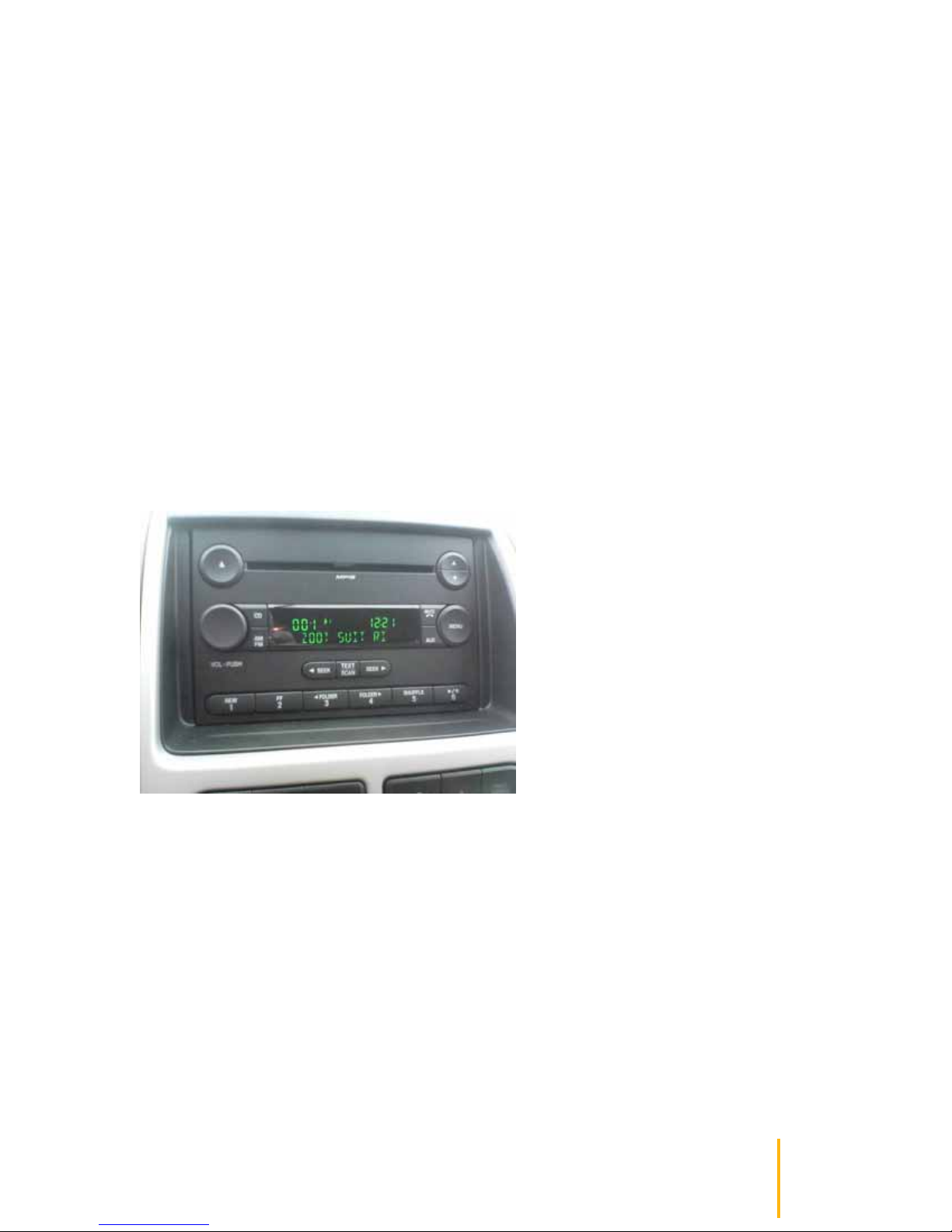

You should be installing you Brandmotion iPod Adapter into a Ford
Mustang with an OEM radio that is similar to this picture.
3

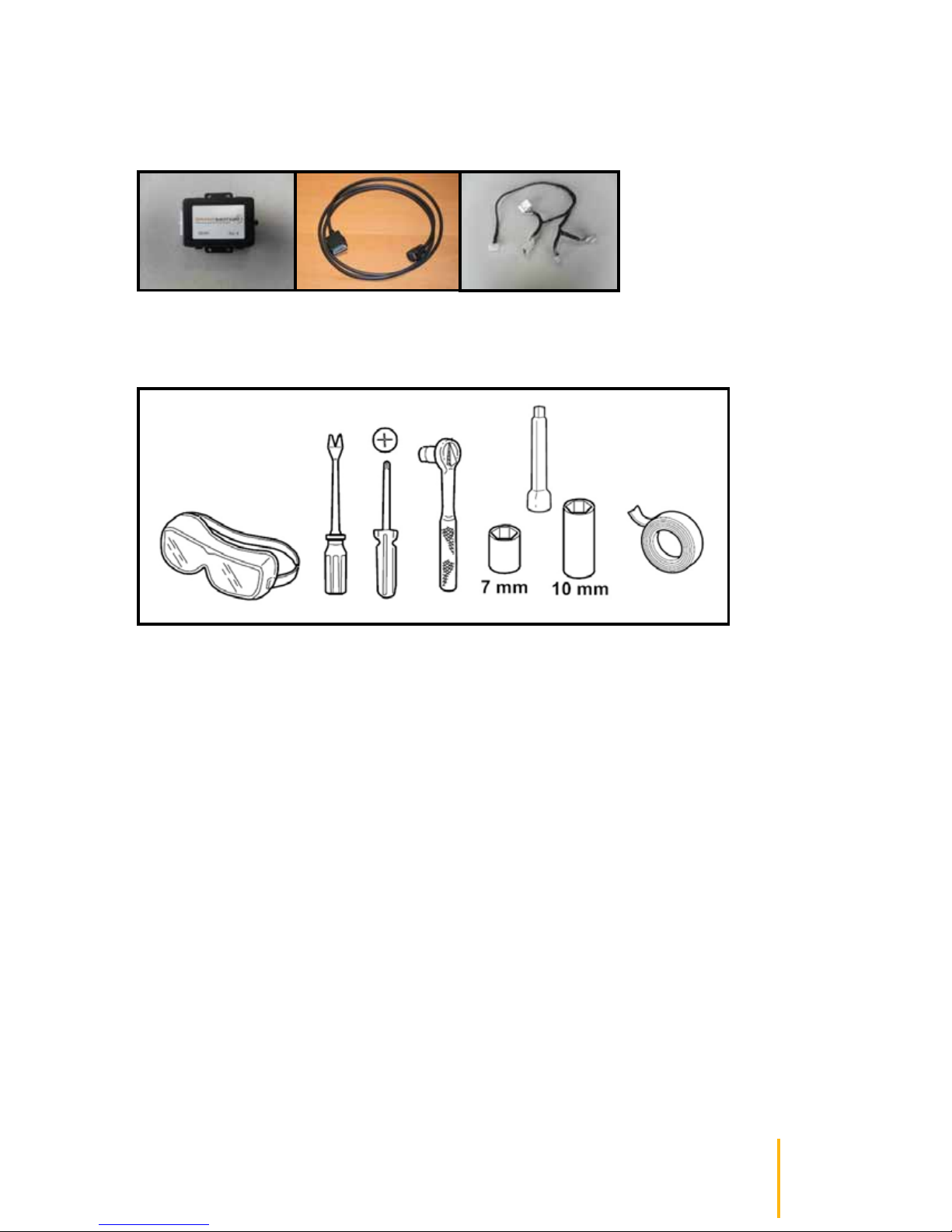

Parts List
Adapter Box iPod Connection
Cable
Radio Short
Harness
Tools Required
4

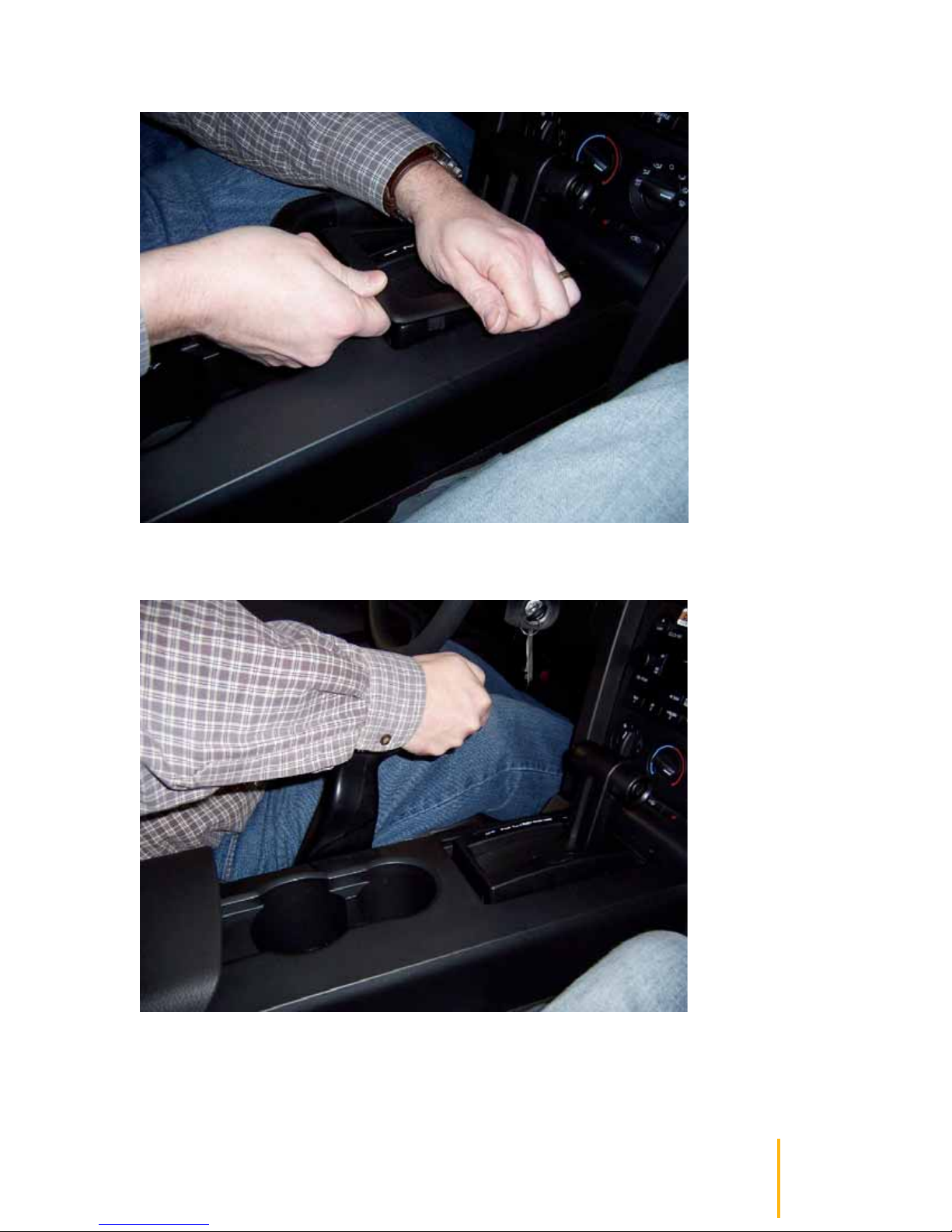

Lift off the shifter trim ring.
Apply the parking brake by lifting up.
5

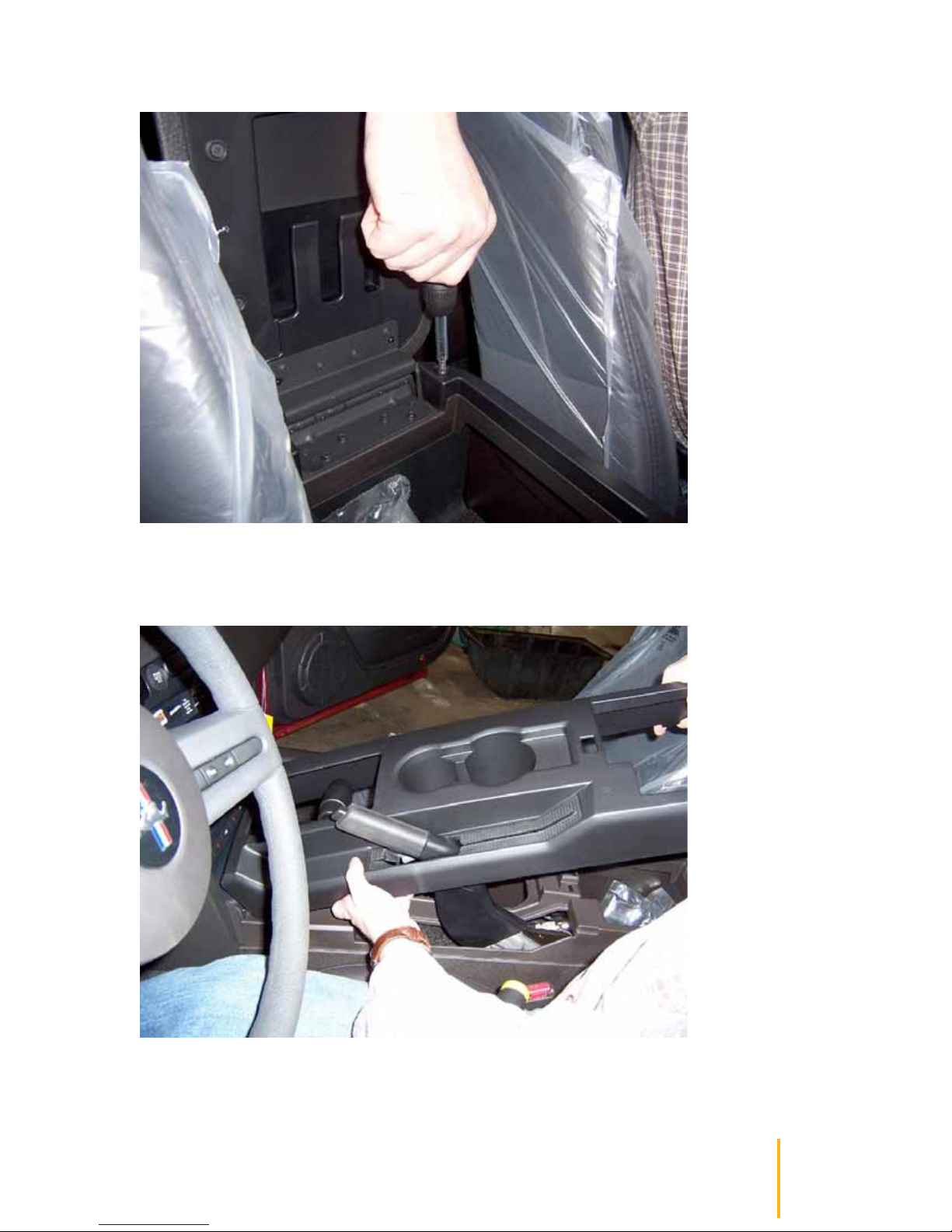

Remove the two Phillips-head fasteners on the rear of the center
console housing.
Lift up the center console housing starting at the rear corners.
6

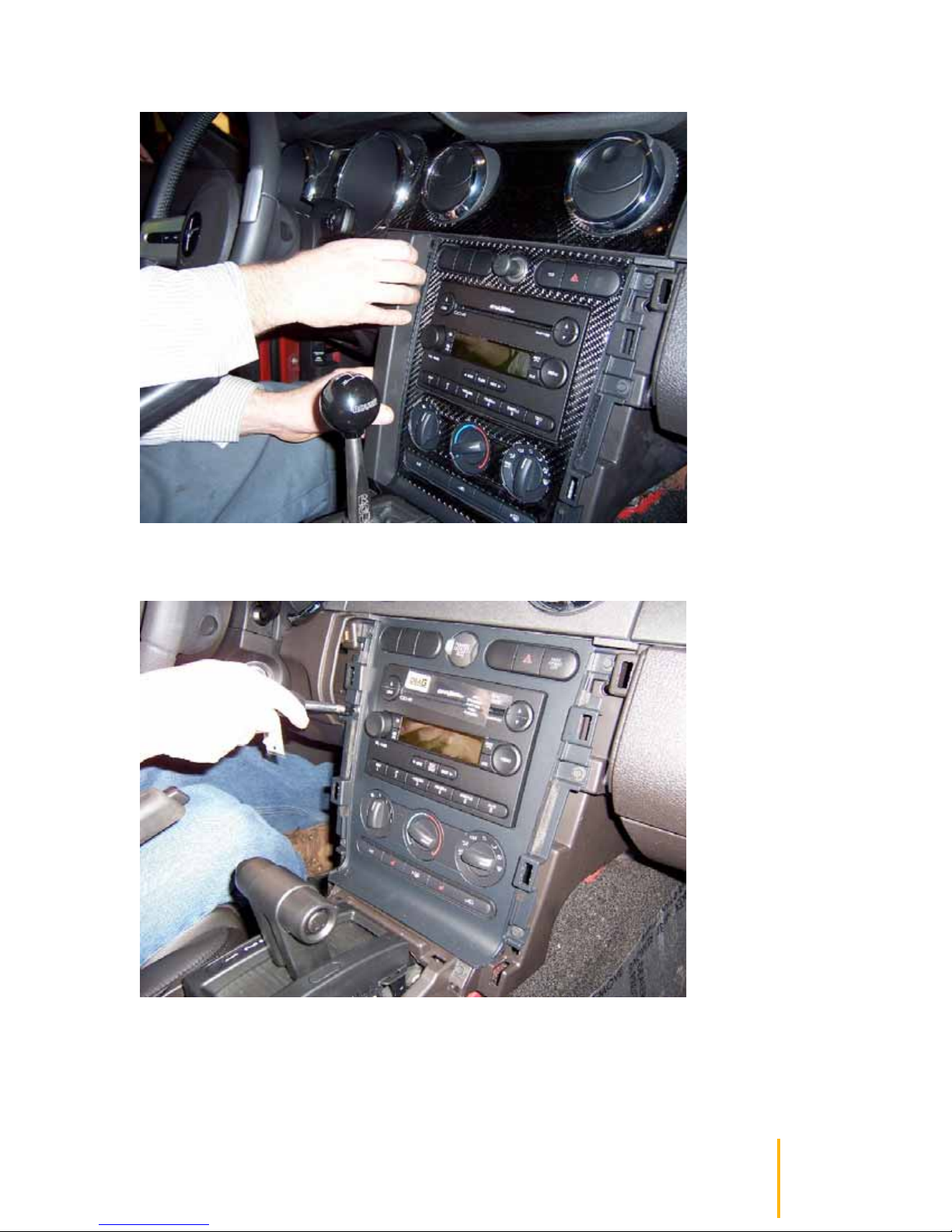

Remove both HVAC trim panels.
Remove the six 7mm hex-head fasteners that hold the HVAC bezel.
7

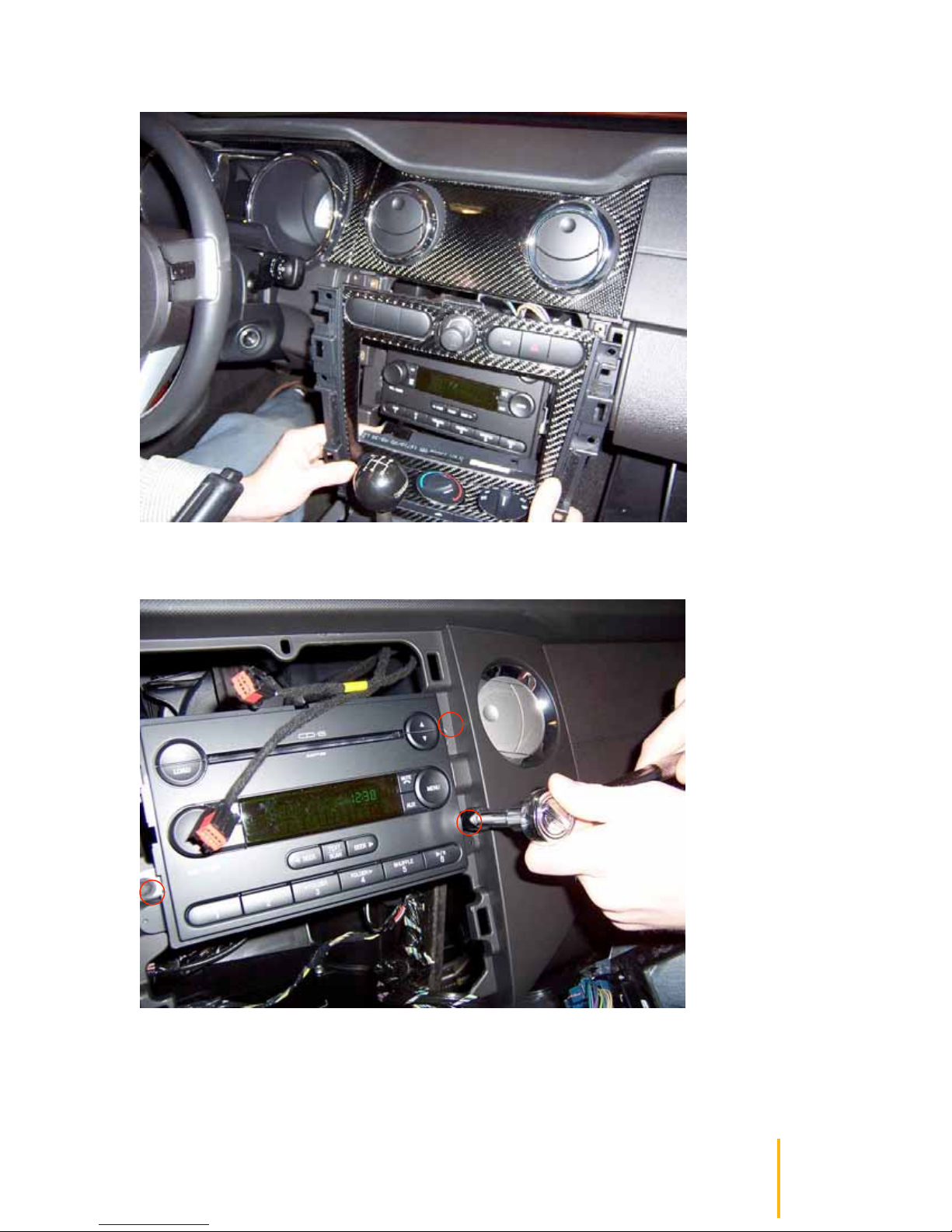

Pry up the HVAC bezel starting at any corner.
Remove the four 7mm hex-head fasteners from the radio.
8

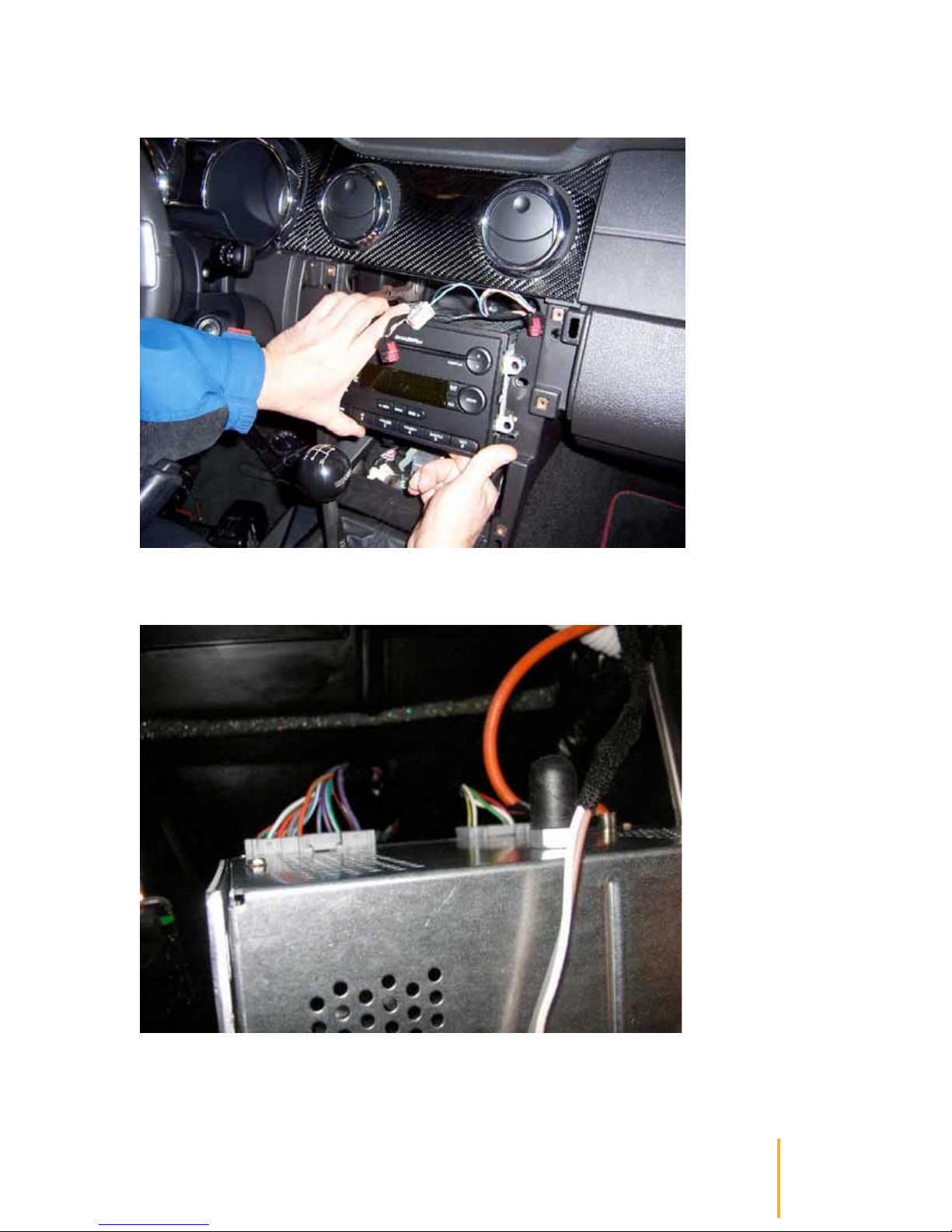

Pull the radio out.
Disconnect the 24 pin & 16 pin connectors from the back of the radio.
9

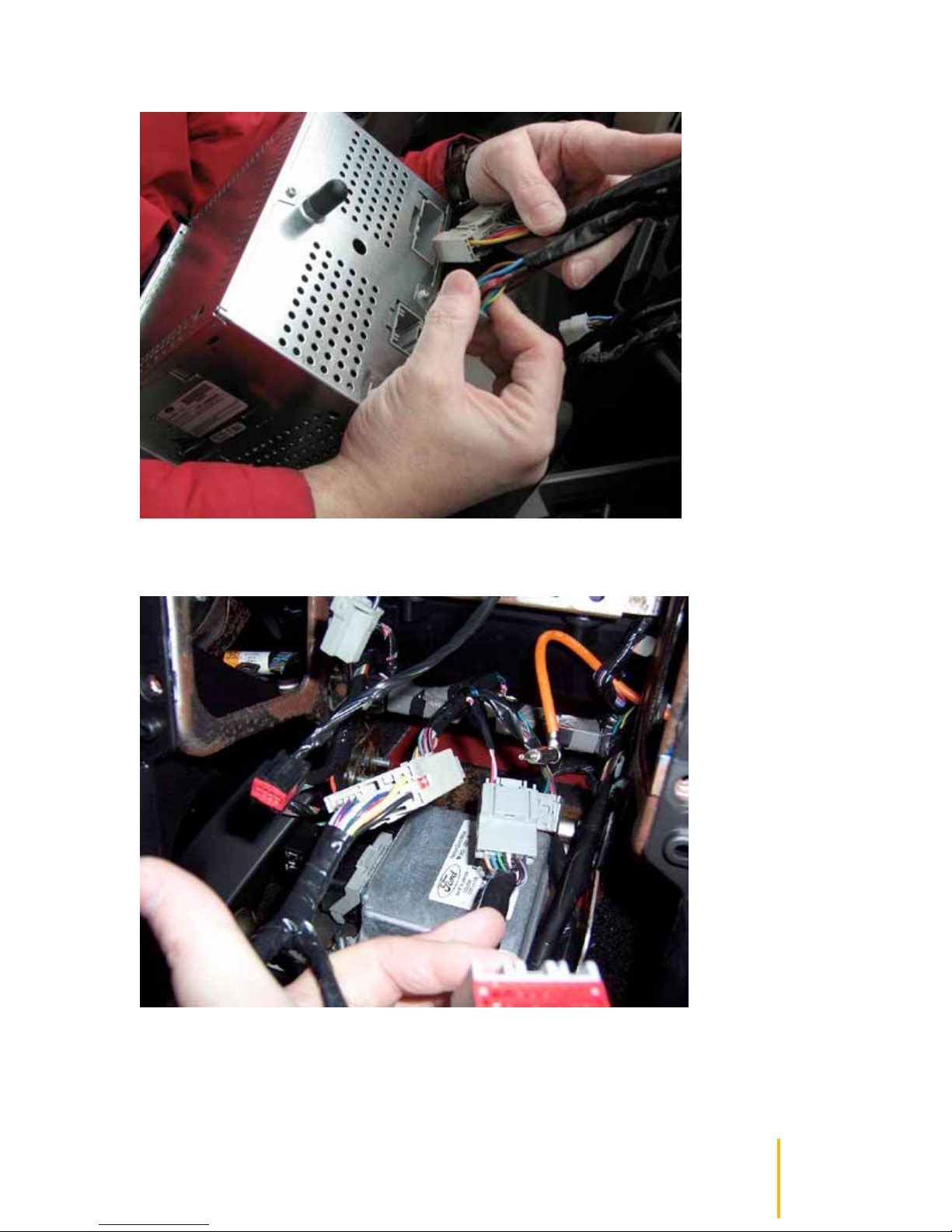

Connect the iPod Adapter Vehicle Harness to the radio.
Connect the other end of the adapter to the vehicle harness.
