Brainlab CURVE 1.2 Manuel utilisateur

...............................................................................................................................................................................................................................................

Note: This document does not replace the user guides.Page 1/4

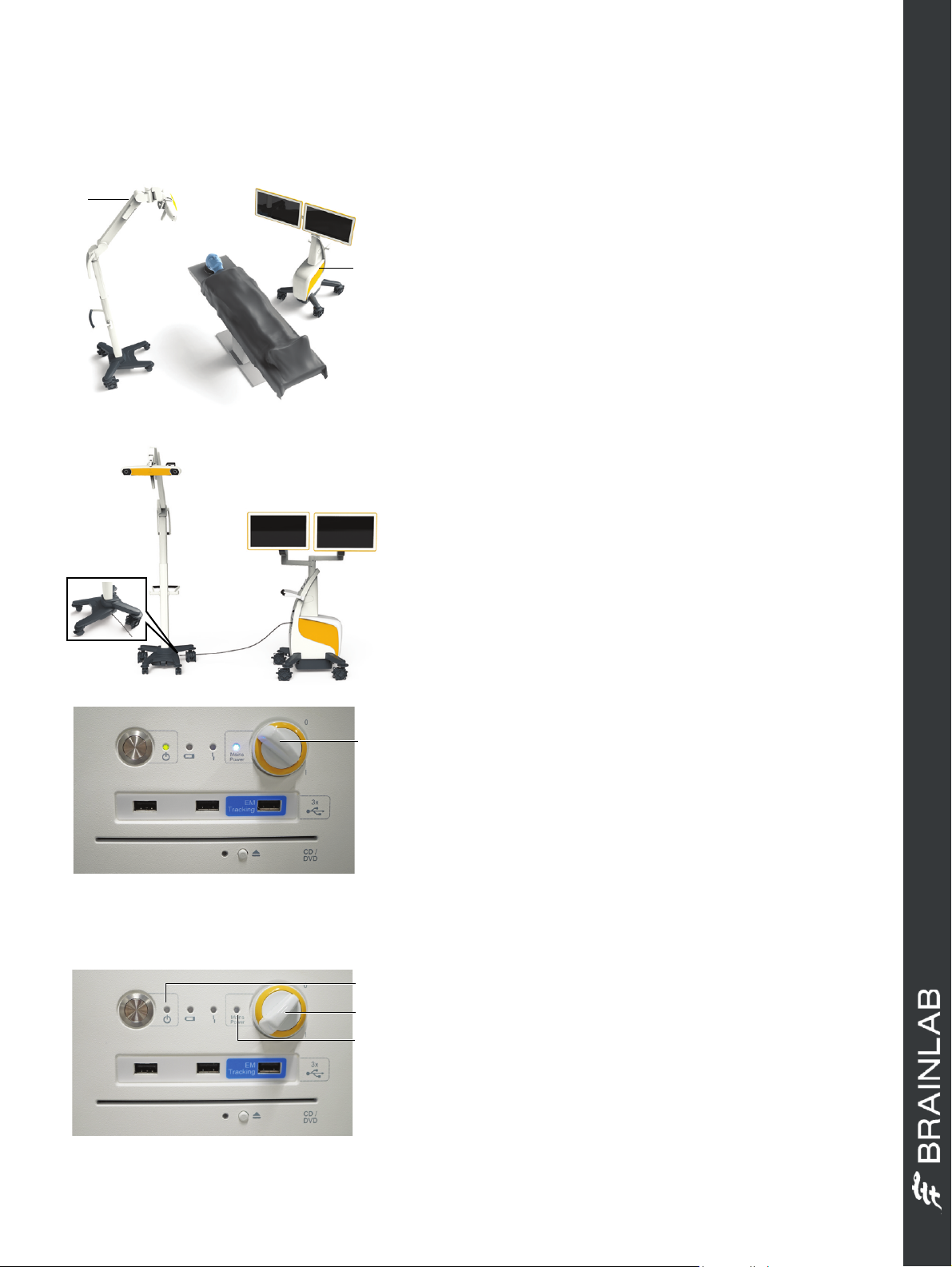

CURVE SYSTEM SETUP

OR SETUP

• Place Camera Cart 1.2 - 1.8 m (4 - 6 ft) away from

the operating field.

NOTE: Do not position any part of the Camera a

and Monitor Carts s directly over the patient.

CONNECT CAMERA CART TO MONITOR CART

• Plug Brainlab’s camera cable into the base of

Camera Cart and connect to the back panel of

Monitor Cart.

• Pull gently at the connector to confirm that it is

locked.

• Plug in mains power cable to wall outlet (not shown).

NOTE: For information on connecting the EM

Tracking unit, refer to the corresponding System

User Guide.

POWER ON CURVE SYSTEM

• Turn on mains power switch on the user panel of

Monitor Cart a.

POWER OFF CURVE SYSTEM

• Exit the software and wait until the power LED a

turns off.

• Turn off mains power switch sand wait until the

mains power LED d turns off.

NOTE: Wait for the system to fully shut down before

turning off mains power switch.

NOTE: After shutting down Curve, wait at least 60

seconds before turning back on again.

Hardware: Curve 1.2

Note: This document does not replace the user guides.Page 2/4

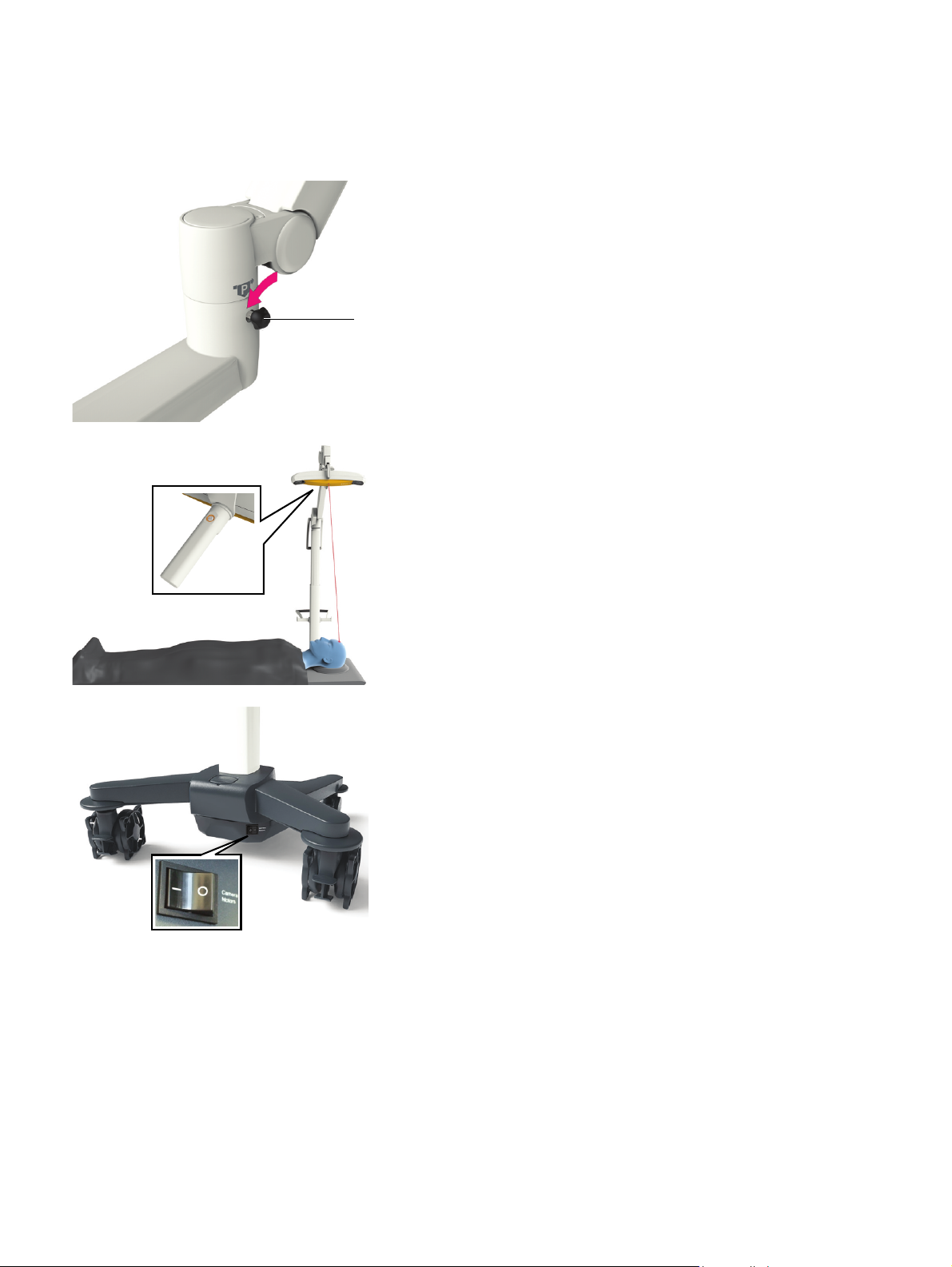

LOCK AND UNLOCK MONITOR POSITION

• Lock each joint by tightening the locking knob a so

that the monitor does not move when touched.

• To unlock, loosen the locking knob a until the joint

moves easily.

ADJUST CAMERA MANUALLY

• Press the laser button on the back of the camera

handle to activate the positioning laser.

• Position the camera using the laser beam so that the

operating field is in the center of the camera field of

view.

NOTE: Instruments must be in the camera field of

view to be tracked.

ADJUST CAMERA WITH CONTROLS

• Ensure the camera motor switch is turned on.

• Use the controls in the software to adjust the

camera. A beep sounds while the camera is moving.

Note: This document does not replace the user guides.Page 3/4

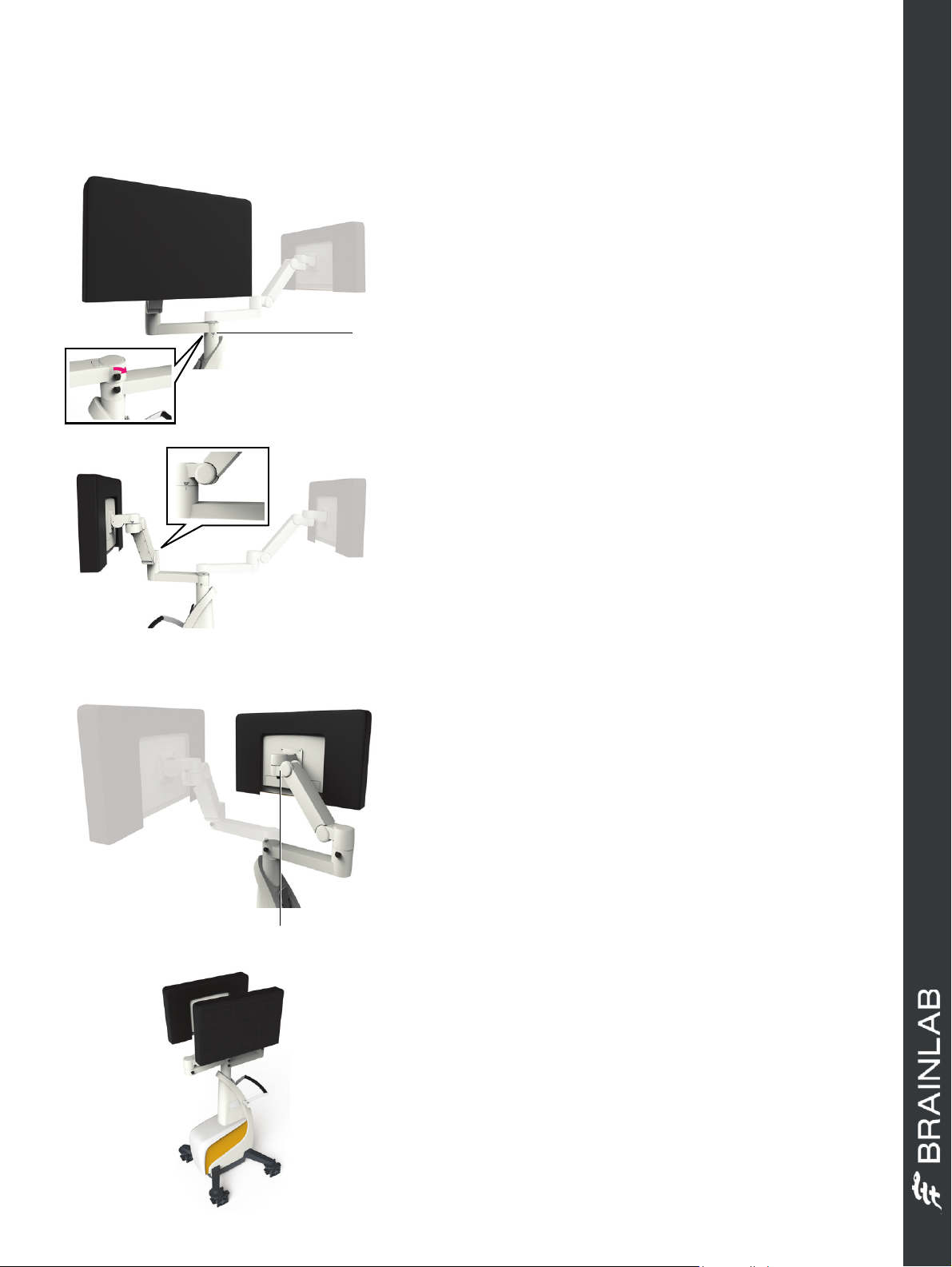

DOCKING AND TRANSPORT

POSITION MONITOR CART: STEP 1

• Place protection covers over monitors and camera.

• Loosen all locking knobs.

• Rotate the lower arm to the position indicated until

the park symbols align a.

• Tighten the locking knob (insert shows the view from

the other side).

NOTE: You may need to move the upper arm out of

the way of the lower arm.

POSITION MONITOR CART: STEP 2

• Raise the lower arm up as high as possible.

• Rotate the inner joint of the lower arm until the park

symbols align.

• Tighten the locking knob.

POSITION MONITOR CART: STEP 3

• Rotate the monitor joint a until the park symbols

align.

• Tighten the locking knob.

POSITION MONITOR CART: STEP 4

• Repeat steps 1 and 2 for the upper arm until Monitor

Cart is in its final position.

Hardware: Curve 1.2

Brainlab AG

Olof-Palme-Str. 9

81829 Munich

Germany

Europe, Africa, Asia, Australia: +49 89 991568 1044

United States, Canada, Central and South America:

+1 800 597 5911

Japan: +81 3 3769 6900

France: +33-800-67-60-30

E-mail: support@brainlab.com

This guide contains proprietary information

protected by copyright.

No part of this guide may be reproduced or

translated without the express written permission

of Brainlab.

LIABILITY:

This guide is subject to change without

notice and does not represent a

commitment on the part of Brainlab.

For further information, please refer to

the “Limitations of Liability” section in

the Brainlab Standard Terms and

Conditions of Sale.

Page 4/4

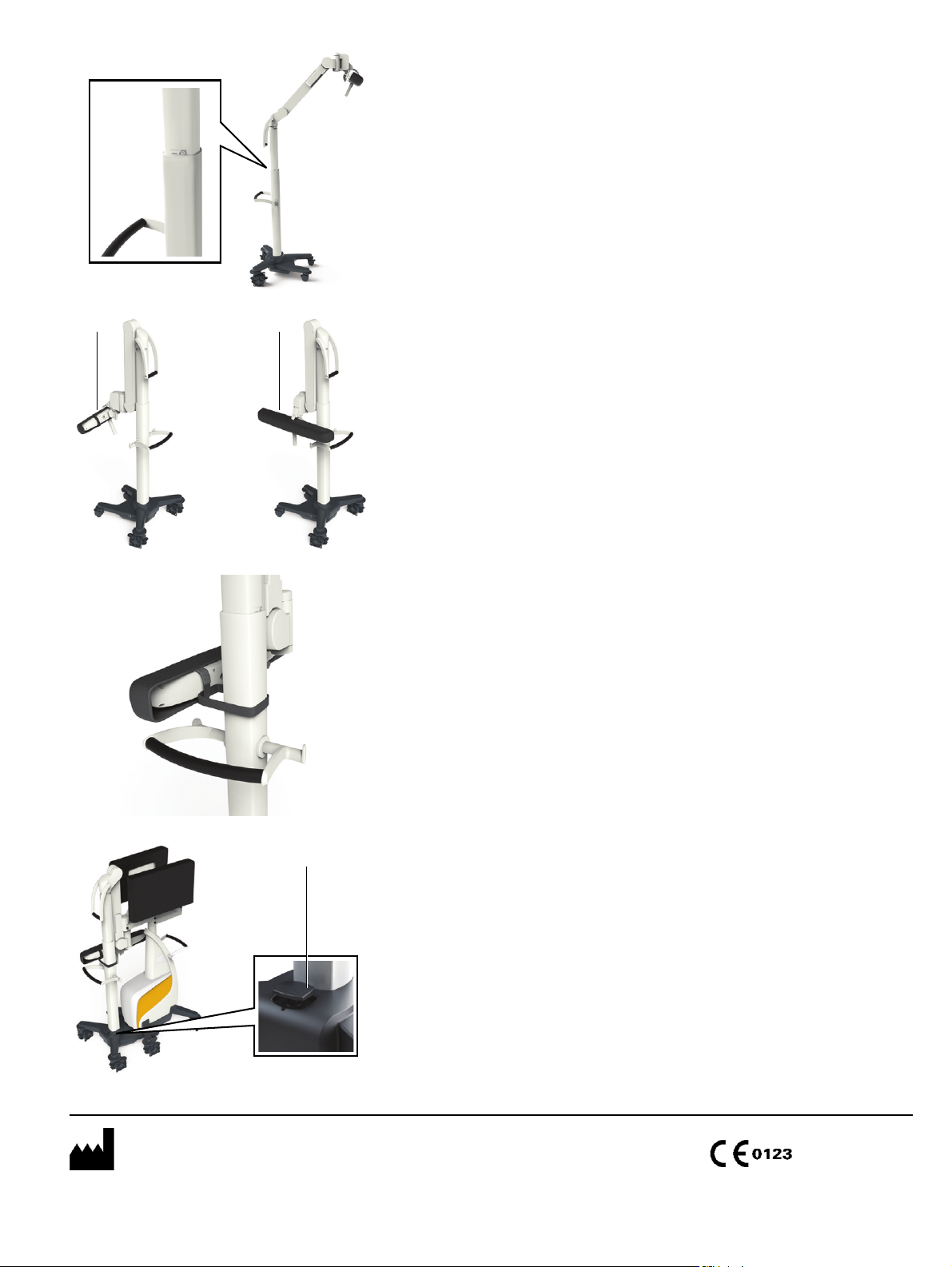

POSITION CAMERA CART: STEP 1

• Locate the park symbol on the camera post. You

may need to raise the camera to see the park

symbol.

• Press the button on the telescopic post handle to

move the post into park position.

POSITION CAMERA CART: STEP 2

• Fold the camera arm down with the camera handle

until firmly aligned to the post a.

• Rotate the camera to the side with the camera

handle s.

POSITION CAMERA CART: STEP 3

• Fix the camera to the post with the Velcro protection

cover strap.

*60917-35EN*

Document Revision: 1.0

Article Number: 60917-35EN

DOCK AND UNDOCK CURVE

• After positioning Monitor Cart and Camera Cart for

docking, engage the Monitor Cart brakes.

• Push the docking pedal down if popped up a.

•PushCamera Cart into Monitor Cart quickly until

the docking pedal pops up a.

To undock, push down docking pedal and pull apart.

a s
