SS-2N/AST/STD

SS-2N/AST-WH

Express®Lavatory

System SS-Series

Express Lavatory Systems are ADA and TAS compliant

SS-2N/AST/STD/LSD-2

SS-2N/AST-WH/LSD-2

SS-2N/AST/STD, SS-2N/AST/WH Installation

25/14/2018 Bradley • 215-1498 Rev. G; ECN 17-08-026

WARNING

Make sure that all water supply lines have been flushed and then completely turned off before beginning

installation. Debris in supply lines can cause valves to malfunction.

Turn OFF electrical power to the electrical outlets, then unplug all electrical units prior to installation. Electrical

power MUST remain off until installation is complete. After installation is complete, turn on the water supply

first, then turn on the electrical power.

Installer's hardware must be appropriate for wall construction. Wall anchors must have a minimum pull-out

rating of 1,000 pounds.

NOTICE

Overtightening fasteners can damage the Terreon material. Use caution when tightening bowl and sprayhead

fasteners.

IMPORTANT

Read this entire installation manual to ensure proper installation. When finished with the installation, file this

manual with the owner or maintenance department. Compliance and conformity to local codes and ordinances

is the responsibility of the installer.

Separate parts from packaging and make sure all parts are accounted for before discarding any packaging

material. If any parts are missing, do not begin installation until you obtain the missing parts.

Product warranties may be found under “Products” on our website at www.bradleycorp.com.

Installation SS-2N/AST/STD, SS-2N/AST/WH

Bradley • 215-1498 Rev. G; ECN 17-08-026 5/14/2018 3

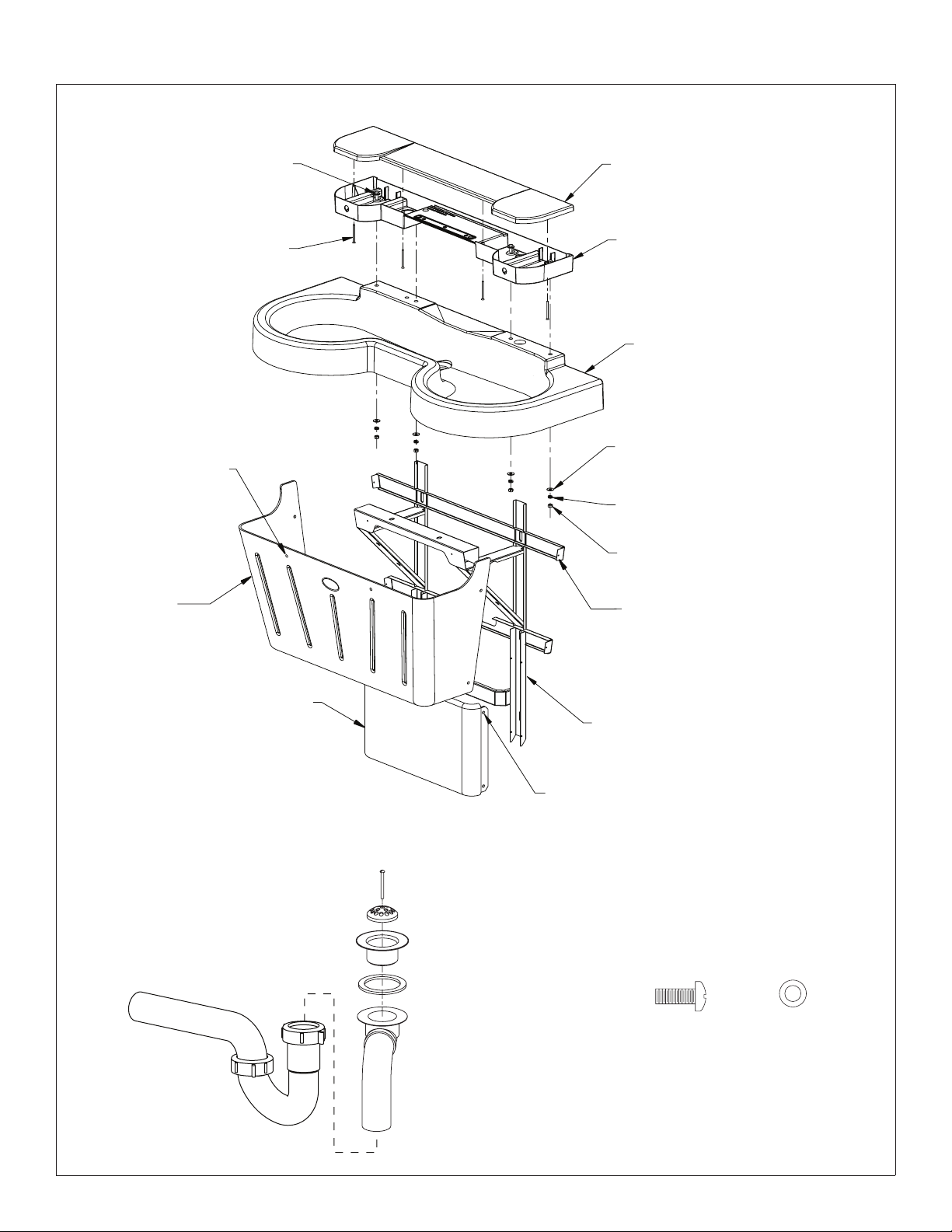

Components Sprayhead Cover

(SS-2N-COVR-ONLY)

Contact your local Bradley

Representative for part number.

Sprayhead Body

(SS-2N-SPYD-ASSY)

Contact your local Bradley

Representative for part number.

Main Frame (S17-325)

Screw 10-24

(160-386)

Washer (142-002BJ)

Access Panel

Coal (186-1455B)

Bowl

(SS-2N-BOWL)

Contact your local Bradley

Representative for part number.

LockWasher (142-002BK)

Nut, 5/16-18 (161-036)

Scuff Frame (S17-326)

Used with Standard Height

Frames Only

Scuff Panel Fasteners (160-450)

Washers (142-002CA) (4) Places

Scuff Base Panel

Coal (185-034B)

Panel Fasteners (160-450)

Washers (142-002CA)

(6) Places

Bolt 5/16-18

(160-371)

#8-32 Screw

(160-319)

Strainer (P16-075)

Drain Plug (P16-072)

1/8" Rubber Washer (125-001DP)

Tailpiece (129-056)

P-Trap (Polypropylene)

(269-1697)

Optional P-Trap

(Chrome-Plated Brass)

(S29-094)

Drain Assembly

Bowl Mounting

Hardware

1/4"-20x1/2"

Pan Head

Screw (qty 4)

(160-389)

1/4"-20

Washer

(qty 4)

(142-002DB)

SS-2N/AST/STD, SS-2N/AST/WH Installation

45/14/2018 Bradley • 215-1498 Rev. G; ECN 17-08-026

Supplies Required

• (6) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount main frame and bowl to wall (minimum

pull-out rating of 1,000 lbs.)

• STD. HEIGHT ONLY: (2) 3/8" wall anchors, bolts and 1" min. O.D. washers to mount scuff base to wall

• 1/2" nominal copper tubing for hot and cold supplies and 1-1/2" NPT drain piping

• OPTIONAL: 240/208-volt or 277-volt electrical box for electric tankless water heater

Dimensions - Front and Top Views

Top View

50"

(1270)

Front View

Standard Frame

Front View

Wall-Hung Frame

8-5/8" (219)

10" (254)

Radius

8" (203) Radius

15"

(381)

15"

(381)

7" (178)

21-1/4" (540)

30" (762)

36" (914)

38-1/4"

(972)

(178mm)

38-1/4"

(972)

30" (762)

36" (914)

(mm)

Installation SS-2N/AST/STD, SS-2N/AST/WH

Bradley • 215-1498 Rev. G; ECN 17-08-026 5/14/2018 5

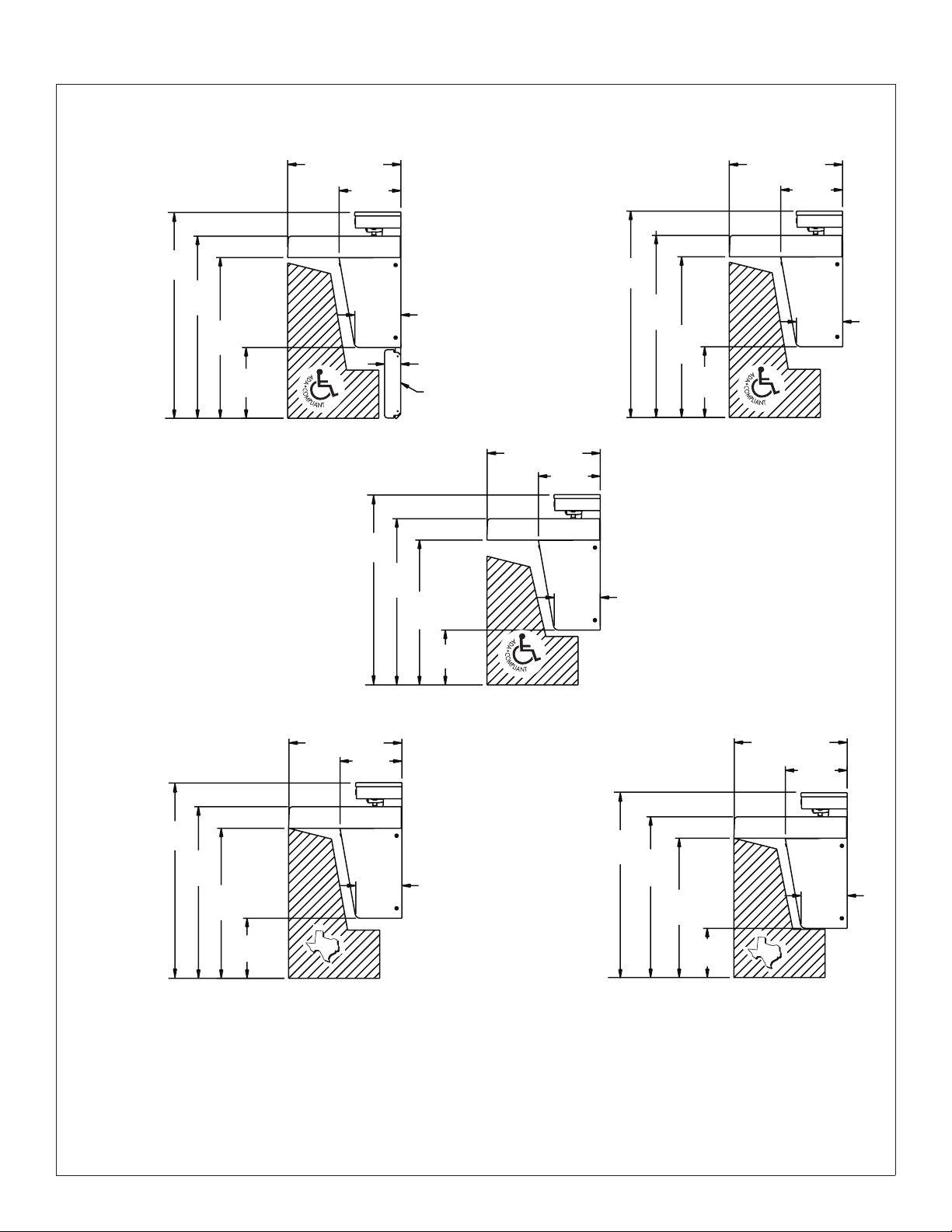

Dimensions - Side Views

TAS

Wall Hung Mounted

at Standard Height

Standard

Height

Wall Hung Mounted

at Juvenile Height

Ages: 6 through 12

Wall Hung Mounted

at TAS Height

Grades: 6 through 8 or 9

Wall Hung Mounted

at TAS Height

Grades: Pre-K through 5 or 6

21-1/8" (537)

38-1/2"

(978)

34"

(864)

30"

(762)

13-1/4"

(311)

11-1/2"

(292)

Scuff Base on

Standard Height

Only

3" (76)

8-5/8"

(219)

38-1/2"

(978)

34"

(864)

30"

(762)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

13-1/4"

(311)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

8-5/8"

(219)

21-1/8" (537)

11-1/2"

(292)

36-1/2"

(927)

32"

(813)

28"

(711)

11-1/4"

(286)

35-1/2"

(902)

31"

(787)

27"

(686)

10-1/4"

(260)

34-1/2"

(876) 30"

(762)

26"

(660)

9-1/4"

(235)

SS-2N/AST/STD, SS-2N/AST/WH Installation

65/14/2018 Bradley • 215-1498 Rev. G; ECN 17-08-026

Code Description QTY.

A 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Bowl 2

B 3/8" Wall Anchors with a minimum pull-out force of 1,000 lbs. for Mainframe 4

C 3/8" Wall Anchors for Base Frame, Standard Frame option only, minimum pull-out force not required 2

D1 1/2" nominal copper tubing for Cold Supply, stub-out 2" from wall 1

D2 1/2" nominal copper tubing for Hot or Tempered Supply, stub-out 2" from wall 1

E 1-1/2" NPT Drain, stub-out 2" from wall 2

On the bowl back, measure the distance between the 3/4" bowl mounting holes. Divide this

measurement in half. Measure and mark this dimension on the wall to the left and the right of the

centerline. Install two 3/8" wall anchors with a minimum pull-out rating of 1,000 lbs (supplied by

installer) at locations marked.

RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FOR

CODES A–E, H, C and W FIXTURE STYLE

34" None Standard Height

34" None Wall-Hung

32" Subtract 2" TAS, Grades 6 through 8 or 9

31" Subtract 3" Juvenile Height

30" Subtract 4" TAS, Pre-K through Grades 5 or 6

1Rough-Ins

23-1/2"

(597)

23-1/2"

(597)

(mm)

9-3/8"

(238)

9-3/8"

(238)

3" (76) 4" (102)

32"

(813)

25-3/4"

(654)

(102)

28-3/4"

(730)

15"

(381)

3-1/2"

(89)

Floor

Installation SS-2N/AST/STD, SS-2N/AST/WH

Bradley • 215-1498 Rev. G; ECN 17-08-026 5/14/2018 7

Anchoring the frame to a wall that is

not flat may cause the frame to bend,

making it difficult to reinstall the access

panels. If necessary, use shims to

compensate for wall distortion.

SCUFF BASE FRAME

AND DRAIN ASSEMBLY

NOT SHOWN FOR CLARITY

The sprayhead body has slotted holes for adjusting the fit-up with the

bowl and wall. The tailpiece on the waste tee has been rotated upward

for shipping purposes. Turn the tailpiece down to its proper position

before installing the bowl.

2Mount the Frame

AUsing a T20 torx key, remove the

fasteners securing the access panel to

the main frame, and remove the panel.

Scuff Panel

Standard Height

Frame Only

Scuff Base Frame

Standard Height

Frame Only

Once you have positioned the frame

such that it is level and flat against the

wall or shimmed, mount the frame to

the wall at four places using 3/8" bolts

and 1" min. O.D. washers.

When mounting the standard height

frame, mount the scuff base to the wall

at the same time using two additional

3/8" bolts and washers.

3Install the Bowl

AAttach the bowl to the frame using the

1/4-20 x 1/2" pan-head screws and

washers. Do not tighten screws.

Secure the

bowl to the wall

anchors with 3/8"

bolts and 1" min.

O.D. washers, two

places. DO NOT

OVERTIGHTEN!

CTighten the pan-head

screws. Do not overtighten.

SS-2N/AST/STD, SS-2N/AST/WH Installation

85/14/2018 Bradley • 215-1498 Rev. G; ECN 17-08-026

The letter “H” on the Navigator Mixing

Valve indicates hot water supply inlet.

4a Connect the Supply - Hot and Cold Supply

Connect one end of each hose to the

Navigator valve (one on the hot side,

one on the cold side).

Connect the other swivel end to the

stop valves.

Loosen but do not remove the

two mounting screws holding the

valve bracket to the frame.

Slide the valve bracket up and

lift it from the frame. BAttach the stops to the

hot and cold water wall

stub-outs.

Connect one end of ﬂexible hose

to the tempered line adapter.

Connect the other swivel end to

the stop valve.

4b Connect the Supply - Single Tempered Supply

Loosen but do not remove the

two mounting screws holding the

valve bracket to the frame.

Slide the valve bracket up and

lift it from the frame.

BAttach the stop to the tempered wall

stub-out.

Installation SS-2N/AST/STD, SS-2N/AST/WH

Bradley • 215-1498 Rev. G; ECN 17-08-026 5/14/2018 9

To Drain

Stub-Out

5Install the Drains

Red Supply

Tubing

Green Supply

Tubing

6Connect Supply and Tubing

Loosen the compression nuts.

Push the sprayhead supply tubes

furmly into the tube connectors until

they are fully seated.

Tighten the compression nuts by hand.

Loosen the compression nuts.

Push the matching color 1/8" tubes

ﬁrmly into the tube connectors until

they are fully seated.

Tighten the compression nuts by hand.

SS-2N/AST/STD, SS-2N/AST/WH Installation

10 5/14/2018 Bradley • 215-1498 Rev. G; ECN 17-08-026

7Adjust the Temperature

This valve is NOT factory preset. Upon installation, the temperature of this

valve must be checked and adjusted to ensure delivery of a safe water

temperature. Water in excess of 110°F (43°C) may cause scalding.

ALoosen the cap screw about 1/4"

(4–6 turns) and lift up the cover

(do not remove).

Using the cover, turn the

cartridge gently until desired

water temperature is reached. Do

not turn past stops as this may

damage the unit. Push the cover

down and tighten the screw.

CReinstall the valve bracket. Turn on the water supply to the Express and check for

leaks. Push the operating buttons of each station until all the air is purged from

the lines and water is ﬂowing smoothly. Reinstall the access panel.

Push Button Assembly

• To access push button assembly: Remove the Phillips-head screws located in the bottom of the

sprayhead body and lift the Terreon cover/shelf off.

• To reinstall sprayhead cover/shelf: Position the cover/shelf on the sprayhead body and secure it to the

sprayhead body using the screws provided.

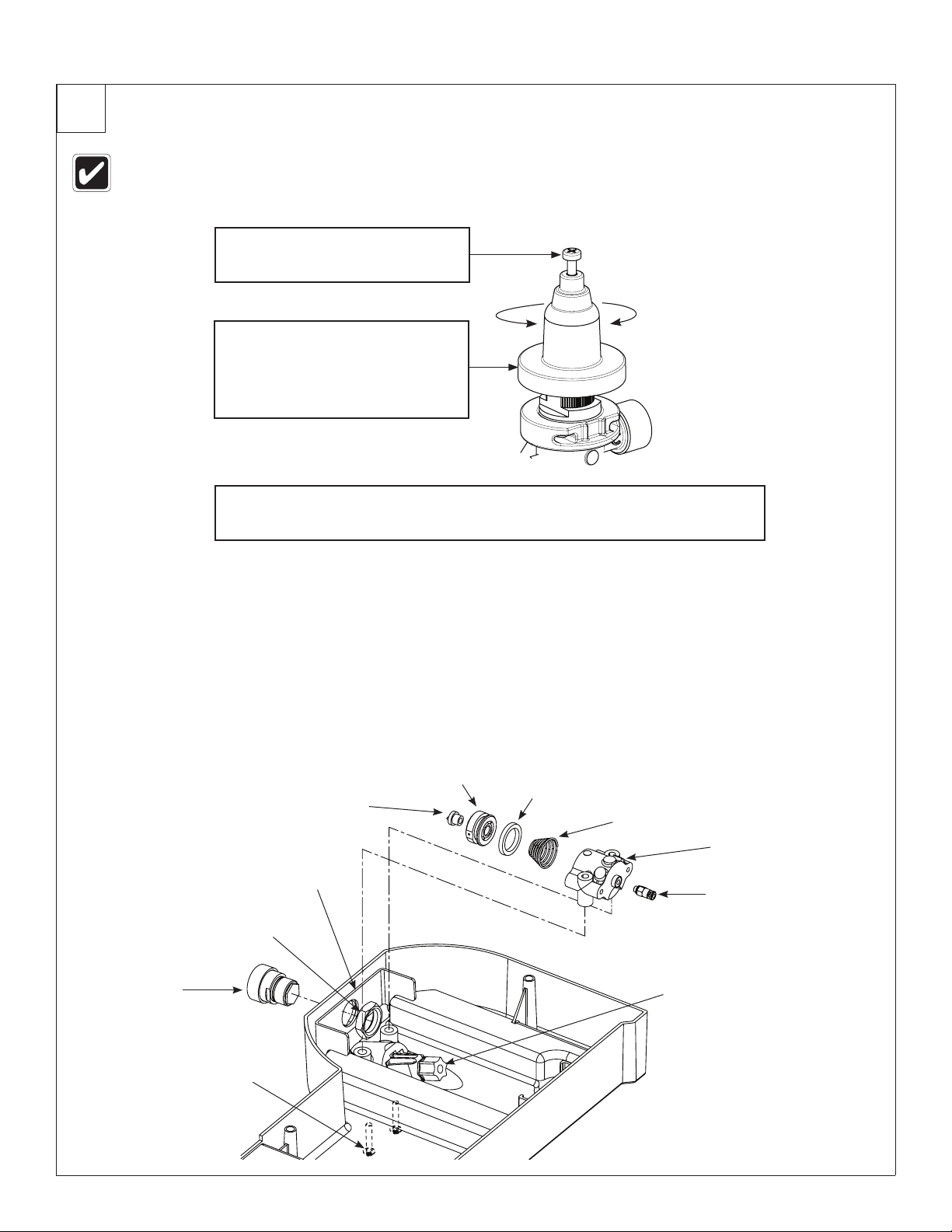

Sprayhead Components

¼" Tube Connector

(169-890)

Actuator Body ASM

(S39-802)

Spring (135-065)

U-Cup (125-099)

Piston (119-227A)

Duckbill (198-010)

Bracket, SSN Push

Button (140-956)

Nut, ½" - 14 NPSM

(110-115)

Push Button

(S08-324)

#10 Screw

(160-353)

Aerator (S05-180)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bradley Produits de plomberie

Bradley

Bradley SN2013/AST4 Manuel utilisateur

Bradley

Bradley S19-280 Series Manuel utilisateur

Bradley

Bradley Verge LVA Series Manuel utilisateur

Bradley

Bradley Terreon Classic WF2500 Series Manuel utilisateur

Bradley

Bradley Terreon MG Series Fiche d'information produit

Bradley

Bradley Verge LVSD2 Manuel utilisateur

Bradley

Bradley S19-125BF Manuel utilisateur

Bradley

Bradley Aerada 1000 Series Manuel utilisateur

Bradley

Bradley Advocate AV Series Manuel utilisateur

Bradley

Bradley Advocate AV Series Manuel utilisateur

Bradley

Bradley S19-220FW Manuel utilisateur

Bradley

Bradley Express SS Series Manuel utilisateur

Bradley

Bradley Terreon TDB3104 Manuel utilisateur

Bradley

Bradley E19-310DC Manuel utilisateur

Bradley

Bradley S19-465EFW Manuel utilisateur

Bradley

Bradley FREQUENCY FL-1H Manuel utilisateur

Bradley

Bradley CRS Series Manuel utilisateur

Bradley

Bradley S19-125SBF Manuel utilisateur

Bradley

Bradley Express EXD Series Manuel utilisateur

Bradley

Bradley S19-230 Manuel utilisateur

Bradley

Bradley S19-120 Manuel utilisateur

Bradley

Bradley WS-1X Manuel utilisateur

Bradley

Bradley Aerada 900 Series Manuel utilisateur

Bradley

Bradley S45-1986 Manuel utilisateur

Manuels Produits de plomberie populaires d'autres marques

Weka

Weka 506.2020.00E Mode d'emploi

Kohler

Kohler K-6228 Instructions de montage

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Manuel utilisateur

American Standard

American Standard DetectLink 6072121 Manuel utilisateur

Uponor

Uponor Contec TS Manuel utilisateur

Pfister

Pfister Selia 49-SL Manuel utilisateur

Fortis

Fortis VITRINA 6068700 Manuel utilisateur

Fortis

Fortis MILANO 78211JS Manuel utilisateur

Kohler

Kohler K-12183 Instructions de montage

Maxxus

Maxxus MX-M206-01 Manuel utilisateur

Moen

Moen 5922 Series Manuel utilisateur

Viega

Viega Prevista Pure 8512 Manuel utilisateur

Kohler

Kohler Centerset K-15240 Instructions de montage

Viega

Viega Prevista Dry 8522.33 Manuel utilisateur

Sanela

Sanela Lema SLP 59RB Manuel utilisateur

Elkay

Elkay EDF15AC Manuel d'installation

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Manuel

baliv

baliv WT-140 Manuel utilisateur
