RESIDENTIAL & LIGHT DUTY

COMMERCIAL REPLACEMENT PARTS LIST

“M

”, “M(1,2)XR”, “M4” and

Light Duty 50T65, 65T65 Models

Includes Hydrojet

Total Performance System

Effective: July 31, 2008

ECO 7291-2

NOTE: BOTH MODEL AND SERIAL

NUMBERS ARE REQUIRED FOR

ORDERING REPLACEMENT PARTS

Dimensions and specifications

subject to change without notice.

Parts Book #238-46639-00C

Page 2

Item Description Model Model Model Model Model

MI30T*F(BN,CX,SX) MI30S*F(BN,CX,SX) MI303T*F(BN,CX,SX) MI40T*F(BN,CX,SX) MI403S*F(BN,CX,SX)

1 Draft Hood 243-45787-00 243-45787-00 243-45787-00 243-45787-00 243-45787-00

2 Hot Water Outlet Anode MagnesiumŸ224-32731-95 224-32731-97 224-32731-82 224-32731-95 224-32731-81

Hot Water Outlet AluminumŸ224-32999-24 224-32999-25 224-32999-06 224-32999-24 224-32999-31

Hot Water Outlet A420 AluminumŸ224-45147-02 224-45147-02 224-45147-03 224-45147-02 224-45147-04

3 Cold Water Inlet Dip Tube PolypropyleneŸŸ 229-39625-23 229-39625-24 229-39625-07 229-39625-25 229-39625-03

Cold Water Inlet Polysulfone (NC Code)ŸŸ 229-39628-26 229-39628-27 229-39628-07 229-39628-28 229-39628-03

4 Flue Baffle 243-44639-00 243-45226-00 243-45224-00 243-42283-00 243-45223-00

5 T&P Relief Valve 265-32920-01 265-32920-01 265-32920-01 265-32920-01 265-32920-01

6 Gas Valve Natural Gas 265-46181-01 265-46181-01 265-46181-01 265-46181-01 265-46181-01

Gas Valve LP Gas 265-46182-01 265-46182-01 265-46182-01 265-46182-01 265-46182-01

7 Piezo Igniter 239-43448-00 239-43448-00 239-43448-00 239-43448-00 239-43448-00

7A Piezo Bracket (White Rodgers) 239-46157-02 239-46157-02 239-46157-02 239-46157-02 239-46157-02

Piezo Bracket (Robertshaw) 239-43449-00 239-43449-00 239-43449-00 239-43449-00 239-43449-00

8 Brass Drain Valve 265-42351-02 265-42351-02 265-42351-02 265-42351-02 265-42351-02

9 Screw-#8-18 x 3/4 HWH 239-44195-00 239-44195-00 239-44195-00 239-44195-00 239-44195-00

10 Screw-#10-12 x 3/4 HWH 239-44113-00 239-44113-00 239-44113-00 239-44113-00 239-44113-00

11 Left Side Inner Door Complete 239-43968-14 239-43968-16 239-43968-14 239-43968-16 239-43968-18

12 Nat. Gas Right Side Inner Door Complete 239-43963-02 239-43963-03 239-43963-02 239-43963-05 239-43963-07

LP Gas Right Side Inner Door Complete 239-43963-02 239-43963-03 239-43963-01 239-43963-03 239-43963-07

13 Nat. Gas Resettable Thermal Switch 239-43676-03 239-43676-01 239-43676-03 239-43676-03 239-43676-02

LP Gas Resettable Thermal Switch 239-43676-03 239-43676-01 239-43676-02 239-43676-01 239-43676-02

14 Screw-#6-20 x 3/8 PHCR 239-43967-00 239-43967-00 239-43967-00 239-43967-00 239-43967-00

15 Outer Door 243-43962-00 243-43962-00 243-43962-00 243-43962-00 243-43962-00

Natural Gas (BN) Burner Assembly

16 Nat Gas Burner Assembly Complete*** 265-47439-02-36 265-47439-04-38 265-47439-02-32 265-47439-04-32 265-47439-07-32

17 Nat. Gas (BN) Burner** 228-42506-00 228-42506-00 228-42506-00 228-42506-00 228-42506-00

18 Nat. Gas (BN) Main Burner Orifice** 234-41034-36 234-41034-38 234-41034-32 234-41034-32 234-41034-32

Nat. Gas (BN) High Altitude 2001 Ft. to 5000 Ft.** 234-41034-39 234-41034-41 234-41034-36 234-41034-36 234-41034-36

Nat. Gas (BN) High Altitude 5001 Ft. to 8000 Ft.** 234-41034-41 234-41034-43 234-41034-38 234-41034-38 234-41034-38

Nat. Gas (BN) High Altitude Over 8000 Ft.** 234-41034-43 234-41034-43 234-41034-38 234-41034-38 234-41034-38

19 Nat. Gas Pilot Assembly** 233-46277-04 233-46277-04 233-46277-04 233-46277-04 233-46277-04

20 Nat. Gas Pilot Orifice** 234-46502-05 234-46502-05 234-46502-05 234-46502-05 234-46502-05

21 Thermocouple** 233-46501-15 233-46501-15 233-46501-15 233-46501-15 233-46501-15

LP Gas (SX) Titanium Stabilized Stainless Steel Burner Assembly (Replacement for LP Gas (CX) Cast Iron Burner)

22 LP Gas Burner Assembly Complete*** 265-47440-02-60 265-47440-05-54 265-47440-02-52 265-47440-05-52 265-47440-11-50

23 LP Gas (SX) Burner** 228-46964-00 228-46964-00 228-46964-00 228-46964-00 228-46964-00

24 LP Gas (SX) Main Burner Orifice** 234-47064-60 234-47064-54 234-47064-52 234-47064-52 234-47064-50

LP Gas (SX) High Altitude 2001 Ft. to 5000 Ft.** 234-47064-54 234-47064-54 234-47064-53 234-47064-53 234-47064-51

LP Gas (SX) High Altitude 5001 Ft. to 8000 Ft.** 234-47064-54 234-47064-54 234-47064-54 234-47064-54 234-47064-52

LP Gas (SX) High Altitude Over 8000 Ft.** 234-47064-54 234-47064-54 234-47064-54 234-47064-54 234-47064-53

25 LP Gas Pilot Assembly** 233-46278-03 233-46278-03 233-46278-03 233-46278-03 233-46278-03

26 LP Gas Pilot Orifice** 234-46502-02 234-46502-02 234-46502-02 234-46502-02 234-46502-02

27 Thermocouple** 233-46501-15 233-46501-15 233-46501-15 233-46501-15 233-46501-15

28 ASSE Approved Mixing Valve (Optional) 239-43740-01 239-43740-01 239-43740-01 239-43740-01 239-43740-01

29 3/4 NPT Plug --- --- --- --- ---

30 Inner Door Gasket Kit 239-44078-00 239-44078-00 239-44078-00 239-44078-00 239-44078-00

31 Wire Tie 239-44328-00 239-44328-00 239-44328-00 239-44328-00 239-44328-00

32 Heat Trap Insert (Outlet) 239-45167-00 239-45167-00 239-45167-00 239-45167-00 239-45167-00

33 Heat Trap Insert (Inlet) 239-45073-00 239-45073-00 239-45073-00 239-45073-00 239-45073-00

34 Kit-Heat Trap Insert 265-45420-00 265-45420-00 265-45420-00 265-45420-00 265-45420-00

- LP to Natural Gas Conversion Kit (Norm Alt.) 265-45712-01 265-45712-02 265-45712-03 265-45712-04 265-45712-05

- LP to Natural Gas Conversion Kit (High Alt.) 265-45712-13 265-45712-14 265-45712-15 265-45712-16 265-45712-17

*Applies to all warranties

**Inner door gasket kit recommended

***Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.

ŸOrder with item 32

ŸŸOrder with item 33

Page 3

Page 4

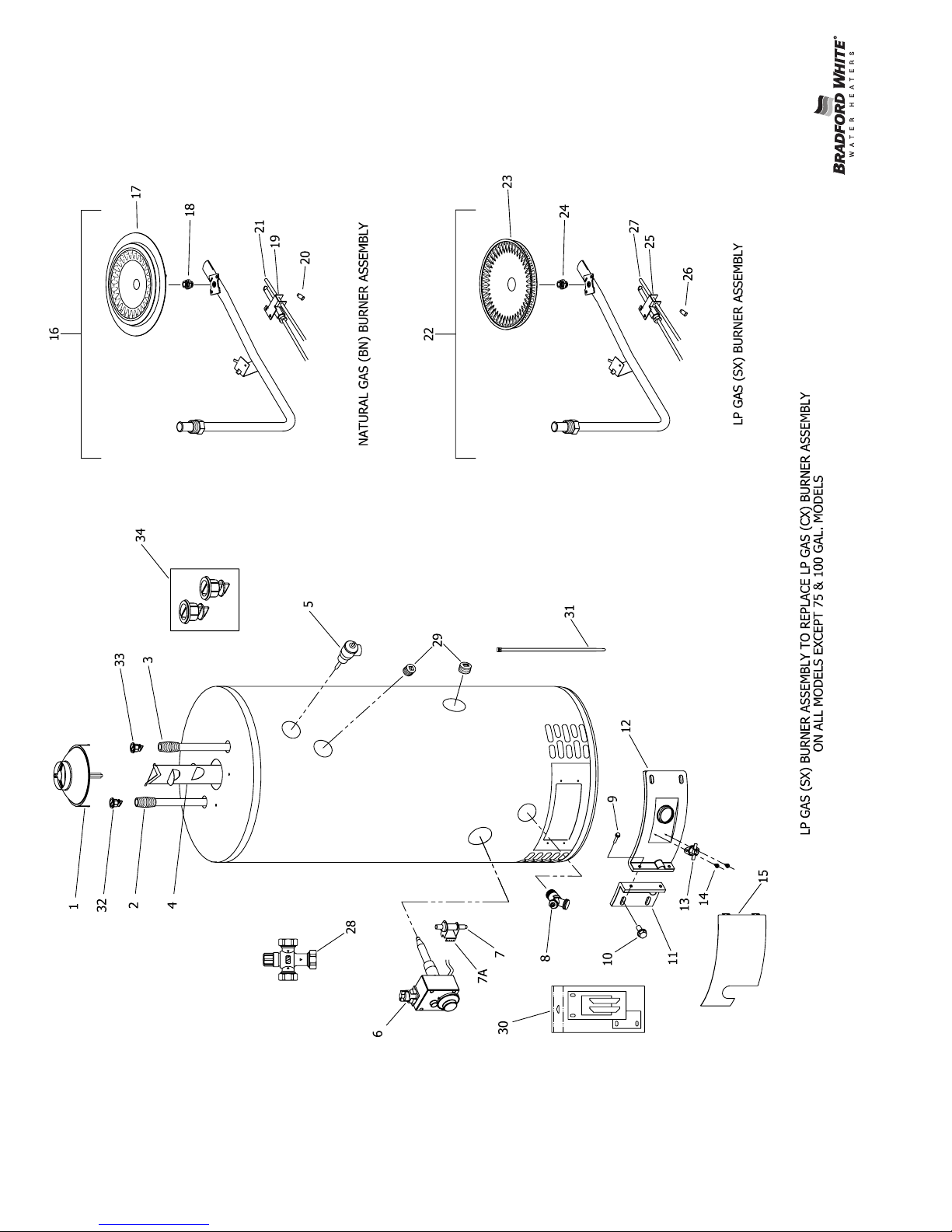

Item Description

1 Draft Hood

2 Hot Water Outlet Anode MagnesiumŸ

Hot Water Outlet AluminumŸ

Hot Water Outlet A420 AluminumŸ

3 Cold Water Inlet Dip Tube PolypropyleneŸŸ

Cold Water Inlet Polysulfone (NC Code)ŸŸ

4 Flue Baffle

5 T&P Relief Valve

6 Gas Valve Natural Gas

Gas Valve LP Gas

7 Piezo Igniter

7A Piezo Bracket (White Rodgers)

Piezo Bracket (Robertshaw)

8 Brass Drain Valve

9 Screw-#8-18 x 3/4 HWH

10 Screw-#10-12 x 3/4 HWH

11 Left Side Inner Door Complete

12 Nat. Gas Right Side Inner Door Complete

LP Gas Right Side Inner Door Complete

13 Nat. Gas Resettable Thermal Switch

LP Gas Resettable Thermal Switch

14 Screw-#6-20 x 3/8 PHCR

15 Outer Door

Natural Gas (BN) Burner Assembly

16 Nat Gas Burner Assembly Complete***

17 Nat. Gas (BN) Burner**

18 Nat. Gas (BN) Main Burner Orifice**

Nat. Gas (BN) High Altitude 2001 Ft. to 5000 Ft.**

Nat. Gas (BN) High Altitude 5001 Ft. to 8000 Ft.**

Nat. Gas (BN) High Altitude Over 8000 Ft.**

19 Nat. Gas Pilot Assembly**

20 Nat. Gas Pilot Orifice**

21 Thermocouple**

LP Gas (SX) Titanium Stabilized Stainless Steel Burner Assembly

22 LP Gas Burner Assembly Complete***

23 LP Gas (SX) Burner**

24 LP Gas (SX) Main Burner Orifice**

LP Gas (SX) High Altitude 2001 Ft. to 5000 Ft.**

LP Gas (SX) High Altitude 5001 Ft. to 8000 Ft.**

LP Gas (SX) High Altitude Over 8000 Ft.**

25 LP Gas Pilot Assembly**

26 LP Gas Pilot Orifice**

27 Thermocouple**

28 ASSE Approved Mixing Valve (Optional)

29 3/4 NPT Plug

30 Inner Door Gasket Kit

31 Wire Tie

32 Heat Trap Insert (Outlet)

33 Heat Trap Insert (Inlet)

34 Kit-Heat Trap Insert

- LP to Natural Gas Conversion Kit (Norm Alt.)

- LP to Natural Gas Conversion Kit (High Alt.)

Model Model Model Model Model

MI404T*F(BN,CX,SX) MI503*F(BN,CX,SX) MI50L*F(BN,CX,SX) MI504S*F(BN,CX,SX) MI60T*F(BN,CX,SX)

243-33081-02-20 243-45787-00 243-45787-00 243-12950-00 243-45787-00

224-32731-82 224-32731-107 224-32731-81 224-32731-82 224-32731-86

224-32999-06 224-32999-21 224-32999-31 224-32999-06 224-32999-30

224-45147-03 224-45147-02 224-45147-04 224-45147-03 224-45147-01

229-39625-06 229-39625-22 229-39625-05 229-39625-06 229-39625-14

229-39628-06 229-39628-21 229-39628-05 229-39628-06 229-39628-14

243-45225-00 243-44705-00 243-45223-00 243-45225-00 243-42283-00

265-32920-01 265-32920-01 265-32920-01 265-32920-01 265-32920-01

265-46181-01 265-46181-01 265-46181-01 265-46181-01 265-46181-01

265-46182-01 265-46182-01 265-46182-01 265-46182-01 265-46182-01

239-43448-00 239-43448-00 239-43448-00 239-43448-00 239-43448-00

239-46157-02 239-46157-02 239-46157-02 239-46157-02 239-46157-02

239-43449-00 239-43449-00 239-43449-00 239-43449-00 239-43449-00

265-42351-02 265-42351-02 265-42351-02 265-42351-02 265-42351-02

239-44195-00 239-44195-00 239-44195-00 239-44195-00 239-44195-00

239-44113-00 239-44113-00 239-44113-00 239-44113-00 239-44113-00

239-43968-16 239-43968-18 239-43968-20 239-43968-18 239-43968-20

239-43963-05 239-43963-07 239-43963-09 239-43963-06 239-43963-12

239-43963-05 239-43963-07 239-43963-09 239-43963-06 239-43963-13

239-43676-03 239-43676-02 239-43676-01 239-43676-01 239-43676-02

239-43676-03 239-43676-02 239-43676-01 239-43676-01 239-43676-03

239-43967-00 239-43967-00 239-43967-00 239-43967-00 239-43967-00

243-43962-00 243-43962-00 243-43962-00 243-43962-00 243-43962-00

265-47439-04-30 265-47439-07-32 265-47439-10-32 265-47439-07-30 265-47439-10-32

228-42506-00 228-42506-00 228-42506-00 228-42506-00 228-42506-00

234-41034-30 234-41034-32 234-41034-32 234-41034-30 234-41034-32

234-41034-31 234-41034-36 234-41034-36 234-41034-31 234-41034-36

234-41034-32 234-41034-38 234-41034-38 234-41034-32 234-41034-38

234-41034-33 234-41034-38 234-41034-38 234-41034-33 234-41034-38

233-46277-04 233-46277-04 233-46277-04 233-46277-04 233-46277-04

234-46502-05 234-46502-05 234-46502-05 234-46502-05 234-46502-05

233-46501-15 233-46501-15 233-46501-24 233-46501-15 233-46501-24

(Replacement for LP Gas (CX) Cast Iron Burner)

265-47440-06-47 265-47440-11-51 265-47440-17-50 265-47440-12-47 265-47440-17-50

228-47000-00 228-46964-00 228-46964-00 228-47000-00 228-46964-00

234-47064-47 234-47064-51 234-47064-50 234-47064-47 234-47064-50

234-47064-49 234-47064-53 234-47064-51 234-47064-49 234-47064-51

234-47064-50 234-47064-53 234-47064-52 234-47064-50 234-47064-52

234-47064-51 234-47064-54 234-47064-53 234-47064-51 234-47064-53

233-46278-03 233-46278-03 233-46278-03 233-46278-03 233-46278-03

234-46502-02 234-46502-02 234-46502-02 234-46502-02 234-46502-02

233-46501-15 233-46501-15 233-46501-24 233-46501-15 233-46501-24

239-43740-01 239-43740-01 239-43740-01 239-43740-01 239-43740-01

--- --- --- --- ---

239-44078-00 239-44078-00 239-44078-00 239-44078-00 239-44078-00

239-44328-00 239-44328-00 239-44328-00 239-44328-00 239-44328-00

239-45167-00 239-45167-00 239-45167-00 239-45167-00 239-45167-00

239-45073-00 239-45073-00 239-45073-00 239-45073-00 239-45073-00

265-45420-00 265-45420-00 265-45420-00 265-45420-00 265-45420-00

265-45712-06 265-45712-05 265-45712-07 265-45712-08 265-45712-27

265-45712-18 265-45712-17 265-45712-19 265-45712-20 265-45712-28

*Applies to all warranties

**Inner door gasket kit recommended

***Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.

ŸOrder with item 32

ŸŸOrder with item 33

Page 5

Page 6

Item Description

1 Draft Hood

2 Hot Water Outlet Anode MagnesiumŸ

Hot Water Outlet AluminumŸ

Hot Water Outlet A420 AluminumŸ

3 Cold Water Inlet Dip Tube PolypropyleneŸŸ

Cold Water Inlet Polysulfone (NC Code)ŸŸ

4 Flue Baffle

5 T&P Relief Valve

6 Gas Valve Natural Gas

Gas Valve LP Gas

7 Piezo Igniter

7A Piezo Bracket (White Rodgers)

Piezo Bracket (Robertshaw)

8 Brass Drain Valve

9 Screw-#8-18 x 3/4 HWH

10 Screw-#10-12 x 3/4 HWH

11 Left Side Inner Door Complete

12 Nat. Gas Right Side Inner Door Complete

LP Gas Right Side Inner Door Complete

13 Nat. Gas Resettable Thermal Switch

LP Gas Resettable Thermal Switch

14 Screw-#6-20 x 3/8 PHCR

15 Outer Door

Natural Gas (BN) Burner Assembly

16 Nat Gas Burner Assembly Complete***

17 Nat. Gas (BN) Burner**

18 Nat. Gas (BN) Main Burner Orifice**

Nat. Gas (BN) High Altitude 2001 Ft. to 5000 Ft.**

Nat. Gas (BN) High Altitude 5001 Ft. to 8000 Ft.**

Nat. Gas (BN) High Altitude Over 8000 Ft.**

19 Nat. Gas Pilot Assembly**

20 Nat. Gas Pilot Orifice**

21 Thermocouple**

LP Gas (SX) Titanium Stabilized Stainless Steel Burner Assembly

22 LP Gas Burner Assembly Complete***

23 LP Gas (SX) Burner**

24 LP Gas (SX) Main Burner Orifice**

LP Gas (SX) High Altitude 2001 Ft. to 5000 Ft.**

LP Gas (SX) High Altitude 5001 Ft. to 8000 Ft.**

LP Gas (SX) High Altitude Over 8000 Ft.**

25 LP Gas Pilot Assembly**

26 LP Gas Pilot Orifice**

27 Thermocouple**

28 ASSE Approved Mixing Valve (Optional)

29 3/4 NPT Plug

30 Inner Door Gasket Kit

31 Wire Tie

32 Heat Trap Insert (Outlet)

33 Heat Trap Insert (Inlet)

34 Kit-Heat Trap Insert

- LP to Natural Gas Conversion Kit (Norm Alt.)

- LP to Natural Gas Conversion Kit (High Alt.)

Model Model Model Model Model

M1XR403S*F(BN,CX,SX) M2XR504T*F(BN,CX,SX) M430T*F(BN,CX,SX) M4403S*F(BN,CX,SX) M440T*F(BN,CX,SX)

243-45787-00 243-33081-02-20 243-45787-00 243-45787-00 243-45787-00

224-32731-81 224-32731-86 224-32731-95 224-32731-81 224-32731-95

224-32999-31 224-32999-30 224-32999-24 224-32999-31 224-32999-24

224-45147-04 224-45147-01 224-45147-02 224-45147-04 224-45147-02

229-39625-03 229-39625-18 229-39625-23 229-39625-03 229-39625-25

229-39628-03 229-39628-18 229-39628-26 229-39628-03 229-39628-28

243-45223-00 243-41037-00 243-44639-00 243-45223-00 243-42283-00

265-32920-01 230-40594-02 230-40594-02 230-40594-02 230-40594-02

265-46181-01 265-46181-04 265-46181-02 265-46181-02 265-46181-02

265-46182-01 265-46182-02 265-46182-02 265-46182-02 265-46182-02

239-43448-00 239-43448-00 239-43448-00 239-43448-00 239-43448-00

239-46157-02 239-46157-02 239-46157-02 239-46157-02 239-46157-02

239-43449-00 239-43449-00 239-43449-00 239-43449-00 239-43449-00

265-42351-02 265-42351-02 265-42351-02 265-42351-02 265-42351-02

239-44195-00 239-44195-00 239-44195-00 239-44195-00 239-44195-00

239-44113-00 239-44113-00 239-44113-00 239-44113-00 239-44113-00

239-43968-18 239-43968-18 239-43968-14 239-43968-18 239-43968-16

239-43963-07 239-43963-07 239-43963-02 239-43963-07 239-43963-05

239-43963-07 239-43963-07 239-43963-02 239-43963-07 239-43963-04

239-43676-02 239-43676-02 239-43676-03 239-43676-02 239-43676-03

239-43676-02 239-43676-02 239-43676-03 239-43676-02 239-43676-02

239-43967-00 239-43967-00 239-43967-00 239-43967-00 239-43967-00

243-43962-00 243-43962-00 243-43962-00 243-43962-00 243-43962-00

265-47439-07-32 265-47439-07-27 265-47439-02-36 265-47439-07-32 265-47439-04-32

228-42506-00 228-42506-00 228-42506-00 228-42506-00 228-42506-00

234-41034-32 234-41034-27 234-41034-36 234-41034-32 234-41034-32

234-41034-36 234-41034-29 234-41034-39 234-41034-36 234-41034-36

234-41034-38 234-41034-30 234-41034-41 234-41034-38 234-41034-36

234-41034-38 234-41034-31 234-41034-43 234-41034-38 234-41034-38

233-46277-04 233-46277-04 233-46277-04 233-46277-04 233-46277-04

234-46502-05 234-46502-05 234-46502-05 234-46502-05 234-46502-05

233-46501-15 233-46501-24 233-46501-15 233-46501-24 233-46501-15

(Replacement for LP Gas (CX) Cast Iron Burner)

265-47440-11-50 265-47440-12-43 265-47440-02-60 265-47440-11-50 265-47440-05-52

228-46964-00 228-47000-00 228-46964-00 228-46964-00 228-46964-00

234-47064-50 234-47064-43 234-47064-60 234-47064-50 234-47064-52

234-47064-51 234-47064-46 234-47064-54 234-47064-51 234-47064-53

234-47064-52 234-47064-47 234-47064-54 234-47064-52 234-47064-54

234-47064-53 234-47064-47 234-47064-54 234-47064-53 234-47064-54

233-46278-03 233-46278-03 233-46278-03 233-46278-03 233-46278-03

234-46502-02 234-46502-02 234-46502-02 234-46502-02 234-46502-02

233-46501-15 233-46501-24 233-46501-15 233-46501-24 233-46501-15

239-43740-01 239-43740-01 239-43740-01 239-43740-01 239-43740-01

239-11638-00 239-11638-00 - - - - - - - - -

239-44078-00 239-44078-00 239-44078-00 239-44078-00 239-44078-00

239-44328-00 239-44328-00 239-44328-00 239-44328-00 239-44328-00

239-45167-00 239-45167-00 239-45167-00 239-45167-00 239-45167-00

239-45073-00 239-45073-00 239-45073-00 239-45073-00 239-45073-00

265-45420-00 265-45420-00 265-45420-00 265-45420-00 265-45420-00

265-45712-05 265-45712-12 265-45712-09 265-45712-11 265-45712-10

265-45712-17 265-45712-24 265-45712-21 265-45712-23 265-45712-22

*Applies to all warranties

**Inner door gasket kit recommended

***Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.

ŸOrder with item 32

ŸŸOrder with item 33

Page 7

Page 8

Item Description

1 Draft Hood

2 Hot Water Outlet Anode MagnesiumŸ

Hot Water Outlet AluminumŸ

Hot Water Outlet A420 AluminumŸ

3 Cold Water Inlet Dip Tube PolypropyleneŸŸ

Cold Water Inlet Polysulfone (NC Code)ŸŸ

4 Flue Baffle

5 T&P Relief Valve

6 Gas Valve Natural Gas

Gas Valve LP Gas

7 Piezo Igniter

7A Piezo Bracket (White Rodgers)

Piezo Bracket (Robertshaw)

8 Brass Drain Valve

9 Screw-#8-18 x 3/4 HWH

10 Screw-#10-12 x 3/4 HWH

11 Left Side Inner Door Complete

12 Nat. Gas Right Side Inner Door Complete

LP Gas Right Side Inner Door Complete

13 Nat. Gas Resettable Thermal Switch

LP Gas Resettable Thermal Switch

14 Screw-#6-20 x 3/8 PHCR

15 Outer Door

Natural Gas (BN) Burner Assembly

16 Nat Gas Burner Assembly Complete***

17 Nat. Gas (BN) Burner**

18 Nat. Gas (BN) Main Burner Orifice**

Nat. Gas (BN) High Altitude 2001 Ft. to 5000 Ft.**

Nat. Gas (BN) High Altitude 5001 Ft. to 8000 Ft.**

Nat. Gas (BN) High Altitude Over 8000 Ft.**

19 Nat. Gas Pilot Assembly**

20 Nat. Gas Pilot Orifice**

21 Thermocouple**

LP Gas (SX) Titanium Stabilized Stainless Steel Burner Assembly

22 LP Gas Burner Assembly Complete***

23 LP Gas (SX) Burner**

24 LP Gas (SX) Main Burner Orifice**

LP Gas (SX) High Altitude 2001 Ft. to 5000 Ft.**

LP Gas (SX) High Altitude 5001 Ft. to 8000 Ft.**

LP Gas (SX) High Altitude Over 8000 Ft.**

25 LP Gas Pilot Assembly**

26 LP Gas Pilot Orifice**

27 Thermocouple**

28 ASSE Approved Mixing Valve (Optional)

29 3/4 NPT Plug

30 Inner Door Gasket Kit

31 Wire Tie

32 Heat Trap Insert (Outlet)

33 Heat Trap Insert (Inlet)

34 Kit-Heat Trap Insert

- LP to Natural Gas Conversion Kit (Norm Alt.)

- LP to Natural Gas Conversion Kit (High Alt.)

Model Model Model Model Model

M4503*F(BN,CX,SX) M460T*F(BN,CX,SX) M2XR65T*F(BN,CX,SX) 50T65F(B,C,S)*(N,X) 65T65F(B,C,S)*(N,X)

243-45787-00 243-45787-00 243-33081-02-20 243-33081-02-20 243-33081-02-20

224-32731-107 224-32731-86 224-32731-83 224-32731-101 224-32731-83

224-32999-21 224-32999-30 224-32999-06 224-32999-21 224-32999-06

224-45147-02 224-45147-02 224-45147-01 224-45147-01 224-45147-01

229-39625-22 229-39625-14 229-45398-07 229-39625-19 229-39625-04

229-39628-21 229-39628-14 229-45092-04 229-39628-19 229-39628-04

243-44705-00 243-42283-00 243-46752-00 243-41037-00 243-46752-00

230-40594-02 230-40594-02 230-40594-02 230-40594-02 230-40594-02

265-46181-02 265-46181-02 265-46181-04 265-46367-02 265-46367-02

265-46182-02 265-46182-02 265-46182-02 265-46368-03 265-46368-03

239-43448-00 239-43448-00 239-43448-00 239-43448-00 239-43448-00

239-46157-02 239-46157-02 239-46157-02 239-46157-02 239-46157-02

239-43449-00 239-43449-00 239-43449-00 239-43449-00 239-43449-00

265-42351-02 265-42351-02 265-42351-02 265-42351-02 265-42351-02

239-44195-00 239-44195-00 239-44195-00 239-44195-00 239-44195-00

239-44113-00 239-44113-00 239-44113-00 239-44113-00 239-44113-00

239-43968-18 239-43968-20 239-43968-20 239-43968-18 239-43968-20

239-43963-07 239-43963-12 239-43963-09 239-43963-07 239-43963-09

239-43963-07 239-43963-13 239-43963-12 239-43963-07 239-43963-12

239-43676-02 239-43676-02 239-43676-01 239-43676-02 239-43676-01

239-43676-02 239-43676-03 239-43676-02 239-43676-02 239-43676-02

239-43967-00 239-43967-00 239-43967-00 239-43967-00 239-43967-00

243-43962-00 243-43962-00 243-43962-00 243-43962-00 243-43962-00

265-47439-07-32 265-47439-10-32 265-47439-10-27 265-47439-07-27 265-47439-10-27

228-42506-00 228-42506-00 228-42506-00 228-42506-00 228-42506-00

234-41034-32 234-41034-32 234-41034-27 234-41034-27 234-41034-27

234-41034-36 234-41034-36 234-41034-29 234-41034-29 234-41034-29

234-41034-38 234-41034-38 234-41034-30 234-41034-30 234-41034-30

234-41034-38 234-41034-38 234-41034-31 234-41034-31 234-41034-31

233-46277-04 233-46277-04 233-46277-04 233-46277-04 233-46277-04

234-46502-05 234-46502-05 234-46502-05 234-46502-05 234-46502-05

233-46501-24 233-46501-24 233-46501-24 233-46501-24 233-46501-24

(Replacement for LP Gas (CX) Cast Iron Burner)

265-47440-11-51 265-47440-17-50 265-47440-18-43 265-47440-12-43 265-47440-18-43

228-46964-00 228-46964-00 228-47000-00 228-47000-00 228-47000-00

234-47064-51 234-47064-50 234-47064-43 234-47064-43 234-47064-43

234-47064-53 234-47064-51 234-47064-46 234-47064-46 234-47064-46

234-47064-53 234-47064-52 234-47064-47 234-47064-47 234-47064-47

234-47064-54 234-47064-54 234-47064-47 234-47064-47 234-47064-47

233-46278-03 233-46278-03 233-46278-03 233-46278-03 233-46278-03

234-46502-02 234-46502-02 234-46502-02 234-46502-02 234-46502-02

233-46501-24 233-46501-24 233-46501-24 233-46501-24 233-46501-24

239-43740-01 239-43740-01 239-43740-01 239-43740-01 239-43740-01

- - - - - - 239-11638-00 239-11638-00 239-11638-00

239-44078-00 239-44078-00 239-44078-00 239-44078-00 239-44078-00

239-44328-00 239-44328-00 239-44328-00 239-44328-00 239-44328-00

239-45167-00 239-45167-00 239-45167-00 239-45167-00 239-45167-00

239-45073-00 239-45073-00 239-45073-00 239-45073-00 239-45073-00

265-45420-00 265-45420-00 265-45420-00 265-45420-00 265-45420-00

265-45712-11 265-45712-29 265-45712-47 265-45712-25 265-45712-48

265-45712-23 265-45712-30 265-45712-49 265-45712-26 265-45712-50

*Applies to all warranties

**Inner door gasket kit recommended

***Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.

ŸOrder with item 32

ŸŸOrder with item 33

Page 9

Ce manuel convient aux modèles suivants

Autres manuels Bradford White Chauffe-eau

Bradford White

Bradford White ULG275H763N-475 Manuel utilisateur

Bradford White

Bradford White ULG2100H805N Manuel utilisateur

Bradford White

Bradford White EFC-5500-4-S-10 Manuel utilisateur

Bradford White

Bradford White EFTM Instructions d'installation

Bradford White

Bradford White 544-B Manuel utilisateur

Bradford White

Bradford White PDX Series Manuel utilisateur

Bradford White

Bradford White ElectriFLEX HD CEHD 50 Manuel utilisateur

Bradford White

Bradford White RE2 Manuel utilisateur

Bradford White

Bradford White Defender RG130T Series Manuel utilisateur

Bradford White

Bradford White Copper Brute II Manuel utilisateur

Bradford White

Bradford White BNTH1000 Manuel utilisateur

Bradford White

Bradford White 46392H Instructions d'installation

Bradford White

Bradford White KwickShot Manuel utilisateur

Bradford White

Bradford White 65T-65FB-3N Manuel utilisateur

Bradford White

Bradford White RE380T6 Manuel utilisateur

Bradford White

Bradford White Combi2 "CDW2" Series Guide d'application

Bradford White

Bradford White M-4-TW40T6FSX Guide de configuration

Bradford White

Bradford White EverHot TGHE-160I-NX Manuel de service

Bradford White

Bradford White 238-16152-00F Supplément

Bradford White

Bradford White 6A Manuel utilisateur

Bradford White

Bradford White POWERED DIRECT VENT SERIES GAS-FIRED COMMERCIAL WATER... Manuel utilisateur

Bradford White

Bradford White D100T Manuel utilisateur

Bradford White

Bradford White MII50A-SF Manuel utilisateur

Bradford White

Bradford White DS140S Supplément

Manuels Chauffe-eau populaires d'autres marques

Kenmore

Kenmore 153.582400 Manuel utilisateur

Applimo

Applimo Edel AIR Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuel utilisateur

clage

clage E-Mini Series Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-180 Manuel utilisateur

Eccotemp

Eccotemp 40-H Manuel utilisateur

Dimplex

Dimplex ECSd125-580 Mode d’emploi

Dux

Dux 32FCR6N Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guide de dépannage

Noritz

Noritz N-132M Manuel d'instructions

TESY

TESY GCV7/4S 10047 Fiche technique

A.O. Smith

A.O. Smith Gphe 50 Manuel utilisateur

Koryo

Koryo KWHZF15Y Manuel utilisateur

Pentair

Pentair PSC-14-4-02 Manuel utilisateur

GE 40M06AAG Instructions de montage

Thermor

Thermor AEROMAX SPLIT 2 Manuel utilisateur

American Hometec

American Hometec AHQ-B03X Manuel utilisateur

PVI

PVI MAXIM Manuel utilisateur
