History

In 1958, company founder Richard T. Fisher introduced the first Boston Whaler boat in Braintree, Massachussetts. It

featured two significant innovations: first, its twin sponson hull design produced superior stability and a remarkably dry

ride; second, its unique foam core construction made the boat not only durable, but unsinkable as well. Fisher took every

opportunity to illustrate the unique characteristics of the BostonWhaler. His most famous demonstration was captured in

1961, by Life Magazine. The series of photographs showed the boat underway, the boat being sawed in half and ulti-

mately Fisher motoring away in the remaining half of the boat. And through the years many other demonstrations have

proved the toughness and durability of the BostonWhaler hull.And though you may never cut your boat in half, this only

goes to show one thing, people whose livelihood and lives depend on boats consistently choose Boston Whaler because

of their seaworthiness, dependablility and the inherent safety of a hull that won’t sink even if severely damaged. Boston

Whalers are built to last. For over 40 years Boston Whaler® has strived to make each model better, providing you with

a safe and fun boating experience. That is the reason we offer a 10 year limited transferable warranty. It is also an

excellent reason why you can trust the safety of your family and friends to a Boston Whaler.

PLEASE KEEP THIS BOOK AND OTHER MATERIALS IN A SECURE PLACE, AND BE SURE TO HAND IT

OVER TO THE NEW OWNER IF YOU SELL THE BOAT.

This Owner’s Manual has been written to provide specific information about your boat and it should be read carefully.

Keep this booklet in the Owner’s Manual Packet. The Owner’s Manual Packet has been compiled to help you operate

your boat with safety and pleasure. It contains details of the boat, the equipment supplied or fitted, it’s systems and

information on it’s operation and maintenance. Please familiarize yourself with the boat and it’s operation before

using it. If this is your first boat, or you are changing to a type of boat you are not familiar with, for your own comfort

and safety, please ensure that you obtain handling and operating experience before “assuming command” of your

boat.Your BostonWhaler® dealer or localYacht Club will be pleased to advise you of marine safety classes and safe

boating classes in your area.

Introduction

Section 1 - 305 Conquest

Table of Contents

Section 5-Bilge System

Bilge Pumps/Operation/Maintenance 33

Bilge Pump System Diagram 33

Section 6-Water & Waste System

Livewell/Operation 34

Livewell Diagram 34

Raw Water-Operation/Maintenance 35

Raw Water Diagram 35

Freshwater System 36

Freshwater Pump 36

Freshwater Shower/Maintenance 36

Cold/Hot Water 37

Head Shower Operation 37

Water Heater-Operation/Maintenance 37-38

Disinfecting the System/Winterizing the System 38

Head System-Operation 39

Dockside Discharge/Macerator 39

Operation/Maintenance 40

Environmental Considerations 41

Section 7-Propulsion System

Hydraulic Steering Information-

Operation/Maintenance 42

Power Steering Information 43

Digital Throttle & Shift (DTS) 43

Throttle &Shift Operation 43

Power Trim Operation 44

Propeller Information/Propeller Assembly 45

Section 8-Getting to know your Boston Whaler

Trim Tabs-Operation/Maintenance 46

Air Conditioning 47

Operation/Maintenance 48

Generator (Optional) 48

Fuel 49

Maintenance 49

Operation in European UnionMember Countries 49

Starting the Generator 50-51

Fire Supression System (Optional) 52-53

Rigging the 305 Conquest-Hardtop/Console 54

Rigging the Hull 55

Mooring Points 56

Lifting 57

Long Term Storage 57

Engines 57

Fuel System 57

Electrical System 57

Drainage 57

Hull Maintenance 58

Hull Maintenance/Blisters 58

Bottom Painting 58

Painted Hull Care/Bottom 59

Helm Seat Track Maintenance 59

Canvas Care & Maintenance 62

Canvas Set-up 62

Section 9-Anchoring Information

Anchoring Information 62

Lowering/Setting/Weighing 62

Anchor Windlass-Operation 63

Lowering/Raising 63

Emergency Operation 63

Manual Deployment-Lowering 63

Circuit Protection 63

Section 10-Maintenance Log & Notes

Maintenance Log & Notes 65

305 Conquest-Owner’s Manual

Section 1-305 Conquest

Table of Contents 1

Construction Standards 2

Our Hull 2

Servicing your Boston Whaler 2

Hull Identification Number 2

Section 2-General Arrangement & Specifications

Specifications & Dimensions 3

Standard Features 4-5

Notable Options 6

Storage 7

Through-hull Fittings 8

Deck Occupancy 9

Label Locations 11

Section 3-Fuel System

Fuel System 11

Fuel Tanks 11

Fuel Fill 11

Diesel Fuel Fill (optional) 11

Fuel Vents 12

EmptyTank 12

Hoses & Fittings 12

Tank Cleaning 12

Diesel Fuel Filter Maintenance 12

Fuel Tanks Diagram 13

Tank Selection 14

Fuel Monitoring 14

Primer Bulb (Optional) 15

Remote Oil System (Optional) 15

Static Electricity and The Fuel System 15

Section 4-DC Electrical System

Battery Information 16

Battery Box Locations 16

Battery Maintenance 17

Dual Battery Switches 17

Battery Switch Diagram 18

Helm Switch Panel Schematic 19

Battery Switch Panel Schematic 20

Helm Breaker/Hardtop Switch Panel Schematic 20

Cabin Breaker Panel/Generator Panel Schematic 21

Hull Wiring Diagram 22

305 Conquest Switch Panel 23

305 Conquest Gauge Panels 23

DC Electrical System 24

Branch Circuit Breakers 25

Operation/Maintenance 25

DC Voltmeter 25

AC Electrical System 26

AC Voltmeter 26

Shore Power 27

Isolation Transformer 27

Operation 27

Miscellaneous Panels 28

System View Monitor (SC5000) 29

Navigation Lighting 30

Ignition Shutdown Switch 31

Electric Downrigger Receptacles 31

GFCI Receptacles/12VAccessory Receptacle 32

Testing 32

12 VoltAccessory Receptacle 32

“THE MISSION OF BOSTON WHALER IS TO PROVIDE CONSUMERS WITH THE

SAFEST, HIGHEST QUALITY, MOST DURABLE BOATS IN THE WORLD”.

We are dedicated to creating a superior product providing you with comfort, performance, safety and dependability.

All of our boats comply with the safety standards set by the United States Coast Guard and are designed, engineered

and manufactured in accordance with applicable recommendations and guidelines of the American Boat and Yacht

Council (A.B.Y.C.) and certified by the National Marine Manufacturers Association (N.M.M.A.).

Construction Standards

Hull Identifcation Number

The “Hull Identification Number” is located on the

starboard side of the transom.

Thisis themostimportant identifyingfactor andmust

beincludedin allcorrespondencerelated to yourves-

sel. Failure to do so will only create delays.Also of

vital importance are the engine serial numbers and

part numbers when writing about or ordering parts

for your engine.

Our Hull

Boston Whaler® hulls are constructed with our pat-

ented Unibond™ construction. This involves shoot-

ing high density foam into a closed mold system.

The foam expands to fill voids in the hull, and when

thefinishedproduct is pulled fromthe mold, the deck

and the hull are chemically bonded to form a solid,

inseparable unit.

Hull

Identification

Number Location

When your 305 Conquest needs to be serviced or

regular maintenance is needed, it should be taken to

an authorized Boston Whaler® dealer.

To find a Boston Whaler® dealer in your area call:

1-800-942-5379

Domestic/International

If a problem is not handled to your satisfaction:

Discuss any warranty related problems directly

with the service manager of the dealership or your

sales person. Give the dealership an opportunity

to help the service department resolve the matter

for you.

Servicing your Boston Whaler Typical H.I.N. Description

1No air voids

2High density closed cell non-absorbent foam

3High quality resins and gelcoats

4Woven glass matting

Section 1 - 305 Conquest

305 Conquest-Owner’s Manual

Section 2 - General Arrangement & Specifications

305 Conquest-Owner’s Manual

Overall Length(w/ pulpit) 32’1” 9.78 m

Centerline Length 30’1” 9.17 m

Bridge Clearance 9’1” 2.76 m

Bridge Clearance(outriggers) 9’9” 2.97 m

Beam 10’7” 3.23 m

Draft, (Hull Only) 20” .55 m

Weight (dry, no engine) 8500 lbs. 3855 kg

Swamped Capacity 2200 lbs. 998 kg

Maximum Engine Weight 1400 lbs. 635 kg

Maximum Weight,

(passengers,engine(s)gear** 4300 lbs 1950 kg

Persons 14

Maximum Horsepower 600 HP 447 kw

Minimum Horsepower 400 HP 298 kw

Fuel Capacity 300 Gal.(U.S.) 1135 L

Diesel Fuel Capacity(optional) 15 Gal.(U.S.) 56.8 L

Water Capacity 60 Gal.(U.S.) 227.1 L

Waste Capacity 10 Gal(U.S.) 37.8 L

* Waterline

Specifications & Dimensions

Specified measurementsare approximations andare

subject to variance.

NOTICE

Optional equipment and loading of the boat will af-

fectthe draftmeasurements.Follow therecommen-

dations listed on your capacity plate regarding the

maximum amount of weight the boat can safely

carry.

Exceeding this weight will affect the bost’s perfor-

mance. DO NOT Exceed the weights listed on the

capacityplate.

NOTICE

32’1”

10’7”

9’9”

20”

***

35’7”

30’1”

9’1”

***

Section 2 - General Arrangement & Specifications

305 Conquest-Owner’s Manual

1IntegratedBow Pulpit w/ StainlessSteelAnchorRoller

2Heavy Duty Rubrail

3Navigation Light, Port/Starboard

4Cleats, (1-anchor, 2-bow, 2-springline, 2-aft)

5Stainless Steel Bow Rail

6Opening Hatch w/ Screen

7Port Windshield Wiper

8Aluminum Frame Windshield

9Companion Seat Cupholders, (2)

10 Lockable Cabin Door

11 Companion Seat, Coaming & Backrest Cushions

12 Port Fuel Tank Fill

13 Waste Pump-out Deck Fitting

14 Port Fishbox, Insulated

15 Gunwale Mounted Rodholders, 2-Port,2-Starboard

16 Machinery Access Hatch

17 Stern Hawse Pipe w/cupholder,Port/Starboard

18 24 Gal. Livewell

19 Foldaway Stern Bench Seat

20 Transom Mounted Rodholders, 3

21 Port Engine Oil Fill (OptiMax Only)

22 Motorwell Drain, Port/Starboard

23 Dual 225 CXL DTS Verado 4-stroke Engines (Std.)

24 Motorwell Access Hatch

25 Telescoping Swim Ladder w/ Lid

26 Starboard Engine Oil Fill (OptiMax Only)

27 Stainless Steel Grab Rail

28 Freshwater Fill & Shower Compartment

29 Acrylic Transom Door

30 Starboard Fishbox, Insulated

31 Auxilliary Fuel Tank Fill

32 Starboard Fuel Tank Fill

33 Bait Prep Station

34 Helm Seat, Adjustable

35 Console Cupholder

36 Gear Shift/Throttle Control

37 Stainless Steel Steering Wheel

38 Electric Trim Tab Controls

39 Helm Switch Panel

40 Helm Gauge Panel

41 Compass

42 Starboard Windshield Wiper

43 Windshield Vent w/ Actuator

44 Bow Seat Cushion

45 Anchor Locker w/ Drain

46 Low Profile Anchor Windlass w/ Rode & Anchor

47 Electric Trim Tabs

10114

1213141516

17 418

2223

26 27

29 30 31 32 33

42 43 44 45

Standard Features

Section 2 - General Arrangement & Specifications

305 Conquest-Owner’s Manual

1Raw Water/Washdown Connection

2Rodholder Tubes, Port/Starboard

3Port Cockpit Light, (under gunwale)

4Port Speaker

5Under Gunwale Rodholder, 2 Port, 2 Starboard

6120VAC Converter

7Isolation Transformer, 3.6 KVA120VAC

8Reading Light

9Double Berth Area

10 Hard-top Rodholders, (5)

11 AM/FM Stereo w/ Single CD Player

12 All Round Navigation Light, Collapsible

13 Opening Port Holes w/ Screens, (4)

14 Microwave Oven, 0.8CF/900 Watt

15 Galley Sink & Faucet

16 Forward Berth/Dinette w/Adjustable Table

17 12V/120V Refrigerator

18 Forward Float Switch

19 CO Monitor

20 Freshwater Pump

21 Battery Box, 2 Port

22 Raw Water Pump

23 Livewell Seacock & Pump

24 Downrigger Weight Holders, 2 Port-2 Starboard

25 Aft Bilge Pump 2000 GPH

26 3 Gal. Oil Reservoir, Port Engine

27 Cabin Stereo Speakers, (2)

28 Windshield Vent Actuator Cover

29 Hot/Cold Water Shower Faucet

30 Vacu-Flush Toilet

31 800 GPH Shower sump Pump w/ Cover

32 1100 GPH Forward Bilge Pump

33 Bait Prep Station

34 Battery SwitchAccess

35 Pullout Storage Bin, Small

36 Pullout Storage Bin, Large

37 Vacuum Generator/Holding Tank

38 Water Heater, 6 gal.(23L)

39 Battery Box

40 Starboard Speaker

41 Starboard Cockpit Light, (under gunwale)

42 3 Gal. Oil Reservoir, Starboard Engine

43 Float switch,Aft

44 Aluminum Hardtop Frame w/FiberglassTop

1 2 3 4567

13 14 15

192021

24 23

27 28

29 30

31 32

333435

38 39

40 41

Standard Features

Section 2 - General Arrangement & Specifications

305 Conquest-Owner’s Manual

1Electric Stove*

2CabinAir Conditioning Unit

3Graphics & Striping, (Red or Blue)

4225 CXL DTS Verado 4-Stroke w/ Power Steering (Std.)

5250 CXL DTS Verado 4-Stroke w/ Power Steering

6225 DTS OptiMax Dual Engines

7Generator*(Optional)

8 Weather Curtain, Aft Drop (Black or Blue)

9 Weather Curtain, Starboard Visor, (Black or Blue)

10 Weather Curtain, Port Visor, (Black or Blue)

11 Weather Curtain, Forward Visor, (Black or Blue)

* Part of Cruising Package

A/C Outlet,

(Main Cabin) A/C Outlet,

(Mid Berth)

A/C Inlet,

(Main Cabin)

Notable Options

Section 2 - General Arrangement & Specifications

305 Conquest-Owner’s Manual

Storage

1Galley Storage

2Hanging Locker, Cedar Lined

3Lower Galley Storage/Access

4Cabin Trash Bin

5Port Cabin V-Berth Storage

6BowV-Berth Storage,(becomesAC compartmentw/ Cruise

Pkg.)

7Anchor/Rode Locker

8Starboard cabin V-Berth Storage

9Under Gunwale Rod Racks, Port/Starboard

10 Fishbox, Port/Starboard

11 Battery Storage/Access

12 Oil Storage/Access

13 Downrigger Weight Holders, (Port/Starboard

14 Head Compartment Upper Cabinet

15 Head Compartment Vanity Storage

16 Knife/Tool Holder

17 Tackle Drawers

18 Pull-Out Bin, Small

19 Pull Out Bin, Large

910 11

Section 2 - General Arrangement & Specifications

305 Conquest-Owner’s Manual

Thedeckdrainprovidesself-bailingcapabilitieswhilethe

boat is static in the water and no passengers on board.

This feature prevents the accumulation of water in the

cockpit. the drain must be in place when underway.

NOTICE

Depending on the type of boat you have, you may

have underwater fittings that need drain plugs.

Garboard drain plugs and fishbox drain plugs need

to be in place before the boat goes into the water.

Any fitting that will be underwater needs to be

plugged or the seacock needs to be closed

NOTICE

Through hull fittings should be checked for proper

seal annually. When the boat is in the water the un-

derwater fittings can be checked for dripping. It is

recommended that the underwater fittings be re-

moved, cleaned and resealed every other year.

NOTICE

If the through hull fittings need to be replaced, it is

recommended that an authorized Boston Whaler ®

dealer perform this type of repair. Through hull fit-

tings that are improperly installed can cause pre-

mature hull failure and may void the Boston

Whaler® limited warranty.

NOTICE

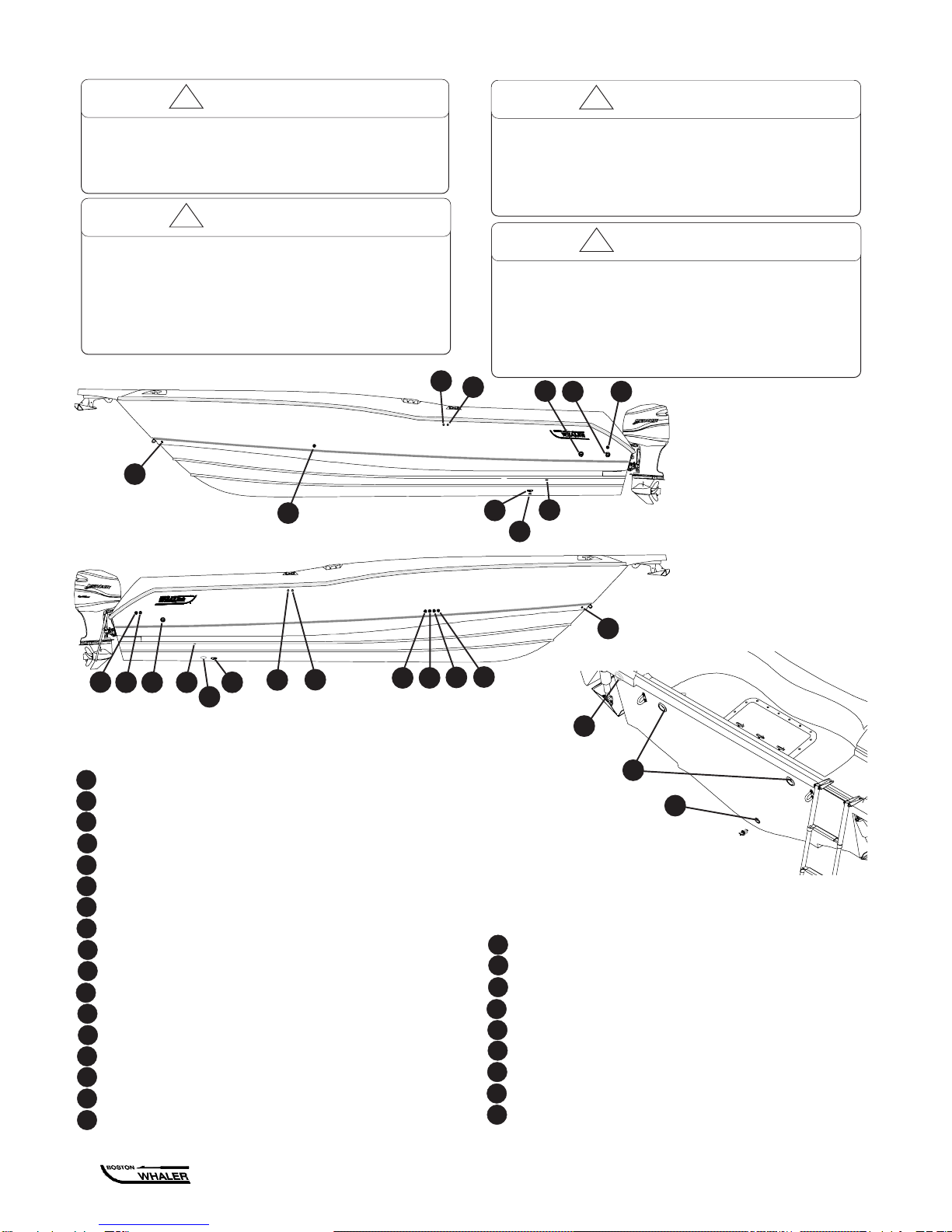

305 Conquest Through-Hull fittings

1Anchor Locker Drain, Port

2Galley Sink Drain

3Port Fuel Tank Vent

4Center Fuel Tank Vent

5Deck Drain

6Generator Exhaust (optional)

7Fishbox Pumpout

8Fishbox Drain

9Generator Raw Water Pump Inlet, (optional)

10 Raw Water Washdown Pump Inlet

11 Anchor Locker Drain

12 A/C Discharge, (optional)

13 1100GPH ForwardBilge PumpOverboardDrain

14 Head Compartment Sink Drain

15 Shower Sump Drain

16 Starboard Fuel Tank Vent

17 Waste Tank Vent

10 8

56 7

1415

18 A/C System Raw Water Inlet, (optional)

19 Macerator Pump Outlet

20 Starboard Fishbox Drain

21 Deck Drain

22 2000 GPH Aft Bilge Pump Overboard Drain

23 Fishbox Pumpout

24 Livewell Drain

25 Motorwell Drains

26 Garboard Drain

1617

18202122

23 19

Autres manuels pour 305 conquest

Table des matières

Autres manuels Boston Whaler Bateau

Boston Whaler

Boston Whaler 305 conquest Manuel utilisateur

Boston Whaler

Boston Whaler 180 Dauntless Manuel utilisateur

Boston Whaler

Boston Whaler Boston Whaler Mode d'emploi

Boston Whaler

Boston Whaler 325 Conquest Manuel utilisateur

Boston Whaler

Boston Whaler 150 Montauk Manuel utilisateur

Boston Whaler

Boston Whaler 25 Guardian Series Manuel

Boston Whaler

Boston Whaler 280 Outrage Manuel utilisateur

Boston Whaler

Boston Whaler 190 Montauk 2018 Manuel utilisateur

Boston Whaler

Boston Whaler 250 OUTRAGE Manuel utilisateur

Boston Whaler

Boston Whaler 230 Vantage Manuel utilisateur

Boston Whaler

Boston Whaler Dauntless 210 Manuel utilisateur

Boston Whaler

Boston Whaler 180 Dauntless Manuel utilisateur

Boston Whaler

Boston Whaler 20 Justice Series Manuel

Boston Whaler

Boston Whaler 370 Outrage Manuel utilisateur

Boston Whaler

Boston Whaler 170 Montauk Manuel utilisateur

Boston Whaler

Boston Whaler 170 Super Sport 2018 Manuel utilisateur

Boston Whaler

Boston Whaler 150 Super Sport 2018 Manuel utilisateur

Boston Whaler

Boston Whaler 255 Conquest Manuel utilisateur

Boston Whaler

Boston Whaler 21 Justice Series Manuel

Boston Whaler

Boston Whaler 190 Outrage 2019 Manuel utilisateur

Boston Whaler

Boston Whaler 420 OUTRAGE Manuel utilisateur

Boston Whaler

Boston Whaler 330 Outrage 2023 Manuel utilisateur

Boston Whaler

Boston Whaler 330 outrage Manuel utilisateur

Boston Whaler

Boston Whaler 130 Super Sport Manuel utilisateur

Manuels Bateau populaires d'autres marques

Raymarine

Raymarine ST70 Instrument Manuel utilisateur

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuel utilisateur

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuel utilisateur

Tiara Yachts

Tiara Yachts C49 2024 Manuel utilisateur

Monterey Boats

Monterey Boats Sport Yacht 330 Manuel utilisateur

J 105 Manuel utilisateur

PURSUIT

PURSUIT OS 335 Manuel utilisateur

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuel utilisateur

Meridian

Meridian 490 Pilothouse Manuel utilisateur

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuel utilisateur

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuel utilisateur

Swallow Boats

Swallow Boats BayRaider Manuel utilisateur

Intex

Intex Excursion 5 Set Manuel utilisateur

X SHORE

X SHORE EELEX 8000 Manuel utilisateur

ISLAND PACKET

ISLAND PACKET 370 Manuel utilisateur

Sea Ray

Sea Ray 175 Sport Manuel utilisateur

Regal

Regal 2300 Manuel utilisateur

Grand

Grand Silver Line S250 Manuel utilisateur
