New Product Announcement

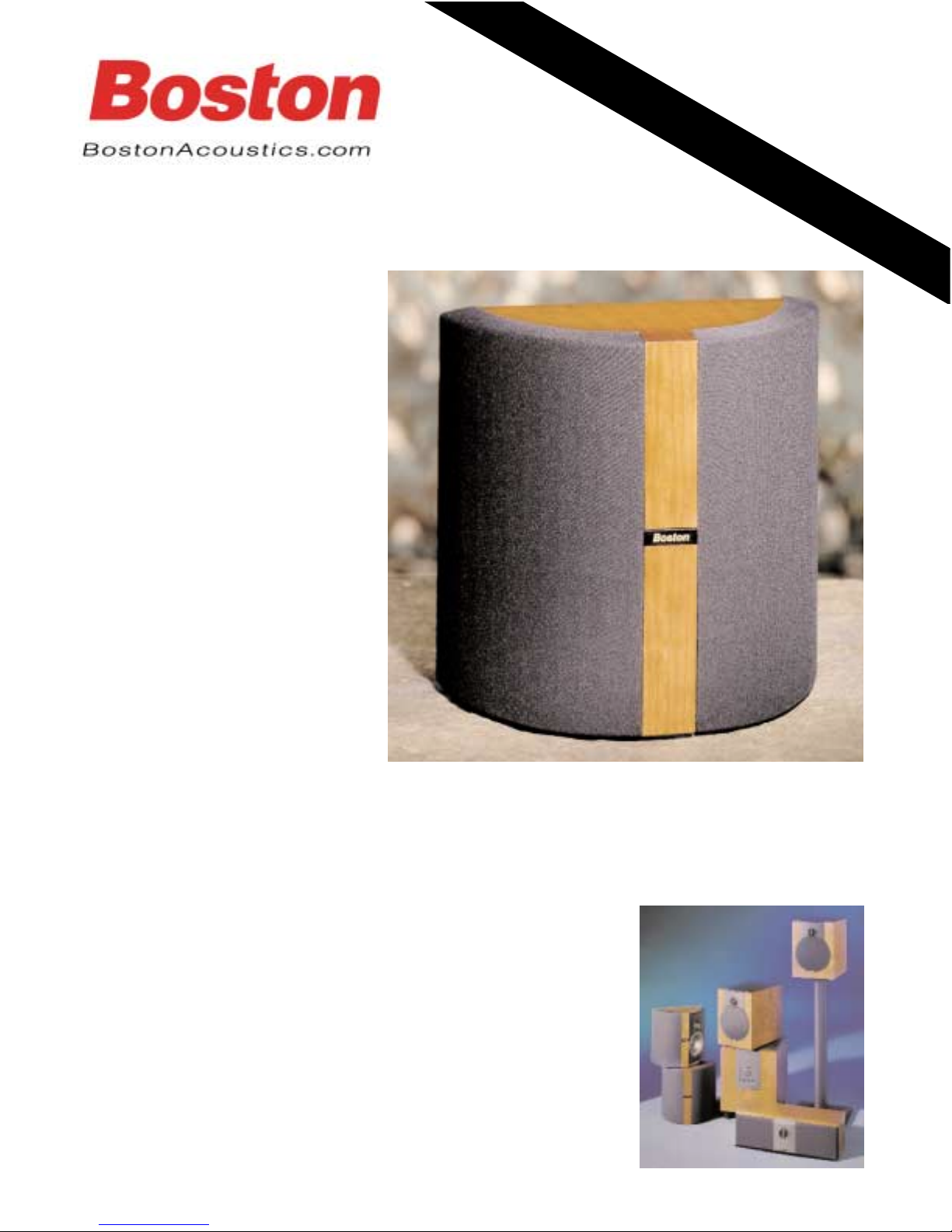

VR-MX

Wide Dispersion Surround Loudspeaker

The VR-MX is the best surround speaker

from Boston Acoustics. The VR-MX is

designed to be used with our VR-M mon-

itors and/or VR900 series loudspeakers,

as well as with any high quality main

loudspeaker. Its innovative shape pro-

duces a wide sound radiation pattern,

making it ideally suited for all side wall,

rear wall and ceiling locations.

What makes the VR-MX unique is its abil-

ity to act either as a direct or diffuse field

surround speaker—depending on the

surround sound effect desired. Each indi-

vidual VR-MX surround speaker employs

two speaker baffles—one with an active

woofer, and one with a passive radiator.

When the baffle with the active woofer is

pointed towards the listening area, the

speaker produces a very direct sound

with increased localization of the sur-

round effects. When the speaker is

mounted so that the passive radiator is

facing the listening area, the entire sound

field is more diffuse and the room seems

larger—more like a movie theater or con-

cert hall. Because each pair of VR-MX

speakers is designed and manufactured

as a mirror image set, reversing the effect is as sim-

ple as swapping the left and right speakers. Each

VR-MX also employs two tweeters—one on each

baffle—so that regardless of which way the speak-

ers are oriented, the high frequencies always envel-

op the listener and remain widely dispersed.

This speaker uses the same tweeter and same size

woofer as our highly acclaimed VR-M50 bookshelf

monitor, making it the perfect sonic match with

other VR-M monitors. The output of the 51⁄4"

(133mm) woofer is reinforced with a 51⁄4" passive

radiator. This combination delivers powerful low fre-

quency extension to 80Hz. The woofer/passive radi-

ator combo is coupled with two of our patented,

1"(25mm) aluminum dome VR tweeters. This

remarkable driver produces an extremely smooth,

flat response well beyond the audible range. A die-

cast aluminum heatsink attached to the tweeter's

backplate dissipates heat quickly and efficiently—

assuring cool, trouble-free operation even at very

high power levels.

Available in real cherry wood with gray grilles, black

wood veneer with black grilles, or all white, the VR-

MX maintains the unique appearance of the VR-M

family. The cabinets are as functional as they are

beautiful, featuring rigid construction and an inte-

grated bracket with hardware that can be used for

either wall or ceiling mounting. The VR-MX is

designed and man-

ufactured at our

Peabody, MA facili-

ty, using state-of-

the-art design soft-

ware, and is built

on our own propri-

etary production

lines. Like all

Boston speakers it

is built to exacting

standards, widely

re-spected as

among the indus-

try's tightest toler-

ances. The VR-M Family of Speakers

300 Jubilee Drive, Peabody, MA 01960 978-538-5000 Fax: 978-538-5100

Covered by patents issued and/or pending. Specifications subject to change without notice.

DCD is a trademark, and Boston and Boston Acoustics are registered trademarks of Boston Acoustics, Inc.

115⁄

VR-MX Specifications

FREQUENCY RESPONSE (±3dB) 80–20,000Hz

RECOMMENDED AMPLIFIER POWER 15–200 watts

NOMINAL IMPEDANCE 8 ohms

SENSITIVITY [1 watt (2.83v) at 1m] 90dB

BASS UNIT 51⁄4" (133mm) copolymer

TWEETERS Dual 1" (25mm) anodized aluminum dome

PASSIVE RADIATOR 51⁄4" (133mm) copolymer

CROSSOVER FREQUENCY 2500Hz

WEIGHT 9 lbs. (4.1kg)

DIMENSIONS (H x W x D) 11 x 115⁄16 x 515⁄16" (279 x 287 x 151mm)

FINISH Cherry wood veneer with gray grille cloth

Black ash wood veneer with black grille cloth

White vinyl veneer with white grille cloth

11"

Boston Acoustics, Inc. Peabody, MA 01960

Made in USA

VR-MX

8 ohms

PZ 000101 A

DIFFUSE

SOUND RADIATION

DIRECT

DIFFUSE

Consult manual for orientation best

suited to your listening

environment.

Wide Dispersion Surround Speaker

For DIRECT Radiating

Position VR-MX

with DIRECT

arrow facing the

listening area.

For DIFFUSE Field

Surround Effects:

Position VR-MX

with DIFFUSE

arrow facing the

listening area.

Surround Effects:

Boston Acoustics, Inc. Peabody, MA 01960

Made in USA

VR-MX

8 ohms

PZ 000101 B

DIFFUSE

SOUND RADIATION

DIFFUSE

DIRECT

Consult manual for orientation best

suited to your listening

environment.

Wide Dispersion Surround Speaker

For DIFFUSE Field

Position VR-MX

with DIFFUSE

arrow facing the

listening area.

For DIRECT Radiating

Surround Effects:

Position VR-MX

with DIRECT

arrow facing the

listening area.

Surround Effects:

SOUND RADIATION &

SPEAKER ORIENTATION

These labels are located on the rear of each VR-MX.

Notice that the "DIRECT" and "DIFFUSE" arrows are

pointing in opposite directions. This is because the

speakers are configured as mirror imaged pairs.

Positioning each VR-MX with the "DIFFUSE" arrow

facing the listening area will yield a larger, more

ambient surround effect. Positioning each VR-MX

with the "DIRECT" arrow facing the listening area

will yield a more focused sound with increased

localization of the surround effects. Changing from

“DIRECT”to “DIFFUSE”is as simple as swapping

the speakers from one side of the room to the other.
