BOSSCO ME-25 Guide de configuration

BOSS ME-25 GUITAR MULTIPLE EFFECTS

TRAINING GUIDE

Contents

1. FEATURES

2. QUICK DEMO

3. GOING DEEP

4. FIVE FEATURES TO KNOW and SHOW

5. ACCESSORIES

6. ME-25 EFFECTS

BOSS ME-25 Training Guide

1. FEATURES

•Super simple operation

•COSM amp and effect modeling

•Functions as USB-audio interface

•New SOUND LIBRARY Interface allows downloadable

patches from dedicated website

•Comes with Cakewalk Sonar LE recording software and hundreds

of loops and rhythms for jamming or recording

•7 Effect groups: Preamp, Comp/FX, OD/DS, Modulation,

Delay, Reverb, Pedal FX

•10 COSM amplifier models

•3 Comp/FX effects

•8 Modulation effects, including Uni-V, Harmonist and Rotary

•4 delay ranges w/ up to 6,000ms delay time

•Built in 38-second Phrase Looper w/ unlimited overdubs

•60 programs-all programmable

•Built-in assignable Expression pedal

•Built-in chromatic tuner

•Tough metal case

•Runs on batteries (included) or optional BOSS PSA-120S

AC adaptor

•$276.50 List, $199 MAP

BOSS ME-25 Training Guide

2. QUICK DEMO

The Quick Demo is a way to get a customer interested in a product in less than

60 seconds.

Before You Start

1. Connect the MONO (L) output of the ME-25 to the clean channel of a

good amp, such as a Roland JC-120 or other pro quality amp.

NOTE: It is very important to use a pro-quality guitar amp. Why run a high-

end effect through a low-end amp?

2. Set the amp’s tone controls for a flat response.

3. Connect the ME-25 to power using a BOSS PSA-120 AC Adaptor.

4. Plug a guitar into the GUITAR INPUT of the ME-25.

THE QUICK DEMO: SHOW the SOUND LIBRARY

1. Press the CLEAN BUTTON. The LED will light up.

2. Turn the VARIATION KNOB to select a CLEAN variation.

BOSS ME-25 Training Guide

3. Play the sound

4. Turn the PARAMETER KNOBS to adjust the sound.

5. Turn the DRIVE, TONE and VOLUME (PARAMETER 1, 2, 3) KNOBS to

adjust the sound.

6. Press the DRIVE BUTTON.

7. Turn the VARIATION KNOB to select a variation.

8. Play the sound.

9. Turn the DRIVE, TONE and VOLUME KNOBS to adjust the sound

10.Press the EXTREME BUTTON.

11.Turn the VARIATION KNOB to select a variation.

12. Turn the DRIVE, TONE and VOLUME KNOBS to adjust the sound.

BOSS ME-25 Training Guide

3. GOING DEEP

How to EDIT the ME-25

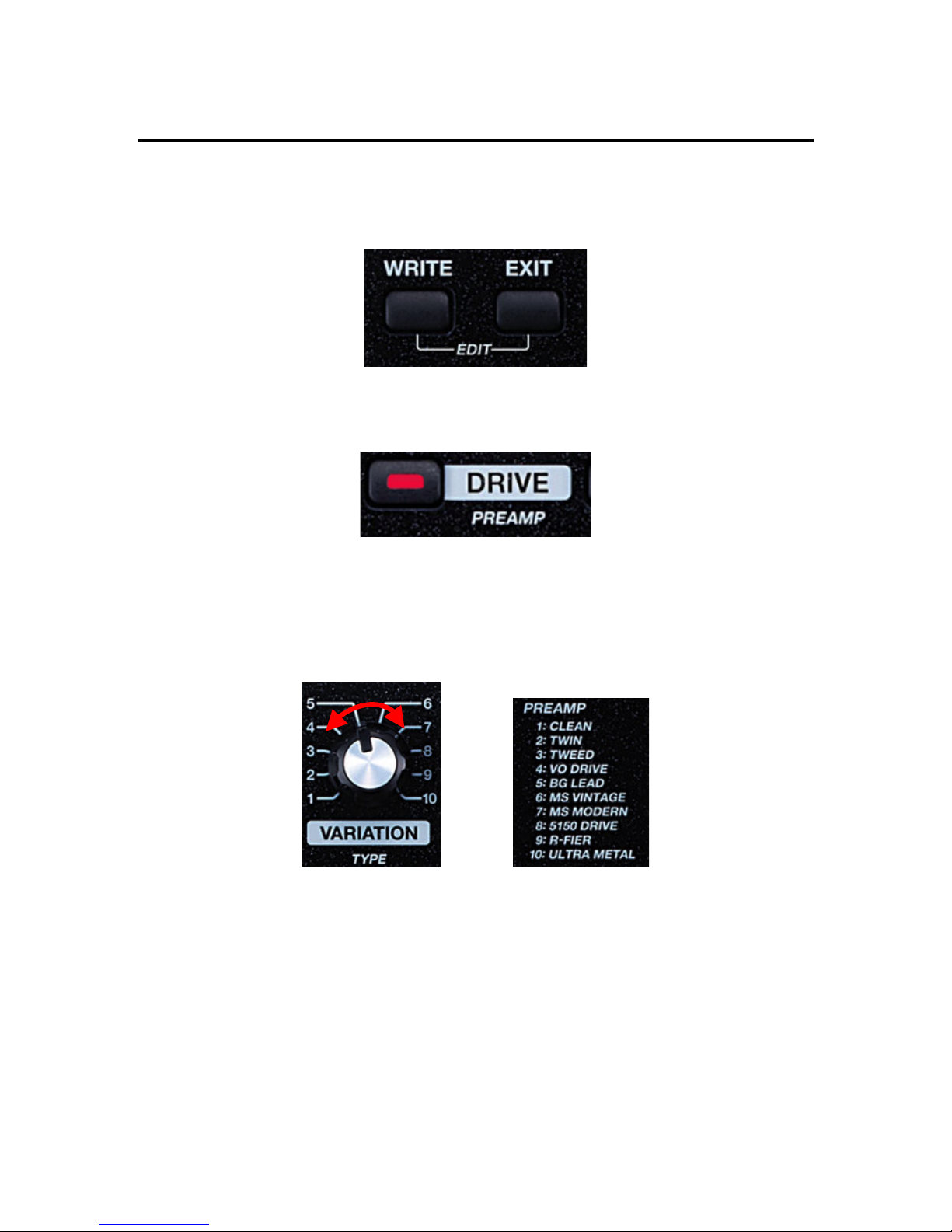

1. Hold down EXIT and press WRITE to engage the EDIT MODE.

2. Press DRIVE (Preamp) or another SOUND LIBRARY BUTTON.

3. Turn the VARIATION (Type) KNOB to select a TYPE.

NOTE: all the EFFECT TYPES are printed on the ME-25 below the

SOUND LIBRARY BUTTONS.

4. Check out the sound

5. Turn the PARAMETER 1,2,3 KNOBS to adjust the sound.

6. Follow the above steps to check out other preamp sounds or other effect

sounds.

7. Press EXIT when finished.

BOSS ME-25 Training Guide

How to Change Programs

1. Press the MEMORY UP or MEMORY DOWN PEDALS.

How to Use the Tuner

1. Press the MEMORY UP and MEMORY DOWN PEDALS down

simultaneously.

2. Tune up. The note played will show in the LED Display. The LED’s in the

display will indicate whether the note is sharp, flat, or in tune.

3. Press the MEMORY PEDALS again to return to play mode.

How to Use the PHRASE LOOPER

1. Hold the SOLO PEDAL down for two seconds. The LED will flash

indicating Standby mode.

2. When you are ready to play, press the SOLO PEDAL. The LED will flash

quickly indicating Recording mode.

3. To end the loop and play it back, press the SOLO PEDAL again. The LED

will stay on to indicate Playback mode.

4. Repeat steps two and three to overdub.

5. Press the SOLO PEDAL twice quickly to stop playback and return to

Standby.

6. Hold the SOLO PEDAL down for two seconds to exit the PHRASE

LOOPER.

How to Re-Initialize the ME-25

1. Hold down EXIT and press the MEMORY DOWN PEDAL. The display will

show ”FA.”

2. Press WRITE. The TUNING guide will flash.

3. Press WRITE again.

BOSS ME-25 Training Guide

4. FIVE THINGS TO KNOW and SHOW

1. Super simple but full featured BOSS multi-effect

2. COSM modeled Amps, OD/DS, Modulations, and Delays

3. USB-Audio interface

4. Comes with Cakewalk Sonar LE professional recording software and

DVD-ROM with on screen Librarian and hundreds of loops and rhythms

for jamming or practice

5. Battery or AC operation-use it any time, anywhere

5. ACCESSORIES

1. BOSS PSA-120SAC Adapter

2. Roland RH-5, RH-200 or other headphones

3. Instrument cables

BOSS ME-25 Training Guide

6. ME-25 EFFECTS

COMP/FX ORIGINAL

1. COMPRESSOR BOSS CS-3

2. T-WAH BOSS AW-3

3. ACOUSTIC SIMULATOR BOSS AC-3

OD/DS

1. BOOST Original level booster

2. OD-1 BOSS OD-1

3. T-SCREAM Ibanez TS-808 Tube Screamer

4. BLUES BOSS BD-2

5. DIST BOSS DS-1

6. CLASSIC BOSS DS-2

7. MODERN BOSS w/ Turbo on

8. METAL BOSS MT-2

9. CORE BOSS ML-2

10.FUZZ BOSS FZ-5

PREAMP

11.CLEAN Roland JC-120

12.TWIN Fender Twin Reverb

13.TWEED Fender Bassman 4x10

14.VO DRIVE Vox AC-30TB

15.BG LEAD Mesa-Boogie II c

16.MS VINTAGE ` Marshall Plexi

17.MS MODERN Marshall JCM 800

18.5150 DRIVE Peavey EVH 5150 lead channel

19.R-FIER Mesa-Boogie Dual Rectifier

20.ULTRA-METAL Original super heavy metal amp

MODULATION

1. CHORUS BOSS H-1

2. PHASER BOSS PH-3

3. FLANGER BOSS BF-3

4. ROTARY Leslie 147

5. UNI-V Univox Uni-vibe

6. TREMOLO BOSS TR-2

7. HARMONIST BOSS PH-5

8. OCTAVE BOSS OC-3

DELAY

1. 1-99ms

2. 100-990 ms

3. 1000-6000m

4. Tap

BOSS ME-25 Training Guide

REVERB

1. ROOM

2. HALL

PEDAL EFFECTS

1. WAH

2. +1 OCTAVE

3. –1 OCTAVE

4. FREEZE

NOISE SUPPRESSOR

SUPER STACK
