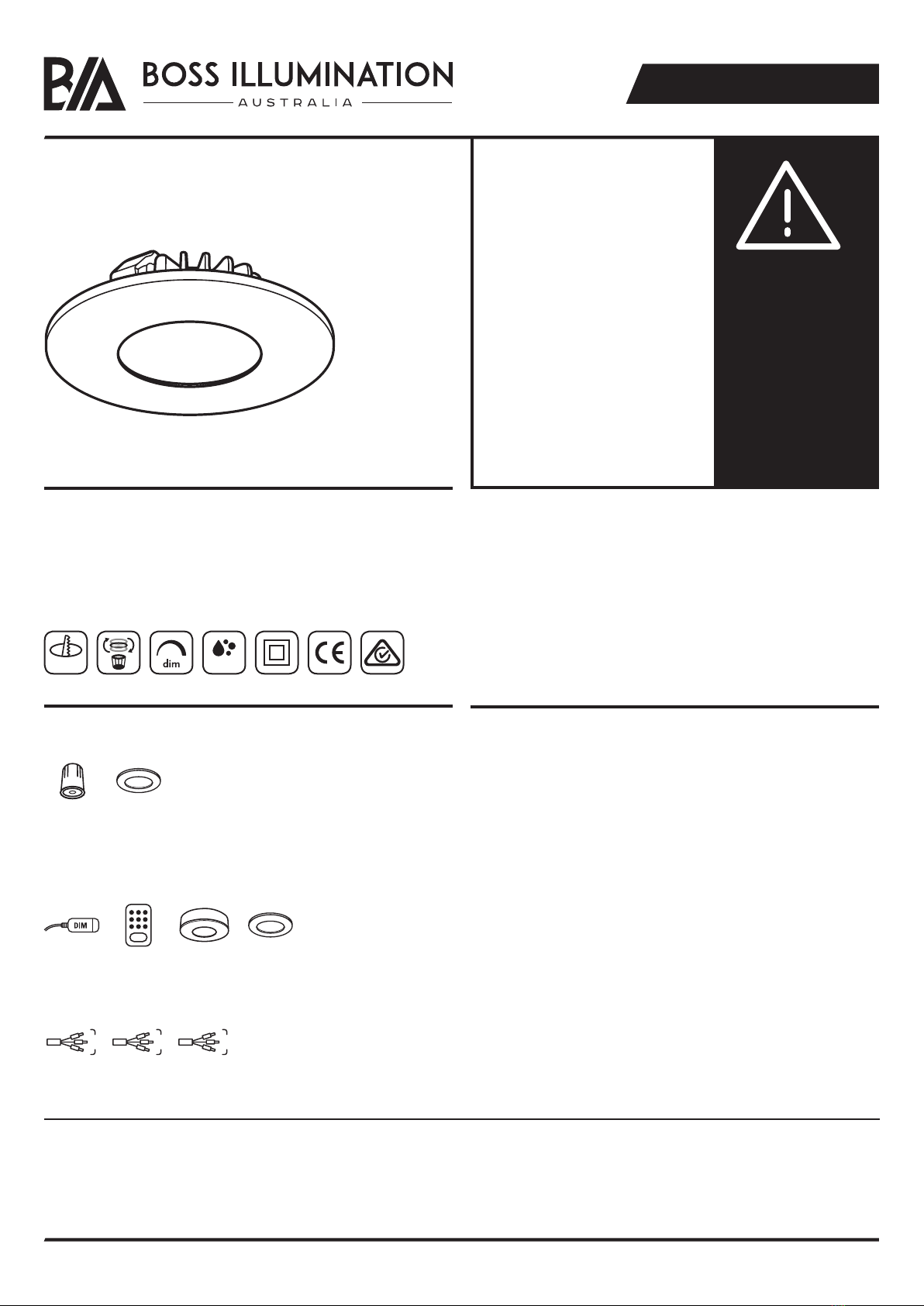

BOSS ILLUMINATION VIRGO Manuel utilisateur
PRODUCT MANUAL
COPYRIGHT BIA ©2019 V05.19
Disclaimer: Please read these warranty
and installation instructions carefully
before installing the product.
BIA products are manufactured
and certied in accordance with all
mandatory Australian Standards.
All products must be installed by a
licensed electrician, in accordance
with relevant Australian Standards.
Technical data and information subject
to changes, visit our website for the
most updated version.
WARRANTY STATEMENT This product is covered by a 3 year replacement warranty.
BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x
or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated
on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on
warranty please visit www.bia.lighting/warranty
BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.
PRODUCT VARIANTS
CCT : 3000K
4000K
5000K
RGB
PRODUCT SPECIFICATIONS
Power : 3W
Input Voltage : 12VDC
Ambient Temperature : -10 to 45°C
Dimming : PWM
VIRGO
LED CABINET LIGHT
Must be installed by
a licensed electrician.
Must be installed
in accordance with
relevant Australian
Standards.
ADDITIONAL INFORMATION
1. BIA recommends using a low voltage dimmer with this product.
2. This product can be customised to order by swapping drivers of a
different size and cables of a different length.
3. This product is suitable for outdoor under cover use.
4. This product is suitable to install onto ceilings and cabinets.
5. If cleaning maintenance is required, use a clean microfibre cloth,
slightly dampened with a mild dilution of detergent that is PH
neutral, alcohol free and non-abrasive.
PARTS INCLUDED
OPTIONAL COMPATIBLE PARTS sold separately
Dimmable
Driver
IP44
Remote
Control +
Receiver
1 to 4
Split Cable
1 to 6
Split Cable
1 to 8
Split Cable
Other colours:
- Silver
- Brushed Chrome
- Black
Surface
Mount
Bracket
60mm
White FasciaLED Module
4 6 8
PRODUCT MANUAL
COPYRIGHT BIA ©2019 V05.19
INSTALLATION INSTRUCTIONS
RECESSED MOUNTED
1. Before commencing installation, ensure the main power is
switched off.
2. Measure and cut ceiling hole to 60mm.
3. Optional: For fascia of a different colour,
remove and replace the white fascia, twist to lock fascia
onto module.
4. Connect the luminaire, split cable, remote control receiver,
and driver according to the order shown.
5. Push clips backwards, hold in place and insert luminaire into
prepared ceiling hole. Luminaire clips will spring into place.
6. Turn on main power.
SURFACE MOUNTED
1. Before commencing installation, ensure the main power is
switched off.
2. Measure and prepare the holes.
3. Secure the bracket with screws.
4. Connect the cables.
5. Push the clips backwards, hold in place and insert into
bracket.
6. Clip on the fascia, the magnet will hold it in place.
7. Turn on power.
Driver
Split cable
comes in 1 to 4, 1 to 6
and 1 to 8
Luminaire
sold individually
Remote control switch
/ dimmer
4
4
4
4
2
3
3
5
5
6
60mm
PRODUCT MANUAL
COPYRIGHT BIA ©2019 V05.19
CLEARANCE TABLE
Recessed mounting Surface mounting
DIAMENSION DIAGRAM
Ø80mmØ80mm
Cutout: Ø60mm
23mm
22mm
Min. 10mm Min. 10mm
LED Driver
Combustible
Building
Element
Combustible Building Element
Thermal
Insulation
Min. 10mm
(Ceiling / Cabinet Recessedd)
