USER’S MANUAL

BV9358B

BLUETOOTH® | DVD/MP3/CD AM/FM RECEIVER

BLUETOOTH® | DVD/MP3/CD Y AM/FM RECEPTOR

1016

iPod® / iPhone® are trademarks of Apple, Inc. registered in the U.S. and other countries.

BOSS Audio Systems is not affiliated with Apple, Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BOSS Audio Systems is under license.

Other trademarks and trade names are those of their respective owners.

iPod® / iPhone® son marcas comerciales de Apple, Inc., registradas en los EE.UU. y otros países.

BOSS Audio Systems no está afiliado con Apple, Inc.

Las marcas registradas marca Bluetooth® y sus logotipos son marcas registradas propiedad de Bluetooth SIG, Inc. y cualquier uso de dichas marcas por parte de

BOSS Audio Systems es bajo licencia. Otras marcas y nombres comerciales pertenecen a sus respectivos propietarios.

USER’S MANUAL

BV9358B

BLUETOOTH®

DVD/MP3/CD AM/FM RECEIVER

FEATURING 6.2" (157mm) WIDESCREEN TOUCHSCREEN

DIGITAL TFT LED MONITOR

BLUETOOTH®

DVD/MP3/CD Y AM/FM RECEPTOR

CON PANTALLA DIGITAL TFT LED DE 6.2" (157mm)

BOSS Audio Systems

3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com

800-999-1236 US Toll-free

805-988-0192 US Local Main

tech support: www.bossaudio.com/support/technical-support

Content

To ensure safety while driving and to comply with laws, drivers should

not watch video or operate the video device while driving.

ccessories………………………………………………………………………………………………………………………………………...02

Unit Installation………………………………………………………………………………………………………………………………..03

Wire Connection………………………………………………………………………………………………………………………………03

Parking Brake Connection ………………………………………………………………………………………………………04

Speaker connection……………………………………………………………………………………………………………………….05

Button Description………………………………………………………………………………………………………………………….06

Remote Control………………………………………………………………………………………………………………………………..07

Main Menu…………………………………………………………………………………………………………………………………………...10

Radio Operation……………………………………………………………………………………………………………………………….10

DVD Operation………………………………………………………………………………………………………………………………..11

USB /SD Operation………………………………………………………………………………………………………………………..12

Settings Operation………………………………………………………………………………………………………………………..12

Bluetooth Operation……………………………………………………………………………………………………………………..15

Aux in Operation …………………………………………………………………………………………………………………………….16

Notes of Disc……………………………………………………………………………………………………………………………………...17

Troubleshooting……………………………………………………………………………………………………………………………..18

General Specification…………………………………………………………………………………………………………………..20

Power Cable

rim Ring User Manual

Accessories

Package contains the following accessories for installation and operation of the unit.

(1) Washer,

Spring

(2) Washer,

M5 Nut

(5) Rubber

Cushion 1

(3) Screw

(6) Screw

1 Left

(4) Bolt 1

(7)installation

bracket 1 Right

(5) Mounting

Strap

Remote Control

Unit Installation

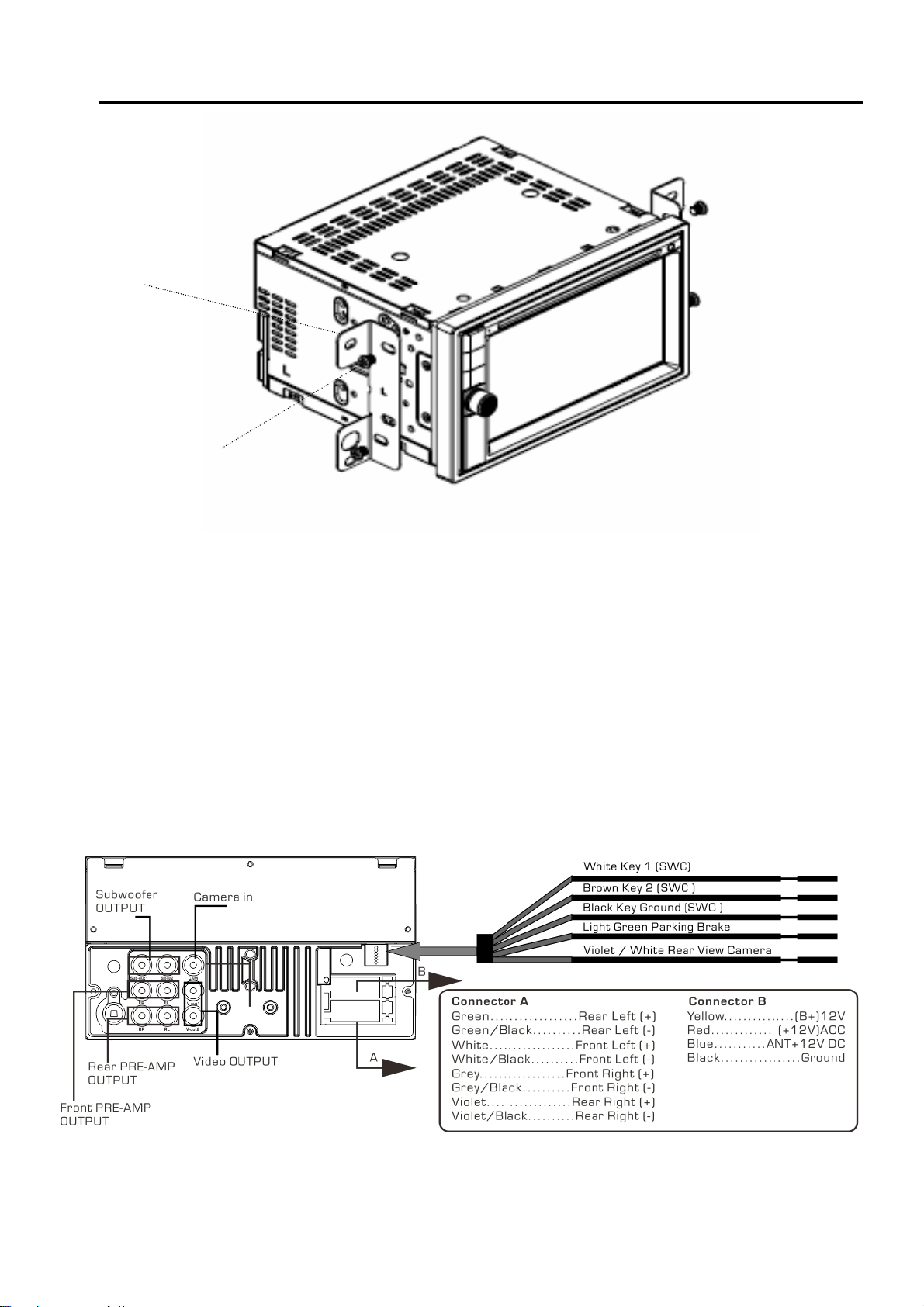

1. Put the 2 brackets to the left and right side of the unit;

2. Use screws to fix the brackets to the unit.

Wire Connection

The Description of the Input/output Interface of the Rear Cabinet

Bracket

Screw

Parking Brake Connection

1. In order for videos to be viewed, and to comply with federal and local laws, the parking brake wire

must be connected to the power side of the parking brake switch.

Connecting the reversing line to taillight on the car

Speaker Connection

After connecting, when you start up the reverse gear, the unit will receive the picture from car rear

view camera.

Note:

- Use only with 4-8 ohm, non-chassis grounded speakers

- Always observe correct polarity

- Loudspeaker cables and/or optional external power amplifiers must always be about 11.8 inch

away from the antenna and/or antenna extension parts.

Connect the speakers according the following diagram, incorrect connections will damage the unit or

your loudspeakers.

Correct connection

Left front - Right front | Left rear - Right rear

Incorrect connections

Button Description

1. MIC

IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels.

2. EJECT Button

Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted

automatically.

3. MENU BUTTON

Press menu button to return back to main menu.

4. BAND BUTTON

Press band button to band of FM and AM.

5. POWER / MUTE Button /VOL

Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button.

briefly to mute .Please notes that the volume will be muted on all audio output connector.

Press VOL knob to power on unit and Press and hold for 2 seconds to turn the unit off

Rotate VOL knob to increase or reduce the volume.

6. USB Slot / SD/MMC CARD Slot /AUX-IN Jack

USB slot for Multimedia playback files only. insert a USB into this slot and the unit will automatically

start reading and playback. * Supported Music File Format: MP3, WMA files.

SD/MMC card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and the unit

will automatically start reading and playback. * Supported Music File Format:MP3, WMA files

Put the Aux plug into the AUX-IN jack which was marked on front panel.

7. DISC Slot

8. Info Display

LCD display Information when operation the unit.

Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted

automatically.

9. Remote Sensor

Remote Control

1. MODE button

Press it to select the mode: radio, disc (if there is a disc in unit), USB (if there is a USB device in the

unit), SD (if there is a SD/MMC card in the unit), Bluetooth, AUX IN

2. POWER button

Power on or power off.

3. UP button

Press it to move the cursor up.

4. BAND/RDM/CLEAR button

In radio mode, press to change radio band in sequence of FM1 →FM2 →FM3 →AW1 →AW2; In DVD

mode, press to play randomly; In Bluetooth mode, short press it to clear the single phone number; long

press it to clear all the phone number.

5: ENTER

Press it to confirm your selection

6. LEFT button

Press it to move the cursor left

7. DOWN button

Press it to move the cursor d

8. EJECT button

Press it to eject the disc.

9. STEREO/MONO/* button

Press to switch the radio in stereo and mono sound. In Bluetooth mode, press it to make a symbol.

1: MODE

2: POWER

3: UP

4: BAND/RANDOM/CLEAR

5: ENTER

6: LEFT

7: DOWN

8: EJECT

9: STEREO/MONO/*

10:P.SCAN/REPEAT/#

11: SEEK-/BACKWARD

12: LOUD

13: STOP/PBC

14:OSD

15: PLAY/PAUSE

16: MUTE/BLUETOOTH

17: MENU/ROOT

18: SUBTITLE

19: RIGHT

20: SETUP

21: DIAL/ANGLE

22: HANG UP

23: VOLUME UP

24: ZOOM

25: SELECT

26: SEEK+/FORWARD

27: VOLUME DOWN

28: AUDIO

29: NUMERIC KEY

Remote Control

10. P.SCN/ RPT /# button

In DVD mode, press to repeat REP 1 => REP Title => REP ALL.

In SD /USB mode ，press to repeat REP 1 => REP Dir => REP ALL.

In radio mode, PS (preset scan): Press to scan all preset stations in the memory of the current band

and stay on each memory stations for about 5 seconds.

AS (Auto Save), long press to save the stations with good reception automatically.

In bluetooth mode, press it to make a # symbol.

11. / SEEK- button

In DVD mode, press button to skip to the previous track, press and hold button for two seconds to

activate fast reverse (REW) search in a track.

In radio mode, press and hold button to select station backward automatically, touch again will stop

select station. button frequency down.

12. LOUD

Press to select loudness on or off.

13. STOP/PBC button

Press to stop playback from the current position, press again to final stop from the beginning. Press

play/pause button to play.

14. OSD button

In DVD mode press to show disc playing information.

15. PLAY/PAUSE button

In DVD/USB/SD mode, press it to break playback, press again to resume playback.

16. Mute button/Bluetooth button

: Short press to mute the volume output, press again to resume volume.

Long press this button to enter into Bluetooth mode (Hands free).

17. MENU/ROOT button

Press it to show main menu, in DVD mode, long press it to enter title menu (Available only if the DVD

disc with title menu).

18. SUBTITLE button

Press it to select the subtitle language (Available only if the disc with subtitle function).

19. RIGHT button

Press it to move cursor right.

20. SETUP button

In DVD mode press it to enter the setup menu, press again to resume playback.

21. Dial button/ANGLE Button

In DVD mode, press it repeatedly to change the viewing angle (Available only with a recorded DVD file

or DVD disc has this function).

In Bluetooth mode, press to make a call after inputted a phone number or accept an incoming call.

22. HANG UP button

In Bluetooth mode, press to reject a coming call or hang up while calling.

23. VOLUME UP button

Press to increase volume level.

24. ZOOM button

In DVD mode Press to zoom the image in or out in the sequence of zoom 2-> zoom 3-> zoom4-> zoom

5-> zoom 1/2-> zoom 1/3-> zoom 1/4-> zoom off.

25. SELECT button

Press it to enter the EQ setting menu, and press cursor up/down button to choose an item and press

cursor left/right buttons to set the item, press select button again to exit the menu.

Remote Control

26. / SEEK + buttons

In DVD mode, press button to skip to the next track, press and hold button for two seconds to

activate fast forward (FF) search in a track.

In radio mode, press and hold button to select station forward automatically, touch again will stop

select station. button frequency up.

27. VOLUME DOWN button

Press to decrease volume level.

28. AUDIO

In DVD mode press it to select the audio language.

29. NUMERIC KEY

In radio mode, select 1-6 the desired band; In DVD mode, select track.

In Bluetooth mode, press to input phone number，long press 0 number to make a + symbol.

Note:

The distance may vary according to the brightness of ambient light.

If the remote is not used for an extended period of time, remove the battery to prevent possible

damage from battery leakage and corrosion.

Do not place any objects between the remote control unit and the sensor on the unit.

Do not drop the remote control onto the floor; it will damage it beyond repair.

Do not use the remote control unit, while simultaneously operating the remote control unit of any

other equipment; they may interfere resulting in improper operation.

The battery normally last for about one year although depending how often the remote control is

used. If the remote control unit isn’t working even when it is operated near the unit, replace the

battery with a new battery of the same make and use only a lithium cell battery type: CR2025 (3V).

Dispose empty batteries in accordance with your local governmental regulations.

Do not short-circuit, disassemble, heat or dispose of fire or flames the battery.

Keep the battery out of reach of children, should the battery be swallowed, immediately consult a

doctor.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Boss Audio Systems Récepteur

Boss Audio Systems

Boss Audio Systems 609UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV755BLC Manuel utilisateur

Boss Audio Systems

Boss Audio Systems elite BEHDIN98 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BE7ACP Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9364B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems ELITE BV765B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BVCP9675A Manuel utilisateur

Boss Audio Systems

Boss Audio Systems ELITE BE62CP Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9370B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BPS1RS Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MGV500B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9695B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MGV520B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9973 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MGR300B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV735B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems bv960nv Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 550B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 616UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9386NV Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 508UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9976B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 550B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems ELITE BV800ACP Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
