Boss Audio Systems HIR7BLK Manuel utilisateur

Available in black,gray,and beige

Adjustable mounting poles to t any seat

Poles adjustable from 4 inches apart to 8 inches apart

7" wide TFT LED Monitor

1Set wired AV input

Faceplate mini-stereo jack output for wired headphones

Color System:NTSC/PAL selectable

Built in dual channel IR Transmitter

Frequency:2.3 MHZ(Left),2.8MHZ(Right)

Dual Function remote control:RC-701N

Operating temperature:32°F to 140°F

Storage temperature:-4°F to 176°F

Environmental Humidity:<90%

Features

*

*

*

*

*

*

*

*

*

*

*

*

*

1

2

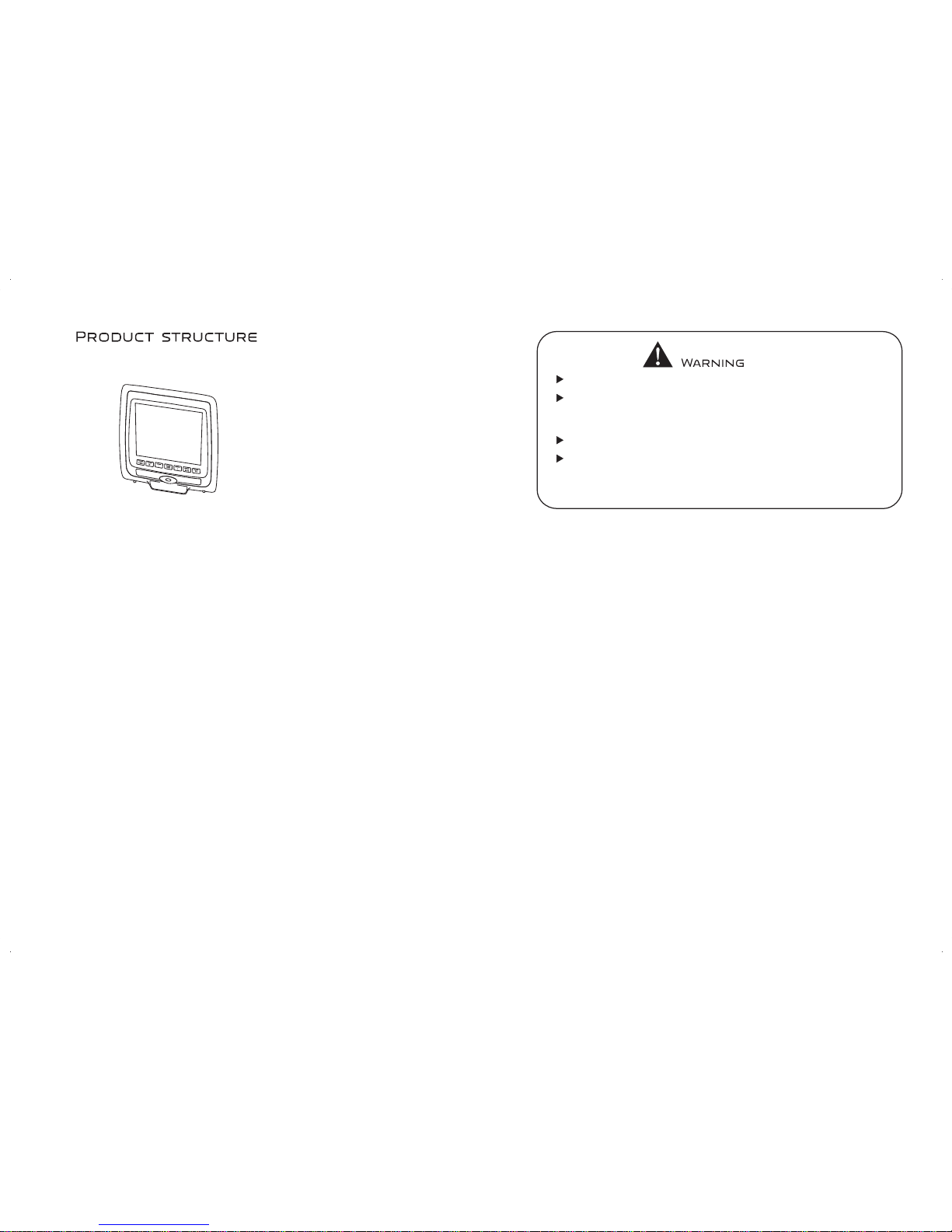

Thank you for purchasing Boss Audio Systerms products!To ensure

long-term trouble-free service of the product,Please read this manual

carefully before using the monitor.

Installation of this product must be performed by a professional installer.

We strongly recommend connecting this product and testing it

before installing it in the vehicle.improper installation will void

warranty.

READ THIS MANUAL BEFORE USING THIS PRODUCT.

THIS PRODUCT IS COMPOSED OF PRECISION COMPONENTS

AND SHALL NOT BE DISASSEMBLED.

PROTECT THE PRODUCT FROM MOISTURE AND SHOCK

BROKEN WARRANTY SEAL WILL VOID THE WARRANTY

1.POWER

2.SOURCE

3.-

4.MENU

5.+

6.MODE

7.SYSTEM 123 4 5 6 7

Red Audio R input

Left Audio L input

NX-HRM743

POWER SOURCE

-

MENU

+

MODE SYSTEM

HIR7BLK

To adjust the headrest posts simply pull apart or push together

to adjust for the seat. If the larger diameter posts are needed

make sure to install them before running any wires.

1

2

34

5

6

34

Since the spacing of the mounting holes can vary

on different vehicles we supply two adapter poles

{12mm diameter},Use these adapter poles when

the headrest mounting holes in your seat are too

large for the posts of the headrest monitor.

1.POWER SWITCH

2.VIDEO SELECT

3.MENU

4.NEXT

5.PREVIOUS

6.MODE SELECT

RED WIRE TO A SWITCHED IGN S OURCE

BLACK WIRE CHASSIS GROUND
