Boss Audio Systems HIR70BL Manuel utilisateur

HIR70BL

HIR70GR

HIR70TA

7"(178mm)

UNIVERSAL HEADREST WITH

PRE-INSTALLED WIDESCREEN

TFT VIDEO MONITOR

WITH BUILT-IN DUAL

CHANNEL INFRARED AUTO

TRANSMITTER

HIR70BL

HIR70GR

HIR70TA

7"(178mm) UNIVERSAL HEADREST

WITH PRE-INSTALLED WIDESCREEN

TFT VIDEO MONITOR WITH BUILT-IN DUAL

CHANNEL INFRARED AUTO TRANSMITTER

09.2011

USER’S MANUAL TROUBLESHOOTING

HIR70BL

HIR70GR

HIR70TA

7"(178mm) UNIVERSAL HEADREST WITH

PRE-INSTALLED WIDESCREEN TFT VIDEO MONITOR

WITH BUILT-IN DUAL CHANNEL INFRARED AUTO TRANSMITTER

Thank you for purchasing our product. To enjoy the features of this device

and to ensure years of trouble-free operation, please read this manual

carefully and follow the instructions.

Troubleshooting

SYMPTOM CAUSE REMEDY

No picture

or sound.

Power cord is not

properly connected.

A/V input cables not

properly connected.

A/V input source is

not properly connected.

Check that power

connections are

properly made and all

fuses are in functioning

condition.

Check all cables.

Replace or repairA/V

source(DVD player,

video game, etc.)

No picture. A/V signal not present.

Contrast and/or

brightness is set

improperly.

Check all cables. If

necessary, replace

A/V source.

Adjust contrast and

brightness levels to

see if picture appears.

Remote

control

does not

function

properly.

Battery is dead.

Remote is not being used

in direct line of sight with

the player or remote IR

sensor. Transmission is

best within 6/feet/35°

angle of IR sensor on the

monitor.

Replace battery.

Be sure when being

used, the remote is

being pointed directly

toward the player or

remote IR sensor

(if installed).

If you experience or performance problems with this product, compare your

installation with the electrical wiring diagram on the previous page. If problems

persist, read the following troubleshooting tips which may help eliminate the

problems.

1 10

PRECAUTIONS.......................................................................................2

On-screen(OSD)menu system

-screen monitor.......................................................................................4

Function setting menu instruction.............................................................5

Installation..............................................................................................5

Features and controls...............................................................................7

A/V and power connections.......................................................................8

Specifications..........................................................................................9

Troubleshooting....................................................................................10

SPECIFICATIONS

Power Requirements

Power Consumption

Screen Size

Screen Format

Resolution Pixel

A/V Inputs

Dimensions

IR Power Requirements

IR Power Consumption

IR Transmitter Frequency A

IR Transmitter Frequency B

LCD Panel Type

Compatible video standard

DC 12V

7 inch LED Backlit TFT LCD

16:9 Wide

800xRGBx480

Two video & one audio inputs

(W)13.5x(D)10.59x(H)5.5inch

DC 12V

A: Right 2.8MHz Left 2.3MHz

B: Right 3.8MHz Left 3.2Mhz

Active Matrix TFT

NTSC/PAL auto select

Note: This equipment has been tested and found to comply with the limits

for a Class Adigital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment.

This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his

own expense.

PRECAUTIONS

Please read and observe all warning and instructions in this owner’s manual

and those marked on the unit. Retain this booklet for future reference.

There are two kinds of alarm symbols as follows:

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to presence of

“dangerous voltage” within the product’s enclosure that may be

of sufficient magnitude to constitute a risk of electric shock to

people.

WARNING

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the product.

CAUTION

WARNING

Be careful not to drop or apply

pressure to the front panel of

your video monitor. If the screen

cracks due to misuse, your

warranty will be void!

Do not try and service these

products yourself. Seek only

a qualified service center or

factory service center.

Be careful not to overload your

cigarette lighter plug by adding

more than one device at a time.

Use extra caution with any liquids

in your car. If you or your child

spills any liquid on these products,

pull your vehicle to the roadside

and turn the key off to disconnect

or wipe the products with a towel. Do not

operate the equipment until all liquids have

either evaporated or you have had the monitor

inspected at a service center by a qualified

technician, Severe harm or danger can occur.

Use only a damp cloth to clean

the screen and use only purified

water on the cloth. Wring out all

excess water prior to wiping the

screen. Do not use any cleaners

or chemicals to clean the screen.

In most cases a dry cloth will do!

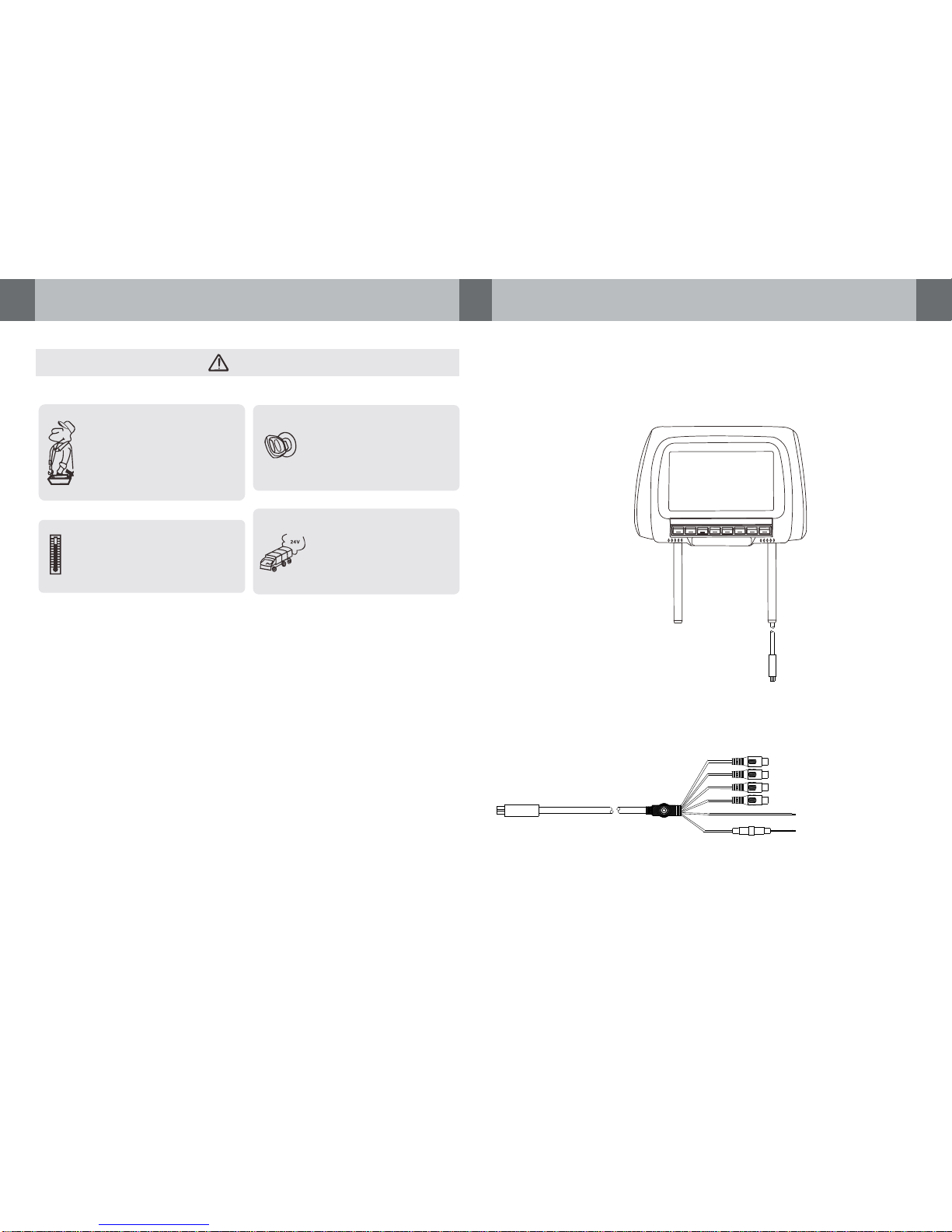

PRECAUTIONS A/V AND POWER CONNECTIONS

On a towel or soft cloth, gently place the monitor assembly “face down” on a stable

work surface.

Using the wires provided, complete the audio, video and power connections in

your vehicle as shown in the diagram below.

(Yellow) Video 1 input

(Yellow) Video 2 input

(Red) Audio right input

(White) Audio left input

(Black) chassis ground

(Red) +12V DC battery

CAUTION

Quality installations are best

performed by qualified and

certified installers.

Do not cover heater ducts or vents.

This may cause a fire or an electric

shock.

Watching the monitor for an

extended period of time

with the engine turned off

may deplete the vehicle’s

battery.

This product is designed for

operation with a 12 Volt DC,

negative ground vehicle. It

is not suitable for operation

under other conditions or

voltages.

Check Point

1.The operating temperature of this product is limited to 14°F~140°F

(-10℃~60℃）

2.When your vehicle is extremely hot or cold you must allow time for your air

conditioner or heater to cool or heat the vehicle and for operating temperatures

to return to normal operating ranges. Your monitor will return to its normal

functions when operating ranges are achieved.

3.Optimum picture quality is achieved when you are directly in front of the monitor

(+/-45 degrees).

3 8

FEATURES AND CONTROLS OSD

2345678

1.Power switch

2.V1 switch

3.V2 switch

4.Decrease

5.Menu

6.Increase

7.Mode switch

8.Sys switch

9.Remote sensor

1POWER

Press to turn unit ON or OFF.

2A/V SELECT

Use this button to switch between

Video source1 and Video source 2.

3MENU

This button enables the on-screen

display menu system. Once enabled,

this button is used as an ENTER button.

4UP/DOWN BUTTONS

This buttons are used to increase

or decrease parameters in the on-

screen display menu system.

5MODE SELECT

This button switch display

ratio between 4:3 and 16:9.

BRIGHT

CONTRAST

COLOR

TINT

SOURCE

ROTATE

ZOOM

LANGUAGE

RESET

ZOOM

ROTATE Adjustment

▲

ZOOM

50 50 50

ROTATE

INSTALLATION INSTALLATION

1.Tubes could be adjusted from left and right.

2.Tubes could be adjusted from front and back.

105mm

5 6
