Boss Audio Systems BV7970 Manuel utilisateur

CONTENTS LIST

PAGE CONTENTS

2 SAFETY INFORMATION

3 DISC AND FORMAT SUPPORTS

4 ACCESSORY INCLUDED

5 INSTALLATION

7 DETACHABLE CONTROL PANEL

8 WIRING DIAGRAM-AUDIO/VIDEO CONNECTIONS

9 WIRING DIAGRAM-POWER/SPEAKERS

10 PANEL OPEN/CLOSE OPERATION

11 CONTROL PANEL FUNCTION

12 REMOTE FUNCTION

14 BASIC OPERATIONS

18 DUAL ZONE OPERATION

19 AUDIO OPERATION

21 TUNER OPERATION

22 RDS OPERATION

23 iPod OPERATION

24 CD OPERATION

27 MP3/WMA OPERATION

30 JPEG CD OPERATION

31 DVD OPERATION

38 MEMORY CARD OPERATION

39 DivX OPERATION

41 SYSTEM SET UP MENU

47 SPECIFICATION

48 TROUBLE SHOOTING

Caution:

In some countries, it's unlawful to operate a vehicle while video is displayed in the driver's viewing

area. Pls always switch the unit's display to "Font Type Display" mode by pressing the DISP/MENU

button while driving.

For safety reason, the driver should only enjoy / watch the video while the car is in parking mode.

When Driving

Keep the volume level Iow enough to be aware of the road and traffic conditions.

1. SAFETY INFORMATION

CAUTION:

THIS MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. THIS UNIT USES A VISIBLE/INVISIBLE

LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION IF EXPOSED DIRECTLY . BE

SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OR PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF PLEASE REFER SERVICING TO A

QUALIFIED TECHNICIAN.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE,

USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected by method claims of

certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or

other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a

chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system (the regular

system in a North American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player. Failure to follow this may cause

malfunction or permanent damage due to the precise mechanism of this unit.

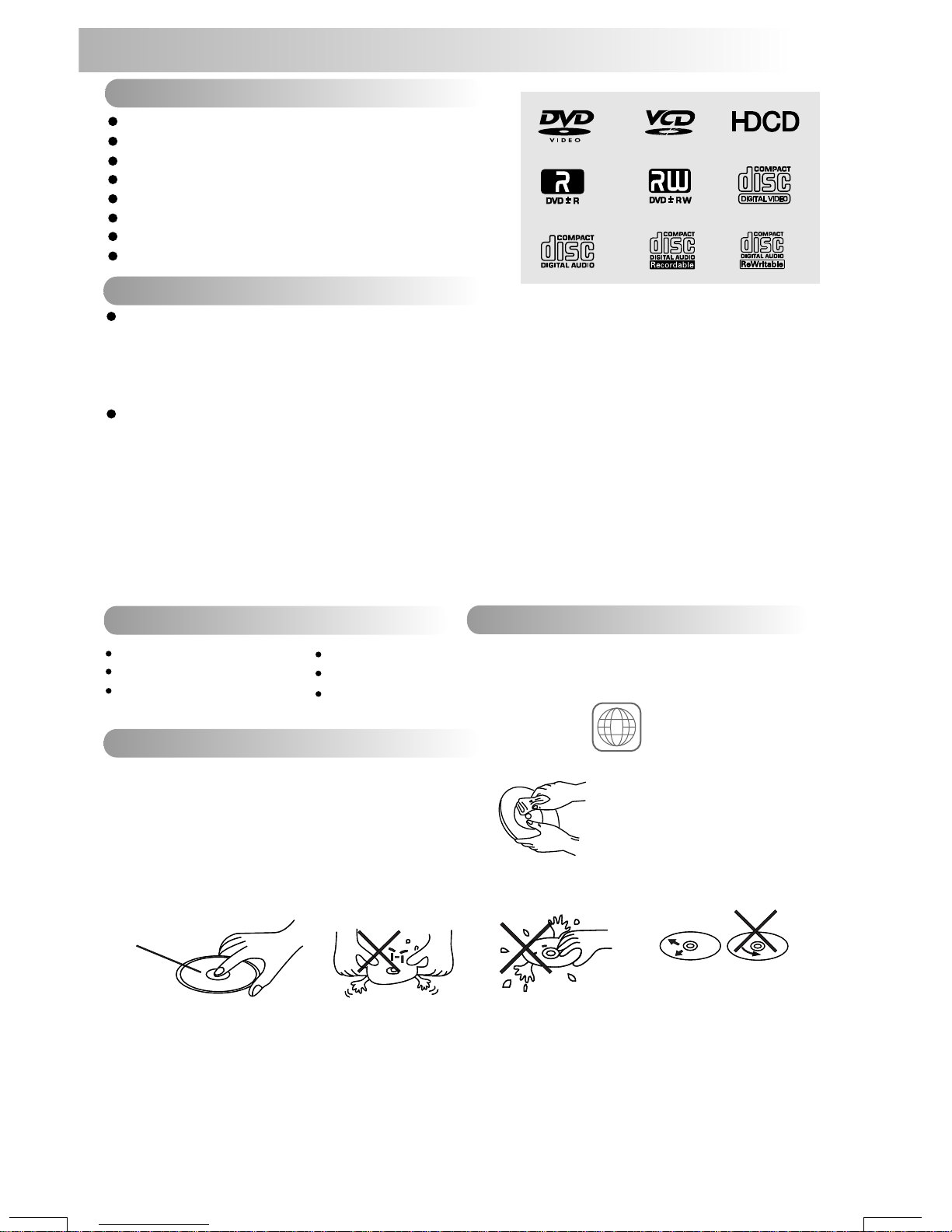

2. DISC AND FORMAT SUPPORTS

Do not bend

Before playing, wipe the disc using a clean cloth, working from the center hole towards the

outside edge.

Never use benzene, thinners, cleaning fluids

or anti-static liquids or any other solvent.

Label side

Note: A disc may become somewhat scratched (although not enough to make it unusable) depending on you

handle it and conditions in the usage environment. Note these scratches are not an indication of any problem

with the player.

8 cm disc

CD ROM

CDV, CDI, CDG,

DVD ROM

DVD RAM

DVD players and DVD Video discs have their

own Region Code numbers. This unit can

play the disc of all region code numbers.

ALL

A. DISCS CAN PLAY WITH THIS UNIT

C. DISCS WHICH CAN NOT BE PLAYED D. NOTE ON REGION CODE

E. DISC MAINTENANCE

B. FORMAT CAN PLAY WITH THIS UNIT

Wipe the disc surface

from the

center to the edge.

Never touch

the under side

of a disc

Digital Versatile Discs (DVDs)

Video CDs (VCDs)

HDCD

Digital Versatile Discs Recordable(DVD+/-R)

Digital Versatile Discs Rewritable(DVD+/-RW)

Compact Discs (CDs)

CD Recordable (CD-R)

CD Rewritable (CD-RW)

AUDIO FORMAT

Playback CD-DA and MP3 or WMA digital music file on CD-ROM or DVD-ROM

Note of MP3 and WMA:

Supported Sampling frequencies; 32kHz, 44.1kHz, 48kHz.

Supported Bit-Rates: 32-256 kbps variable bit rate

VIDEO FORMAT

Playback IMAGE JPEG, DVD Video, and, Xvid. on CD-ROM or DVD-ROM

Noted of

Supported decoding MPEG-4 video defined by ISO 14496-2 Standard

a. Simple Profile (SP) and

b. Advance Simple Profile (ASP)

Supported file format: .mp4 and .m4a (audio only)

Noted of

Supported Home Theatre Profile

Supported version: 3.11, 4.12 and 5.x

MP4, DivX

MP4

DivX

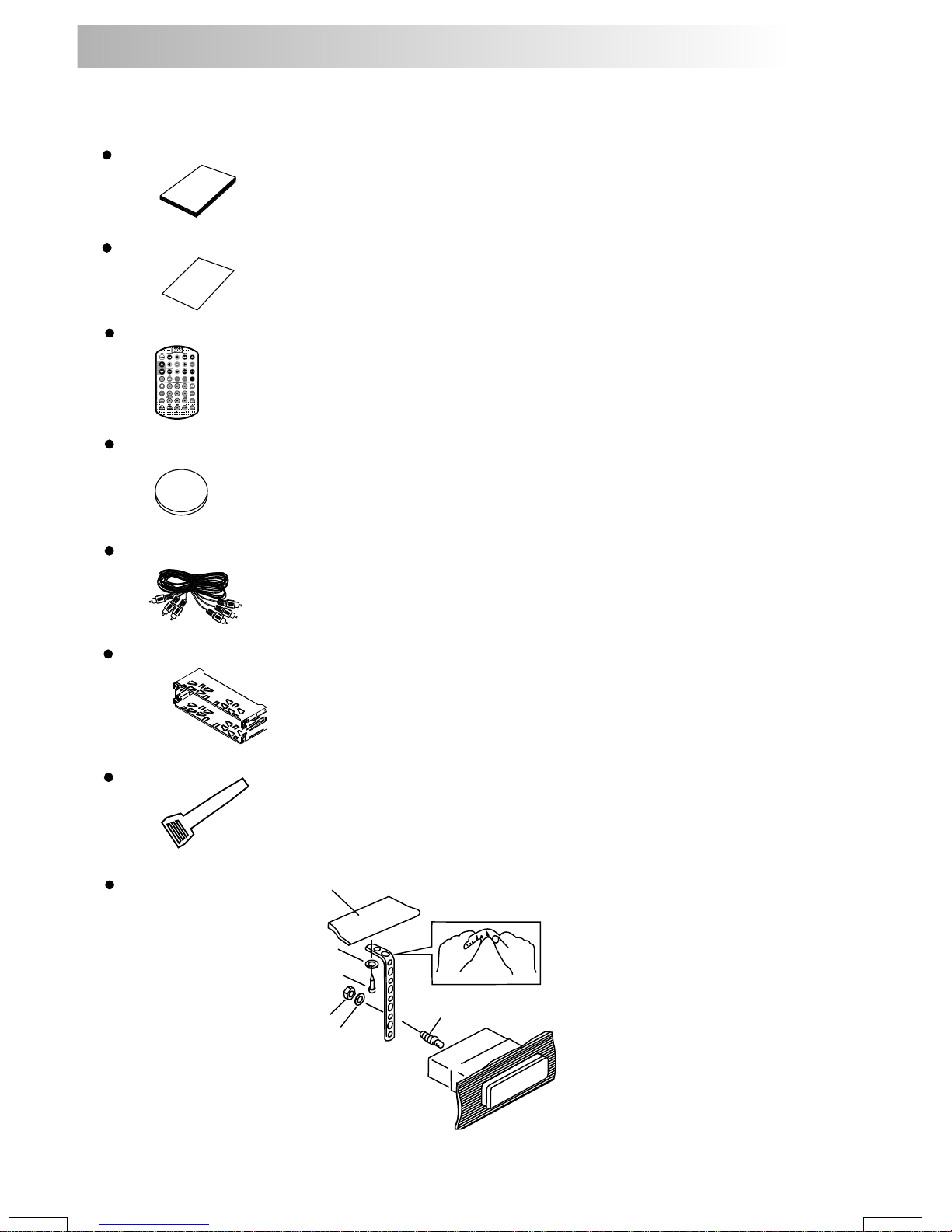

3. ACCESSORY INCLUDED

When first unpacking your new full detachable DVD head unit, please check first that the package

contains all of the items below. If something is missing, contact the store where you purchased the

player.

Remote control

Lithium Battery

Audio/Video cable

Half Sheeve

Insert Key

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4X12mm)

5. Screw

6. Support Strap

7. Plain washer

Owner’s

anualm

Owner’s Manual

a raW rnty

aC rd

Warranty Card

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected

up properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized

parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications

of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is

a sudden stop, like an emergency stop.

If installation angle exceeds 30° from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct

sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive

vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer

to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

30°

1. Dashboard

2. Holder

After inserting the half sleeve into the

dashboard, select the appropriate tab

according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

3. Screw

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4X12mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure

the back of the unit in place. The strap can

be bent by hand to the desired angle.

7. Plain washer

182

4. INSTALLATION

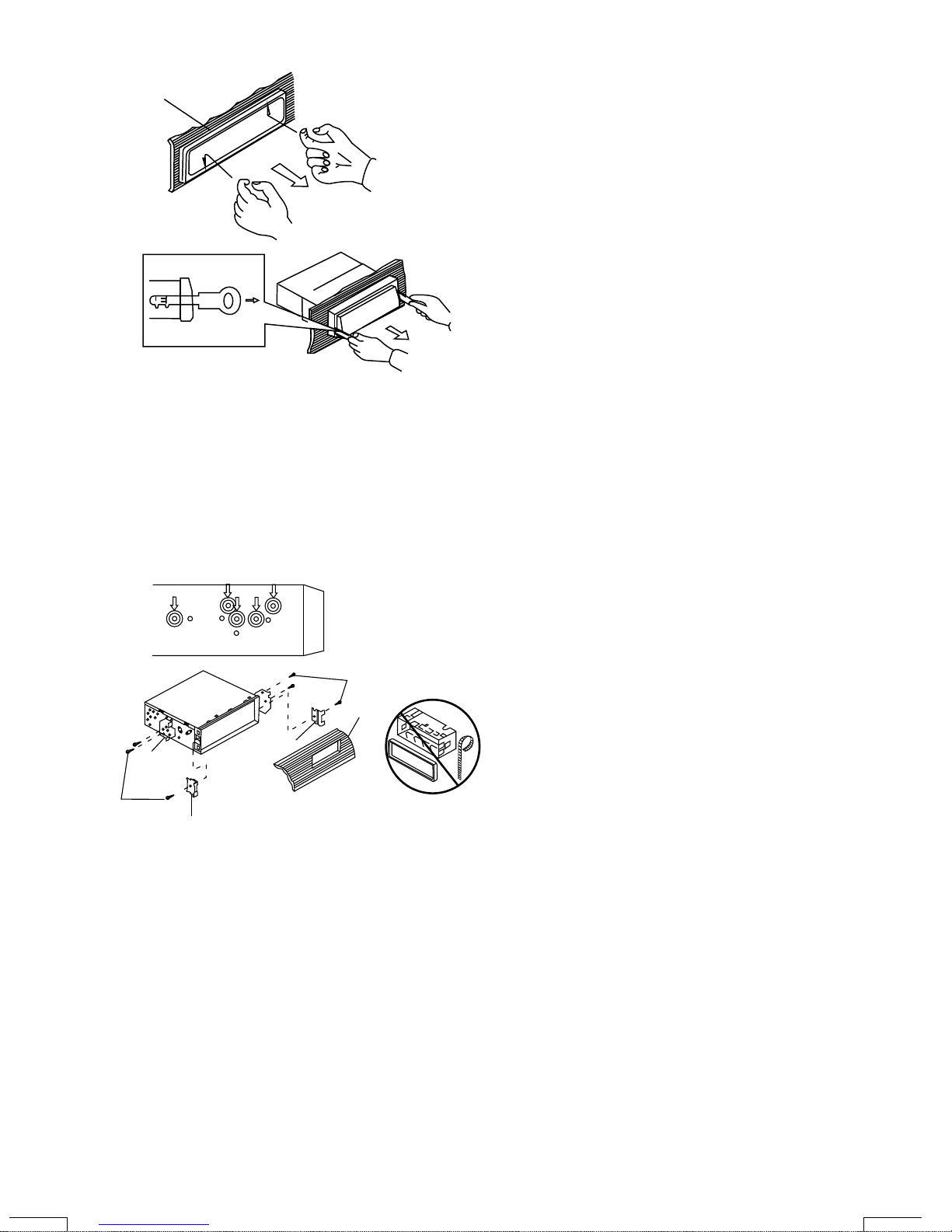

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw holes

of the bracket and the screw holes of the

main unit become aligned (are fitted) and

tighten the screws at 2 places on each

side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method B

installation.

a. Frame

b. Insert fingers into the groove in the front

of frame and pull out to remove the

frame. (When re-attaching the frame,

point the side with a groove down wards

and attach it.)

c. Insert the levers supplied with the unit into

the grooves at both sides of the unit as

shown in figure until they click. Pulling

the levers makes it possible to remove

the unit from the dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

5. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

CAUTION

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to

drop it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To prevent

damage to the D.C.P, always store it in a protective case after detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to

damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft, dry

cloth only. And use a cotton swab soaked in

isopropyl alcohol to clean the socket on the back

of the D.C.P.

1. Turn the Power off.

2. Press the Panel Release Button.

3. Remove the D.C.P.

Attaching the Detachable Control panel (D.C.P.)

1. Insert the right side of the D.C.P. Into the

main unit.

NOTE: The D.C.P. Must be attached into the

T-Joint.

2. Press the D.C.P. On to the left side of

middle of D.C.P. Until a “click” sound is

heard.

RELEASE

BUTTON

D.C.P.

HPUS

Socket

6. WIRING DIAGRAM-AUDIO/VIDEO CONNECTIONS

HEAD PHONE

SUB

WOOFER

SUB-W OUT

SUB-WOOFER OUTPUT

2nd AUDIO OUTPUT

BLUE

2nd AUDIO OUT

ORANGE

VIDEO IN

YELLOW

AUDIO IN R

AUDIO INPUT (RIGHT)

AUDIO IN L

AUDIO INPUT (LEFT)

VIDEO OUT (1)

VIDEO (1) OUTPUT

VIDEO OUT (2)

VIDEO (2) OUTPUT

RED

WHITE

YELLOW

VCR or DVD

GAME CONSOLE

FUSE

CAMERA/VIDEO INPUT

7. WIRING DIAGRAM - POWER / SPEAKERS (ISO)

AMP

FUSE

L-CHL-CHR-CH R-CH

CONSTANT 12 VOLTS (+)

POWER ANTENNA

IGNITION(ACC)

GROUND

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER ( )

RIGHT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER ( )

LEFT FRONT SPEAKER ( )

LEFT FRONT SPEAKER (+)

LEFT REAR SPEAKER ( )

LEFT REAR SPEAKER (+)

1 2 3 4 5 6 7 8 9 10

11 12 13 14 15 16 17 18 19 20

Figure 1Pin View

20 PIN HARNESS PIN CHART

PIN WIRE COLOR FUNCTION / LABEL

GREY / BLACK

GREY

VIOLET

VIOLET/BLACK

ORANGE

GREEN

GREEN / BLACK

RED

BLACK

RED

WHITE

WHITE / BLACK

BLUE/WHITE

BLUE

YELLOW

BLACK

WHITE

RED

BLACK

WHITE

RIGHT FRONT SPEAKER ( )

LEFT REAR SPEAKER (+)

LEFT FRONT SPEAKER (+)

POWER AMPLIFIER REMOTE (+)

CHASSIS GROUND

LEFT FRONT PRE-AMPLIFIER LINE OUT

LEFT REAR PRE-AMPLIFIER LINE OUT

LEFT FRONT SPEAKER ( )

POWER ANTENNA

CONSTANT 12 VOLTS (+)

RIGHT FRONT PRE-AMPLIFIER LINE OUT

FRONT PRE-AMPLIFIER LINE OUT COMMON

RIGHT FRONT SPEAKER (+)

RIGHT REAR SPEAKER (+)

RIGHT REAR SPEAKER ( )

LEFT REAR SPEAKER ( )

IGNITION (ACC)

REAR PRE-AMPLIFIER LINE OUT COMMON

RIGHT REAR PRE-AMPLIFIER LINE OUT

ISO CONNECTOR WIRING CHART

PIN WIRE COLOR FUNCTION / LABEL

YELLOW

BLUE

RED

BLACK

VIOLET

VIOLET / BLACK

GREY

GREY / BLACK

WHITE

WHITE / BLACK

GREEN

GREEN / BLACK

ISO CONNECTOR 4 PIN + 8 PIN

FEMALE WITH MALE TERMINAL

20-PIN

AUDIO/POWER

HARNESS

(See Figure 1 )

ISO

CONNECTOR

(See Figure 2)

GREY

FRONT

CHANNEL

REAR

CHANNEL

BLACK

Connect to power amplifier, If not used,

Tape bare end of wire.

POWER

AMPLIFIER

REMOTE

RCA-TO-RCA

CABLES

(Not supplied)

WHITE

RED

WHITE

RED

CONNECTOR B

CONNECTOR A

Figure 2

20 PIN AUDIO / POWER HARNESS

ANTENNA

JACK

ANTENNA

EXTENDER

CABLE

(Not supplied)

BLUE/WHITE

STRIPE

REVERSE OVERRIDE WIRE (+)

PINK

ORANGE

Gearbox

Switch

Reverse gear signal

Connect to Back Lamp Lead +

REVERSE(+)

OVERRIDE

WIRE

Table des matières

Autres manuels Boss Audio Systems Système vidéo embarqué

Boss Audio Systems

Boss Audio Systems BV9050 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7995T Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9348B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV10.2FLIP Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9250 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems DVD-6000 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9366B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems HIR70UB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV-T6.0 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV12.1MCH Manuel utilisateur

Boss Audio Systems

Boss Audio Systems Vision DVD-8500 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7350T Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV-8IRF Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV775B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems HIR7BGTA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9354 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems ELITE BV765B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV13FLIP Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7.2FLIP Manuel utilisateur

Boss Audio Systems

Boss Audio Systems DVD9900B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV6M Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV-560M Manuel utilisateur

Boss Audio Systems

Boss Audio Systems HIR7UBL Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9560B Manuel utilisateur

Manuels Système vidéo embarqué populaires d'autres marques

Stinger

Stinger HEIGH10 RB10RAM13B Manuel utilisateur

Eonon

Eonon E1057 Manuel utilisateur

Milion

Milion D2223 Manuel utilisateur

Metra Electronics

Metra Electronics 99-8153 Manuel utilisateur

Voxx Electronics

Voxx Electronics HR8MA1 Manuel utilisateur

Axxera

Axxera AV604Bi Manuel utilisateur

Clarion

Clarion NX706E Manuel utilisateur

Pyle view

Pyle view PLDN74BTi Manuel utilisateur

Clarion

Clarion NX602 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-5850N Manuel utilisateur

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guide de l'utilisateur

Lanzar

Lanzar SVDVD5 Manuel utilisateur

Kia

Kia MTXM100YPPE Manuel utilisateur

Eonon

Eonon E1060 Manuel utilisateur

Macrom

Macrom M-AN900 Manuel utilisateur

Hyundai

Hyundai BAPE-L3000N Manuel utilisateur

r.LiNK

r.LiNK RL2-UCON8-SM Manuel utilisateur

Blaupunkt

Blaupunkt DVP 01C Manuel utilisateur
