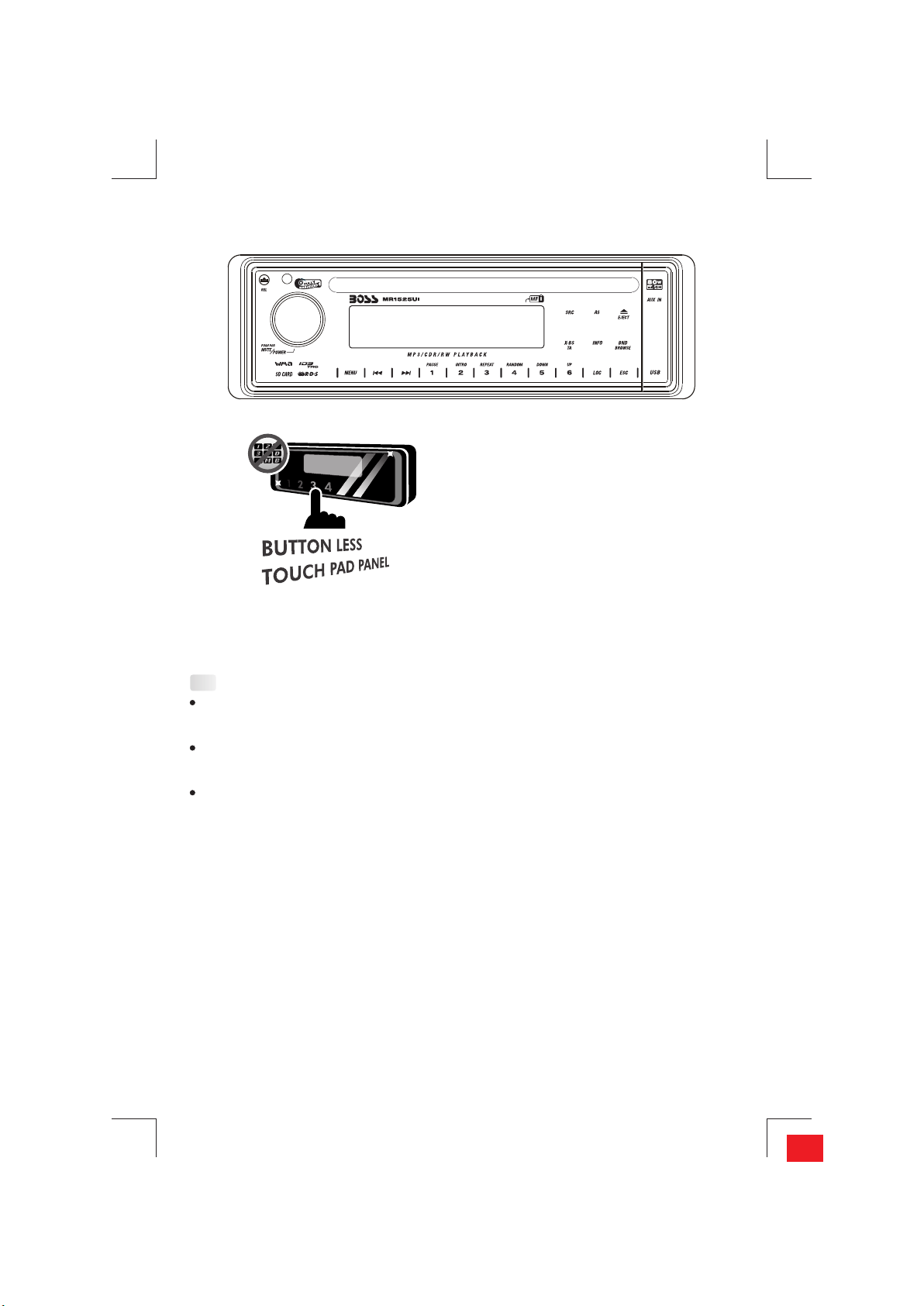

This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and

convenient to use while driving.

Here are some tips to show you how easy it is to use this touch sense panel:

Tips

Using a very light touch on the radio panel will activate that feature. You will not need to

"PRESS" hard on the panel to make this radio change features.

The power button along with some of the buttons that have dual functions, will need to be

"TOUCHED" from 2 to 3 seconds to make the change.

The best area to "TOUCH" on the panel to make it activate is the illuminated or lighted area. For

example, just touch for 2 to 3 seconds the illuminated power symbol and the unit will turn on or

off.

CDE VERSION

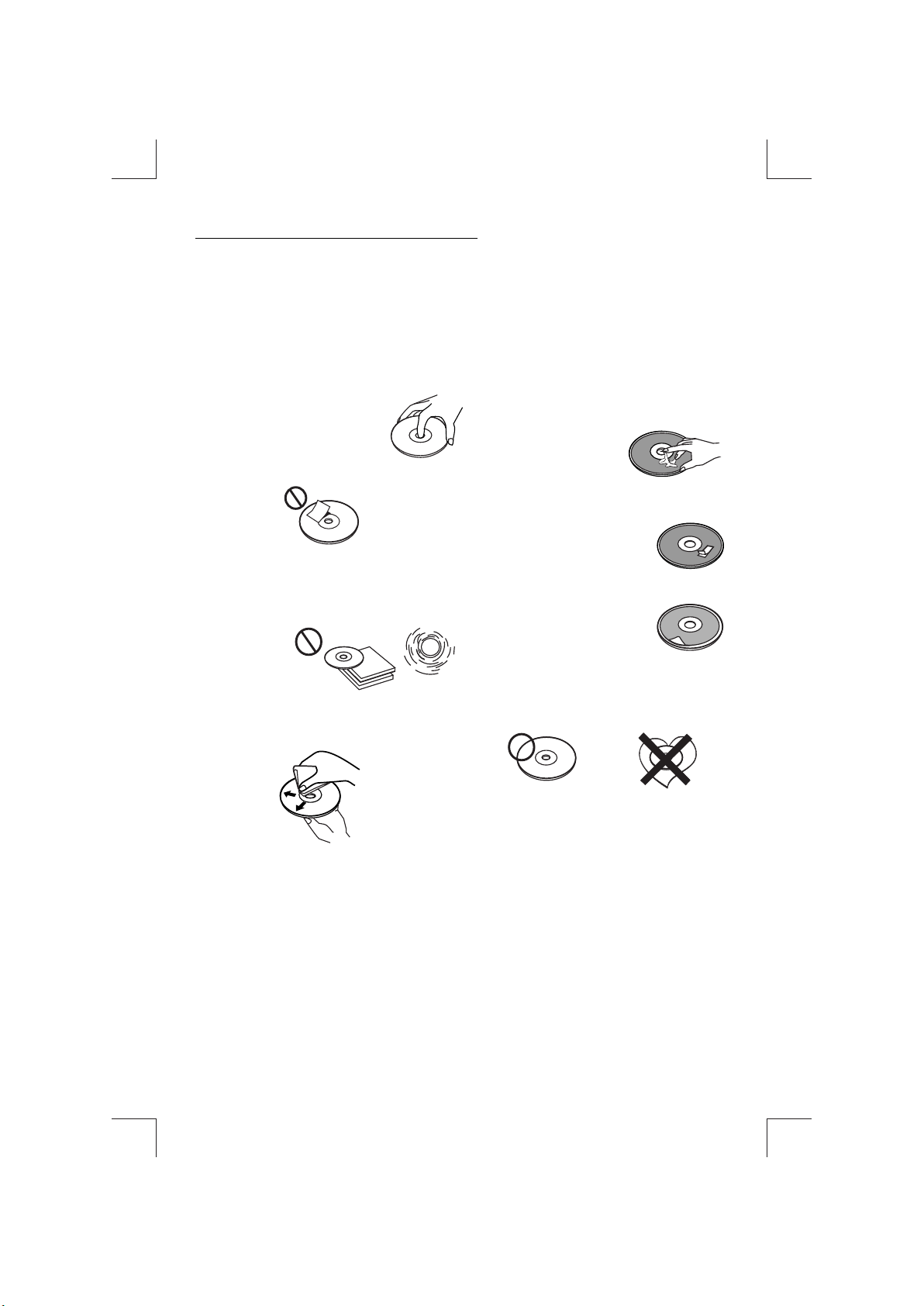

1. HANDLING COMPACT DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 2

P. 3

P. 4

P. 1

P. 5

P. 6

P. 7

NOTES ON DISCS

There are paste residue.

Ink is sticky (P.5).

Stickers that are beginning

to peel away, leaving a

sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit.

Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for

about an hour until the moisture has evaporated.

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface (P.1).

If you use the discs explained below, the

sticky residue can cause the CD to stop

spinning and may cause malfunction or ruin

your discs.

Do not use second-hand or rental CDs that

have a sticky residue on the surface (for

example, from peeled-off stickers or from

ink, or glue leaking from under the stickers).

Do not stick paper or tape on the disc (P.2).

Before playing, clean the discs with an

optional cleaning cloth. Wipe each disc from

the centre out (P.4).

Do not use solvents such as benzine,

thinner,commercially available cleaners, or

antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in

temperature inside the car (P.3).

Do not use rental CDs with old labels that

are beginning to peel off.

Do not use your CDs with labels or stickers

attached.

**************

*******

****

*******

******* *******

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only for this

unit and do not use any special shape CDs.

Use of special shape CDs may cause the unit

to malfunction.(P.8).

Be sure to use CDs with disc mark

P. 8

CD-Rs and CD-RWs which have not

undergone finalization processing cannot be

played. (For more information on finalization

processing, refer to the manual for your CD-

R/CD-RW writing software or CD-R/CD-RW

recorder.) Additionally, depending on the

recording status, it may prove impossible to

play certain CDs record on CD-R or CD-RW.

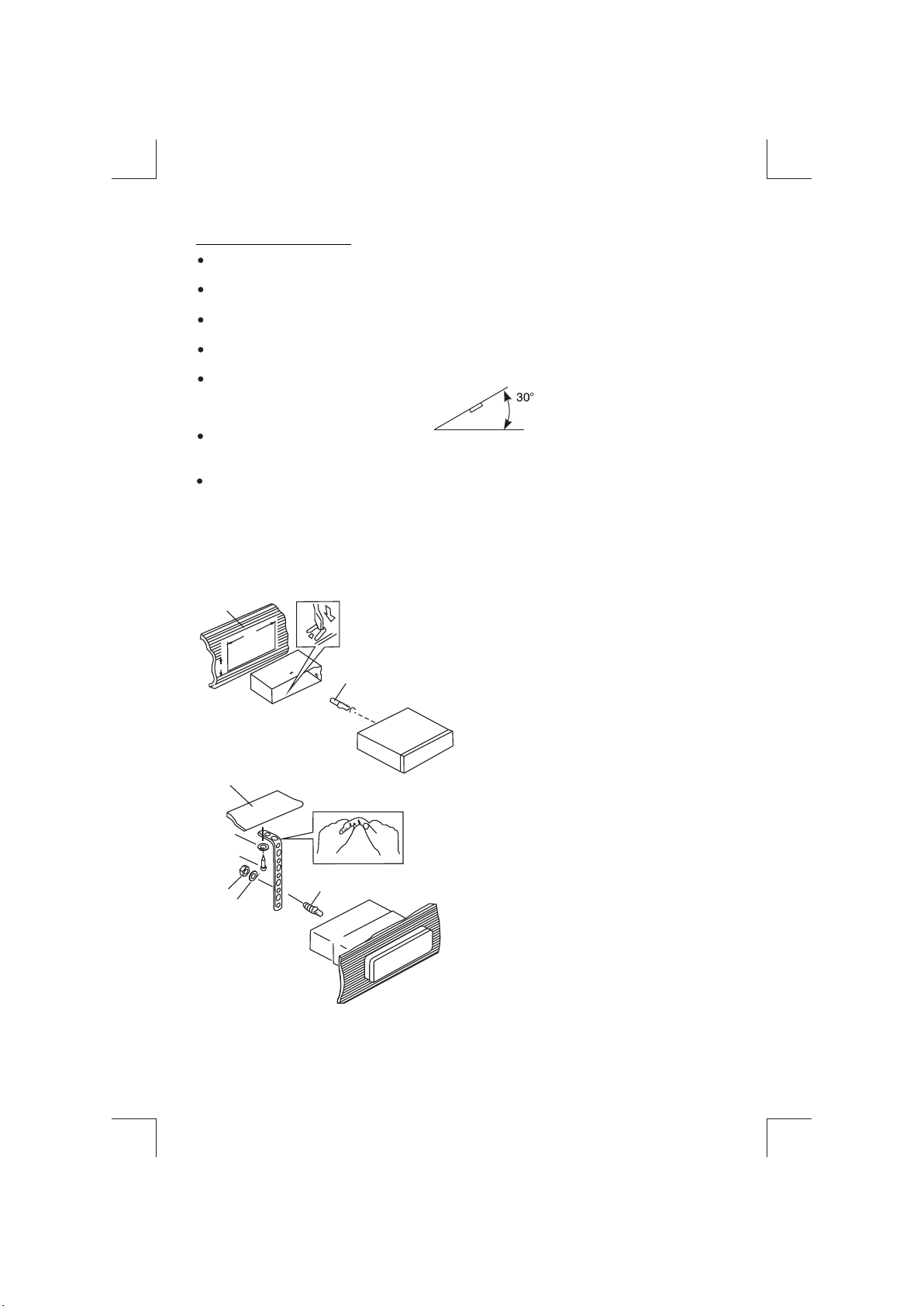

2. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected

up properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized

parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is

a sudden stop, like an emergency stop.

If installation angle exceeds 30° from horizontal, the unit might not give its optimum

performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct

sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive

vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,

refer to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder

After inserting the half sleeve into the

dashboard, select the appropriate tab

according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

3. Screw

61. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4x12mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure

the back of the unit in place. The strap can

be bent by hand to the desired angle.

7. Plain washer

182

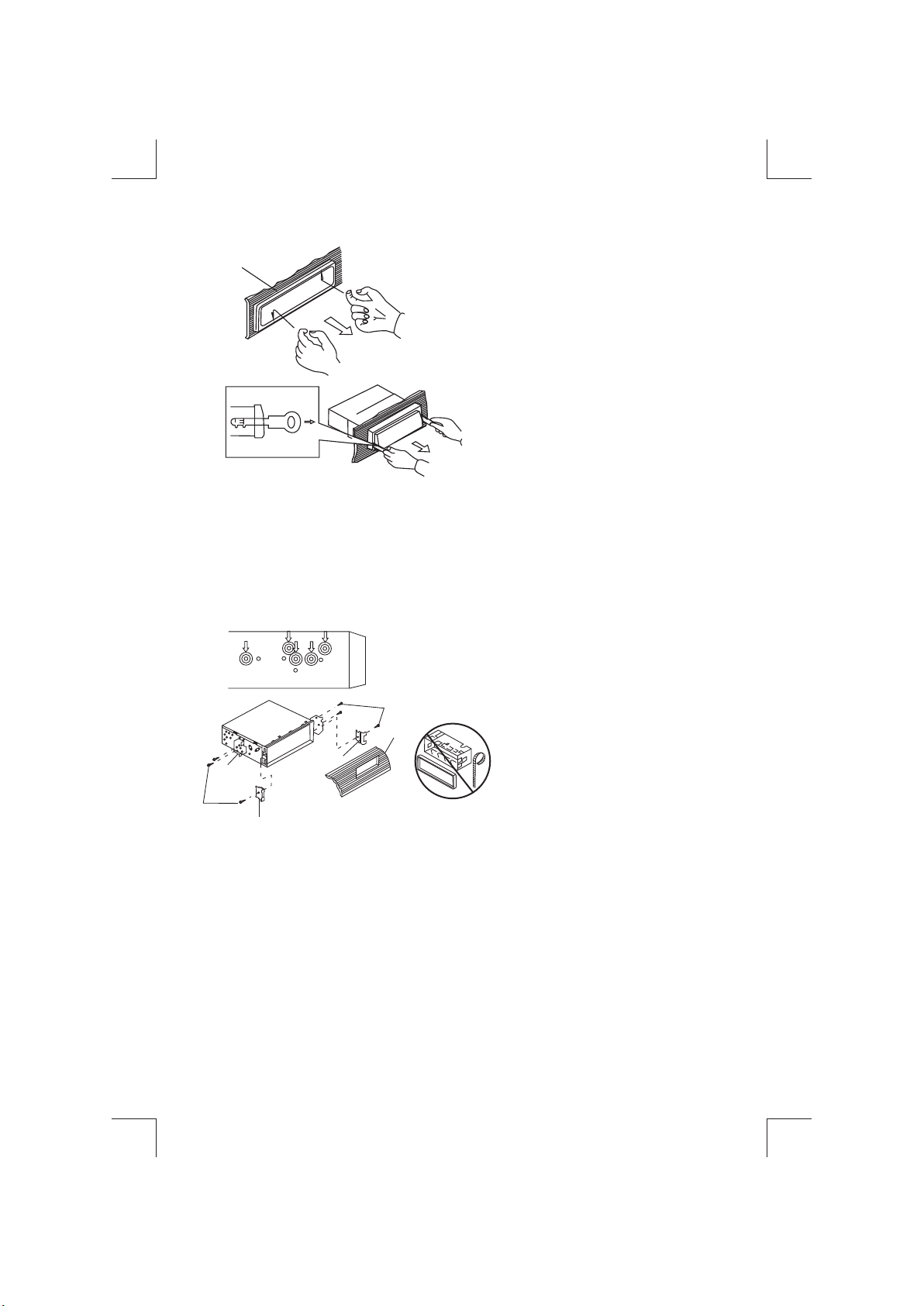

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw

holes of the bracket and the screw

holes of the main unit become

aligned (are fitted) and tighten the

screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method B

installation.

a. Frame

b. Insert fingers into the groove in the

front of frame and pull out to remove

the frame. (When re-attaching the

frame, point the side with a groove

down wards and attach it.)

c. Insert the levers supplied with the unit

into the grooves at both sides of the

unit as shown in figure until they click.

Pulling the levers makes it possible to

remove the unit from the dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

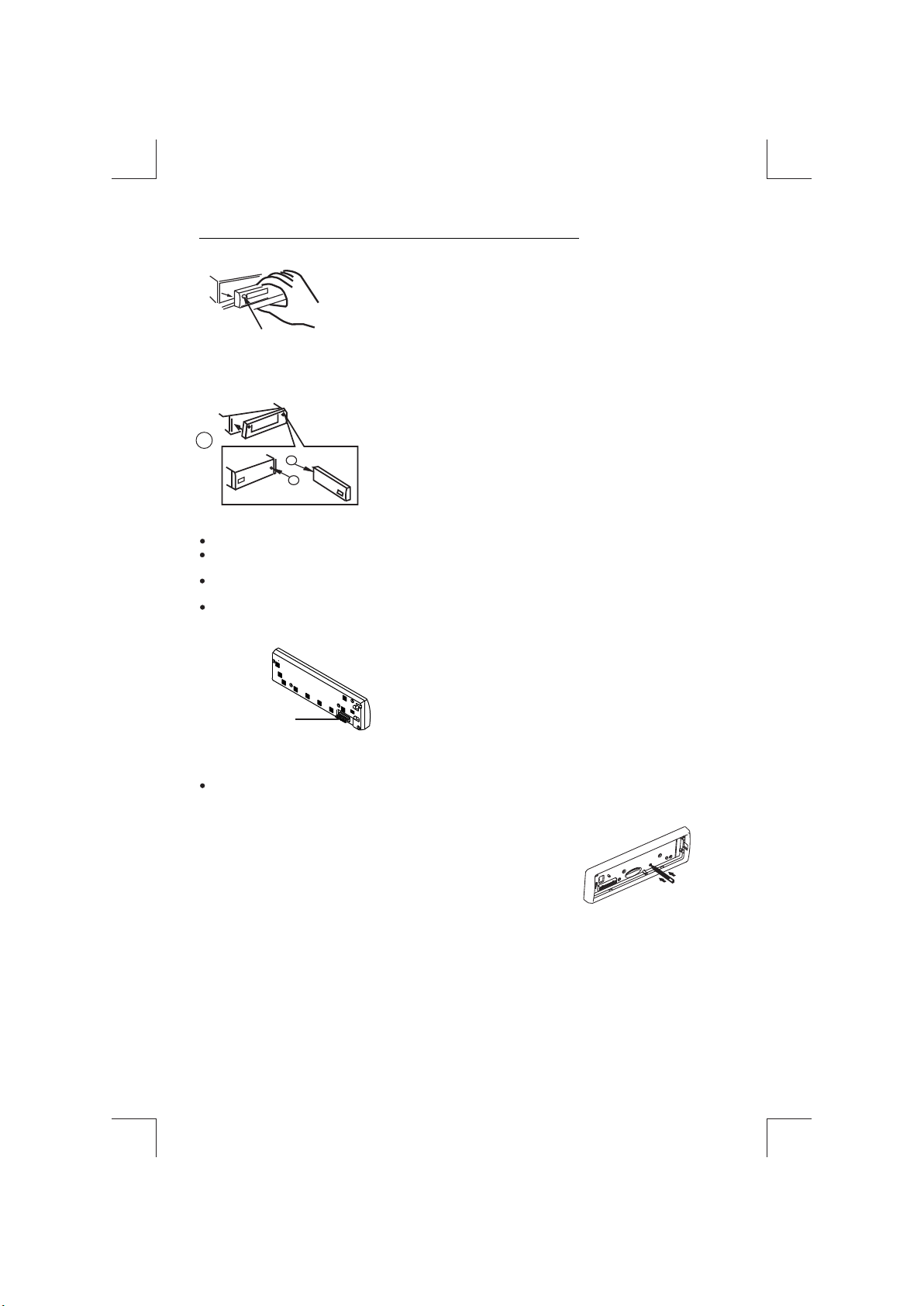

3. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE

BUTTON

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with

point B on the main unit touching point A on the

D.C.P. (As shown on the diagram).

2. Then press the left side of D.C.P. onto the main

unit until a “click” sound is heard.

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not

to drop it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To

prevent damage to the D.C.P, always store it in a protective case after detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to

damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft,

dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the

back of the D.C.P.

RESETTING THE UNIT:

After releasing the front panel, use a pencil or any non-metalic object to press & hold the reset

button for five seconds to reset the unit.

Socket

RE ES T

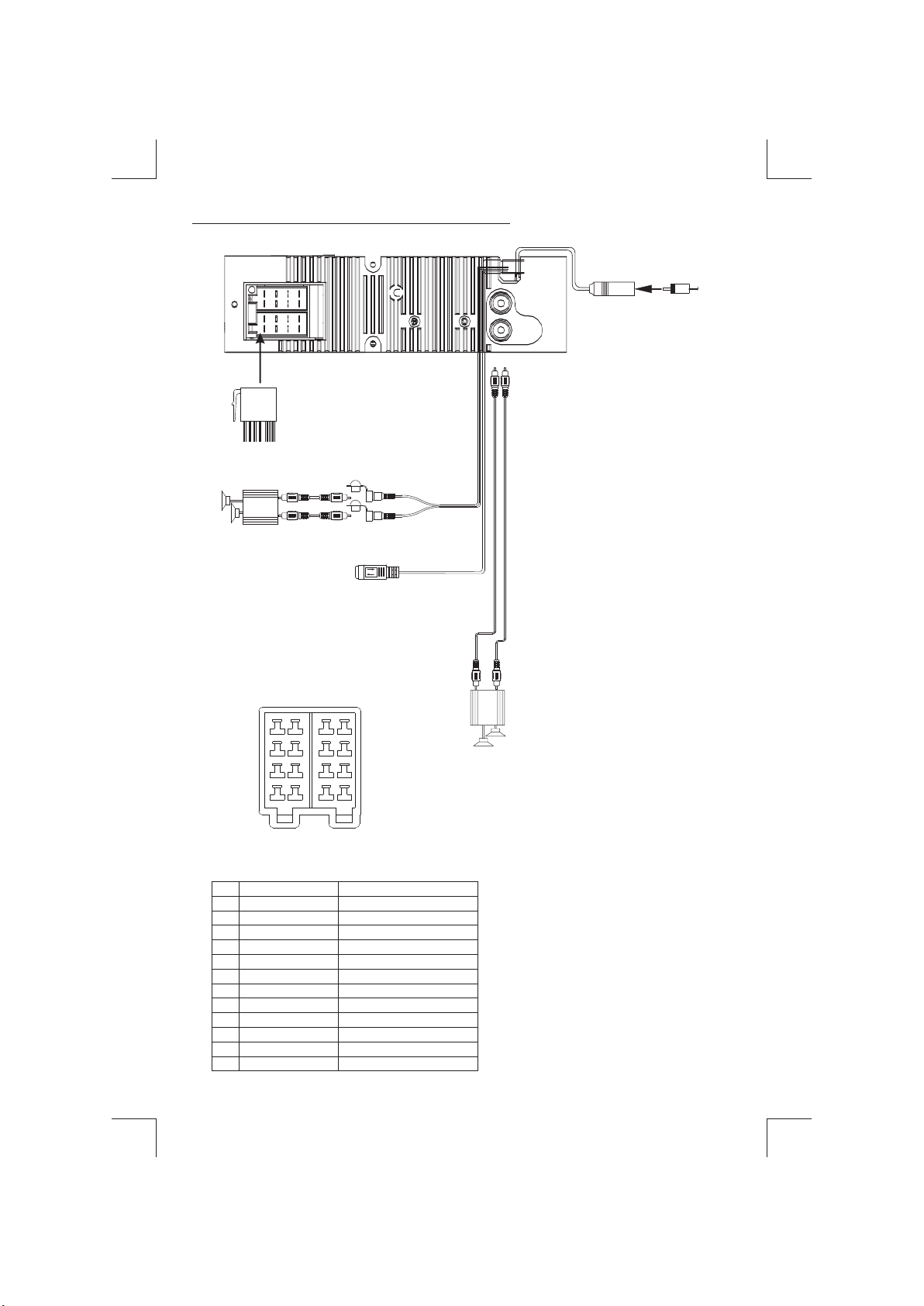

4. WIRING DIAGRAM (BUILT-IN ISO)

CONNECTOR

ISO

1 2

3 4

5 6

CONNECTOR B

Figure 2

CONNECTOR A

ISO CONNECTOR WIRING CHART

YELLOW

WIRE COLOR

VIOLET/BLACK

GREY/BLACK

GREEN/BLACK

WHITE/BLACK

VIOLET

WHITE

GREY

GREEN

BLACK

RED

BLUE

LEFT FRONT SPEAKER (-)

LEFT REAR SPEAKER (+)

LEFT REAR SPEAKER (-)

RIGHT REAR SPEAKER (+)

RIGHT FRONT SPEAKER (+)

LEFT FRONT SPEAKER (+)

RIGHT FRONT SPEAKER (-)

RIGHT REAR SPEAKER (-)

FUNCTION/LABEL

POWER ANTENNA

BATTERY(+)

IGNITION(ACC)

GROUND

REAR LINE OUT R-CH

REAR LINE OUT L-CH

REAR

FUSE

iPod iPod READY CABLE

WHITE

AMP

BLACK

FRONT LINE OUT

R-CH L-CH

RED

WHITE

RCA-TO-RCA CABLE

(not supplied)

AMP

ANTENNA

JACK

ANTENNA

EXTENDER

CABLE

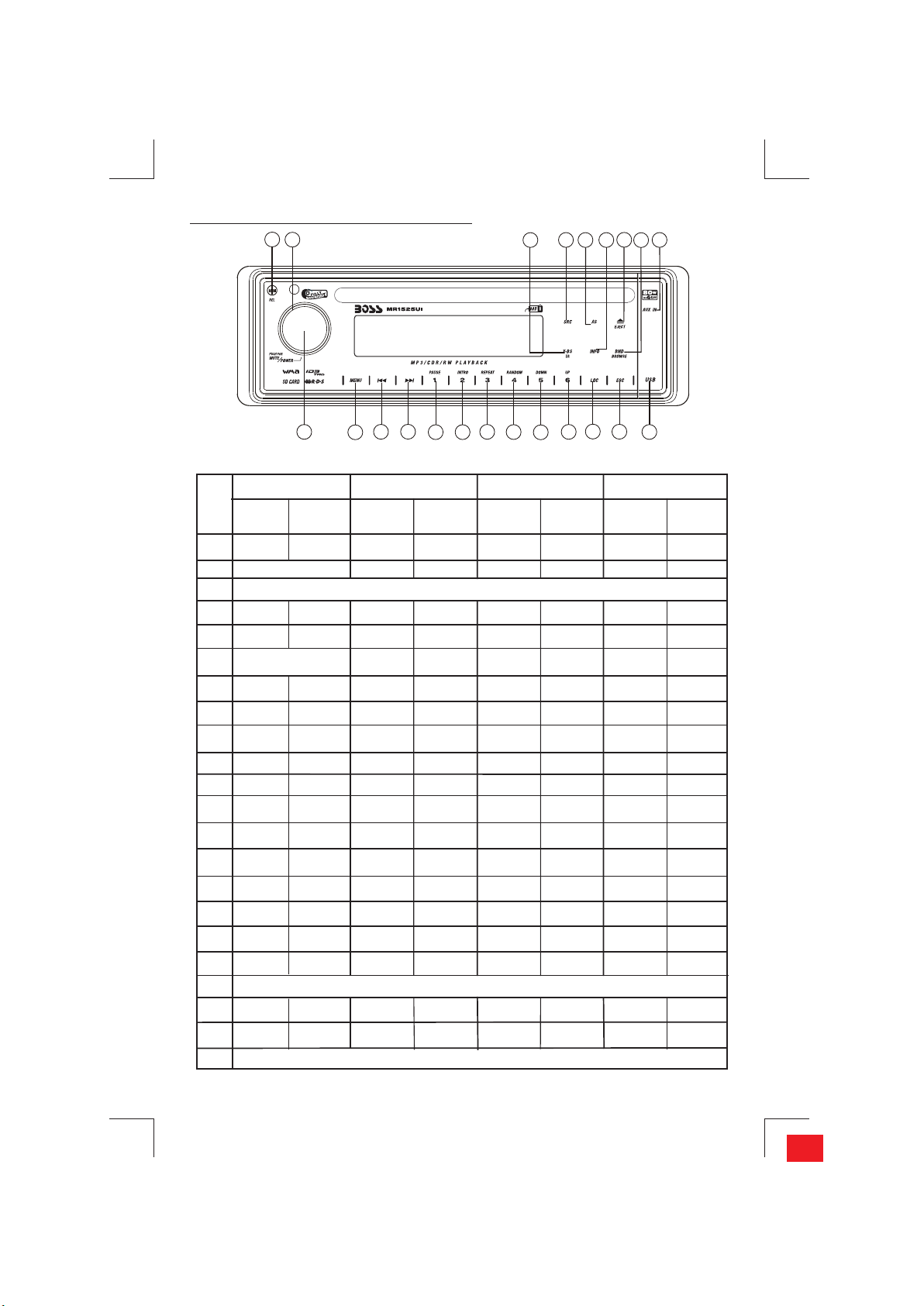

5. CONTROL PANEL FUNCTION

OPERATIONS:

KEY

SYSTEM TUNER CD/MP3/WMA

Short

Press

Long

Press Short

Press

Long

Press Short

Press

Long

Press Short

Press

Long

Press

Power

Panel Release button

Audio

Enter

Mode

Encoder Volume

Band

ix-Bass

Memory 1

Memory 2

Mem ory 3

Memor y 4

Memory 5

Memory 6

Pause

/Play

Intro Folder

Intro

Repeat Folder

Repeat

Ran dom

Folder

Random

Folde r

Down

Folde r

ID3 Info

Seek Up

Trac k/Fil e

Up Fast

Forward

Tune Up

Seek

Down

Tune

Dow n

Trac k/Fil e

Down

Fast

Backward

USB Cover / Socket

Eject

Mute

System

ESC

Browser

RDS Info

File

Auto

Store

iPod

Enter

Pause

/Play

Repeat Album

Repeat

Ran dom

Album

Random

iPod Info

File Up Fast

Forward

File Down

Fast

Backward

Browser

iPod

AUX IN JACK ON FRONT PANEL

3510

12 15

414

16 7

LO/DX

Press this button to remove the control panel.

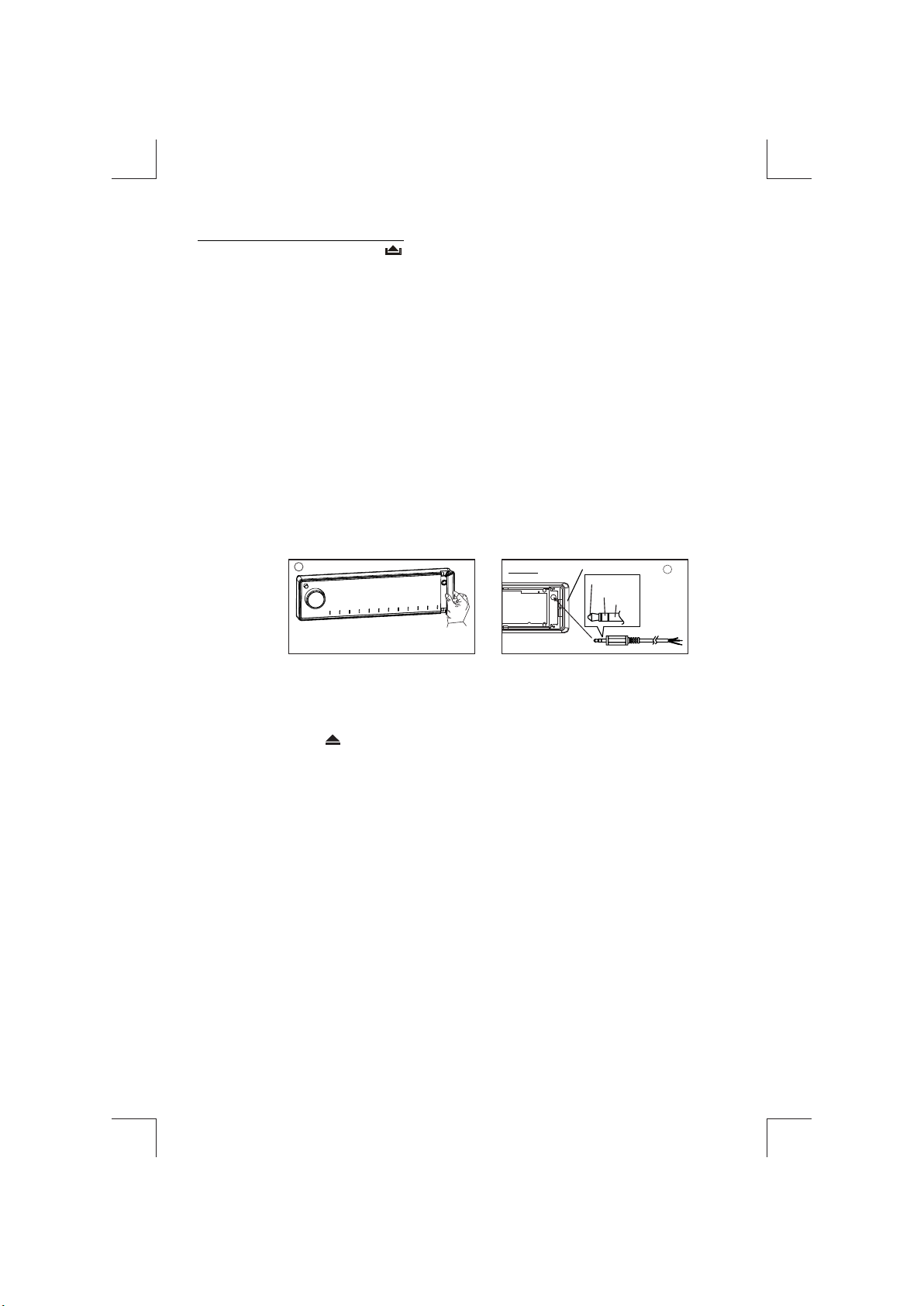

6. BASIC OPERATIONS

3) PANEL RELEASE BUTTON ( )

5) SOURCE BUTTON (SRC)

22) AUX IN JACK ON FRONT PANEL

8) iX-BASS BUTTON (XBS)

Press the XBS button to turn on the iX-Bass function, and the “X-BAS” icon will appear on the

LCD display. Press the XBS button again to turn off the iX-Bass function.

Press SOURCE button to select a different mode of operation as indicated on the display

panel. Available modes include TUNER, DISC, USB, AUX-IN , SD CARD & iPod.

6) ENCODER VOLUME BUTTON

2 ) EJECT BUTTON ( )

7) ESC BUTTON (ESC)

To increase the volume, rotate the Encoder Volume Knob clockwise. To decrease the volume,

rotate the Encoder Volume Knob counter clockwise. When volume is adjusted, the volume

level will be shown on the display panel as a number ranging from 0 (lowest) to 46 (highest).

Press this button to eject the CD from the unit. The receiver will switches to radio mode

automatically.

Press this button to quick return previous menu or mode.

4) POWER ON/OFF BUTTON ( POWER/MUTE )

Press POWER/MUTE button or any other button on the front of the radio (except Open/Eject)

to turn the unit on. And hold & press POWER /MUTE button again to turn the unit off.

4) MUTE BUTTON (POWER/MUTE)

Short press the POWER/MUTE button momentarily to mute the audio volume, and "MUTE" will

flash in the display. Press the POWER/MUTE button again to restore volume to the previous

setting.

Connect the external signal to AUX in jack located at the front of the panel , then press Source

button to select Aux mode. Press Source Button again to cancel Aux Mode and return to

previous mode.

AUX IN FRONT CABINET

RIGHT TRACK

GROUND

AUX IN

LEFT TRACK

OPEN THE AUX-IN JACK DOOR/COVER

TO ACCESS TO THE AUX-IN JACK

1) MENU FUNCTION LIST (MENU)

Hold& Press MENU button to access into the System Menu setting mode. Will appear

in the display momentarily. Navigate the menu by pressing MENU momentarily to move to the

next option. Once the desired option appears in the display, adjust that option by rotating the

Encoder Volume Knob(press the volume up / down button ) within 5 seconds. The following

options are adjusted through this menu feature.

7. SYSTEM MENU SETTING

AF ON/OFF (Alternate Frequencies)

User can rotate the Encoder Volume Knob to turn On / Off the AF ( Alternate Frequencies )

function. When AF in On mode, the unit will be searches for another station with stronger signal

but with the same program identification as the current station automatically.

REG ON/OFF (Regional Radio)

User can rotate the Encoder Volume Knob to turn On / Off the Regional function.

[ REG ON ]: Only stations in the current region can be tuned to automatically.

[REG OFF]: All stations can be tuned to automatically.

AREA (TUNER FREQUENCY SPACING)

This option allows the selection of the frequency spacing appropriate for your area. "AREA

U.S.A." is the default setting. Rotate the Encoder Volume Knob to select the U.S.A.,

EUR(Europe)

INFO SYS ( System Information )

Once into the System Information mode, press the Audio button to view the details system

software informations of this unit.

BEEP ON/OFF ( )

The beep tone feature allows the selection of an audible beep tone to be heard each time a

button is pressed on the face of the radio. "BEEP ON" is the default display. Rotate the Encoder

Volume Knob (Press the volume up/down button) to select the "BEEP OFF” option.

Beep Tone

PTY (Program Type)

Once into the PTY mode, you can be press Audio button to get into program type item, and

rotate Encoder Volume Konb to selected category.

Music Group Speech Group

POP M, ROCK M NEWS, AFFAIRS, INFO

CULTURE, SCIENCE, VARIED

JAZZ M, COUNTRY

EASY M, LIGHT M SPORT, EDUCATE, DRAMA

NATION M, OLDIES M SOCIAL, RELIGION, PHONE IN

FOLK M, A-TEXT, ALARM TRAVEL, LEISURE, DOCUMENT

WEATHER,FINANCE, CHILDREN

CLASSICS, OTHER M

Autres manuels pour MR1525UI

Table des matières

Autres manuels Boss Audio Systems Récepteur de voiture

Boss Audio Systems

Boss Audio Systems 611UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems Road RS Show RS5DVD Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BVML9384 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 658UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 812UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7464B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9362BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9759BD Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR1315WUA Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 822UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9969NV Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9980NV Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 614C Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7325B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems ELITE 455BRGB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9968BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems DVD-4400T Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9557 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MP3-3O6OR Manuel utilisateur

Boss Audio Systems

Boss Audio Systems AVA-2855R Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 755DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV6500 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7325B Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
