USER’S MANUAL

BV9371BD

BLUETOOTH® | DVD/MP3/CD AM/FM RECEIVER

iPod® / iPhone® are trademarks of Apple, Inc. registered in the U.S. and other countries.

BOSS Audio Systems is not affiliated with Apple, Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks

by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.

USER’S MANUAL

BV9371BD

BLUETOOTH®

DVD/MP3/CD AM/FM RECEIVER

FEATURING DETACHABLE 6.2" (157 mm) WIDESCREEN

TOUCHSCREEN DIGITAL TFT LED MONITOR

0718

BOSS Audio Systems

3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com

800-999-1236 US Toll-free

805-751-4853 Customer Service

Tech Support: www.bossaudio.com/support/technical-support

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

Congratulations on your purchase of a Boss Audio Systems Multimedia

Receiver. It has been designed, engineered and manufactured to

bring you the highest level of performance and quality, and will offer

you years of entertainment pleasure.

Content

ccessories………………………………………………………………………………………………………………………………………...02

Unit Installation………………………………………………………………………………………………………………………………..03

Wire Connection………………………………………………………………………………………………………………………………03

Parking Brake Connection ………………………………………………………………………………………………………04

Speaker connection……………………………………………………………………………………………………………………….05

Button Description………………………………………………………………………………………………………………………….06

Remote Control………………………………………………………………………………………………………………………………..08

Main Menu…………………………………………………………………………………………………………………………………………...11

Radio Operation……………………………………………………………………………………………………………………………….11

DVD Operation………………………………………………………………………………………………………………………………..12

USB /SD Operation………………………………………………………………………………………………………………………..13

Settings Operation………………………………………………………………………………………………………………………..14

Bluetooth Operation……………………………………………………………………………………………………………………..16

ux-In Operation ……………………………………………………………………………………………………………………………17

Notes of Disc……………………………………………………………………………………………………………………………………...18

roubleshooting……………………………………………………………………………………………………………………………...19

General Specification……………………………………………………………………………………………………………….…..21

Power Cable Trim Ring User Manual

Accessories

Package contains the following accessories for installation and operation of the unit.

(1) Washer,

Spring

(2) Washer,

M5 Nut

(5) Rubber

Cushion 1

(3) Screw

(6) Screw

(4) Bolt 1

(7)installation

bracket

1 Left

1 Right

(5) Mounting

Strap

Remote Control

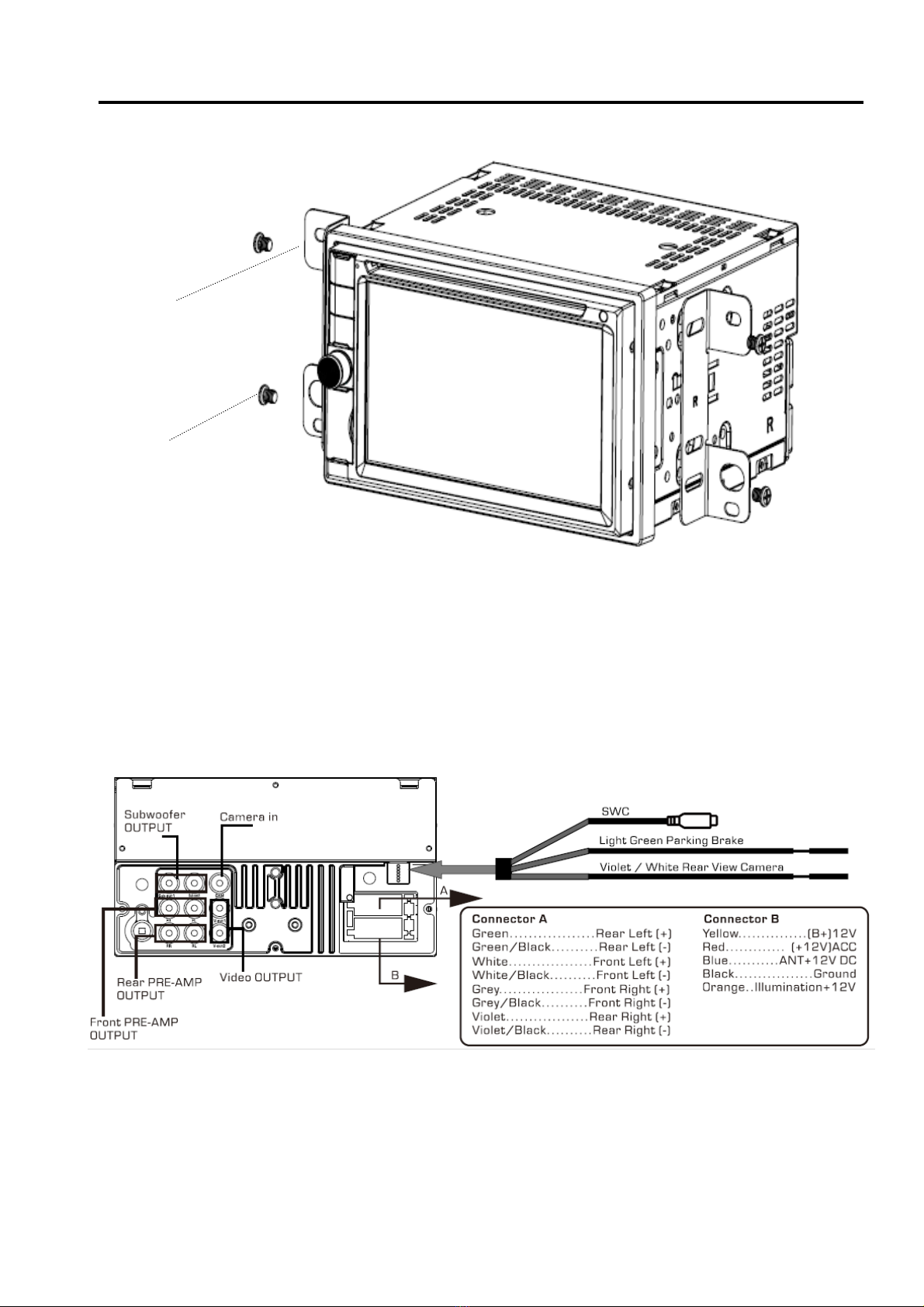

Unit Installation

1. Put the 2 brackets to the left and right side of the unit;

2. Use screws to fix the brackets to the unit.

Wire Connection

The Description of the Input/output Interface of the Rear Chassis.

Bracket

Screw

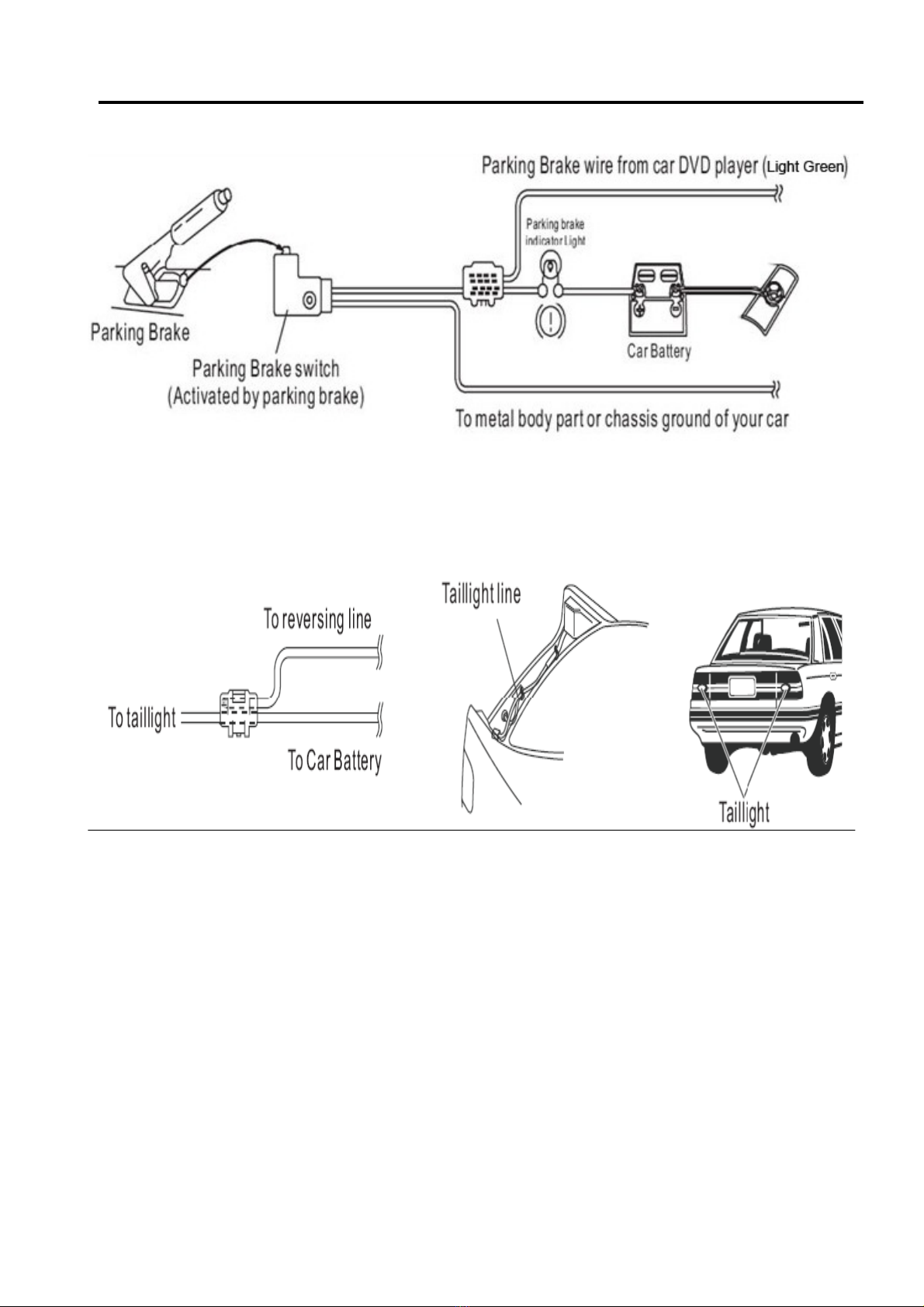

Parking Brake Connection

In order to view videos, the parking brake wire must be connected, and the vehicle stopped

Connecting the reversing line to taillight on the car

Speaker Connection

Connect the speakers according the following diagram, incorrect connections may damage the unit or

your speakers. Do not chassis ground speakers. Always observe correct polarity.

Correct connection

Left front - Right front | Left rear - Right rear

Incorrect connections

1 8910

11 12

Button Description

1. MIC

2. EJECT Button

Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is reinserted

automatically.

3. HOME BUTTON

Press home button to return back to main menu.

4. SOURCE BUTTON

Press source button to change mode.

5. POWER / MUTE Button /VOL

Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off .Press the button.

briefly to mute .Please notes that the volume will be muted on all audio output connector.

Button Description

Press VOL knob to power on unit and Press and hold for 2 seconds to turn the unit off

Rotate VOL knob to increase or reduce the volume.

6. USB/ AUX

USB for Multimedia playback files only. insert a USB into this slot and the unit will automatically start

reading and playback. * Supported Music File Format: MP3, WMA files.

Put the Aux plug into the Aux-In jack which was marked on front panel.

7. Dismantle front panel button

8. DISC Slot

9. Display

Display Information when operation the unit.

10. Remote Sensor

Remote control signal receiving window. Max distance is 20 ft (6m), 45 deg.

11.SD /MMC CARD slot

SD card slot, for Multimedia playback files only. Insert a SD/MMC CARD into this slot and

the unit will automatically start reading and playback the card. * Supported Music File Format:

MP3, WMA Files

12. RESET Button

Press it with a thin, sharp object. The device will then be reset to factory default settings.

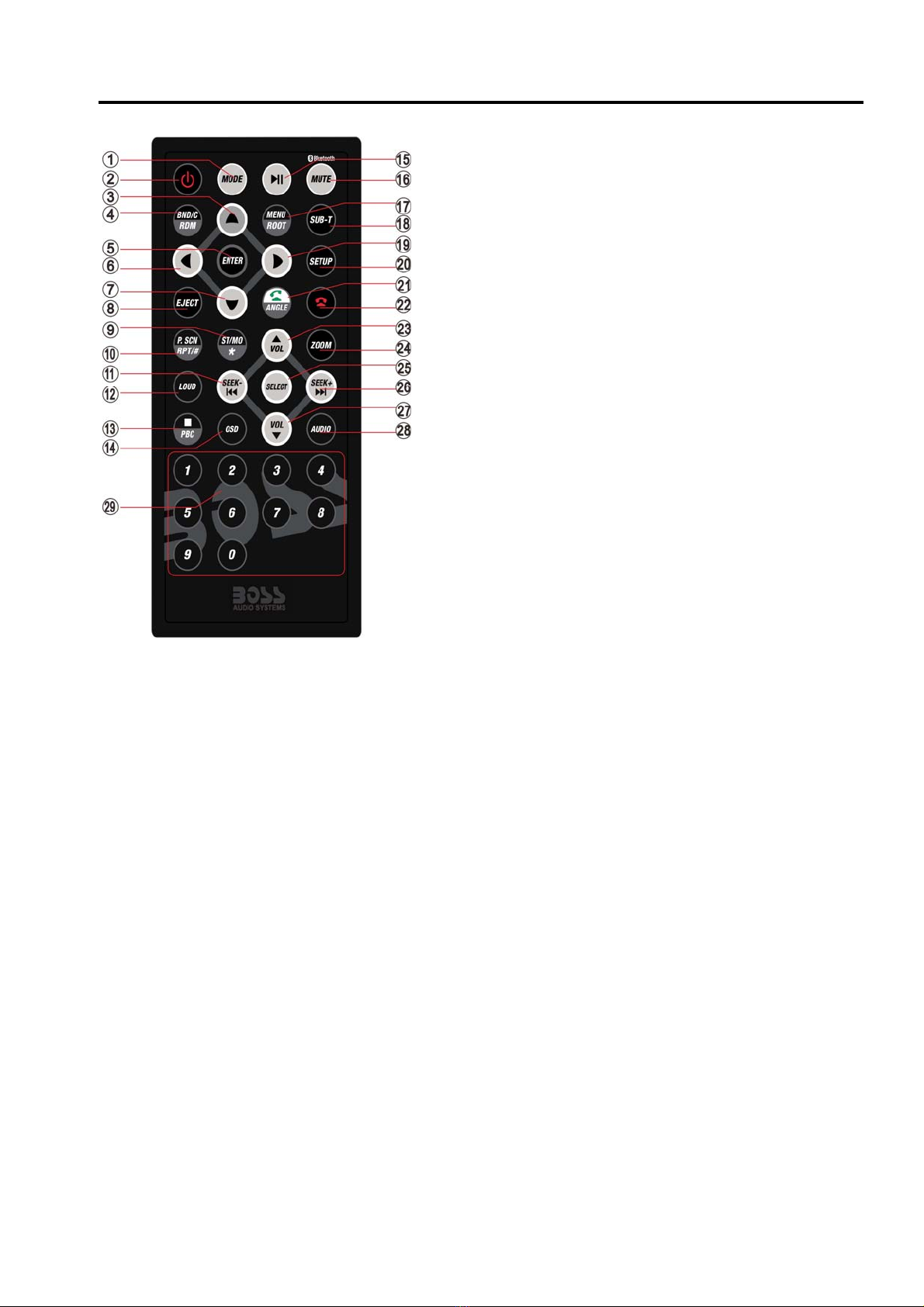

Remote Control

1. MODE button

Press it to select the mode: Radio, Disc (if there is a disc in unit), USB (if there is a USB device in the

unit), SD (if there is a SD/MMC card in the unit), Bluetooth, Aux-In.

2. POWER button

Power on or power off.

3. UP button

Press it to move the cursor up.

4. BAND/RDM/CLEAR button

In radio mode, press to change radio band in sequence of FM1 →FM2 →FM3 →AM1 →AM2; In DVD

mode, press to play randomly; In Bluetooth mode, short press it to clear the single phone number; long

press it to clear all the phone number.

5: ENTER

Press it to confirm your selection.

6. LEFT button

Press it to move the cursor left.

7. DOWN button

Press it to move the cursor down.

8. EJECT button

Press it to eject the disc.

9. STEREO/MONO/* button

Press to switch the radio in stereo and mono sound. In Bluetooth mode, press it to make a symbol.

1: MODE

2: POWER

3: UP

4: BAND/RANDOM/CLEAR

5: ENTER

6: LEFT

7: DOWN

8: EJECT

9: STEREO/MONO/*

10:P.SCAN/REPEAT/#

11: SEEK-/BACKWARD

12: LOUD

13: STOP/PBC

14: OSD

15: PLAY/PAUSE

16: MUTE/BLUETOOTH

17: MENU/ROOT

18: SUBTITLE

19: RIGHT

20: SETUP

21: DIAL/ANGLE

22: HANG UP

23: VOLUME UP

24: ZOOM

25: SELECT

26: SEEK+/FORWARD

27: VOLUME DOWN

28: AUDIO

29: NUMERIC KEY
