Boss Audio Systems 824UAB Manuel utilisateur

USER'S

MANUAL

824UAB

BLUETOOTH~

-ENABLED

MP3-COMPATIBLE

AM/FM

RECEIVER

FRO

TRUE

DOUBLE

DIN

FIT

BO~S

AUDIO SYSTEMS

Thank you for

c~oosing

Boss Audio Systems! This unit will bring

you years

enJoymenl:.

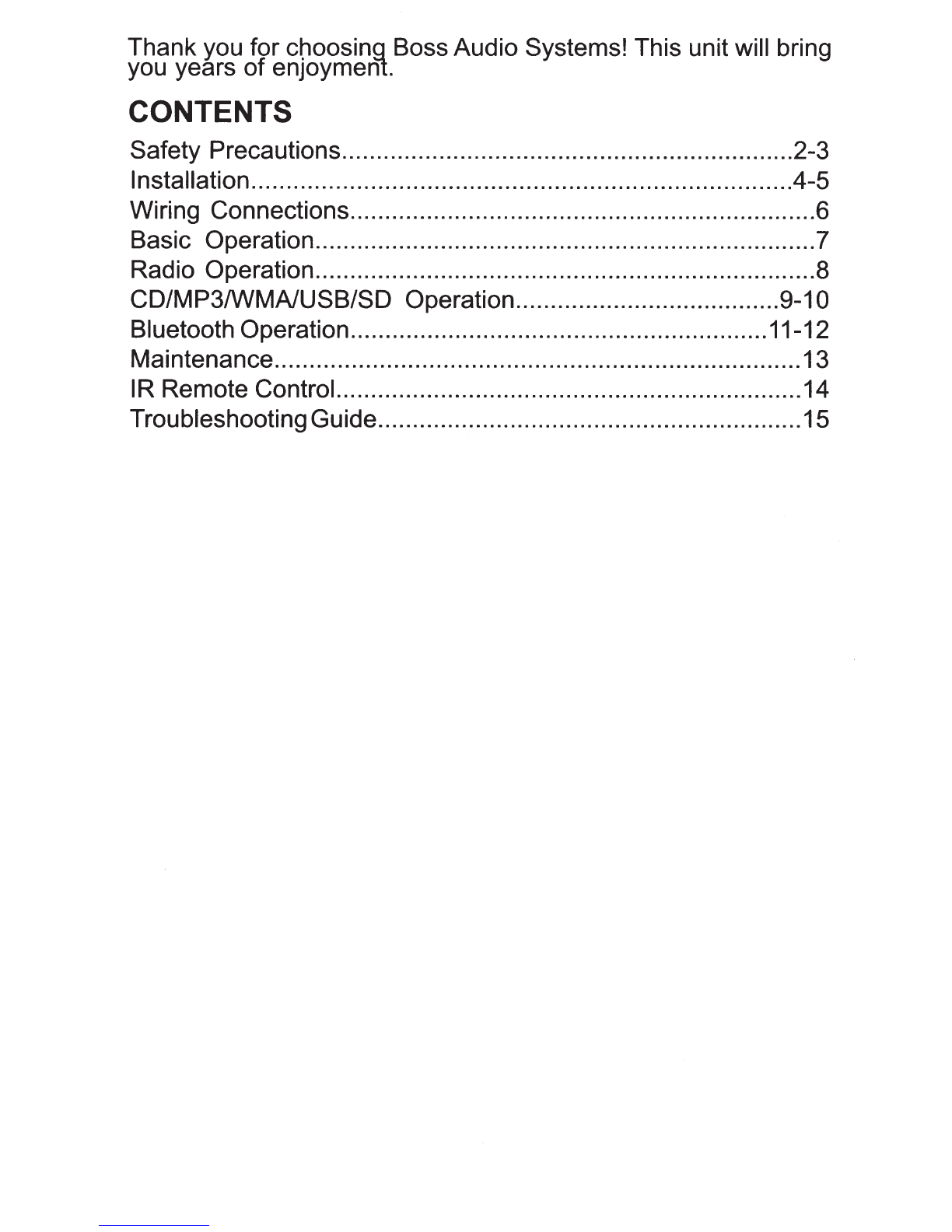

CONTENTS

Safety Precautions.................................................................2-3

Installation.............................................................................4-5

Wiring Connections...................................................................6

Basic Operation........................................................................

Radio Operation........................................................................8

CD/MP3/WMA/USB/SD Operation......................................9-10

Bluetooth Operation............................................................11-12

Maintenance...........................................................................13

IR Remote Control...................................................................14

TroubleshootingGuide.............................................................15

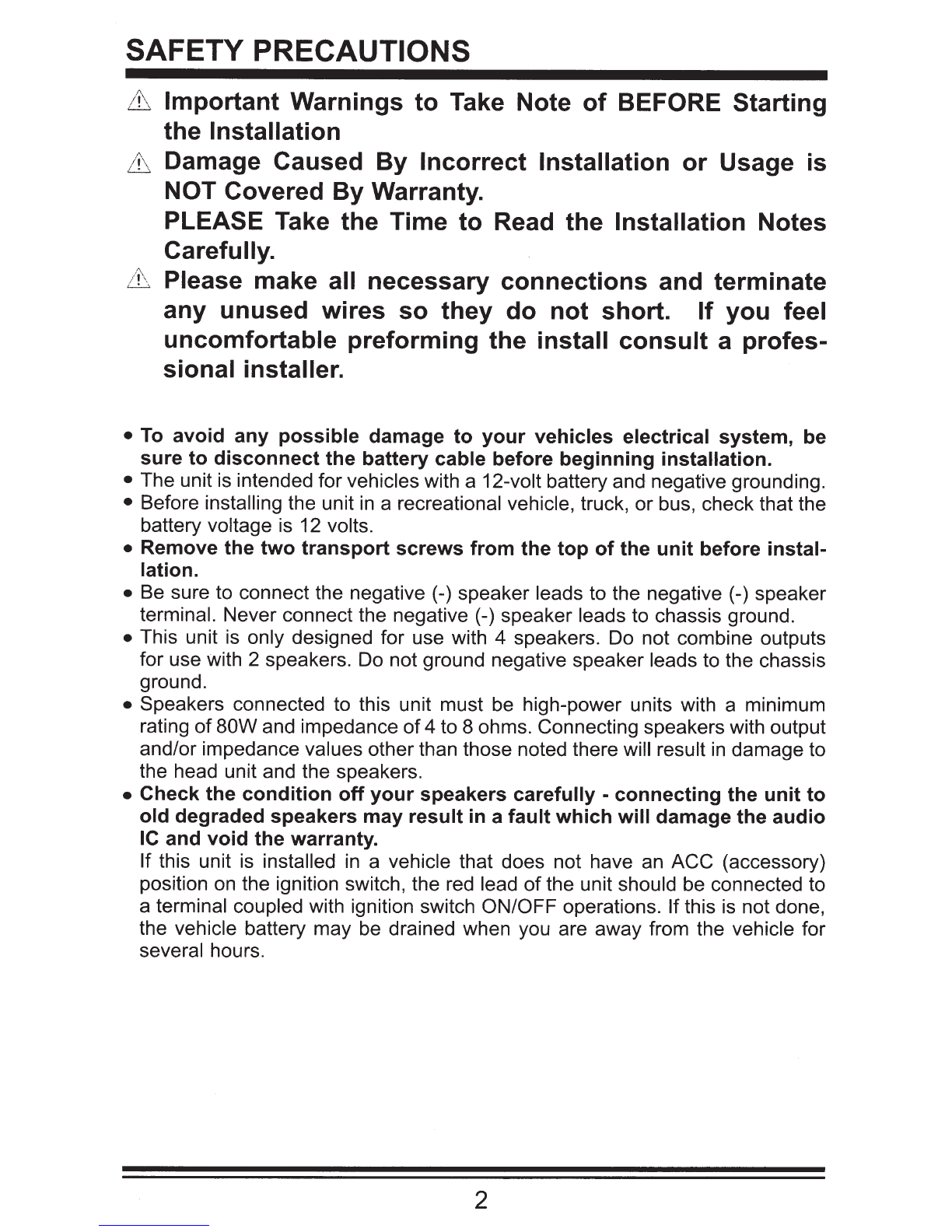

SAFETY PRECAUTIONS

Important

Warnings

Take Note

BEFORE

Starting

the

Installation

& Damage Caused

Incorrect

Installation

Usage

NOT Covered

Warranty.

PLEASE Take

the

Time

Read

the

Installation

Notes

Carefully.

& Please make all

necessary

connections

and

terminate

any

unused

wires

they

not

short.

you

feel

uncomfortable

preforming

the

install

consult

profes-

sional

installer.

• To

avoid

any

possible

damage

your

vehicles

electrical

system,

sure

disconnect

the

battery

cable before

beginning

installation.

• The unit is intended for vehicles with a 12-volt battery and negative grounding.

• Before installing the unit

a recreational vehicle, truck, or bus, check that the

battery voltage

12 volts.

• Remove

the

two

transport

screws

from

the

top

the

unit

before

instal-

lation.

•

sure to connect the negative (-) speaker leads to the negative (-) speaker

terminal. Never connect the negative(-) speaker leads to chassis ground.

• This unit is only designed for use with 4 speakers. Do not combine outputs

for use with 2 speakers. Do not ground negative speaker leads to the chassis

ground.

• Speakers connected to this unit must be high-power units with a minimum

rating

BOW

and impedance

4 to 8 ohms. Connecting speakers with output

and/or impedance values other than those noted there will result

damage to

the head unit and the speakers.

• Check

the

condition

off

your

speakers

carefully

connecting

the

unit

old

degraded speakers

may

result

in a

fault

which

will

damage

the

audio

and

void

the

warranty.

If this unit is installed

a vehicle that does not have

ACC (accessory)

position

the ignition switch, the

red

lead

the unit should be connected to

a terminal coupled with ignition switch ON/OFF operations. If this

not done,

the vehicle battery may be drained when you are away from the vehicle for

several hours.

SAFETY PRECAUTIONS

• Secure the wiring with zip ties

electrical tape.

protect the wiring, wrap

adhesive tape around them where they lie against metal parts.

avoid

short-circuiting, cover all disconnected lead with insulating tape. There is a

possibility

short-circuiting if the leads are not insulated.

• Route and secure all wiring so it cannot touch any moving parts, such as the

gear lever and handbrake. Do not route wiring

places that get hot, such as

near the heater outlet. If the insulation

the wiring melts or gets torn, there is

a danger

the wiring short circuiting to the vehicle's body.

• Don't pass the yellow lead through a hole into the engine compartment to

connect to the battery. This will damage the lead's insulation and cause a very

dangerous short.

• Do not shorten any leads, if you do, the protection circuit may fail to work

when it should.

• Never feed power to other equipment by cutting the insulation

the power

supply lead

the unit and tapping into the lead. The current capacity

the

lead will be exceeded, causing overheating.

• Since a unique audio

1/C

circuit is employed, never wire so the speaker leads

are directly grounded or the left and

right-

speaker leads are common.

• When this product's source is switched ON, a control signal is turned on

through the change color to Blue/White lead. Connect to an external power

amp's system remote control

the car's Auto-antenna relay control terminal ·

(max. 300mA 12V DC).

• Do not block any vents or heater panels, Blocking them will cause heat to build

up and may result

fire.

• When replacing the fuse(s) the replacement must be

the same amperage

as shown on the fuse holder. Never replace a fuse with another

a different

value. If the fuse blows again please contact your installation company.

• Double check that all wiring and connections are correct before re-connecting

the battery and turning on the unit.

After completing the installation and before operating the unit, reconnect the

battery, then press the (RES) button with a pointed object, such as a ball-point

pen to set to unit to it's initial status. After pushing the button, wait a few sec-

onds for the red light to flash.

INSTALLATION

Tools for Installation

2 removal wrenches are supplied for taking out the old unit and replacing it with

your new Boss Audio Systems car stereo. The following tools and supplies may

also be needed for the installation:

Tools for Installation: Philips Screw-drivers /Machine Screws /Wire Stripper

/Wire Cutter /Hammer /Pencil /Electrical Tape /Electric Drill

Supplies for Installation: Machine Screws /Crimp Connectors /14 Gauge Wire for

Power Connections /14-16 Gauge Speaker Wires

The above are not supplied.

Before you install

Automotive audio equipment installations can be challenging even to the most

experienced

installation technicians. We strongly recommend that this unit

should be professionally installed by a authorized dealer (this is a requirement

to validate the extended warranty).

IMPORTANT: Remove the two transport screws from the top fo the unit before

installing.

Remove the Old Unit from the Dashboard

Remove the outer trim frame.

DIN

Front Mount

Mark Polarity of the Speaker Wires

Insert the keys supplied with the

old unit into both sides

the unit

as shown

figure below until

they click. Pull to remove the old

unit from the dashboard.

NOT DISCONNECT WIRES

THIS TIME!

Marking the polarity

the speaker wirers will make it easier to connect the

existing speakers to your car radio. Consult wiring diagram

existing head unit

before disconnecting any wires. If you are not positive

the polarity

the exist-

ing wires from the speakers to the head unit, install new wires.

While the old unit is playing, disconnect the wires from one speaker.

Take a length

masking tape and fold it around the wire so it forms a flag.

On the masking tape mark the polarity

the speaker wires (+&-

as well as

left or right, and front or rear.

Double check that you marked the first speaker correctly by checking that the

speaker wires are the same at the head unit.

Repeat this procedure for all

the speakers.

Mark the power, ground, and any other wires also.

INSTALLATION

WARNING!

Disconnect negative battery terminal

from

battery

before starting installation.

NOTE: Mark the polarity

the existing speaker wires

before disconnecting battery.

NOTE: Remove the two transport screws from the top

the unit before installing.

NOTE: Make sure there is enough space for the instal-

lation

this double-din unit.

----SUPPLIED

TOOLS------.

~~;._

rof1

.. ..

iPA

5X20

XI XI

WIRING DIAGRAM

Make sure

You

have a good chassis ground. Good ground connection will

eliminate most electrical noise problems. A good chassis ground requires a

tight connection to the vehicle's metal chassis. The area around the ground

connection should

clean, bare metal without rust, paint, plastic, dust, or dirt

for a good ground connection.

Black Ground

Connect to vehicle body/chassis. Make sure you have a good chassis ground.

This will eliminate most electrical noise form the motor and alternator. A good

chassis ground requires a tight connection to ground. The area should

free

from rust, paint or any form

dirt.

Yellow Memory Backup

Connect to electrical terminal always supplied with power regardless of ignition

switch position.

Orange Remote

Connect to Auto-antenna or power amp control wire/remote connection.

Maximum current 500mA 12VDC. (Low Current)

ConnectorA

1. Rear right speaker(+)/Purple

2. Rear right speaker(-)/Purple-Biack

3. Front right speaker(+)/Grey

4. Front right speaker(-)/Grey-Biack

5. Front left speaker(+)/White

6. Front left speaker(-)/White-Black

7. Rear left speaker(+)/Green

8. Rear left speaker(-)/Green-Black

Speaker Wiring Notes:

• •

Connector B

1.-

2.-

3.-

4. Battery 12V (+)/Yellow

5. Remote Trigger/Blue-White

6.-

7.ACC+/Red

Ground/Black

Follow the above wiring diagram to install the head unit with new or existing

speakers.

This unit

designed for use with four (4) speakers with impedance between

4 Ohms to 8 Ohms.

Impedance load of less than 4 Ohms could damage the unit.

Never bridge or combine the speaker wire outputs. When not using four

speakers, use electrical tape to tape the ends of the unused speaker outputs

to prevent a short circuit. .

Never ground the negative speaker terminals to chassis ground.

Basic Operation

Tuning

the

unit

On I

Oft

Press any Button to turn the unit on, the display will show a message "BOSS

AUDIO" to indicate it is ready for use. Press and hold the

PWR

button to turn

the unit off. The display_will show a message "GOODBYE".

Mode Selection

Press the SRC Button to select Radio Mode. Press the SRC Button to cycle the

Play Mode amoung AUX, RADIO and CD PLAY.

Note: USB &SD mode will only show on the display when a USB flash memory

SD card is inserted into the USB port

SD port.

Loudness

Control

Press the SEL button until "LOUD OFF" is shown on the display indicates that

the loudness function is OFF. Turn the volume knob to select between ON or

OFF.

Mute

Control

Press the

POWER/MUT

button active

cancel Mute function.

Volume

Use the VOL +/- Button to adjust the volume level. The larger the number, the

higher the volume level.

Bass/Treble

Press the SEL Button repeatedly until the display shows "BAS 00"/"TRE 00".

Use the

VOL

+/- Button to adjust. When EQ is ON, bass/treble control is not

available.

Balance

Press SEL Button repeatedly until the display shows "BAL L-R"/"FAD F-R", then

use the VOL +/- Button to adjust the balance between the left & right speakers.

10.

Clock

The time clock can be set anytime when the power is on. Press the

CLK

Button

on the faceplate

remote control once, the time will show on the display.

Then press and hold the button until the hour blinks on the display. Rotate the

VOL knob to set hours, then press the

VOL

knob for the minutes to blink and

rotate the

VOL

knob to set.

Press the CLK button again

leave the unit idle for

new

setting to

effect

Press

the

CLK

button anytime to view the time clock display.

11. Preset Beep

Sound

Off

Press the SEL button repeatedly until "BEEP OFF" is displayed. Turn the

VOL

+I- Button to select "BEEP ON"

"BEEP OFF", then leave the unit idle for

setting to take effect.

12. Preset Equalizer

Function

Press the SEL Button repeatedly until "EQ" indication is displayed then rotate

the Volume knob to choose between the EQ sound effects. The Sequence

equalizer setting will be as follows:

~OFF

-POP-ROCK~

L__

FLAT--

CLASSIC-

Radio Operation

1. Choose Radio Band

Press the SRC Button to access the radio function.

The unit comes with five bands- three FM Bands (FM1, FM2, and FM3) and two

Bands (MW1, and MW2) selects. Each

the five bands can store up to

six preset stations, for a total

30 preset memory stations.

Radio Tune

Seek Function

Radio Mode, press and hold the

SEEK

1<<

>>1

Button for 2 seconds, and

the display will-show"MANUAL". Then Press the

SEEK

1<<

>>1

Button once

to manually adjust the radio frequency.

3. Tuning

Press the SEEK

1<<

>>I

Button once the radio will seek the next strong and

clearfrequency station. Repeat to seek more stations

your listening area with

a strong signal.

4. Mono/Stereo Reception Control

FM radio mode, Press the SEL Button until "STEREO" is shown on the dis-

play. Roate the

VOL+/-

to select STEREO

MONO. Improvement

reception

distant stations can be done by selecting "MONO" operation which may cut

down some reception noise.

Local/

Distant Control

FM radio mode, Press the SEL Button until " OX" is shown on the display.

Roate the

VOL

+/- to select "LOCAL"

"--OX--".

Local and distance reception setting can facilitate the radio reception, depend-

ing on the location

which the radio is being used.

Save Your Preset Stations

There are six numbered preset buttons which can store and recall stations for

each band. While listening to a radio station you would like to save as a pre-

set, press and hold one

the buttons numbered 1-6 until you hear a beep. The

button you pressed is now the pre-set button for that station.

7. Automatic Store/Preset Scan

There are six numbered preset buttons which can store and recall stations for

each band. While listening to a radio station you would like to save as a pre-set,

press and hold one

the buttons numbered 1-6 until you hear a beep. The

button you pressed is

now

the pre-set button for that station.

A. Automatic Scan

Store

While listening to the FM Radio, press and hold the F/PS Button. The receiver

will

automatically scan and save stations

the 3 FM Bands.

While listening to the

Radio, press and hold the F/PS Button. The receiver

will automatically scan and save stations

the 2

Bands.

Scan & Preview Saved Stations

Press the F/PS button once and the receiver will scan the radio stations

the

current band.

CD/MP3/WMAIUSB/SD

Operation

Insert

Eject CD

Insert a disc into

slot with label side

up.

The disc will

automatically

loaded into the unit, even when it

off or at radio mode. The word "LOAD" will

blink

the display and the CD will play automatically. Press the EJECT Button

eject the disc from the slot. If the disc

not removed from the slot within 5

seconds, it will automatically

loaded into the slot again. When the disc

ejected and removed, the unit will automatically switch to radio mode.

While you are playing a disc with MP3 or WMA, The first file

the root folder

will

played. if there

any

103

information that will be displayed as the file

playing.

play MP3/WMAfiles from a USB flash memory or

card, insert a USB flash

memory or

card into the USB port or

port of the unit. The unit will start

playing MP3/WMAfiles

the USB flash memory automatically.

If the MP3/WMA files are stored

folders

the USB drive, the unit will start

by playing the first song

the first folder. After playing all the files sequentially

the first folder, the unit will play sequentially all of the files

the next folder.

The unit will continue playing through all

the folders

the USB drive

this

manner.

Ifthe USB drive has loose files and folders containing files, it will play the loose

files sequentially, then it will play the files

the folders sequentially.

Multi-Session CD Reading

This unit can read multi-session COs. The multi-session reading will

activat-

automatically ifthe player detects a file that

written

multi-session format.

Selecting Tracks

Press the SEEK

>>1

Button to advance CD to the next track. Track numbers

will

shown

the display. Press and hold SEEK

>>1

to fast forward.

Press the SEEK

I<<

Button to go to a previous track. Track numbers will

shown on the display. Press and hold the SEEK

I<<

Button to fast reverse.

Disc will play normally when the No. 1(play/pause) Button

pressed.

Play

Pause CD

Press the No.1/PAU Button to pause the CD. Press this button again to

resume playback.

Scanning

Tracks

Press the No.2/INT Button to play the first

seconds of each track,

NT" will

displayed

the display. Press this button again to resume playback.

Repeat

Press the No.3/RPT Button to repeat the current track. Press it again to cancel.

Random

Press the No.4/RDM Button to play all the tracks

random order. "ROM" will

appear

the display. Press this button again to stop random

play.

Folder

Down

Press the " 5

button once to go back one folder.

Table des matières

Autres manuels Boss Audio Systems Récepteur de voiture

Boss Audio Systems

Boss Audio Systems 638BA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 758DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9986BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV8974B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV6500 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 630CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9362BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9560B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 616UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 615UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 614CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems MR1520UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7464B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 722CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BVS13.3B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7464B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 758DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems CD-3090R Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 550B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV4250 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 612UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7300 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 750DI Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
