Boss Audio Systems 812UAB Manuel utilisateur

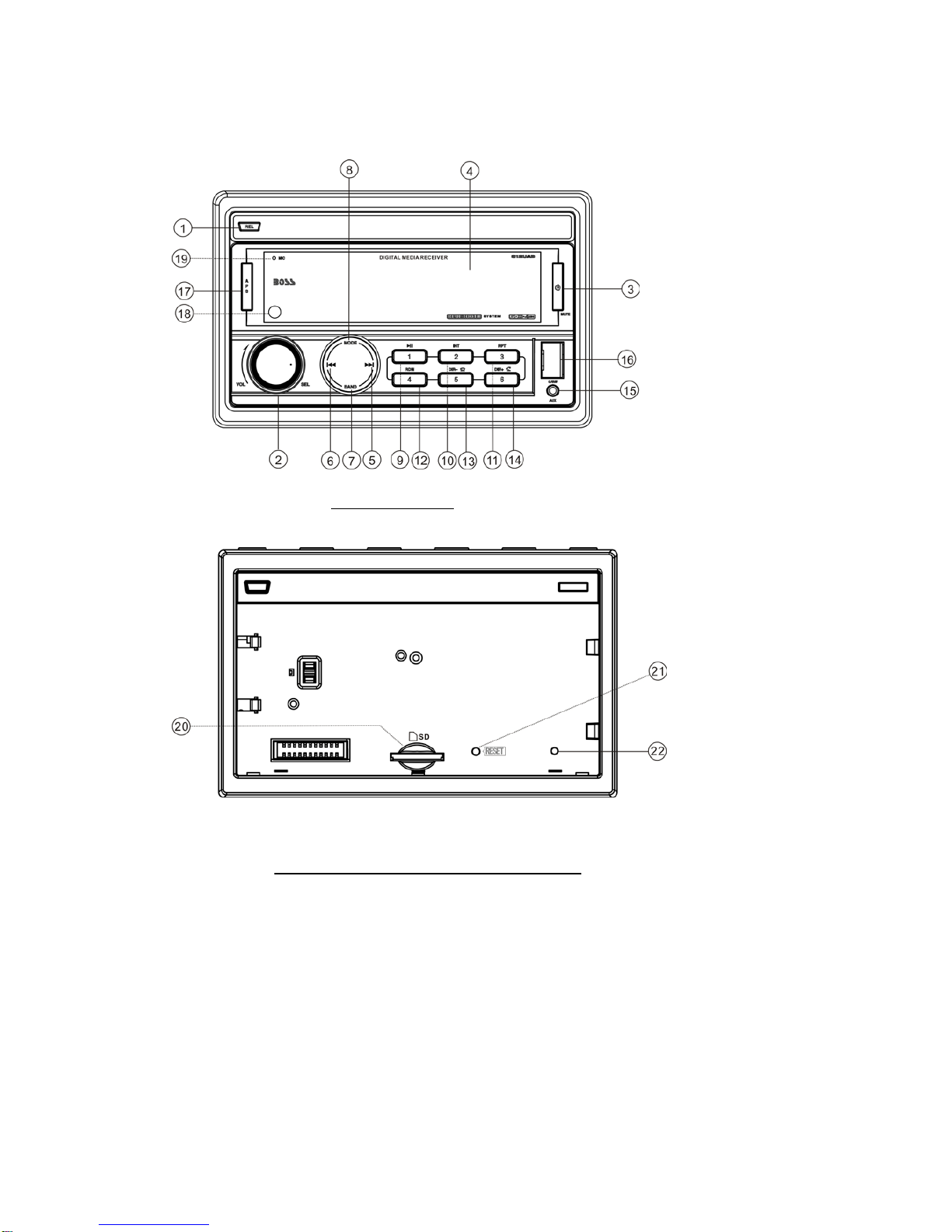

DESCRIPTION OF CONTROLS ON THE FRONT CONTROL PANEL

Front Control Panel

Front Cabinet after removing Front Control Panel

1. RELEASE button

2. SEL & VOL knob

3. POWER & MUTE button

4. LCD

5&6. >>| And |<< buttons

7. BAND button

8. MODE button

9. 1/TOP/>|| button

10. 2/INT button

11. 3/RPT button

12. 4/RDM button

13. 5 DIR-/HANG UP button

14. 6 DIR+/TEL button

15. AUX IN jack

16. USB socket

17. APS button

18.IR Remote Sensor

19.MICPHONE

20.Card slot

21.RESET

22. FLASHING LED

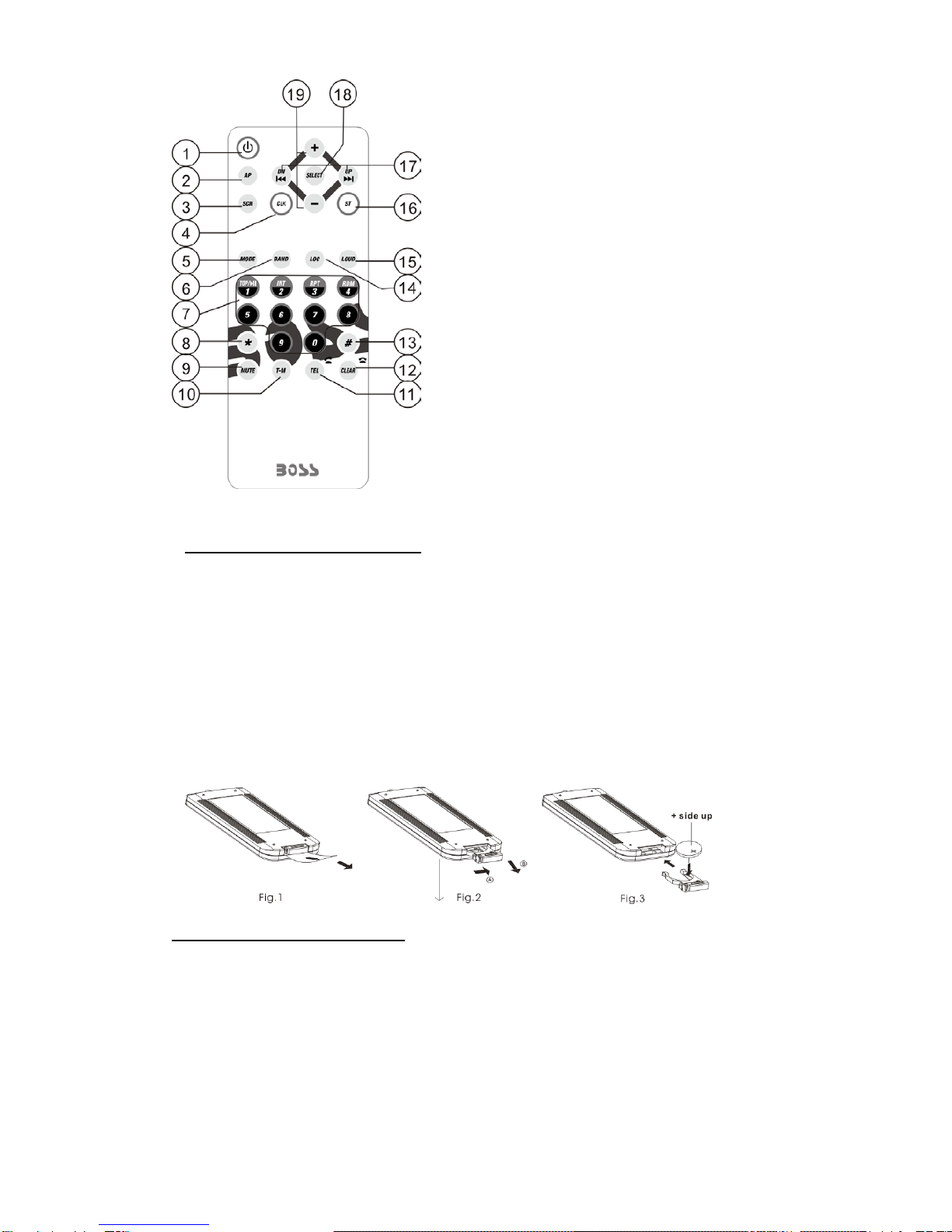

DESCRIPTION OF BUTTONS ON REMOTE CONTROL

REMOTE CONTROL

1. POWER button

2. A.P button

3. SCN(SCAN) button

4. CLK button

5. MODE button

6. BND(BAND) button

7. Number(0~9) buttons

8. * button

9. MUTE button

10. T-M button

11. TEL button

12. CLEAR button

13. # button

14. LOC button

15. LOUD button

16. ST button

17. >>| and |<< buttons

18. SEL button

19. + and - buttons

Load/unloading battery of remote control

1. Please remove insulating sheet out of remote control before use.

Pull out insulating sheet in the direction as per fig. 1.

2. When changing battery for remote control, first pull the movable block hold

in the direction as indicated in Fig. 2 arrowA. Then pull the battery holder out

from the remote control in the direction as indicated in Fig.2 arrow B.

3. Replace the old battery by a new battery with (+) polarity side upward. Then

return the battery holder to the remote control by pressing the battery holder.

Please see Fig.3.

Note about the battery of remote control:

1. Improper use of battery may cause overheating or explosion. Which may result

in jury or fire .

2. Battery leakage may cause damage to the remote control(Battery Life: 6

months with normal use in normal room temperature).

3. Do not short the battery.

4. Do not throw the battery into the fire.

5. To avoid the risk of accident, keep the battery out of reach of children.

Common operation:

1. To turn the unit on/off .

When the unit is power Off, it may be switched On by pressing any button except

RELEASE button.

When the unit is switched On, press and hold POWER button for more than 1

second, to switch the power off.

2. To select function mode

Press MODE button to change function mode as follows:

-->TUNER -->USB(after inserting USB stick)-->CARD(after inserting SD card)-->BT-->

AUX-->

When there is no media (USB/CARD), that mode will be skipped.

3. To adjust the volume level

Rotate VOL knob or press + or - button on remote control to adjust volume level during

playback.

4. To mute or resume sound

Press MUTE button to eliminate or resume sound immediately during playback.

To resume the sound immediately, you can rotate VOLknob.

5. To set sound mode and menu

1).To set sound mode:

Press SEL button shortly and repeatedly to select mode of VOL(volume), BASS

(without preset DSP), TRE(treble)(without preset DSP), BAL(balance) and FAD

(fader) in the sequence and circulation. In each mode, the waiting time is about 5

seconds, and when the waiting time is over, it will return to the last display mode.

After selecting a sound mode, use volume control to set level of the selected sound

mode.

2).To set menu:

Press SEL button and hold for more than 2 seconds to turn on BEEP ON/BEEP OFF,

then press SEL button shortly and repeatedly to select USER SET (FLAT/CLASSIC/

ROCK/POP), VOL LAST/VOL DEFA(AVOL) ,AMERICA3/EUROPE(in RADIO mode),

STEREO/MONO(in RADIO mode), LOUD OFF/LOUD ON, DX/LOCAL(in RADIO mode)

CLK ON/CLK OFF,CLK 12/CLK 24,CL(Adjust the clock))mode.After selecting a desired

item, use volume control to set.

3) BEEP ON/BEEP OFF

BEEP ON mode: The beep is generated when any key is pressed.

BEEP OFF mode: The beep sound is disabled.

4) VOL LAST/VOL DEFA

VOL LAST: The volume level when switching off will be restored with power On.

VOL DEFA: The volume level of the main unit after power on is a constant valume.

when selecting VOL DEFA item, press SEL button to display AVOL , then

you can pre-set the constant volume level after power on with VOL control.

6. ID3 FUNCTION

In USB/CARD mode, during playback, if you press CLK button on remote

control then the information of the songs title, artist, etc will display on the LCD. As long as

the current playing music contains relevant ID3 tag information. Press again to cancel the

ID3 function.

7. ST BUTTON

In FM mode, press the ST button briefly on remote control to select stereo or mono sound

mode.

8. LOUD BUTTON

When press shortly, the LOUD mode is turned on, its to enhance the bass sound

effect when the volume level is low. Press again to cancel the loudness effect.

9. LOC BUTTON

Radio station search mode is divided by this LOCAL/DX switch, this button can

be used to control an attenuator in the tuner during search. The detecting level of

seek, scan, auto-memory will be reduced as much as the attenuated level of

the tuner. In radio mode, press the LOC button to change local reception or

distance reception. (Note: This button is only for FM reception. InAM mode,

LOC is void.)

10. To remove front control panel

Press RELEASE button to release front control panel from unit chassis, then you

can remove it from unit chassis.

When front control panel is removed, the LED indicator on front cabinet flashes.

11. To reset unit

Before operating the unit for the first time, or after replacing the car battery or

changing the connections. You must reset the unit.

(To reset the unit, remove the front control panel, then press RESET button and hold

for more than 8 seconds with a cuspidal object.)

RADIO OPERATION:

1. To select radio band

Press BAND button briefly and repeatedly to select a desired radio band in

sequence and circulation as follows:

-->FM1-->FM2-->FM3-->AM1(MW1)-->AM2(MW2)--> .

2. To search for radio station manually or automatically

Press >>| or |<< button briefly to manual tune up/down for your desired radio stations

step by step.

Press and hold >>| or |<< button for 1 second, to automatically tune up/down for

a radio station of strong signal.

You can also press SCN button on remote control to automatically tune up for a radio

station of strong signal.

3. To store current station or turn on a preset one

1) Press one of the 6 number buttons and hold for more than 1 second to store the

current station in the preset memory bank of the number button for the current band.

In this way the unit can store 30 preset stations.

2) Press one of the 6 number buttons briefly to turn on the preset station stored in

the preset memory bank of the number button for the current band.

PressAPS button on the unit or A.P button on the remote control to preview the 6

preset stations stored in the preset memory bank.

4. To scan for each preset station or auto search for the strongest stations

When pressing and holding APS button on the unit or A.P button on the remote control for

more than 1 second, the radio searches from the current frequency and checks the signal l

until the 6 strongest stations are found. And then the 6 strongest stations are preset to the

strength leve corresponding preset memory numbered bank. The auto-storage operation is

implemented in the each selected band. When the auto-storage operation is finished, the

radio executes Preset scan.

USB/Card OPERATION:

1. To insert or pull out SD card or USB stick

When needing to playback SD or USB music, insert SD card or USB

stick into SD slot or USB socket. Then the playing mode will be changed into

SD or USB mode and display Card or USB on LCD (When SD card and

USB stick are both inserted into their slot or socket, the playing mode will be changed

into the mode of the latter one), and then play the first track of SD card or USB.

2. Press the >>| button briefly to play next track.

Press the |<< button briefly to play the current track from the beginning of it if the playing time

is more than 4 seconds. Press the |<< button briefly to play the previous track if the playing

time is less than 4 seconds.

3. To play fast forward or backward

Press and hold >>| or |<< button to play fast forward or backward.

4. To play previous or next 10th track or to play previous or next file

Press 5DIR- or 6DIR+ button to play previous or next 10th track.

Long press 5DIR- or 6DIR+ button to play previous or next file.

5. How to use 1/>|| button

During playback, press 1/>|| button to pause playback. When in pause mode,

press 1/>||/TOP button to play again.

Press and hold 1/>||TOP button to select the first track for playback.

6. To scan tracks

During playback, press INT button briefly to play the first 10 seconds of each track,

press INT button again to cancel INT function and retain playing the track currently

selected.

7. To repeat track(s)

During playback, press RPT button briefly to play the current track repeatedly, and

the LCD will display RPT ONE.

Press RPT button twice to play the tracks in the Album repeatedly, and the LCD will

display RPT DIR.

Press RPT button thrice to cancel RPT function, and the LCD will display OFF.

8. To play tracks in random

During playback, press RDM button briefly to play all tracks in random. Press it again

to cancel RDM function.

9. Tracks search

Press BAND button, it will activate TRACK SEARCH mode . The LCD will

display TRK 0/00/000(deside on the total number of tracks in the SD card or

USB stick) and flash the 0 on the biggest digit position. Then rotate VOL knob

to select a number on the flashing digit position from 0 ~ 9. Then press SEL

button to confirm the number and flash the 0 on next smaller digit position.

With the same means, select the number on the flashing digit position with

VOL knob. After finishing selecting the numbers on all digits position, press

1/PLAY button to play the track of the selected serial number.

Bluetooth Hands-Free System:

1. Pairing

Turn on Bluetooth mode of mobile phone, then select the function for Finding

Bluetooth Device and enter it. After finishing finding, it will show the name of

Bluetooth Device if found, select it and enter it, then it will show an interface that

asks you to input password. Input the password 0000 and enter it, then the

LCD of the car audio system will display “BT READY” and “BLUETOOTH” .

2. Connection or disconnection

A) Use mobile phone to do connection or disconnection

1) In connection status, find the paired and connected Bluetooth Device, then

press the disconnection button to do disconnection.

2) In disconnection status, find the paired and disconnected Bluetooth Device,

then press the connection button to do connection.

B) When powering on (after Acc of the car was switched off ), the unit will search

for the once connected mobile phone,then pair and connect.

Note:

In connection status: Mobile phone transfers to car audio player whenever a

dialling takes place; Mobile phone transfers to car audio player whenever

receiving a call.

3. Dialling when in connection status

A) Dial with mobile phone directly.

B) Dial with remote control with the following procedures:

1) Briefly press TEL button , then CALL will appear on LCD.

2) Input telephone number with number buttons 0-9.

3) Briefly press CLEAR button to cancel the incorrectly entered number if necessary.

4) Press and hold CLEAR button to cancel all numbers entered if necessary.

5) Briefly press TEL to start dialing. The talking time will appear on LCD if dialing

is successful and it is received.

C) Redial

Press TEL button on remote control twice or press 6 DIR+ button on the unit,

it will show the last dialed phone number on LCD and dial the number directly.

4. Accept/ Reject/ End Call

A) During ringing, press TEL button to accept the call.

B) During ringing, press CLEAR button to reject the call.

C) During talking, press CLEAR button to end the call.

Note:

During ringing, CALL IN appears and then the phone number.

During talking, talking time appears.

5. Talking volume level setting

While talking, use volume control to adjust volume level, but this volume

level can not be saved.

6. Dialling or receiving calls while the unit is in sleep mode

When the car radio is in standby mode (Acc on and Power off), when dialling

or receiving a call, the car radio will power on automatically. After the call is

completed, the radio will revert to standby mode.

7. To transfer the audio of a file played by Mobile Phone to the Car Audio Player

If the mobile phone supports A2DP and could play audio files, when the Mobile

Phone plays an audio file(For some Mobile Phones, you must first select Play

by BT ), the playback will be transferred to the CarAudio Player.

In A2DP mode, if the Blue tooth device of the Mobile Phone supports AVRCP,

the functions of the >>|, |<< and PLAY/PAUSE buttons are the same as one

in media mode(no fast forward/backward functions for the >>|/|<< buttons).

The other buttons normally available in media mode are not available.

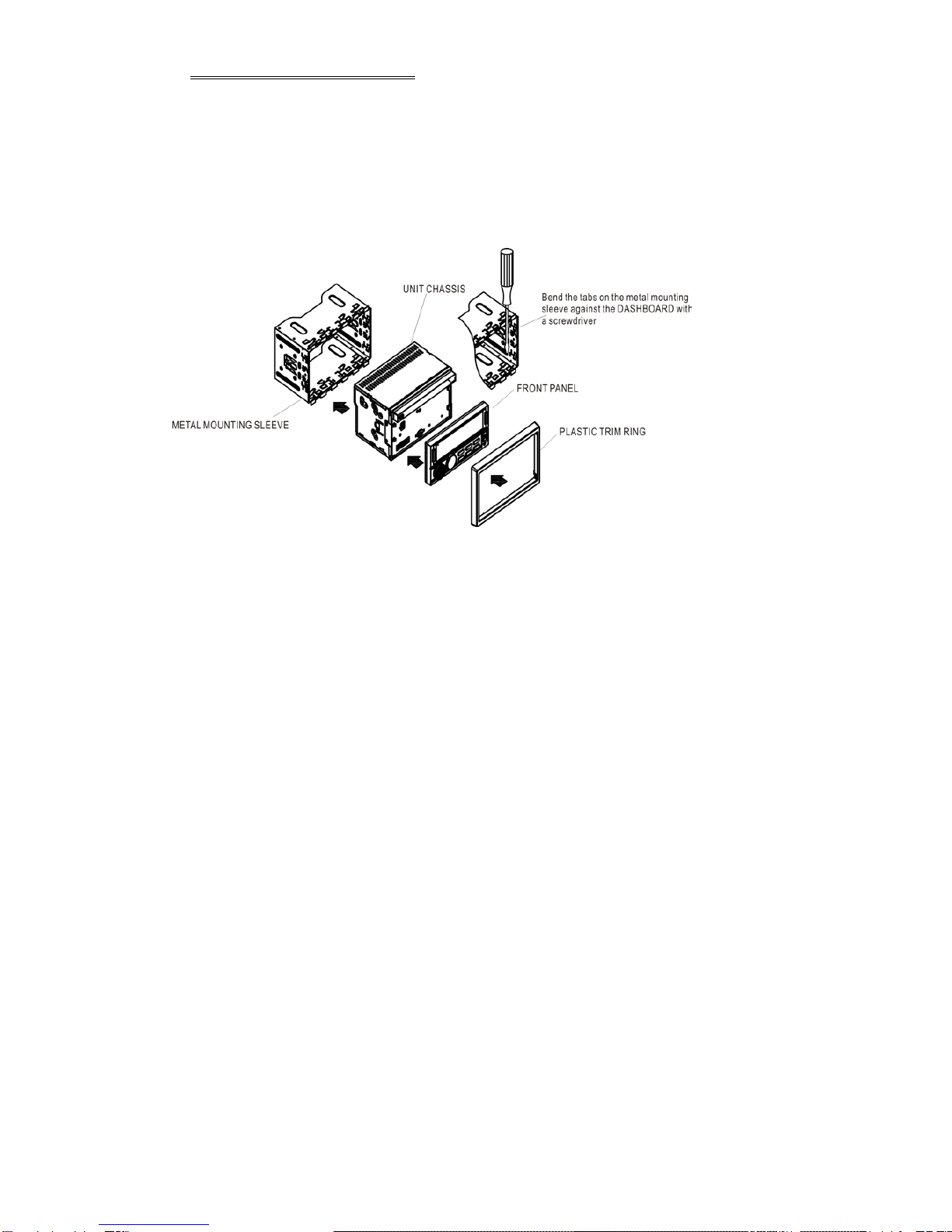

INSTALLATION METHOD

This is an anti-theft installation method. The main unit wears a METAL MOUNTING SLEEVE.

Please connect the wiring, eg, the Power Supply, the Speakers and the Antenna according to

the requirements of this Instruction Manual, then install the metal mounting sleeve into the car

as per the diagram illustrated below.

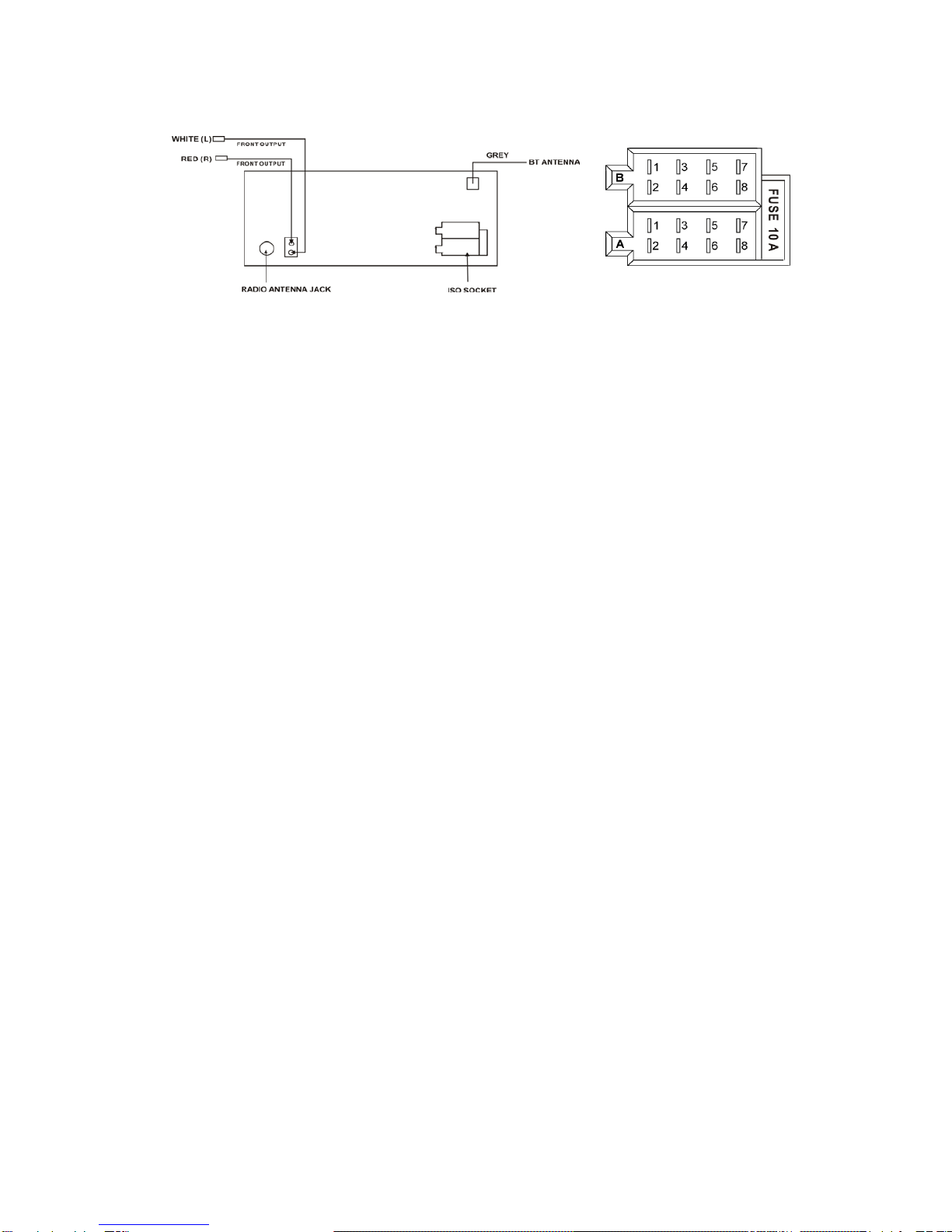

WIRES CONNECTION

ISO SOCKET SKETCH

CONNECTOR A

4. MEMORY +12V

5. AUTO ANTENNA B+

7. POWER B+

8. GROUND

CONNECTOR B

1. VIOLET R.R SP(+)

2. VIOLET BLACK R.R SP(-)

3. GREY F.R SP(+)

4. GREY BLACK F.R SP(-)

5. WHITE F.L SP(+)

6. WHITE BLACK F.L SP(-)

7. GREEN R.L SP(+)

8. GREEN BLACK R.L SP(-)

SPECIFICATION

GENERAL

Supply Voltage DC 12V. Negative Ground

Current Consumption Max.10A

Power Output 4 x 60 W

Number of channels 2 STEREO channels.

Unit Dimensions (L X W X H): 7”X 3.93”X 4.13”par

178 X 100 X 105 (mm)

FM SECTION

Frequency range 87.5 Mhz - 107.9Mhz (U.S.A)

87.5Mhz - 108Mhz (Europe)

Effective sensitivity 3uV.

I.F Frequency 10.7MHz.

AM SECTION

Frequency range 530khz - 1710Khz (U.S.A.)

522Khz - 1620Khz (Europe)

Effective sensitivity 40dB.

I.F Frequency 450KHz

Preamp Output 1 V Output

SD or USB PLAYBACK

System MP3 audio system.

Frequency characteristics 20Hz -100Hz <=5dB

10KHz-20KHz <=5dB.

Signal to noise (SD & USB) 50dB [1KHz] .

Autres manuels pour 812UAB

Table des matières

Autres manuels Boss Audio Systems Récepteur de voiture

Boss Audio Systems

Boss Audio Systems CD-3090R Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9759BD Manuel utilisateur

Boss Audio Systems

Boss Audio Systems ELITE 455BRGB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems DB8974B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 810DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9371BD Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 820UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems Road RS Show RS5DVD Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7348B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 630UASB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 735UA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9152 Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 755DBI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV3550 Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV8974B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 722CA Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV7335B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9968BI Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9358B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 812UAB Manuel utilisateur

Boss Audio Systems

Boss Audio Systems BV9158B Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems 637UA Guide de l'utilisateur

Boss Audio Systems

Boss Audio Systems BV8974B Manuel utilisateur

Boss Audio Systems

Boss Audio Systems 775DI Guide de l'utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
