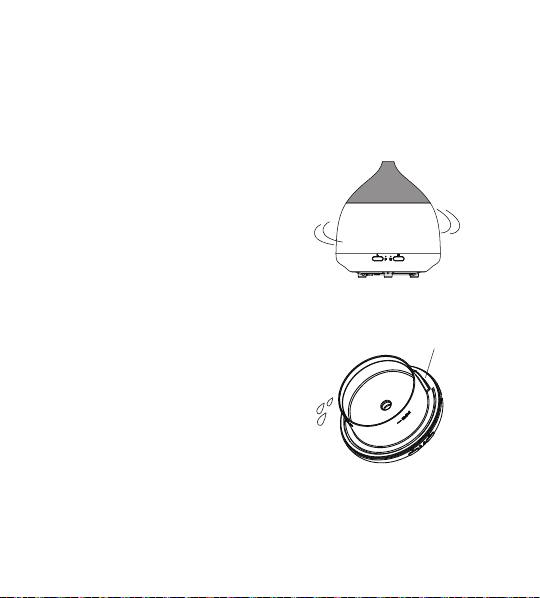

• ln the event of the unit being knocked
over or tipped during use, please follow
the steps below to avoid malfunction
1Unplug the unit, remove the outer
cover and water tank cap.
2Pour any remaining water out of the
water tank.
3Shake the unit gently to drain any
water from inside the mechanism and
then allow to dry for at least 24 hours.
ACCIDENTAL LEAKAGE
AIR OUTLET
STEP 4: If there is any dirt inside the mist
outlet:
- Remove the outer cover and clean it
with a cotton bud.
- Remove the water tank cap plus the lid
insert and clean with a cotton bud.
Re-attach the lid insert into the top of the
water tank cap until you hear a click on
each side.

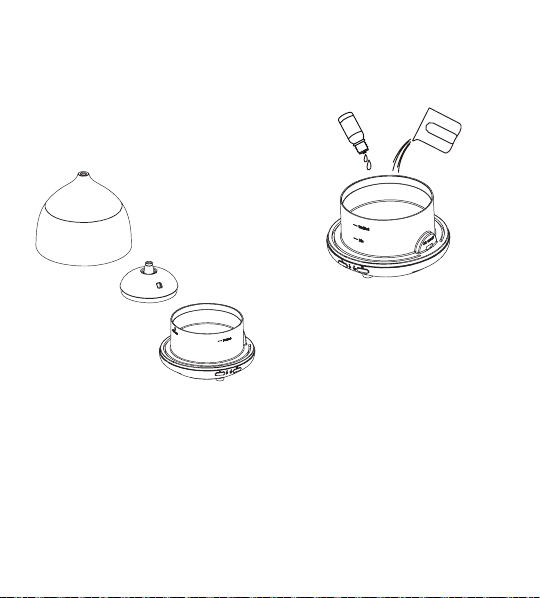

STEP 5: Add water into the tank with the
measuring cup. Install the cover. Activate
the unit to operate for 30 minutes. Rinse
it aer pouring out the remaining water.
MAINTENANCE
STEP 1: Disconnect the AC adapter from
the power supply. Take off the cover while
keeping the unit stable. Disconnect the
DC plug from the unit.
STEP 2: If there is water le in the tank,
remove the water tank cap and pour it out
from the drain side. DO NOT pour from
the air outlet side or water may ow into
the unit.
STEP 3: Use a damp cloth or cotton
bud with water or diluted mild kitchen
detergent to clean the outside or inside
of the unit.
DO NOT use chlorine, acidic (vinegar) or
enzyme-based detergents to clean the
outside or inside of the unit.
IMPORTANT: DO NOT press heavily
or scratch the ultrasonic vibration
mechanism in the water tank during
cleaning.
To ensure you enjoy the best results and long-term satisfaction, we recommend that
you follow the operating and maintenance instructions carefully. Please follow the steps
below if the unit has been used for 56 times or for 23 days.
PRECAUTIONS AND SAFETY WARNINGS
• Do not ll the unit to over 100mL.
• Do not switch on power when the tank is
empty.
• Do not touch the ultrasonic vibration
mechanism.
• Clean regularly as per Maintenance
instructions to avoid malfunction.
• Always unplug from power supply
before cleaning or maintenance.
• For hygiene reasons, aer use, pour
remaining water from “DRAIN SIDE” of
tank, and wipe with a clean, dry cloth.
• Essential oils can stain. In the event of
spillage or contact with surface, please
wipe away with a so cloth.
• Only use the measuring cup provided to
add water to the tank. Never ll directly
from the tap.
• Do not let mist blow directly onto
furniture, clothing, walls etc.
• Keep away from direct sunshine and
heat sources.
• Always keep on stable at surfaces.
Do not place on carpet.
• Keep away from electronic equipment
such as computer, TV and audio
equipment.
• Do not tip the unit as this may cause
water to enter the mechanism and
cause malfunction.
• Use tap water only. Do not use hot
water, mineral or sparkling water.
• Do not touch any part of the unit with
wet hands.
• Keep out of reach of children and pets.
This appliance is not to be used by
persons with reduced physical, sensory
or mental capabilities, lack of experience
and knowledge, unless they have been
given supervision or instruction.
• Do not cover the unit or block the mist
outlet.
• Do not use the unit if the power lead
has been damaged or the socket is
loose.
To ensure safety in operating this unit, please follow the instructions below:
TROUBLESHOOTING
Please refer to the table below in the event of the unit operating abnormally
ISSUE POSSIBLE CAUSE SOLUTION
Will not switch
on-switch off
early
• Is there enough water in the tank?
• Is the power cord connected
properly?
• Add water to the tank
• Disconnect, check cables and re-connect
carefully.
No mist or
abnormal mist
• Not enough water?
• Too much water?
• Dirt on the ultrasonic vibration
mechanism?
• Cover and inner cover are not
installed properly?
• Dirt on the air suction port on the
underside of the base?
• Add suitable amount of water in the tank.
• Water must never be lled over 100mL
(MAX) line.
• Please refer to Maintenance instructions
• Remove and re-install correctly, so vapors
can be released freely.
• Clean the air suction port of any dust.
• Restricted airow will affect mist.
Water leakage
from product
• Cover and inner cover are not
installed properly?
• Has the unit been tipped over?
• Low temperature or high
humidity?
• Remove and reinstall correctly, so vapors
can be released freely.
• Follow accidental leakage instructions.
• Under these conditions, the mist may
condense quickly into water droplets.
SPECIFICATIONS - MODEL 889
Dimensions 125mm (d) x 125mm (h) Water Capacity 100mL
Weight Approx. 200g Mist Capacity 1520mL/Hr
Power
Special Adapter
Input: AC 100240V 50/60 Hz
Output: DC24V 500mA
Length of power line: Approx. 170cm
Power: Approx. 12 W
Accessories
Special AC Adapter
Measuring Cup
Operating Manual
Timer Interval (6mins On/2mins Off)
and Continuous ON
Ultrasonic
Frequency 2.4 MHz
LED Light 7 colours
1 YEAR WARRANTY
This product has been produced with the greatest care for normal, household use.
Following directions carefully will ensure dependable operation. If you experience
unsatisfactory operation or are dissatised with your Bosisto’s Ambience Ultrasonic
Diffuser (Model 889) please contact our friendly Customer Service team
at FGB Natural Products.
Modication to the product by the consumer or failure to follow the manufacturer’s
operating instructions will void the warranty.
If repair is required under the warranty period, the product should be returned with
proof of purchase.
The purchaser assumes responsibility for the proper care and use of the product in
accordance with the printed Operating Manual. The purchaser or user must make his
or her judgment as to when to use the product and the length of use. Keep the
Operating Manual available as it is your guide to safe, efficient operation.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law 2011. You are entitled to a replacement of the faulty unit or refund
for a major failure.
For warranty claims please call 1800 655 841
Felton Grimwade & Bosisto’s Pty. Ltd.
6181 Clarinda Road (PO Box 74), Oakleigh South, VIC 3167, Australia
Website www.fgb.com.au E-mail mail@fgb.com.au Free Call 1800 655 841
AO8891
• The amount and intensity of mist
produced will vary, but this is not
unusual and should not be considered
as a fault.
• Factors that affect this include water
type, humidity, temperature and air
currents.
• lf there is no water in the water tank,
pressing the MIST button will cause the
light to “ash” 3 times and “beep” twice
to remind you to add water. The unit will
not work without water.
• Only diffuser or essential oil can be used
in the unit. Those containing chemical
fragrance, spice or impurities will cause
malfunction and void the warranty.
• Use 69 drops of diffuser or essential
oil per 100mL water at a time. Too much
essential oil will clog the system and
cause malfunction. Clean the unit as
per the Maintenance instructions,
before changing to a new type of
essential oil.
THINGS TO NOTE
ULTRASONIC VIBRATION
MECHANISM
