The Bose _601TMSeries IV Direct/Reflecting _

Speaker System

Owner's Guide

October 25, 2001

AM257731_OO_V.pdf

Declaration of Conformity

We, the offerer:

Bose ®Corporation, The Mountain,

Framingham, MA 01701-9168 USA

Acknowledge our sole responsibility, that the product:

Kind of equipment: Loudspeaker

rpe designation: 601 TMSeries IV Direct/Reflecting ®speake

In accordance with EMC Directive 89/336/EEC and

Article 10 (1) of the Directive,

is in compliance with the following norm(s) or document(s):

Technical regulations:

EN50081-1, EN50082-1

Accredited by Bose Corporation

May 2001 __

Bose Products B.V. Nic Merks

Nijverheidstraat 8, 1135 GE Edam Vice President Bose Europe

The Netherlands Manufacturer's authorized EU

representative

2 Oc tober 25, 2001 AM257731 O0 V.pdf

Setting Up ..................................................................... 4

Introduction ................................................................. 4

Unpacking the speakers ....................................................... 4

Attaching the speaker grilles .................................................... 4

Placing the speakers ......................................................... 5

Choosing the speaker cord .................................................... 5

Running the speaker cord through a wall or under a floor .......................... 5

Preparing the speaker cord ................................................. 6

Making the connections ....................................................... 6

Checking the connections ...................................................... 7

For use in home theater ....................................................... 7

For rear or surround speakers ............................................... 7

Setting your surround sound receiver or amplifier ................................ 7

Reference Information ........................................................... 8

Troubleshooting ............................................................. 8

Technical information ......................................................... 9

Customer service ............................................................ 9

Cleaning ................................................................... 9

Warranty

Bose®601TMDirect/Reflecting® speakers are covered by a limited five-year transferable warranty. Details of the coverage

are provided on the warranty card that came with your speakers. Please fill out the information section on your card,

detach it, and mail it to Bose.

For your records

The serial number is located on the label on the back of each speaker.

Serial numbers: and

Dealer name:

Dealer phone: Purchase date:

We suggest you keep your sales slip and warranty card together with this owner's guide.

permission. All trademarks referenced herein are the property of Bose Corporation.

AM257731_ 00_ V.pdf October 25, 2001 3

Introduction

Figure 1

A natural balance of

reflected and direct sound

energy.

Your 601TMDirect/Reflecting® speakers re-create a natural balance of reflected and direct

sound energy for a lifelike, spacious performance. As with all Bose®products, their design is

meant to bring you high-quality concert-like sound.

Unpacking the speakers

Carefully unpack the contents of the shipping carton.

•Individually remove each speaker.

• Retain the packaging material for possible future use.

• If either speaker appears damaged, do not use it. Repack both speakers in the original

carton and notify your authorized Bose dealer immediately.

,I_ WARNING: Toavoid danger of suffocation, keep the plastic bags that wrap these speakers

out of the reach of children.

,1_ WARNING: Each speaker weighs 30 Ib (13.6 kg). Use good lifting practice to avoid injury.

Figure 2

Package contents:

•1left speaker

°1right speaker

Owner's guide

2 front speaker grilles

• 2 rear speaker grilles

Front speaker grilles

Rear speaker grilles

Left speaker Owner% guide

Right speaker

Attaching the speaker grilles

Each speaker has both a front and a rear protective grille. The rear grille is the larger of the

two. To attach these grilles to your speakers, line up the top curve of the grille so that it

matches the curve of the speaker. Align the pins on the back of the grille to the mounting

holes on the speaker cabinet and gently push the grille straight on.

,I_ CAUTION: Do not place objects into any opening on the speaker cabinets.

4 October25, 2001 AM257731 O0 V.pdf

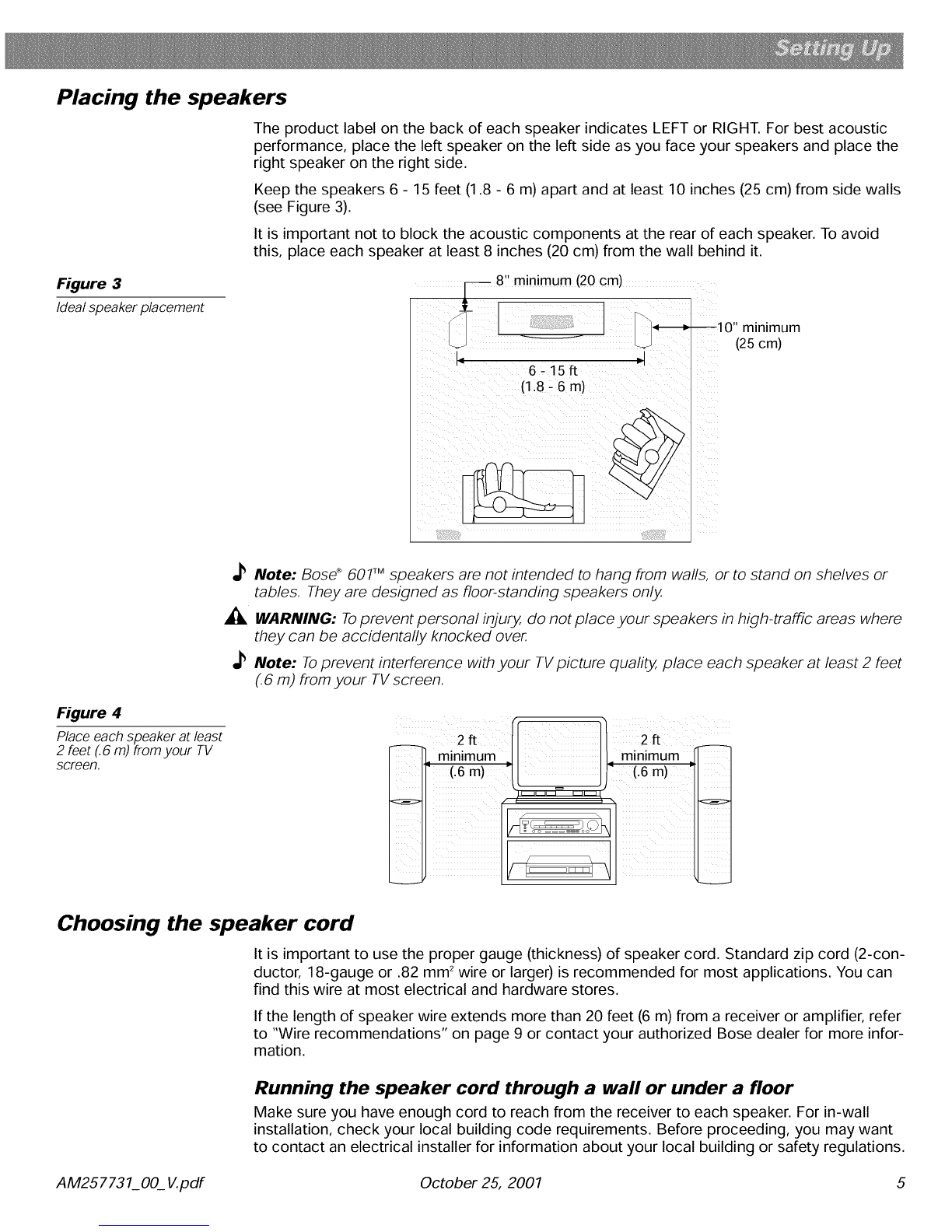

Placing the speakers

The product label on the back of each speaker indicates LEFT or RIGHT. For best acoustic

performance, place the left speaker on the left side as you face your speakers and place the

right speaker on the right side.

Keep the speakers 6 - 15 feet (1.8 - 6 m) apart and at least 10 inches (25 cm) from side walls

(see Figure 3).

It is important not to block the acoustic components at the rear of each speaker. To avoid

this, place each speaker at least 8 inches (20 cm) from the wall behind it.

Figure 3

Idealspeakerplacement

8" minimum (20 cm)

6-15ft

(1.8 - 6 m)

10" minimum

(25cm)

Figure 4

Place each speaker at least

2 feet (.6 m) from your TV

screen.

Note: Bose®601TMspeakers are not intended to hang from wafts, or to stand on shelves or

tables. They are designed as floor-standing speakers only

,_ WARNING: Toprevent personal injury, do not place your speakers in high-traffic areas where

they can be accidentally knocked over.

Note: Toprevent interference with your TVpicture quality, 3lace each speaker at least 2 feet

(.6 m) from your TV screen.

2ft I II 2

.minimum II_ minimum L_

2 J

Choosing the speaker cord

It is important to use the proper gauge (thickness) of speaker cord. Standard zip cord (2-con-

ductor, 18-gauge or .82 mm 2wire or larger) is recommended for most applications. You can

find this wire at most electrical and hardware stores.

If the length of speaker wire extends more than 20 feet (6 m) from a receiver or amplifier, refer

to "Wire recommendations" on page 9 or contact your authorized Bose dealer for more infor-

mation.

Running the speaker cord through a wall or under a floor

Make sure you have enough cord to reach from the receiver to each speaker. For in-wall

installation, check your local building code requirements. Before proceeding, you may want

to contact an electrical installer for information about your local building or safety regulations.

AM257731_ 00_ V.pdf October 25, 2001 5

Preparing the speaker cord

Speaker cord consists of two insulated wires. The insulation around one wire is marked

(striped, collared, ribbed, or may have writing on it). This marked wire is always positive (+).

The plain wire is always negative (-). These wires correspond to the red (+) and black (-) ter-

minals on the speaker, receiver, or amplifier.

Note: It is sometimes difficult to distinguish wire markings. Inspect both wires carefully

To prepare the ends of the cord, strip approximately 3/8to 1/2-inch (10-12 mm) of insulation

from both wires. Then, twist the bare ends of each wire so there are no loose strands of wire.

,I_ WARNING: Never use broken or frayed wire, as damage or electrical shock may result.

Making the connections

Connect your speaker wire to the SPEAKERS A or MAIN (front) left and right speaker outputs

on your amplifier or receiver. See your receiver owner's guide for any additional information or

instructions.

,_ CAUTION: Before making any connections, turn off your receiver and unplug it from the AC

power mains. Failure to do so may result in damage to your system.

Figure 5

Wiringschematic

Right speaker Receiver Left speaker

Unscrew the hex knobs on the terminal posts (Figure 5) located on the back of the left (L)

speaker. This reveals a small opening through each post where the wire goes.

1. Insert the marked wire into the red (+)terminal. Insert the plain wire into the black (-) ter-

minal.

2. Tighten the knobs to secure the wires.

3. Connect the other ends of the wire to your receiver or amplifier.

A. Attach the marked wire at one end to the red (+) terminal.

B. Attach the plain wire at that end to the black (-) terminal.

4. Repeat steps 1, 2, and 3 for the right (R)speaker connections.

Note: Now is a good time to record the serial numbers of these speakers on page 3 of this

guide and on your warranty card.

6 October25, 2001 AM257731 O0 V.pdf

Checking the connections

Check all the connections from the receiver to the left and right speakers. Make sure all the

wires are connected in phase (+ to + and - to -).

Correct any wiring problems before you plug in your receiver and turn it on.

CAUTION: 601TMspeakers incorporate an automatic protection circuit, which guards against

most kinds of damage from electrical stress or overload. This circuit activates at high volume

levels to reduce output, causing a slight decrease in volume. You may also notice light com-

ing from inside the speaker cabinet. This is normal operation and indicates that power input

may be exceeding safe levels. Sustained listening at these levels is not recommended.

For use in home theater

Your speakers are fully compatible with all surround sound formats. They may be used as the

front left and right main speakers, or in larger more powerful systems as full-range surround

channel speakers.

For rear or surround speakers

For use as the rear or surround speakers, connect your speakers to the "Rear" or "Surround"

speaker outputs of the receiver or amplifier. For use with digital home theater systems, we

recommend trying both "Large" and "Small" settings to determine the best performance with

your receiver or amplifier. See your receiver owner's guide for any additional information or

instructions.

Setting your surround sound receiver or amplifier

After making the connections, you may try any additional surround sound modes that your

receiver may have. These modes may have different names depending on the manufacturer,

such as, ACTION, MOVIE, THEATER. Select the settings for music, movies or both that sound

best in your listening environment. See your receiver/amplifier owner's guide for additional

information on selecting settings.

AM257731_ 00_ V.pdf October 25, 2001 7

Troubleshooting

If you are experiencing problems with your 601TMspeakers:

1. Turn off the amplifier or receiver and check all the connections between the speakers and

the amplifier or receiver.

2. Check your amplifier or receiver owner's guide, since other components may be the

cause of the problem.

3. Use the chart below as troubleshooting guidelines. If this does not solve the problem,

contact your authorized Bose_'dealer to arrange for service. Refer to the address list

enclosed in the product packaging for correct phone numbers.

Problem Possible cause How to find out Solution

One speaker

doesn't play, or

sounds distorted.

Amplifier or receiver

channel, speaker, or

speaker wire may be

defective.

Switch the LEFT and

RIGHT connections

on the back of your

speakers.

If the previously

"broken" speaker

now plays properly,

and the other one

does not, one chan-

nel in the amplifier

or receiver, or that

speaker wire is

probably defective.

If the original

speaker still does

not play properly,

call Bose or your

retailer to arrange

for service.

Both speakers do

not play, or sound

distorted.

Amplifier or receiver

may be defective. Disconnect the

amplifier or receiver

from the speakers.

Reconnectthe

speakers to another

amplifier orreceiver

that works properly.

High sound volume

drops suddenly. The automatic pro-

tection circuit has

activated to protect

the speakers from

electrical stress or

overload.

Lower the volume. If

it returns to normal,

your speakers' auto-

matic protection cir-

cuit caused the

sudden drop. This

volume reduction

protects the speak-

ers from electronic

stress and overload.

Return the volume

to a reasonable

level; avoid

extremely high vol-

ume settings.

No bass or dimin-

ished sound quality. Wiring may be out-

of-phase. Check connections.

They should bein

phase(+ to + and-

to -).

A_ustconnections,

ifthey are out of

phase.

8 October25, 2001 AM257731 O0 V.pdf

Technical information

Features

• Direct/Reflecting ®speaker technology

• Stereo Everywhere ®speaker technology

° Proprietary bass reproduction

• Automatic protection circuitry

• Syncom ®computer quality control

Speaker driver complement

•Two 672" (16.5 cm) woofers

• One 2" (5.1 cm) ferrofluid tweeter per cabinet

Compatibility

Compatible with A/V receivers and amplifiers rated from 10 to 200 watts per channel, rated

from 4 to 8 ohms.

Power rating: 100 Watts IEC

Finish

•Graphite gray

° Light cherry

Dimensions/Weight

32"H x 8"W x 13.75"D (81 cm x 20 cm x 35 cm)

Each speaker weighs 30 Ib (13.6 kg)

Wire recommendations

Based on maximum frequency response deviation of 0.5 dB

Gauge

18 (0.82 mm 2)

16 (1.3 mm 2)

14 (2.1 mm 2)

12 (3.3 mm 2)

Length

20 ft (6 m) maximum

30 ft (9 m) maximum

50 ft (15 m) maximum

80 ft (24 m) maximum

Customer service

For additional help in solving problems, contact Bose®customer service. Refer to the address

list enclosed in the product packaging for correct phone numbers.

Cleaning

Wipe the 601TMspeaker cabinets using a dry cloth. Do not use solvents or chemicals. Do not

allow liquids to spill on, or objects to drop into the speaker grilles. You may vacuum the grilles

carefully; the drivers are directly behind the grille cloth. No other maintenance is required.

AM257731_ 00_ V.pdf October 25, 2001 9

10 October25,2001 AM257731O0 V.pdf

Autres manuels pour 601 Series IV Direct/Reflecting

Table des matières

Autres manuels Bose Système de haut-parleurs

Bose

Bose Lifestyle Music Center Manuel utilisateur

Bose

Bose Acoustimass 3 Series III Manuel utilisateur

Bose

Bose Acoustimass Bass System Manuel utilisateur

Bose

Bose 6.2 Manuel utilisateur

Bose

Bose 901 Series VI Loud Manuel utilisateur

Bose

Bose SMART Soundbar 600 Manuel utilisateur

Bose

Bose SOLO SOUNDBAR II Series Mode d’emploi

Bose

Bose Acoustimass 3 Series Manuel utilisateur

Bose

Bose Companion 2 Series III Manuel utilisateur

Bose

Bose Speakers Manuel utilisateur

Bose

Bose Companion 3 Series II Manuel utilisateur

Bose

Bose VCS-10 Manuel utilisateur

Bose

Bose SB600 Manuel utilisateur

Bose

Bose 601 Series IV Direct/Reflecting Manuel utilisateur

Bose

Bose Acoustimass Powered Manuel utilisateur

Bose

Bose SMART SOUNDBAR 700 Manuel utilisateur

Bose

Bose Freestyle Speaker System Manuel utilisateur

Bose

Bose Companion 5 Manuel utilisateur

Bose

Bose FreeSpace 3 Manuel utilisateur

Bose

Bose L1 Pro32 Manuel utilisateur

Bose

Bose 10.2 Stereo Everywhere Manuel utilisateur

Bose

Bose Panaray MA12 Manuel utilisateur

Bose

Bose Smart Ultra Soundbar Manuel utilisateur

Bose

Bose 601Series IV Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
