Bose®Volume Control User Interface

and Volume Control with A/B Select User Interface

Installation Guide

Flagstaff_Wall Control 6x6.fm Page 1 Tuesday, November 14, 2006 4:00 PM

Important Safety Instructions

For the intended audience

This guide has been written for professional installers of sound systems.

1. Read these instructions – for all components before using this product.

2. Keep these instructions – for future reference.

3. Heed all warnings – on the product and in the installer’s guide.

4. Follow all instructions.

5. Do not use this apparatus near water or moisture.

6. Clean only with a dry cloth – and as directed by Bose.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instruc-

tions.

8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way such as: power-supply cord or plug is damaged; liquid has been

spilled or objects have fallen into the apparatus; the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped. Do not attempt to service this

product yourself. Opening or removing covers may expose you to dangerous voltages or other

hazards. Please call Bose to be referred to an authorized service center near you.

10. Do not let objects or liquids enter the product – as they may touch dangerous voltage points or

short-out parts that could result in a fire or electric shock.

11. See product enclosure for safety-related markings.

12. Only use attachments/accessories specified by the manufacturer.

CAUTION: Check local regulations before installing the Bose®Volume Control User Interface and/or Volume

Control with A/B Select User Interface. The building code may require professional installation by a skilled techni-

cian or licensed contractor. Regional electrical codes may require similar qualifications for wiring the system.

Please read this install guide

The Bose Volume Control User Interface and Volume Control with A/B Select User Interface are engineered

to provide custom on-site controls for the FreeSpace®DXA 2120 digital mixer/amplifier. Please read this

guide to help you install and use the interfaces correctly.

Flagstaff_Wall Control 6x6.fm Page 2 Tuesday, November 14, 2006 4:00 PM

Provided in carton

or otherwise used without prior written permission.

Volume control user interface

Volume control with A/B select user interface

Flagstaff_Wall Control 6x6.fm Page 3 Tuesday, November 14, 2006 4:00 PM

Also needed

* For the volume control user interface, use a single twisted pair of data-grade cable

(22-24 AWG or 0.34-0.25mm2).

* For the volume control with A/B select user interface, use two twisted pairs of data-grade

cable (22-24 AWG or 0.34-0.25mm2).

Cable*

Double-gang junction box

6-terminal input

connector

Provided in the FreeSpace®DXA 2120 digital mixer/amplifier carton

Not provided

Flagstaff_Wall Control 6x6.fm Page 4 Tuesday, November 14, 2006 4:00 PM

Assembly

Flagstaff_Wall Control 6x6.fm Page 5 Tuesday, November 14, 2006 4:00 PM

Recommended cable lengths

Chassis

2000 ft (610 m) max.

For one user interface

Chassis

For two user interfaces

2000 ft (610 m) max.

22-24 AWG or 0.34-0.25mm2

Flagstaff_Wall Control 6x6.fm Page 6 Tuesday, November 14, 2006 4:00 PM

Wiring

CAUTION: Be sure to terminate cable at both ends.

Two volume control user interfaces

One volume control user interface

User interface connector 6-terminal input connector

mounts to REMOTE jack

on the chassis

Flagstaff_Wall Control 6x6.fm Page 7 Tuesday, November 14, 2006 4:00 PM

Wiring

Two volume control with A/B select user interfaces

One volume control with A/B select user interface

User interface connector 6-terminal input connector

mounts to REMOTE jack

on the chassis

Flagstaff_Wall Control 6x6.fm Page 8 Tuesday, November 14, 2006 4:00 PM

Using a junction box

Install a double-gang electrical box for each user interface.

The Bose®Volume Control User Interface and Volume Control with A/B Select User

Interface are designed to fit a North American, Japanese, Australian, and some

European double-gang junction boxes.

• Mount a North American or Japanese box vertically, as shown.

• Mount a European or Australian box horizontally, as shown.

• Choose a location for each box that is convenient for the person using the controls.

• Install the junction box recessed slightly or flush to the surface of the finished wall.

CAUTION: Do not install a volume control user interface or volume control with A/B select

user interface in a junction box that houses an AC power (mains) cord.

CAUTION: Do not place the power cable in the same conduit with the mains wire, unless you

are sure that special regulatory insulation requirements are met. Consult your local electrical

regulatory agency for further information.

Flagstaff_Wall Control 6x6.fm Page 9 Tuesday, November 14, 2006 4:00 PM

Mounting

After connecting the wires, mount the user interface in the junction box.

Two sets of screws are provided. Use the screws that are appropriate for your junction

box: Use #6 for North American boxes, or M4 for Japanese, European, and Australian

boxes.

CAUTION: Do not overtighten the screws. Overtightening may cause the frame to break.

After securing the user interface frame to the junction box, snap the cover onto the frame.

To remove the cover, insert the flat head of a screwdriver into the slot on either side of the

cover.

User interface

frame

Cover

Flagstaff_Wall Control 6x6.fm Page 10 Tuesday, November 14, 2006 4:00 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bose Équipement d'enregistrement

Bose

Bose Entero SE 16 Manuel utilisateur

Bose

Bose ControlSpace ESP-88 Manuel utilisateur

Bose

Bose ControlSpace ESP-880A Manuel utilisateur

Bose

Bose ControlSpace SP-24 Manuel utilisateur

Bose

Bose Panaray System Digital Controller II Manuel utilisateur

Bose

Bose FREESPACE 4400 Manuel utilisateur

Bose

Bose ControlSpace ESP-88 Manuel utilisateur

Bose

Bose ControlSpace EP40-D Manuel utilisateur

Bose

Bose ControlSpace SP-24 Guide d'installation

Bose

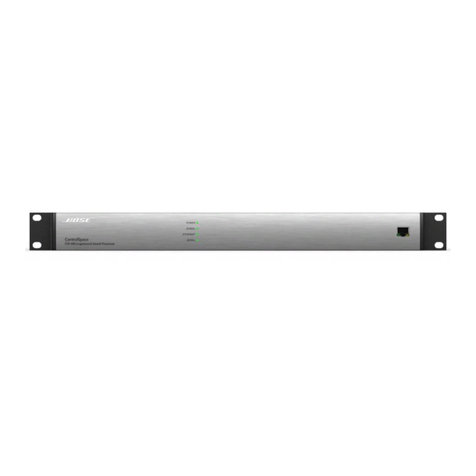

Bose ESP-880 Manuel utilisateur
