CONDENSING GAS WATER HEATER

Owner’s Guide

*SAR8872 T*

Robert Bosch (Australia) Pty. Ltd.

Thank you for purchasing this Bosch Condensing Gas Water Heater.

Before using, please:

Read this manual completely for operation instructions.

Confirm warranty and proof of purchase.

Keep this manual where it can be found whenever necessary.

Installation must conform with local codes, or in the absence of local codes, AS5601, AS/

NZS3500.4, AS3000 wiring regulations and all Local Building, Water and Gas fitting regulations.

Bosch

reserves the right to discontinue, or change at any time, the designs and/or specifications of

its products without notice.

- Do not store or use petrol or other flammable vapours and liquids in the

vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier.

If the information in this manual is not followed exactly, a fire or explosion

may result causing property damage, personal injury, or death.

WARNING

- To be installed and serviced only by an authorised person

- This appliance is not suitable for use as a pool heater

Bosch Eco26+

Model BC2600RA

Operating Instructions

* Note : This appliance requires a minimum flow rate to operate of 2.5 litres/min., water fixtures with a

flow rate of 7.5 litres/min. or higher are recommended.

For optimum performance we reommend installation of Bosch optional temperature controllers.

Operating Instructions

Prohibited Don’t

touch.

Don’t

disassemble

the equipment.

Don’t touch

with a wet

hand.

No flame.

High

Temperature.

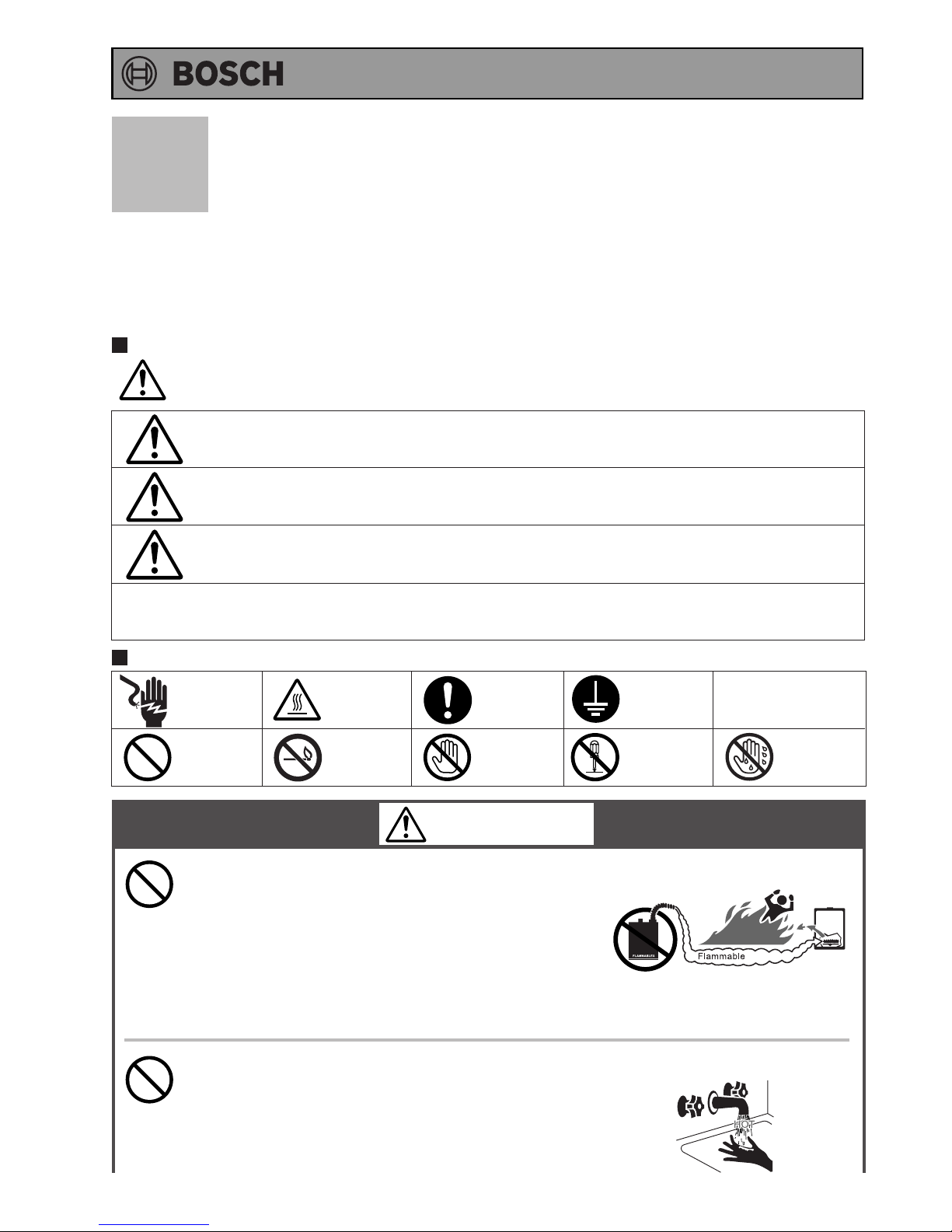

To prevent damage to property and injury to the user, the icons shown below will be used to warn of

varying levels of danger.

Every indication is critical to the safe operation of the water heater and must be understood and observed.

Potential dangers from accidents during installation and use are divided into the following four

categories. Closely observe these warnings; they are critical to your safety.

Other icons

DANGER

WARNING

CAUTION

DANGER indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

CAUTION used without the safety alert symbol indicates a potentially

hazardous situation which, if not avoided, may result in property damage.

CAUTION

Be sure

to do. Earth

Electric

Shock.

DANGER

Icons warning of risk level

Important Safety Information

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Vapours from flammable liquids will explode and catch fire causing death or severe burns.

Do not use or store flammable products such as petrol, solvents or

adhesives in the same room or area near the water heater.

Prohibited

Keep flammable products:

1. Far away from the water

heater.

2. In approved containers.

3. Tightly closed.

4. Out of children’s reach.

Vapours:

1. Cannot be seen.

2. Vapours are heavier than air.

3. Go a long way on the floor.

4. Can be carried from other rooms

to the main burner by air currents.

Vapours

Hot Water Heater temperatures over 50 °C can cause severe burns instantly or

death from scalding.

Children, disabled and elderly are at the highest risk of being scalded.

Feel water temperature before bathing or showering.

Temperature limiting valves are available, ask licensed installer.

Prohibited

(Continued)

Operating Instructions

No flame.

(Continued)

Prohibited

WARNING

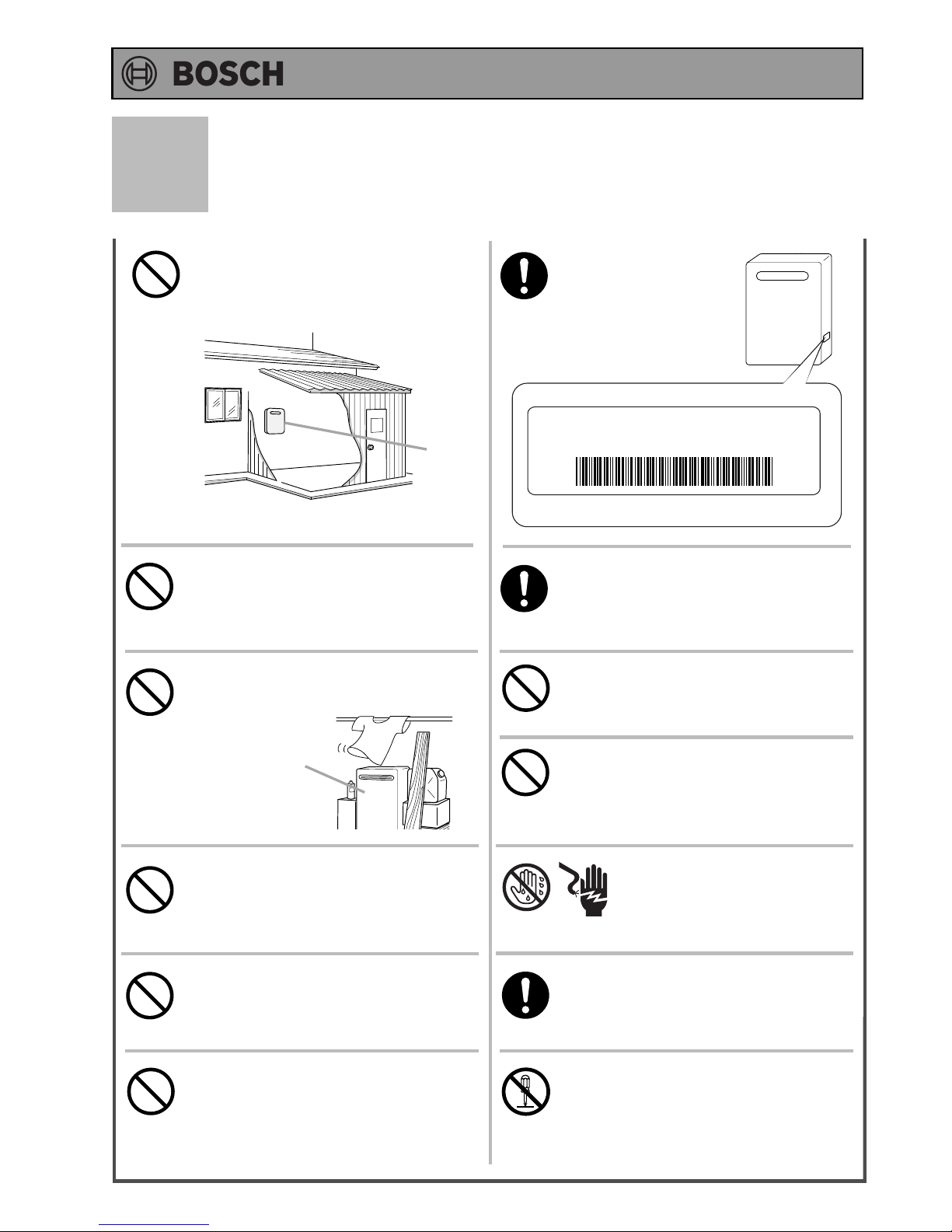

Be sure

to do.

When a gas leak is noticed:

1. Stop use immediately

2. Close the gas valve

If you detect abnormal combustion

or abnormal odours, or during an

earthquake, tornado or fire:

1. Turn off the hot water supply

Turn off the power to the water heater

Turn off gas and water supply valve.

4. Call the nearest Bosch agent

Be sure

to do.

(Continued)

Check the temperature

of the running hot water

before entering the

shower.

Check the temperature

before stepping into

the bath tub.

High

Temperature.

A. This water heater does not have a

pilot. It is equipped with an

ignition device that automatically

lights the burner. Do not try to

light the burner by hand.

BEFORE OPERATING smell all

around the water heater area for

evidence of leaking gas. Be sure

to smell next to the floor because

some gas is heavier than air and

will settle on the floor.

WHAT TO DO IF YOU SMELL GAS.

•Do not try to light any

appliance.

•Do not touch any electrical

switch; do not use any phone

in your building.

•

Immediately call your gas

supplier.

Follow the gas supplier’s

instructions.

C. Use only your hand to turn the

gas valve knob. Never use tools.

If the knob will not turn by hand,

don’t try to repair it. Call a

qualified service technician.

Force or attempted repair may

result in a fire or explosion.

D. Do not use this water heater if

any part has been under water.

lmmediately call a qualified

service technician to inspect the

water heater and to replace any

damaged parts.

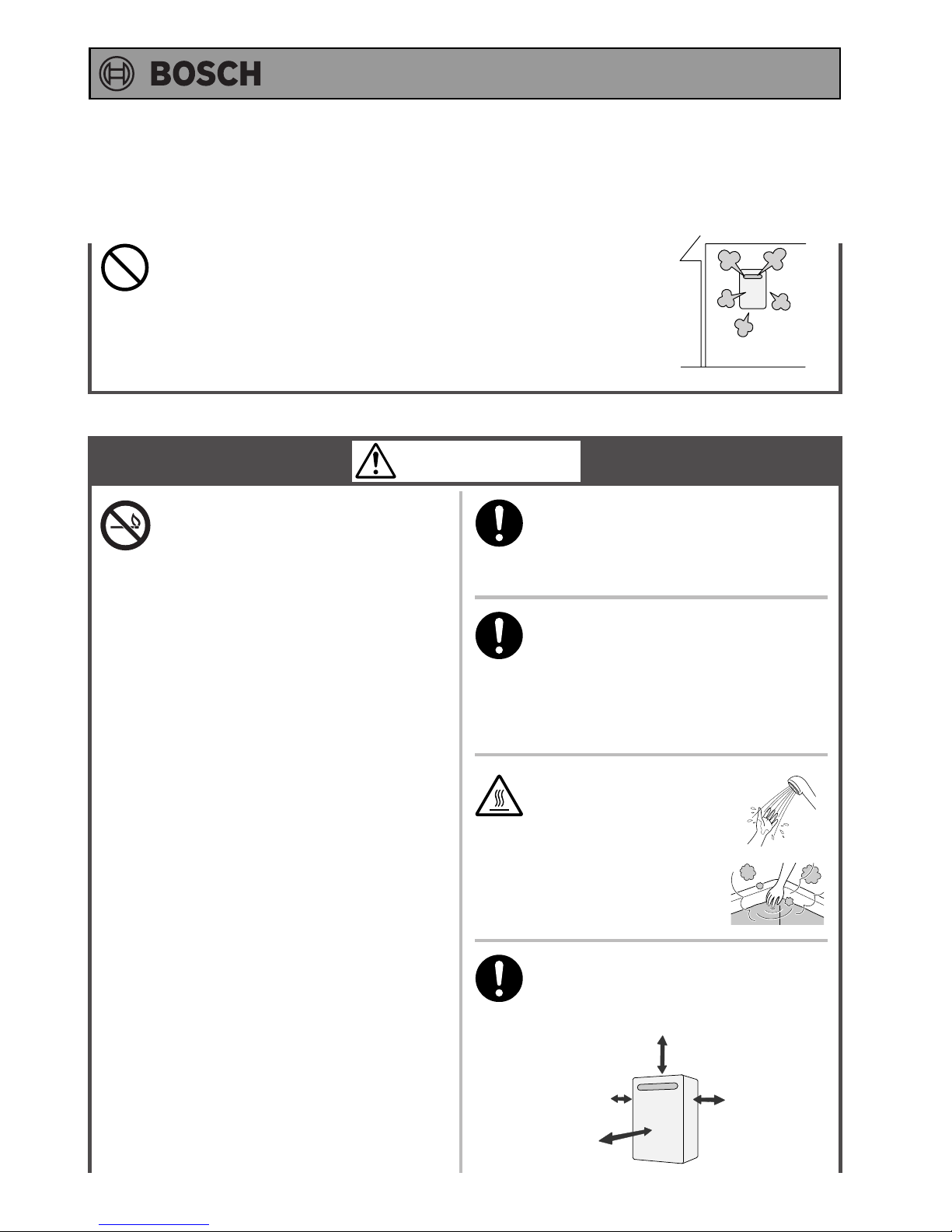

Do Not Install Indoors.

This will cause carbon monoxide poisoning and a potential fire hazard.

Indoor

Leave the proper clearance between

the water heater and nearby objects

(trees, timber, boxes with flammable

materials etc.).

Be sure

to do.

Left side:

Min. 500mm Right side:

Min. 500mm

Front:

Sug. 600mm

Upper:

Min. 500mm

Operating Instructions

Important Safety Information

Do not allow small children to play

unsupervised in the bathroom.

Do not allow small children to

bathe unsupervised.

Do not touch the power

cord with wet hands.

Electric

Shock.

Don’t touch

with a wet

hand.

Prohibited

Contact Bosch before using with

a solar pre-heater.

Contact a qualified service

technician for any necessary

repairs, service or maintenance.

Don’t

disassemble

the equipment.

Be sure

to do.

Be sure the gas matches

the gas on the data

plate

(inside of frontcover)

gas type label (right side

of casing).

Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Be sure

to do.

Be sure

to do.

Do not place combustibles such as

laundry, newspapers, oils etc. near

the heater.

Prohibited

Do not use combustible chemicals

such as oil, petrol, benzene etc. in

the near the water heater or the

exhaust vent.

Do not store or use petrol or other

flammable vapours and liquids in the

vicinity of this or any other appliance.

Prohibited

Do not place or use a spray can

near the water heater or the exhaust

vent.

Do not use hair spray or spray

detergent in the vicinity of the

heater.

Prohibited

Unit

For NG Gas

(Continued)

Do not place the unit in an indoor en-

vironment by means of adding walls

and ceiling (Do not enclose using

corrugated sheets, etc.)

Carbon monoxide poisoning or fire may

occur as a result.

Unit

Prohibited

Carbon Monoxide Poisoning

Hazard. Do not install this water

heater in a mobile home, recreation

vehicle or on a boat.

Prohibited

Operating Instructions

CAUTION

Be sure to electrically earth the

unit.

Keep power cord free of dust.

Earth

Be sure

to do.

Do not use the water heater for

other than hot water supply, shower

and bath.

Prohibited

Do not cover the water heater, store

trash or debris near it, or in any way

block the flow of fresh air to the unit.

Do not turn off the water heater

while someone is bathing.

Prohibited

Do not use a broken or modified power

cord. Do not bind, bend or stretch

power cords. Do not scratch, modify,

or subject them to impact or force.

Do not touch the exhaust vent

during or immediately after

operation of the water heater.

Do not install in locations where

excessive dust or debris will be

in the air.

Prohibited

Don’t

touch.

Prohibited

Be sure

to do.

To prevent burns or scalding, turn

off the power button and wait until

the equipment cools before per-

forming maintenance. Do not use condensate, discharged

from the drain pipe, for drinking or

for consumption by animals.

Prohibited

Operating Instructions

Important Safety Information

CAUTION

Do not drink water that has been inside the

unit for an extended period of time. Do not

drink the first use of hot water from the

unit in the morning.

Clean the filter on the water inlet as

frequently as required by the quality of

your local water.

Keep the area around the unit clean.

If boxes, weeds, cobwebs, cockroaches etc. are in

the vicinity of the unit, damage or fire can result.

Do not install the equipment where the

exhaust will blow on walls or windows.

Treat hard, acidic or otherwise impure

supply water with approved methods to

ensure full warranty coverage.

Problems resulting from scale formation

are not covered by the warranty.

Preventing damage from freezing ( p.23)

Damage can occur from frozen water within the

device and pipes even in warm environments.

Be sure to read below for appropriate measures.

Repairs for damage caused by freezing are not

covered by the warranty.

Do not use parts other than those specified

for this equipment.

If it is snowing, check the air inlet, exhaust

gas vent and exhaust vent terminal for

blockage.

Do not disassemble the remote controller.

Do not use benzene, oil or fat detergents

to clean the remote controller.

This may cause deformation.

Do not get the remote controller wet.

YPRS67XB and YPRP62XB are water resistant,

too much water can cause damage.

YPRM67XB is not water resistant.

Do not splash water on the remote

controller. Do not expose the remote

controller to steam.

Do not locate the remote controller near stoves or

ovens, this may cause damage or failure.

Do not run water through the unit when

unit is not on.

When discharging hot water, make sure the unit is ON.

If water is run through the unit with the unit

OFF, water may condense inside the unit and cause

incomplete combustion or damage to the internal

electrical components.

Operating Instructions

Important Safety Information....................................................................... 2

Contents ........................................................................................................ 7

Overview of Condensing Gas Water Heater ............................................... 8

General Parts

Main Unit.................................................................................................... 9

Names and Functions of Controllers

Main Controller (YPRM67XB).................................................................. 10

Bathroom Controller (YPRS67XB) ......................................................... 11

Sub Controller (YPRP62XB).................................................................... 12

Initial Operation ........................................................................................... 13

Clock Adjustment ........................................................................................ 14

Call Function ................................................................................................ 15

Setting and Using the Water Heater........................................................... 16

Controller Priority Function ........................................................................ 18

Muting the Remote Controller .................................................................... 19

Bath Fill Function ........................................................................................ 20

Frost Protection ........................................................................................... 23

Regular Maintenance................................................................................... 24

Troubleshooting .......................................................................................... 26

Follow-up Service ........................................................................................ 30

Specifications .............................................................................................. 31

Manufacturer’s Warranty ............................................................................ 35

Contents

Operating Instructions

Cold water

Gas

Hot water

Condensate

Combustion gas

About 200°C

Exhaust Exhaust

About 50°C

Conventional

type

Condensing

Gas Water

Heater

Water is heated

using the exhaust

gas which is about

200°C

Primary heat exchanger

Secondary heat exchanger

Neutralizer

Combustion gas

About 200°C

The condensing gas water heater

discharges condensate.

When heat from the exhaust gas is collected

within the secondary heat exchanger,

condensation occurs from moisture in the

exhaust gas and the resulting water is

discharged from the drain pipe (approx. 75cc

/min. maximum). It is not a water leak. Do not

plug or block the drain line as it must always

be allowed to freely flow.

Drain pipe

(Installation example)

Overview of Condensing Gas Water Heater

This water heater is a high efficiency, fully condensing appliance. Unlike a traditional water heater, a

condensing type captures heat from the exhaust gas and uses it to preheat the incoming cold water

as it passes through the secondary heat exchanger as illustrated below.

The condensing gas water heater

tends to show white steam.

After the exhaust gas passes through the

secondary heat exchanger, it becomes low in

temperature and moisture rich which tends to

produce steam at the vent discharge terminal.

This is a normal occurrence.

Condensate

comes out

from here.

During combustion, white

steam may often be seen.

This is normal.

Operating Instructions

Main Unit

General Parts

Outdoor Wall Mounted, Power flue Model

* The above illustration shows an example of installation.

The exact installation configuration may be slightly different.

Front Cover

Air Inlet

Water Supply Valve

Gas Supply Valve

Water Drain Valve (with Water Filter)

(Inside Water Inlet) (p.25)

Flue Collar

Drain Pipe

Discharges the

condensate.

Operating Instructions

Priority

Burner on

Temp.

Bath Fill

ON/OFF

Bath Fill

Volume

setting

Set Time

Press 2sec.

to set time

Main Controller

YPRM67XB

Main Controller (YPRM67XB) <Optional>

* Before use, remove the protective sheet from the remote controller surface.

What is actually displayed depends on how the water heater is set.

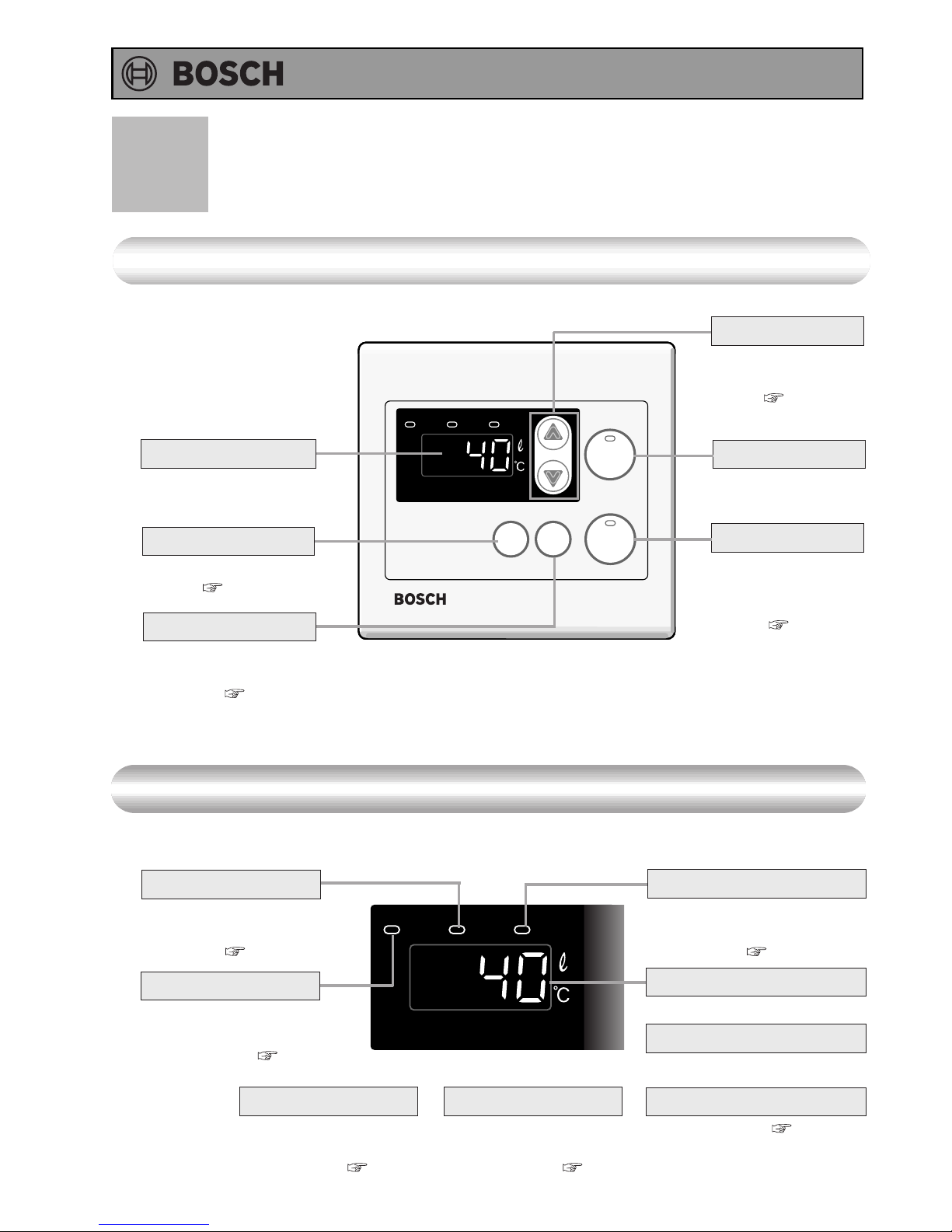

Names and Functions of Controllers

Priority

Burner on

Temp.

Bath Fill

Error Code

A number will flash if

a failure occurs.

(p.29)

Burner On Indicator

When this indicator is lit,

the hot water temperature

can be set. ( p.18)

Priority Indicator

When burning, the

indicator is lit.

( p.17, 21)

Clock

When Time Set button

is pushed, the clock is

displayed. (p.14)

Setting Buttons

For setting the hot

water temperature

( p.16 -17)

For other settings.

Operation Button

For turning the water

heater on or off.

Bath Fill Button

To activate Bath Fill.

To set Bath Fill

temperature.

( p.20 -22)

For setting the amount

of water that is delivered.

( p.20 -22)

Bath Fill Temperature Indicator

When this indicator is lit,

bath fill temperature is

displayed. ( p.20 -22)

Temperature setting

(Eg.: 40°C)

Bath Fill Temperature setting

(Eg.: 40°C)

(p.20 -22)

Bath Fill Volume setting

Display

The illustration below shows the remote controller display.

What is actually displayed depends on how the water heater is set.

Display

Time Set Button

To set or lndicate Time

of day. (p.14)

Bath Fill Volume Button

Autres manuels pour BC2600RA

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bosch Chauffe-eau

Bosch

Bosch TR7000R Series Manuel utilisateur

Bosch

Bosch US3 Document technique

Bosch

Bosch Tronic 1000 Manuel utilisateur

Bosch

Bosch Gas Water Heaters Mode d’emploi

Bosch

Bosch TR4000R 6 ET Manuel utilisateur

Bosch

Bosch GWH 450 ESR-L Manuel utilisateur

Bosch

Bosch AquaStar 125B NGS Manuel utilisateur

Bosch

Bosch Highflow 17e Manuel utilisateur

Bosch

Bosch 940ESO Manuel utilisateur

Bosch

Bosch AQUA STAR 250SX LP Manuel utilisateur

Bosch

Bosch TR5000R 24/27 EB Manuel utilisateur

Bosch

Bosch TR2500TO 5 B Manuel utilisateur

Bosch

Bosch C1210ES Manuel utilisateur

Bosch

Bosch WR11B series Manuel utilisateur

Bosch

Bosch W 125 T1 Manuel d'installation et d'exploitation

Bosch

Bosch AQ 125BO LP Manuel utilisateur

Bosch

Bosch TRONIC 6000C WH17 Document technique

Bosch

Bosch C1210ES Manuel de référence

Bosch

Bosch YS2180RA Manuel utilisateur

Bosch

Bosch TR3500T Series Manuel utilisateur

Bosch

Bosch Compress 3000 Manuel utilisateur

Bosch

Bosch T4200 14-2D Mode d’emploi

Bosch

Bosch GWH C920ESC Instructions d'utilisation

Bosch

Bosch TR1000 12 B Manuel utilisateur

Manuels Chauffe-eau populaires d'autres marques

Kenmore

Kenmore 153.582400 Manuel utilisateur

Applimo

Applimo Edel AIR Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuel utilisateur

clage

clage E-Mini Series Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-180 Manuel utilisateur

Bradford White

Bradford White EF Series Manuel utilisateur

Eccotemp

Eccotemp 40-H Manuel utilisateur

Dimplex

Dimplex ECSd125-580 Mode d’emploi

Dux

Dux 32FCR6N Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guide de dépannage

Noritz

Noritz N-132M Manuel d'instructions

TESY

TESY GCV7/4S 10047 Fiche technique

A.O. Smith

A.O. Smith Gphe 50 Manuel utilisateur

Koryo

Koryo KWHZF15Y Manuel utilisateur

Pentair

Pentair PSC-14-4-02 Manuel utilisateur

GE 40M06AAG Instructions de montage

Thermor

Thermor AEROMAX SPLIT 2 Manuel utilisateur

American Hometec

American Hometec AHQ-B03X Manuel utilisateur
