en Instruction Manual and Installation Instructions
Semi-Automatic Top-loader
Washing machine
2
Your new washing machine
You have chosen a Bosch washing
machine.
Please take a few minutes to read and
become familiar with the advantages of
your washing machine.
To meet the high quality demands
required by Bosch, every washing
machine that leaves our factory is
carefully checked to ensure that it
functions correctly and is in perfect
condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.bosch-
home.com or contact our after-sales
service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washing machine.
Display rules
: Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■/ -
Lists are represented by a small box or
a dash.
en
Contents
enInstruction Manual and Installation Instructions
the appliance . . . . . . . . . . . . . . . 9
{ Technical data . . . . . . . . . . . . . . 26
JWarranty terms and
conditions . . . . . . . . . . . . . . . . . 27
7Environmental Protection . . . . . 30
4 Customer Service . . . . . . . . . . . 30
Installing and connecting the
appliance . . . . . . . . . . . . . . . . . .9
Installation surface . . . . . . . . . . 10
time. . . . . . . . . . . . . . . . . . . . . . 12
*Familiarising yourself with
your appliance .. . . . . . . . . . . . . 13
Appliance overview . . . . . . . . . .13
Fascia . . . . . . . . . . . . . . . . . . . .15
/ Programme overview* . . . . . . . .16
Z Laundry. . . . . . . . . . . . . . . . . . . .18
Preparing laundry . . . . . . . . . . . .18
1 Operating the appliance . . . . . .19
Wash Procedure . . . . . . . . . . . . . . .19
Rinsing... . . . . . . . . . . . . . . . . . . 20
Spin Rinse.... . . . . . . . . . . . . . . . 20
Spining dry.. . . . . . . . . . . . . . . . 21
Removing laundry and switching off
the appliance . . . . . . . . . . . . . . .22
D Cleaning and maintenance. . . . 23
Cleaning the lint filter . . . . . . . . 24
3 What to do in the event of a
fault. . . . . . . . . . . . . . . . . . . . . . . 25
Help with the appliance . . . . . . . 25
3
enInstruction Manual and Installation Instructions
5 Installing and connecting
Features. . . . . . . . . . . . . . . . . . . 8
Safety instructions . . . . . . . . . . 4
Connecting the appliance .. . . . 10
Hose and pipe length .. . . . . . . .11
Connecting the inlet hose.. . . . . 11
Connecting the drain hose.. . . . .11
Before using the appliance first
Safety en
Safety Instructions
Observe the following safety instructions.
1.1 General information
1.2 Intended use
Only use this appliance:
For washing machine - washable fabrics and hand washable wool in
accordance with care label.
With tap water and commercially available detergents and care products
suitable for washing machines.
In private households and in enclosed spaces in a domestic environment.
Up to an altitude of max. 2000m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by people who have
reduced physical, sensory or mental abilities or inadequate experience and/or
knowledge, provided that they are supervised or have been instructed on how to
use the appliance safely and have understood the resulting dangers. Do not let
children play with the appliance. Cleaning and user maintenance must not be
performed by children unless they are being supervised. Keep children under the
age of 3 years and pets away from the appliance. There is a risk that they could
accidentally fall into the washing tub.
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
Connect and operate the appliance only in accordance with the specifications
on the rating plate.
Connect the appliance to a power supply with alternating current only via a
properly installed socket with earthing.
The protective conductor system of the domestic electrical installation must be
properly installed. The installation must have a sufficiently large cross section.
Do not reuse the hoses that have been used before.
4
Read this instruction manual carefully.
Keep the instruction manual and the product information safe for future
reference or for the next owner.
Do not connect the appliance if it has been damaged in transit.
Safety
en
■
When using a residual current circuit breaker, only use a type with the ISI mark.
■
Never equip the appliance with an external switching device.
■
When the appliance is installed, the mains plug of the power cord must be freely
accessible. If free access is not possible, an all-pole isolating switch must be
installed in the permanent electrical installation according to the installation
regulations.
■
When installing the appliance, check that the power cable is not trapped or
damaged.
If the insulation of the power cord is damaged, this is dangerous.
It is dangerous to use an extended power cord and non-approved adapters.
■
Do not use extension cables or multiple socket strips.
■
Only use adapters and power cords approved by the manufacturer.
■
If the power cord is too short and a longer one is not available, please contact
an electrician to have the domestic installation adapted.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap themselves up in it
and suffocate.
Children may breathe in or swallow small parts, causing them to suffocate.
■
Keep small parts away from children.
■
Do not let children play with small parts.
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
■
Never operate a damaged appliance.
■
Never pull on the power cord to unplug appliance. Always unplug the appliance
at the mains.
■
If the appliance or the power cord is damaged, immediately unplug the power
cord or switch off the fuse in the fuse box and turn off the water tap.
Call customer services. →Page30.
■
Keep packaging material away from children.
■
Do not let children play with packaging material.
WARNING‒Risk of suffocation!
■
Never let the power cord come into contact with hot appliance parts or heat
sources.
■
Never let the power cord come into contact with sharp points or edges.
■
Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
5
Safety en
■
If the power cord of this appliance is damaged it must be replaced by the
manufacturer, the manufacturer customer service or similar qualified person
in order to prevent any risk.
■
An ingress of moisture can cause an electric shock.
■
Only use the appliance in enclosed spaces.
■
Never expose the appliance to intense heat or humidity.
■
Do not use steam or high pressure cleaners, hoses or sprays to clean the
appliance.
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if consumed.
■
If accidentally swallowed, seek medical advice.
■
Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Laundry that has been pretreated with cleaning agents that contain solvents
may cause an explosion in the appliance.
■
Rinse pretreated laundry thoroughly with water before washing.
CAUTION‒Risk of injury!
■
Refrain from inserting your hands into the spin basket while it's in
operation to prevent the risk of entangling your fingers and causing injury.
■
Wait for the drum to come to a complete stop before reaching inside.
Preventing material damage
Preventing material damage
■
Ensure that you place the safety cover over the laundry before spinning to
prevent clothes from being thrown out and causing damage.
■
To prevent water splashing, make sure to shut the lid of the wash tub.
■
Do not attempt to pull off the knobs, as they cannot be removed from the
outside of the panel.
6
Safety en
■

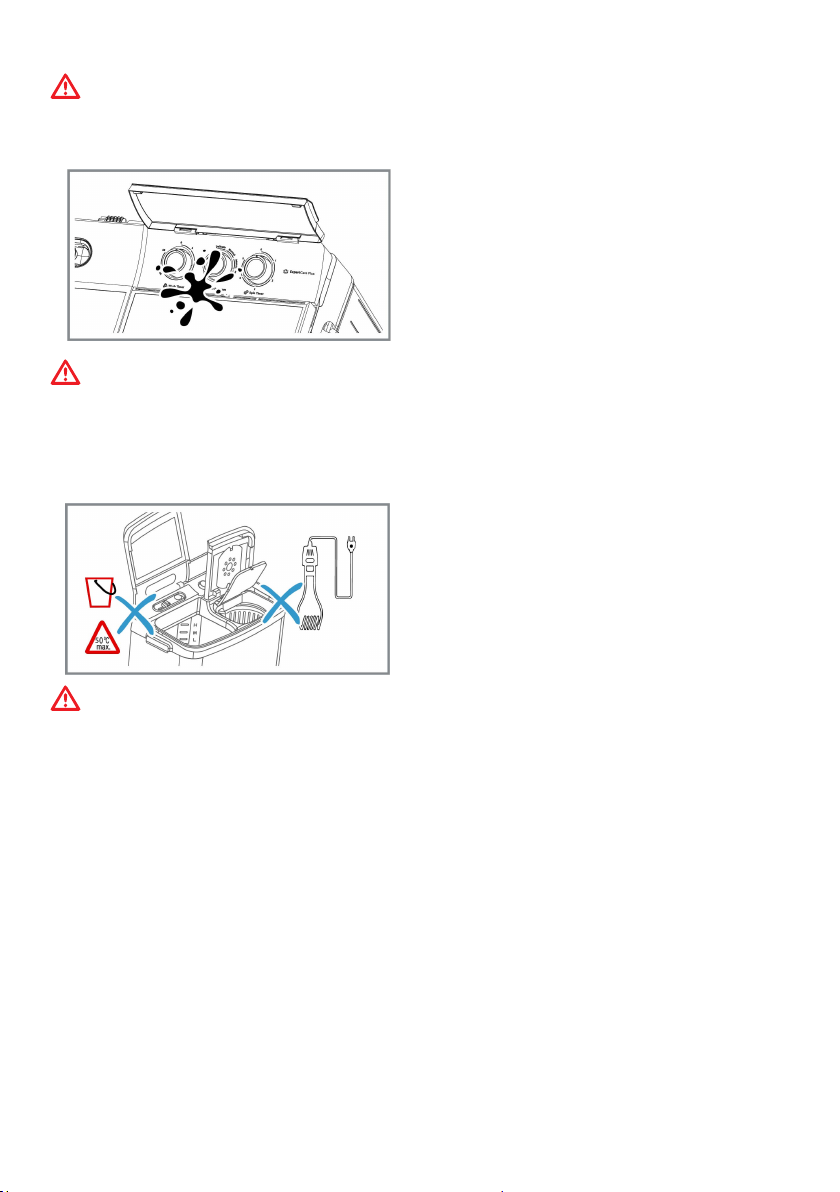

Ensure that water doesn't come into contact with the control panel.
7
CAUTION‒Preventing Water Contact for Optimal Appliance
Performance!
■
Do not put immersion rod/water heater rod inside the washing machine.
■
Avoid using hot water over 50°C, it can deform plastic parts and can cause
malfunction.
CAUTION‒Preventive Measures for Washing Machine
Usage with Hot Water!
CAUTION ‒ Measures for Washing Machine Lid!
■
Avoid hanging clothes, whether dry or wet, on the washing machine lid.
■
Prevent children from playing or leaning on the washing machine lid as it
might break.
7
en Features
5 Features
Scrub zone
*Depends on the model
The generously-sized scrub basin,
offering the largest surface area, enables
convenient pre-treatment of even the
bulkiest fabrics right at the machine and
at a comfortable working height.
Cam pulsator
* Depends on the model
Large wash tub opening
* Depends on the model
Safety cover holder
8
Asymmetric paddle design which mimics
effects of a hand-wash with cam
pulsators which move up and down to
create a pounding effect
Design provides larger opening to the
wash tub for loading & un-loading of
clothes.
Now you can conveniently store and
use the safety cover without
misplacing or forgetting.
5 Installation and
connecting
the appliance
6.
7. Avoid positioning the washing
machine in close proximity to heat
sources such as heaters and boilers,
as direct heat can adversely affect the
plastic and electrical components.
Caution!
Risk of material damage and damage
to the appliance
Objects remaining in the drum that are
not designed for operation with the
appliance may result in material
damage and damage to the appliance.
Remove these objects, along with all
accessories, from the drum.
1. Remove any packaging and
protective covers completely from
the appliance.
2. Remove the appliance from the base
padding.
Note: Operating the appliance on
the base padding is strictly
forbidden.
3. Open the lid on the appliance and
take out the cover and all the
accessories.
You can now install and connect the
appliance.
4. Leave atleast 15 cm between wall
and the washing machine.
5. Noise and vibration may occur if
washing machine is placed on
uneven surface.
Avoid placing the washing machine
in areas with high humidity, direct
sunlight, or where it might be
exposed to rain.
9
Installing and connecting the appliance en
Installing the appliance
:Warning
Risk of injury!
■The appliance is very heavy. Lifting it
may result in injury.
Do not lift the appliance on your
own.
Risk of injury!
■The appliance has sharp edges on
which you could cut your hands.
Do not take hold of the appliance by
its sharp edges. Wear protective
gloves to lift it.
Risk of injury!
■If the hoses and mains cables are
not correctly routed, they may
constitute a tripping hazard, which
may result in injury.
Route hoses and cables such that
they do not constitute a tripping
hazard.
Installation surface
Caution!
Damage to the appliance
Frozen hoses may rupture or burst.
Do not install the appliance outdoors or
in areas that may be exposed to frost.
Note: The appliance must be stable so
that it does not "wander".
■The installation surface must be firm
and level.
■Soft floors/floor coverings are not
suitable.
■All 4 feet of the appliance's must
stand firmly on the ground.
Connecting the appliance
Caution!
Risk of material damage and damage
to the appliance
If the water pressure is too high or too
low, the appliance may not be able to
operate properly, and this may also
result in material damage or damage to
the appliance.
Ensure that the water pressure in the
water supply facility does not exceed
140 kPa (1.4 bar).
Caution!
Risk of material damage/damage to
the appliance
If the water hoses are altered or
damaged, this may result in material
damage or damage to the appliance.
The water hoses must not be kinked,
crushed, altered or severed.
Caution!
Risk of material damage/damage to
the appliance
The use of hoses supplied by other
brands to connect to the water supply
may result in material damage or
damage to the appliance.
Use the hoses supplied with the
appliance or genuine spare part hoses
only.
Notes
■In addition to the information listed
here, the local water and electricity
supplier may have special
requirements.
■If in doubt, have your appliance
connected by a professional.
10
en Installing and connecting the appliance
Ce manuel convient aux modèles suivants
17
Table des matières
Autres manuels Bosch Rondelle
Bosch
Bosch WAL28RH4GR Manuel utilisateur
Bosch
Bosch WAVH8EL9SN Manuel utilisateur
Bosch
Bosch WAY28740ES Fiche technique
Bosch
Bosch Vision 800 series Guide d'installation
Bosch
Bosch Washing Machine Fiche technique
Bosch
Bosch WGG14401EP Fiche technique
Bosch
Bosch WAW24420GR Fiche technique
Bosch
Bosch WAN242C2SN Manuel utilisateur
Bosch
Bosch WAY32790GC Fiche technique
Bosch
Bosch WAY24749II Fiche technique
Bosch
Bosch WFMC2201UC - Nexxt 300 Series Washer Manuel utilisateur
Bosch
Bosch WAN24167BY Manuel utilisateur
Bosch
Bosch WAX32M41BY Manuel utilisateur
Bosch
Bosch WGB24409GR Manuel utilisateur
Bosch
Bosch WAN2823PSN Instructions d'utilisation et d'entretien
Bosch
Bosch WAN28167BY Instructions d'utilisation et d'entretien
Bosch
Bosch WGG244M9GR Manuel utilisateur
Bosch
Bosch WAE24461GB Fiche technique
Bosch
Bosch WAX32MA9SN Manuel utilisateur
Bosch
Bosch WGG2540MSN Manuel utilisateur
