Bosch LS-OC100E-1 Guide de démarrage rapide

Hemidirectional Loudspeaker

100W

LS-OC100E-1

en Installation note

Hemidirectional Loudspeaker 100W Table of contents | en 3

Bosch Security Systems B.V. Installation note 2017.03 | V1.2 |

Table of contents

1Important safeguards 4

2System overview 5

3Chain mounting 6

4Steel cable mounting 8

5Bracket mounting 10

6Options 15

7Listening area and related mounting height 18

8Technical data 19

4en | Important safeguards Hemidirectional Loudspeaker 100W

2017.03 | V1.2 | Installation note Bosch Security Systems B.V.

1 Important safeguards

Caution!

Suspending any object is potentially dangerous and should only be attempted by individuals

who have a thorough knowledge of the techniques and regulations of rigging objects

overhead. Bosch strongly recommends that loudspeakers be suspended taking into account

all current national, federal, state and local regulations. It is the responsibility of the installer

to ensure that loudspeakers are safely installed in accordance with all such regulations. If

loudspeakers are suspended, Bosch

strongly recommends that the installation is inspected at least once a year. If any sign of

weakness, damage or corrosion is detected, remedial action should be taken immediately. Do

not use mounting material and supporting structures of stainless steel in a chlorine-rich

environment such as indoor swimming pools. Bosch strongly

recommends to use mounting material of thermogalvanized steel for this kind of

environments. All non-Bosch associated hardware items used to suspend the Bosch

loudspeaker are the responsibility of others.

Caution!

In case the 8 Ohm connection of loudspeaker is used, be sure that the 8 Ohm output of the

connected amplifier is DC free. If this is not the case, connecting a suitable bipolar condenser

(47 μF -100 μF) in series with the loudspeaker is recommended.

Caution!

Make sure that you use the safety eye and the main M8 rigging point when you install the

loudspeaker

Notice!

The mounting materials marked with an asterisk (*) in the drawings are not supplied, but are

generally available in your local DIY-store. Make sure that the minimum tensile strength of

these mounting materials (e.g. suspension chain, suspension cable, safety cord and

shackle[s]) is 1,500 N.

Hemidirectional Loudspeaker 100W System overview | en 5

Bosch Security Systems B.V. Installation note 2017.03 | V1.2 |

2 System overview

B-C-D-E

LS1-OC100E-1 D

Figure2.1: Box contents

There are various ways to mount the LS1-OC100E-1:

1. Chain mounting

2. Steel cable mounting

3. Bracket mounting

6en | Chain mounting Hemidirectional Loudspeaker 100W

2017.03 | V1.2 | Installation note Bosch Security Systems B.V.

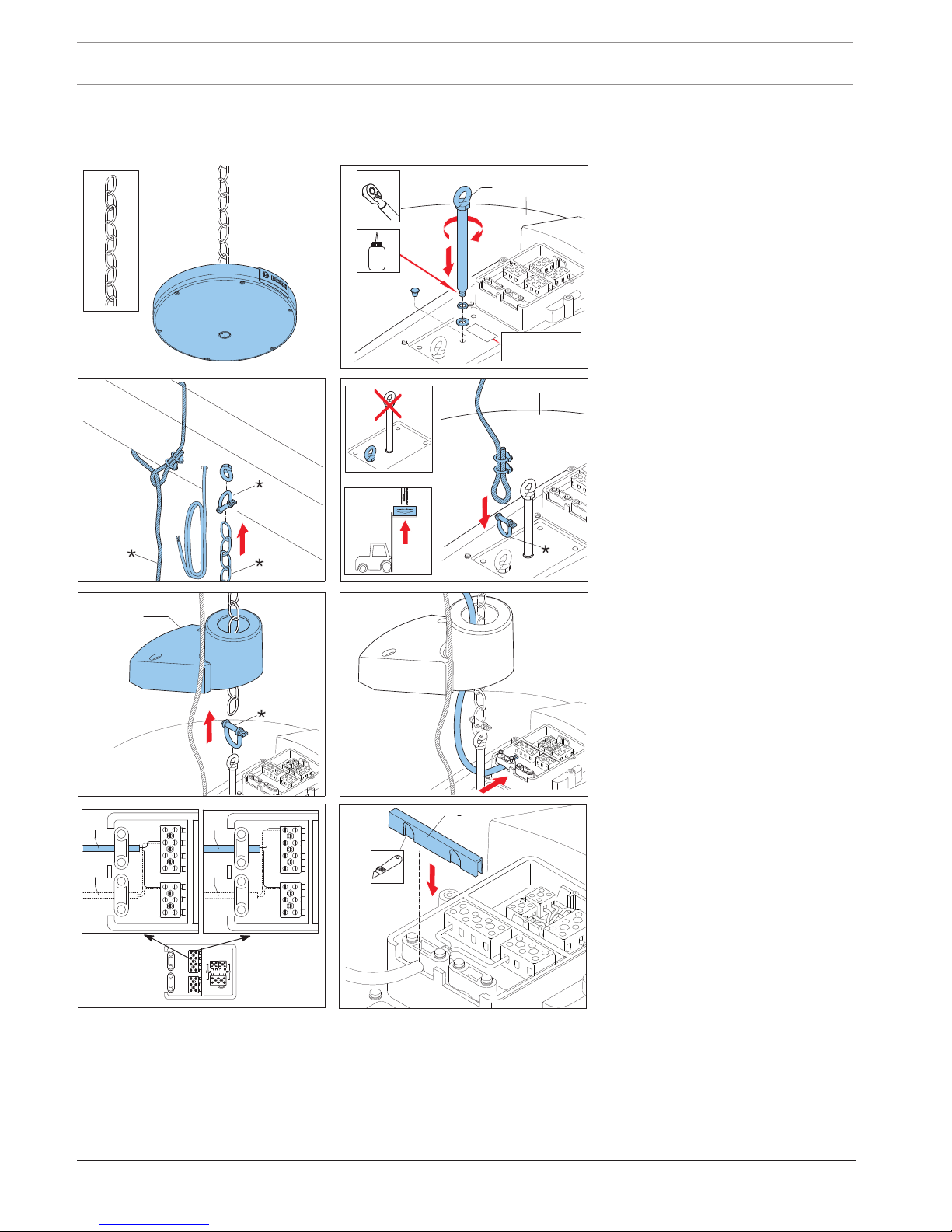

3 Chain mounting

Installation

8-12 Nm

LOCTITE

2701

USE LOCTITE 2701

OR SIMULAR AGENT

TORQUE: 8-12 Nm

70V

8 Ohm

100W

50W

25W

100W

50W

25W

8 Ohm 100V

70V 100V

USE LOCTITE 2701

OR SIMILAR AGENT

TORQUE: 8-12 Nm

Y: The figure is an example of a connection for 25 W.

Z: Optional loop through connection.

Hemidirectional Loudspeaker 100W Chain mounting | en 7

Bosch Security Systems B.V. Installation note 2017.03 | V1.2 |

8en | Steel cable mounting Hemidirectional Loudspeaker 100W

2017.03 | V1.2 | Installation note Bosch Security Systems B.V.

4 Steel cable mounting

Installation

8-12 Nm

LOCTITE

2701

USE LOCTITE 2701

OR SIMULAR AGENT

TORQUE: 8-12 Nm

70V

8 Ohm

100W

50W

25W

100W

50W

25W

8 Ohm 100V

70V 100V D

USE LOCTITE 2701

OR SIMILAR AGENT

TORQUE: 8-12 Nm

Y: The figure is an example of a connection for 25 W.

Z: Optional loop through connection.

Hemidirectional Loudspeaker 100W Steel cable mounting | en 9

Bosch Security Systems B.V. Installation note 2017.03 | V1.2 |

10 en | Bracket mounting Hemidirectional Loudspeaker 100W

2017.03 | V1.2 | Installation note Bosch Security Systems B.V.

5 Bracket mounting

Installation
