DAS 3000

Unpacking, Assembly, Initializing

DAS 3000

Unpacking

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

DAS 3000 –Assembly

Tools required:

Unpacking:

1. 10mm wrench

2. 13mm wrench

3. T30 Torx

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

DAS 3000 –Unpacking

1. Place the DAS 3000 shipping container

at the location it will be utilized.

2. Pull open the 3 box locks.

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

3 Locks

2

2

DAS 3000 –Unpacking

3. Remove the banding.

4. Remove the box cover.

Dispose of all trash properly.

4

3

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

5. Remove the outer shell of the box.

Dispose of all trash properly.

DAS 3000 –Unpacking

5

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

DAS 3000 –Unpacking

6. Cut tie wraps that are holding loose

components.

7. Remove all the loose components from

the Trolley.

6

7

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

DAS 3000 –Unpacking

8. Individual components are attached to the

rails with T-Slot Nuts, loosen the fastener

using a 13mm wrench.

9. Twist to unlock from the channel.

8

9

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

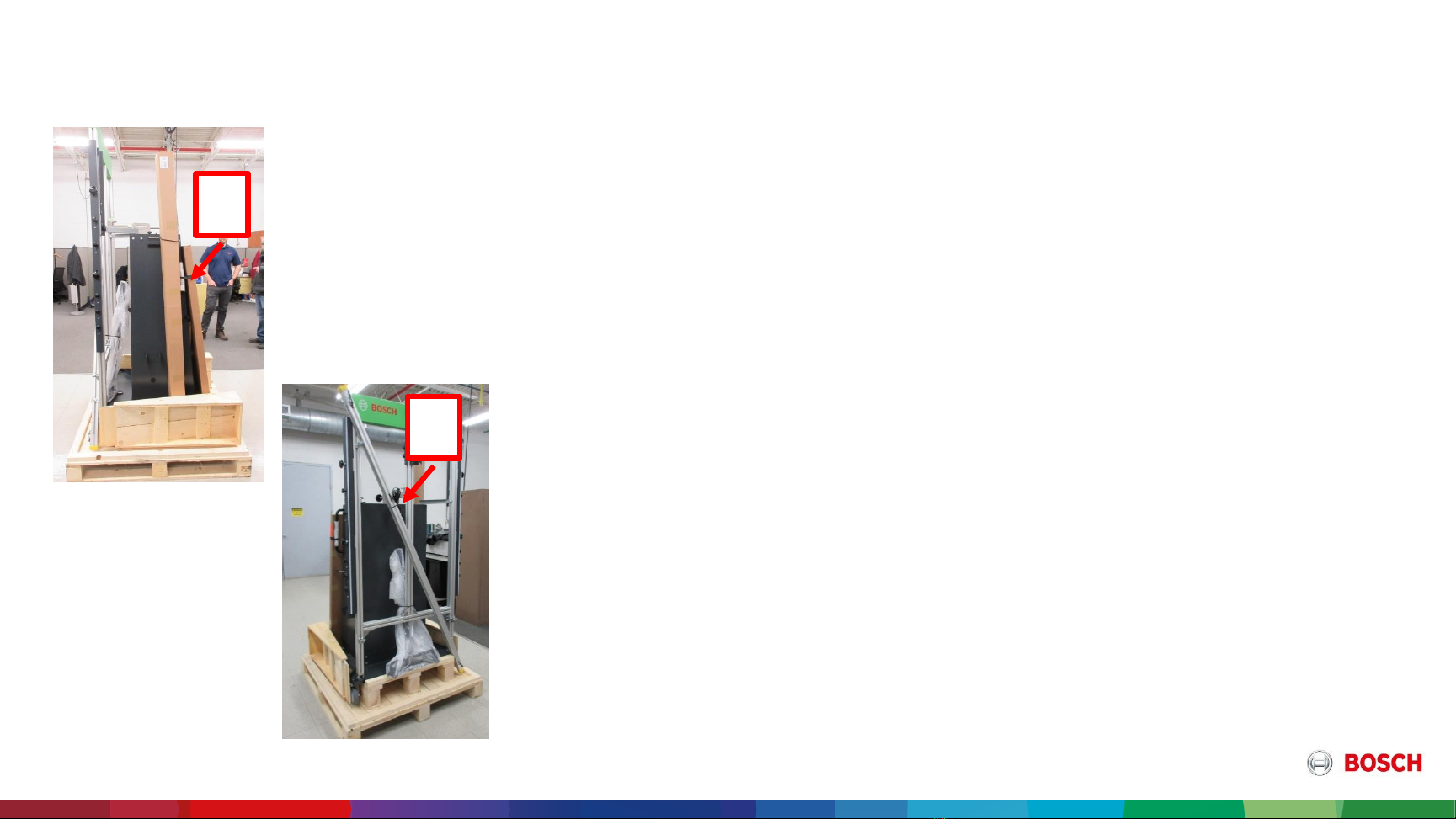

DAS 3000 –Unpacking

10. Remove fasteners from the wood wedges.

11. Remove the wood wedges.

10

11

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.

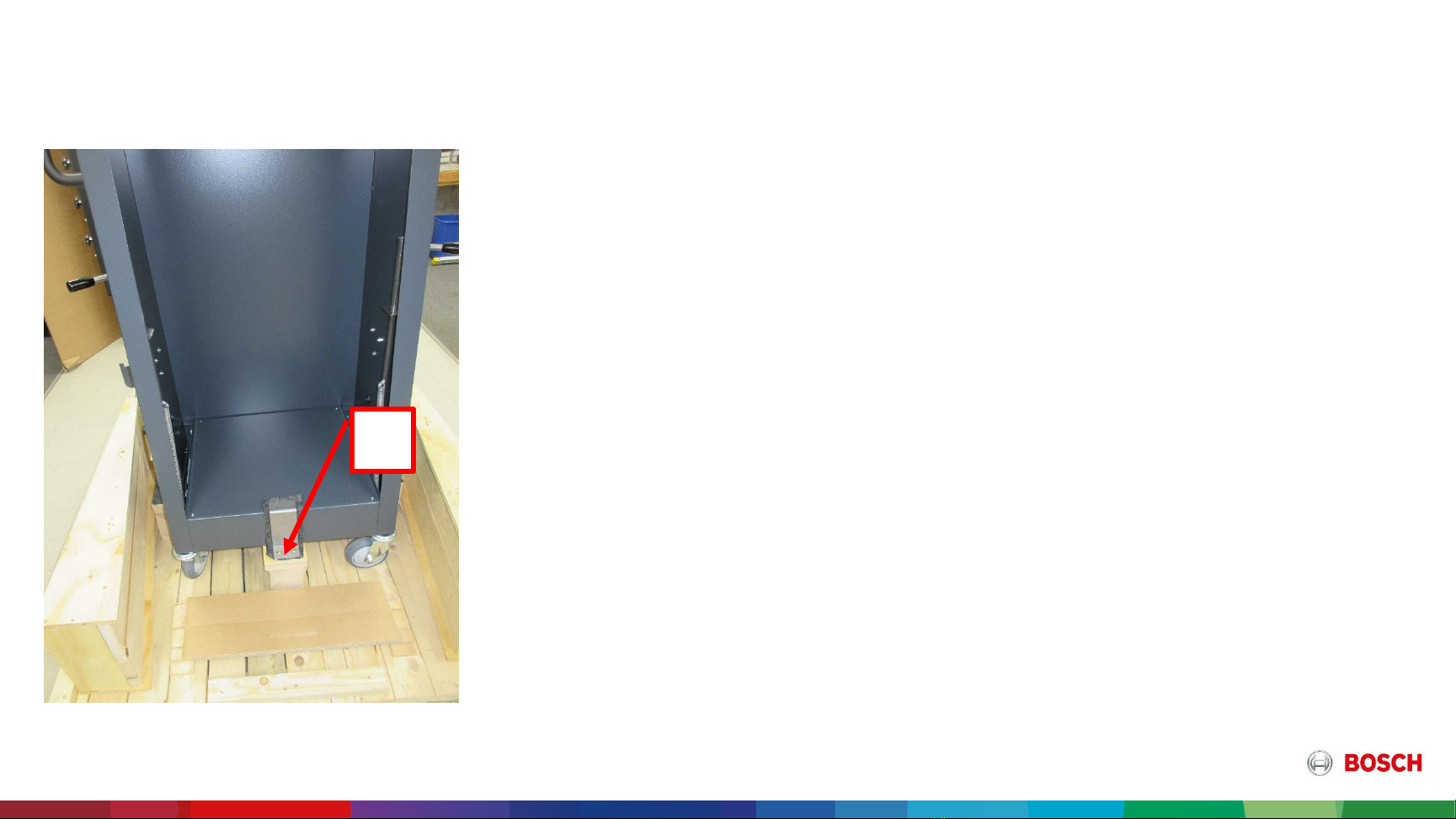

12. Remove fasteners from the mounting

bracket by removing the 2 T30 Torx™

screws.

Discard the bracket.

DAS 3000 –Unpacking

12

© Robert Bosch GmbH 2016. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution , as well as in the event of applications for industrial property rights.
