en Instructions for use Fridge-freezer 3

Fridge-freezer

KGV..

en Table of contents

Safety and warning information ........... 3

Information concerning disposal ......... 6

Scope of delivery ................................... 7

Installation location ................................ 7

Ambient temperature and ventilation . 8

Connecting the appliance .................... 8

Getting to know your appliance .......... 9

Switching the appliance on ................ 10

Setting the temperature ...................... 11

Usable capacity .................................... 11

Refrigerator compartment .................. 11

Freezer compartment .......................... 12

Freezing capacity ................................. 12

Freezing and storing food .................. 13

Freezing fresh food .............................. 13

Super freezing ...................................... 14

Thawing frozen food ............................ 15

Interior fittings ....................................... 15

Sticker “OK” .......................................... 16

Switching off and disconnecting

the appliance ........................................ 16

Defrosting .............................................. 17

Cleaning the appliance ....................... 17

Odours ................................................... 18

Light (LED) ............................................ 18

Tips for saving energy ........................ 19

Operating noises ................................. 19

Eliminating minor faults yourself ....... 20

Appliance self-test ............................... 21

Customer service, product /

production number and technical

data ........................................................ 21

enTable of contents

enInstructions for useFridge-freezer

Safety and warning

information

Before you switch ON the

appliance

Please read the operating and

installation instructions carefully!

They contain important

information on how to install,

use and maintain the appliance.

The manufacturer is not liable if

you fail to comply with the

instructions and warnings.

Retain all documents for

subsequent use or for the next

owner.

Technical safety

Fire hazard

The tubes of the

refrigeration circuit convey a

small quantity of an

environmentally friendly but

flammable refrigerant (R600a). It

does not damage the ozone

layer and does not increase the

greenhouse effect. If refrigerant

escapes, it may injure your eyes

or ignite.

If damage has occurred

■Keep naked flames and/or

ignition sources away from the

appliance,

■thoroughly ventilate the room

for several minutes,

■switch off the appliance and

pull out the mains plug,

■inform customer service.

The more refrigerant an

appliance contains, the larger

the room must be in which the

appliance is situated. Leaking

refrigerant can form a

flammable gas-air mixture in

rooms which are too small.

The room must be at least 1 m³

per 8 g of refrigerant. The

amount of refrigerant in your

appliance is indicated on the

rating plate inside the appliance.

When installing the appliance,

ensure that the mains cable is

not trapped or damaged.

If the power cord of this

appliance is damaged, it must

be replaced by the

manufacturer, Customer Service

or a similarly qualified person.

Improper installations and

repairs may put the user at

considerable risk.

Repairs may be performed by

the manufacturer, customer

service or a similarly qualified

person only.

Only original parts supplied by

the manufacturer may be used.

The manufacturer guarantees

that only these parts satisfy the

safety requirements.

Do not use multiple sockets,

extension leads or adapters.

Fire hazard

Portable multiple outlets or

power supplies may overheat,

causing a fire.

Never leave portable multiple

outlets or portable power

supplies behind the appliance.

Important information when

using the appliance

■Never use electrical

appliances inside the

appliance (e.g. heaters,

electric ice makers, etc.). Risk

of explosion!

■Never defrost or clean the

appliance with a steam

cleaner! The steam may

penetrate electrical parts and

cause a short-circuit. Risk of

electric shock!

■Do not use additional means

to accelerate the defrosting

process other than those

recommended by the

manufacturer. Risk of

explosion!

■Do not use pointed or sharp-

edged implements to remove

frost or layers of ice. You

might damage the refrigerant

tubes.Leaking refrigerant may

cause eye injuries or ignite.

■Do not store products which

contain flammable propellant

(e.g. spray cans) or explosive

substances in the appliance.

Risk of explosion!

■Do not stand on or lean

heavily against the base of the

appliance, drawers, doors,

etc.

■For defrosting and cleaning,

pull out the mains plug or

switch off the fuse. Do not pull

out the mains plug by tugging

on the power cord.

■Store high-percentage alcohol

tightly sealed and in an

upright position.

■Keep plastic parts and the

door seal free of oil and

grease. Otherwise, plastic

parts and the door seal will

become porous.

■Never cover or block the

ventilation openings of the

appliance.

■Do not store bottled or

canned liquids (especially

carbonated drinks) in the

freezer compartment.Bottles

and cans may burst!

■Never put frozen food straight

from the freezer compartment

in your mouth.

Risk of low-temperature burns!

■Avoiding placing children

and vulnerable people at

risk:

At risk here are children,

people who have limited

physical, mental or sensory

abilities, as well as people

who have inadequate

knowledge concerning safe

operation of the appliance.

Check that children and

vulnerable people have

understood the hazards.

A person responsible for

safety must supervise or

instruct children and

vulnerable people who are

using the appliance.

Only children aged 8 years

and above may use the

appliance.

Supervise children while the

appliance is being cleaned or

maintained.

Never allow children to play

with the appliance.

■Avoid prolonged touching of

frozen food, ice or the

evaporator pipes, etc.

Risk of low-temperature burns!

Children in the household

■Keep children away from

packaging and its parts.

Danger of suffocation from

folding cartons and plastic

film!

■Do not allow children to play

with the appliance!

■If the appliance features a

lock:

keep the key out of the reach

of children!

General regulations

The appliance is suitable

■for refrigerating and freezing

food,

■for making ice.

This appliance is intended for

use in the home and the home

environment.

The refrigeration circuit has

been checked for leaks.

This appliance complies with the

relevant safety regulations for

electrical appliances and is

fitted with noise suppression.

This appliance is intended for

use up to a maximum height of

2000 metres above sea level.

Information concerning

disposal

*Disposal of packaging

The packaging protects your appliance

from damage during transit. All utilised

materials are environmentally safe and

recyclable. Please help us by disposing

of the packaging in an environmentally

friendly manner.

Please ask your dealer or inquire at your

local authority about current means of

disposal.

*Disposal of your old

appliance

Old appliances are not worthless

rubbish! Valuable raw materials can be

reclaimed by recycling old appliances.

m Warning

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays

and receptacles: children are

therefore prevented from climbing in!

4. Do not allow children to play with

the appliance once it has spent its

useful life. Danger of suffocation!

Refrigerators contain refrigerant

and gases in the insulation. Refrigerant

and gases must be disposed

of professionally. Ensure that tubing

of the refrigerant circuit is not damaged

prior to proper disposal.

This appliance is labelled in

accordance with European

Directive 2012/19/EU concerning

used electrical and electronic

appliances (waste electrical and

electronic equipment - WEEE).

The guideline determines the

framework for the return and

recycling of used appliances as

applicable throughout the EU.



Scope of delivery

After unpacking all parts, check for any

damage in transit.

If you have any complaints, please

contact the dealer from whom you

purchased the appliance or our

customer service.

The delivery consists of the following

parts:

■Free-standing appliance

■Interior fittings (depending on model)

■Bag containing installation materials

■Operating instructions

■Installation manual

■Customer service booklet

■Warranty enclosure

■Information on the energy

consumption and noises

Installation location

A dry, well ventilated room is suitable as

an installation location. The installation

location should not be exposed to direct

sunlight and not placed near a heat

source, e.g. a cooker, radiator, etc. If

installation next to a heat source is

unavoidable, use a suitable insulating

plate or observe the following minimum

distances from the heat source:

■3 cm to electric or gas cookers.

■30 cm to an oil or coal-fired cooker.

The floor of the installation location must

not give way; if required, reinforce floor. If

the floor is uneven, compensate with

supports.

Distance from wall

Fig. #

A gap is not required between the

appliance and side wall. The containers

and shelves are still fully extendable.

Reversing the door

(if required)

If required, we recommend that you have

the door hinges changed over by our

customer service. You can find out the

costs for changing over the door hinges

from your appropriate customer service.

m Warning

While changing over the door hinges,

ensure that the appliance is not

connected to the power supply. Pull out

the mains plug beforehand. To prevent

damaging the back of the appliance,

place adequate padding underneath.

Carefully place the appliance on its

back.

Note

If the appliance is placed on its back,

ensure that the wall spacer is not fitted.

Ambient temperature

and ventilation

Ambient temperature

The appliance is designed for a specific

climate class. Depending on the climate

class, the appliance can be operated at

the following temperatures.

The climate class can be found on

the rating plate. Fig. 2

Note

The appliance is fully functional within

the room temperature limits

of the indicated climatic class. If

an appliance of climatic class SN

is operated at colder room temperatures,

the appliance will not be damaged up to

a temperature of +5 °C.

Ventilation

Fig. $

The air on the rear

panel of the appliance heats up.

Conduction of the heated air must

not be obstructed. Otherwise,

the refrigerating unit must work harder.

This increases power consumption.

Therefore: Never cover or block

the ventilation openings!

Connecting

the appliance

After installing the appliance, wait at least

1 hour until the appliance is switched on.

During transportation the oil in

the compressor may have flowed into

the refrigeration system.

Before switching on the appliance for

the first time, clean the interior of

the appliance (see chapter “Cleaning

the appliance”).

Electrical connection

The socket must be near the appliance

and also freely accessible following

installation of the appliance.

Climate class Permitted ambient

temperature

SN +10 °C to 32 °C

N+16 °C to 32 °C

ST +16 °C to 38 °C

T+16 °C to 43 °C

m Warning

Risk of electric shock!

If the length of the mains cable is

inadequate, never use multiple sockets

or extension leads. Instead, please

contact Customer Service for

alternatives.

The appliance complies with protection

class I. Connect the appliance to 220–

240 V/50 Hz alternating current via a

correctly installed socket with protective

conductor. The socket must be protected

by a 10 A to 16 A fuse.

For appliances operated in non-

European countries, check whether the

indicated voltage and current type match

the values of your electricity supply. This

information can be found on the rating

plate, Fig. 2.

m Warning

Never connect the appliance

to electronic energy saver plugs.

Our appliances can be used with mains

and sine-controlled inverters. Mains-

controlled inverters are used

for photovoltaic systems which

are connected directly to the national

grid. Sine-controlled inverters must be

used for isolated applications (e.g. on

ships or in mountain lodges) which are

not connected directly to the national

grid.

Getting to know your

appliance

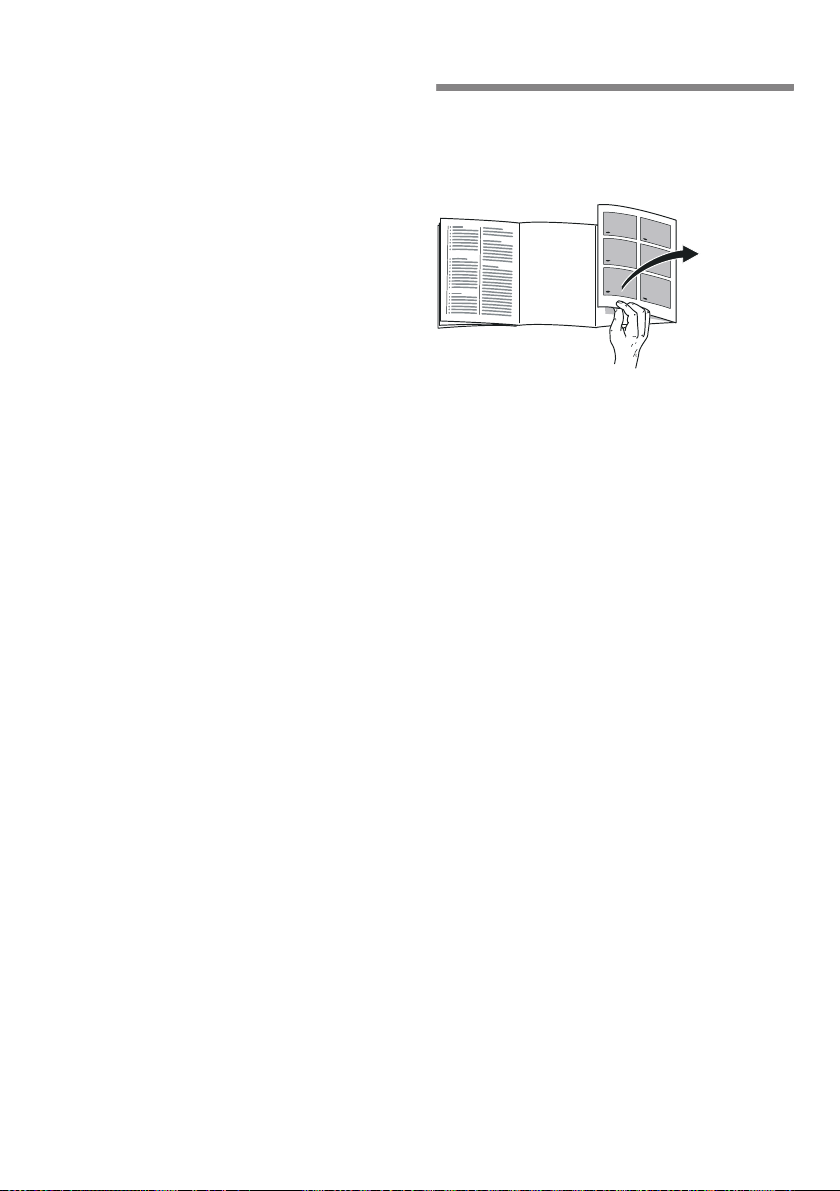

Please fold out the illustrated last page.

These operating instructions refer

to several models.

The features of the models may vary.

The diagrams may differ.

Fig. !

* Not all models.

1–4 Controls

5 Light (LED)

6 Glass shelf in the refrigerator

compartment

7 Vegetable container

8 Butter and cheese compartment *

9 Egg rack*

10 Shelf for large bottles

11 Frozen food drawer (small)

12 Glass shelf in the freezer

compartment

13 Frozen food drawer (large)

14 Condensation outlet

15 Height-adjustable feet

A Refrigerator compartment

B Freezer compartment

Controls

Fig. "

Switching the

appliance on

Fig. "

Switch on the appliance with the On/Off

button 1.

The appliance begins to cool. Light is

switched on when the door is open.

We recommend a setting of +4 °C.

Operating tips

■After the appliance has been switched

on, it may take several hours until

the set temperatures have been

reached.

Do not put any food in the appliance

beforehand.

■While the refrigeration unit is running,

water droplets or a thin layer of ice

may form at the rear panel of

the refrigerator. This is nothing

unusual. It is not necessary to scrape

off the frost or wipe off the water

droplets. The rear panel defrosts

automatically. The condensation

collects in the drainage channel,

Fig. ., and is conveyed

to the refrigeration unit where it

evaporates.

■The sides of the housing are

sometimes heated slightly. This

prevents condensation in the area

of the door seal.

■If the freezer compartment door

cannot be immediately re-opened after

it has been closed, wait until

the resulting low pressure has

equalised.

■The refrigeration system may cause

several areas of the freezer shelves

to frost quickly. This does not affect

function or power consumption.

The appliance does not require

defrosting until the entire surface

of the freezer shelf is covered with

more than 5 mm of frost or ice.

1On/Off button

Serves to switch the whole

appliance on and off.

2Temperature display refrigerator

compartment

The numbers correspond to the

set refrigerator compartment

temperatures in °C.

3Display super freezing

Illuminates when super freezing is

on.

4Refrigerator compartment

temperature selection button

The button sets the temperature

in the refrigerator compartment.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bosch Réfrigérateur

Bosch

Bosch KIR18V20FF Manuel utilisateur

Bosch

Bosch B36IT71SNS - 20 cu. Ft. Refrigerator Manuel utilisateur

Bosch

Bosch KFN96VPEAG Manuel utilisateur

Bosch

Bosch B22CS Series Manuel utilisateur

Bosch

Bosch CK587 Series Manuel utilisateur

Bosch

Bosch KFF96PIEP Manuel utilisateur

Bosch

Bosch B30BB830SS Manuel utilisateur

Bosch

Bosch KTL SERIES Manuel utilisateur

Bosch

Bosch CTC35 Series Fiche technique

Bosch

Bosch B36IT71SNS - 20 cu. Ft. Refrigerator Manuel utilisateur

Bosch

Bosch KGN39H96 Manuel utilisateur

Bosch

Bosch KIR Series Manuel utilisateur

Bosch

Bosch KGV39VL44 Manuel utilisateur

Bosch

Bosch KGV Series Manuel utilisateur

Bosch

Bosch KSV33VWEP Manuel utilisateur

Bosch

Bosch KIR18V60 Manuel utilisateur

Bosch

Bosch KAN.. Manuel utilisateur

Bosch

Bosch B24 50 Series Manuel utilisateur

Bosch

Bosch B30IR800SP/01 Manuel utilisateur

Bosch

Bosch B30IB905SP Manuel utilisateur

Bosch

Bosch GSN series Manuel utilisateur

Bosch

Bosch KTL SERIES Manuel utilisateur

Bosch

Bosch CMC33M05NI Manuel utilisateur

Bosch

Bosch KAI90 Series Manuel d'utilisation

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
