D7030X-S8
EN
Installation Guide
Eight-Zone LED
Annunciator
Bosch | 11/04 | 48176D2
D7030X-S8 | Installation Guide |
Notices
This guide coves the installation of the D7030X-S8 Eight-Zone LED Annunicator in a fire system supervised by a
D7024 Fire Alarm Control Panel (FACP).
Install, test, and maintain the D7030X-S8 according to these instructions, NFPA 72, local codes, and the Authority
Having Jurisdiction (AHJ).
Follow the procedures in this guide to avoid personal injury and damage to the equipment. Failure to
follow procedures can cause the D7030X-S8 to not operate properly. Bosch is not responsible for
improperly installed, tested, or maintained devices.
1.0 Description
All eight zones of the D7030X-S8 are reserved for supervisory functions. This annunciator has power, trouble, and
eight zone LEDs that can be individually labeled. It mounts in a standard three-gang box (Figure 1).
For the D7030X-S8 to operate with the D7024, use control panel firmware version 2.0 or greater.
Notices
POWER
ON
SYSTEM
TROUBLE
FIRE SYSTEM
ANNUNCIATOR
1
Y
G
B
R8
1
To CTRL-X
16 LED 8 LED 16 LED ENABLE
18
6
3
2
4
68910 7
5
1 - Front outside view 6 - LED enable jumpers
2 - Yellow zone LEDs (8) 7 - 8 and 16 zone selection
3 - Inside view 8 - To D7032 (optional)
4 - Address jumpers 9 - To FACP option bus
5 - To D7031 (optional) 10 - Remote LED pins

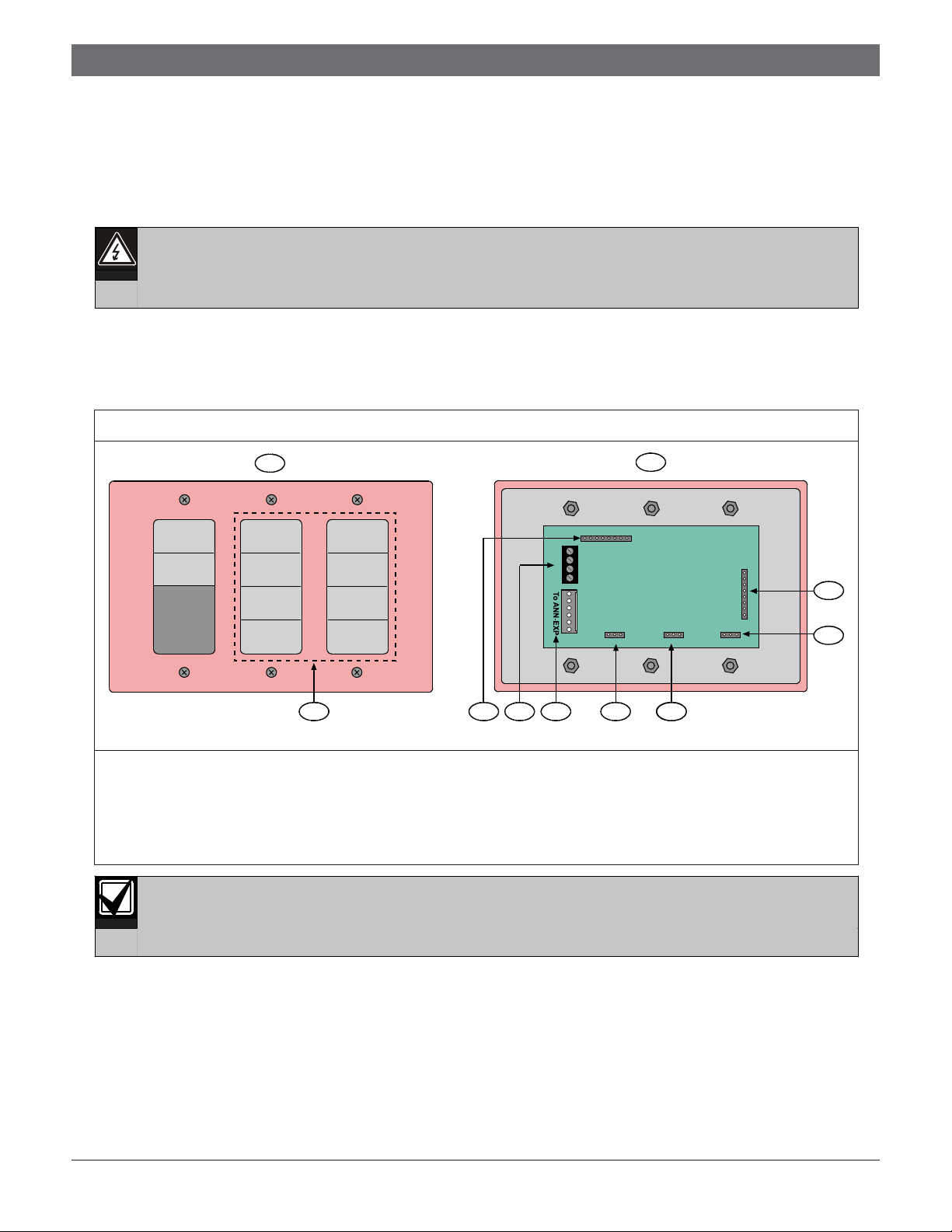

Figure 1: D7030X-S8 Features
3Bosch | 11/04 | 48176D
D7030X-S8 | Installation Guide | 4.0 Wiring
1 | 2 | 4 | 8
Address 9
1 | 2 | 4 | 8
Address 8
Address 7
1 | 2 | 4 | 8
Address 4
1 | 2 | 4 | 8 1 | 2 | 4 | 8
Address 6
1 | 2 | 4 | 8
Address 5
Address 1
1 | 2 | 4 | 8 1 | 2 | 4 | 8
Address 2
1 | 2 | 4 | 8
Address 3
1 | 2 | 4 | 8
Address 12
1 | 2 | 4 | 8
Address 11
Address 10
1 | 2 | 4 | 8
Address 13
1 | 2 | 4 | 8 1 | 2 | 4 | 8
Address 14
1 | 2 | 4 | 8
Address 15

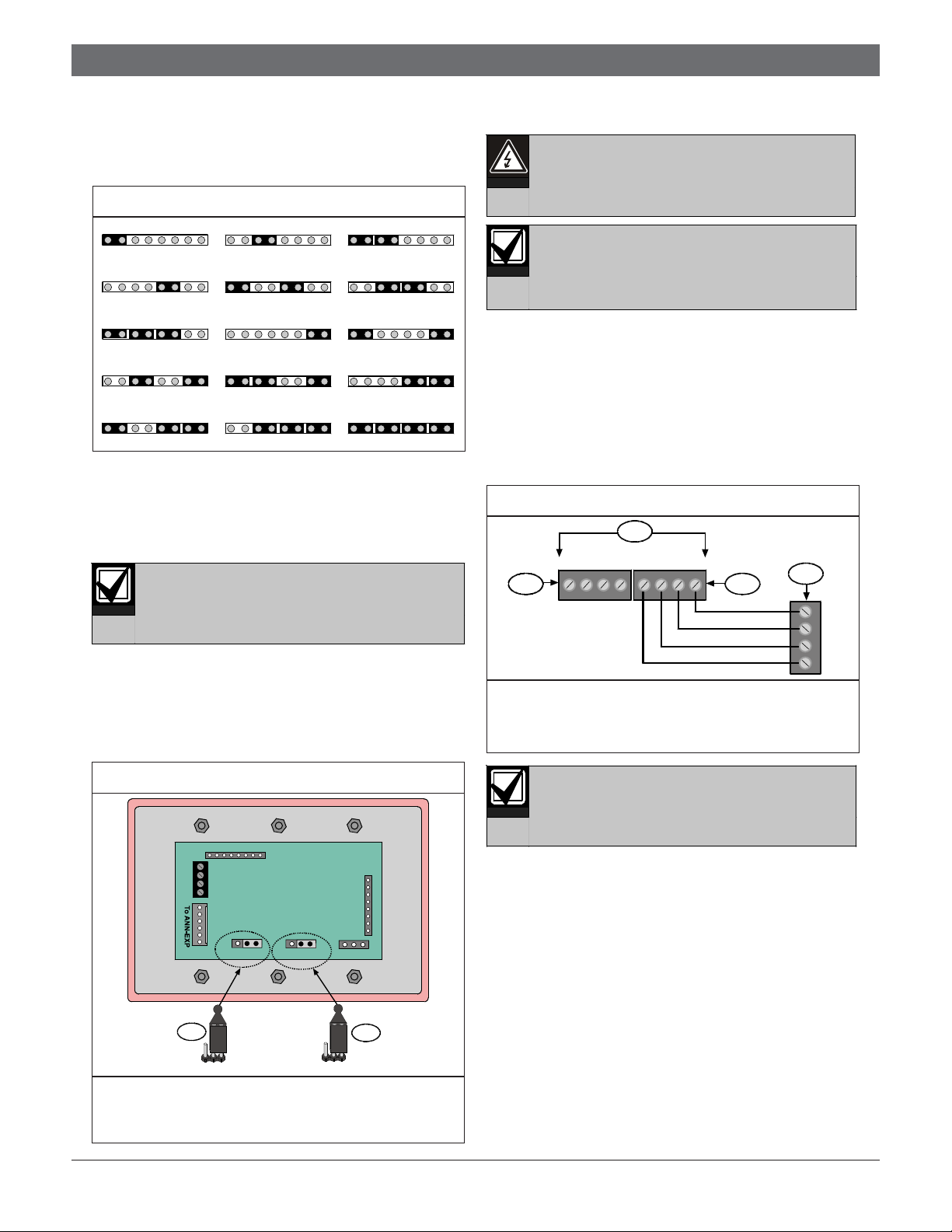

Figure 2: Address Settings
2.0 Setting the Address
Figure 2 shows the fifteen annunciator addresses you can
select from when setting the D7030X-S8 address.
The D7030X-S8 must have a unique address set within
its address pins. This address cannot conflict with other
annunciator addresses or other option bus device
addresses. Program the D7030X-S8 at the control panel
using the Update Bus option in the Programming Mode.
Each address can only support one device.
3.0 Setting the LED Jumpers
Set the LED jumpers to 8 LED (zones) and 8 LED
ENABLED as shown in Figure 3. When adding a D7032
Eight-Zone LED Expander, refer to the D7032
Installation Guide (P/N: 47169) for jumper settings.
4.0 Wiring
Ensure all wiring is de-energized before
routing.
Inform the operator and local AHJ before
installing the D7030X-S8 in an existing
system. Also, disconnect all power to the
FACP.
1. Remove AC power from the system at the dedicated
120 VAC breaker.
2. Remove the standby battery power before making
or removing any connections to the FACP.
3. Route the wiring from the control panel (Option
Bus A or Option Bus B) through the three-gang box
knockout and to the annunciator terminal strip
(Figure 4).
To prevent the D7030X-S8 from operating
improperly, do not use Bus A and Bus B
simultaneously. Use one or the other.
RABAGAYA RBBBGBYB
Y
G
B
R
4
2 3
1
Figure 4: D7030X-S8 Terminal Wiring
1 - Control panel option bus 3 - Option Bus B
2 - Option Bus A 4 - Terminal strip
Note: Connect to either bus.
Y
G
B
R8
1
To CTRL-X
16 LED 8 LED 16 LED ENABLE
18
16 LED 8 LED 16 LED ENABLED
12
Figure 3: Jumper Settings
1 - 16 LED 8 LED (jumper setting for 8 zones)
2 - 16 LED ENABLED (jumper setting for 8 LEDs
enabled)
Bosch | 11/04 | 48176D4
D7030X-S8 | Installation Guide |5.0 Adding External LEDs
4. Follow the wiring guidelines:
• Do not use shielded cable.
• Do not exceed 1000 ft (305 m) between the
FACP and the annunciator.
• Multiple home-runs are permitted but the total
length of annunciator wiring is limited to a
maximum of 4000 ft (1219 m) per system
depending on the total current draw on the
branches (Table 1).
Table 1: Current Draw and Wire Gauge
Restrictions
Total Current Draw on
Branch
Maximum Length of
18 AWG (1.2 mm) Wire
175 mA 4000 ft (1219 m)
200 mA 3500 ft (1065 m)
250 mA 3000 ft (915 m)
300 mA 2500 ft (760 m)
400 mA 1900 ft (580 m)
500 mA 1500 ft (455 m)
You can use up to three annunciators on a single
500 ft (152 m) run of 18 AWG (1.2 mm) wire, or one
annunciator on a 1000 ft (305 m) run. Refer to the
D7032 Installation Guide (P/N: 47169) for more
information on cable length.
5. Refer to Section 6.0 Mounting on page 5 to mount the
D7030X-S8.
6. Restore power to the system.
7. When wiring is complete, ensure the three-gang box
is secured to the mounting surface.

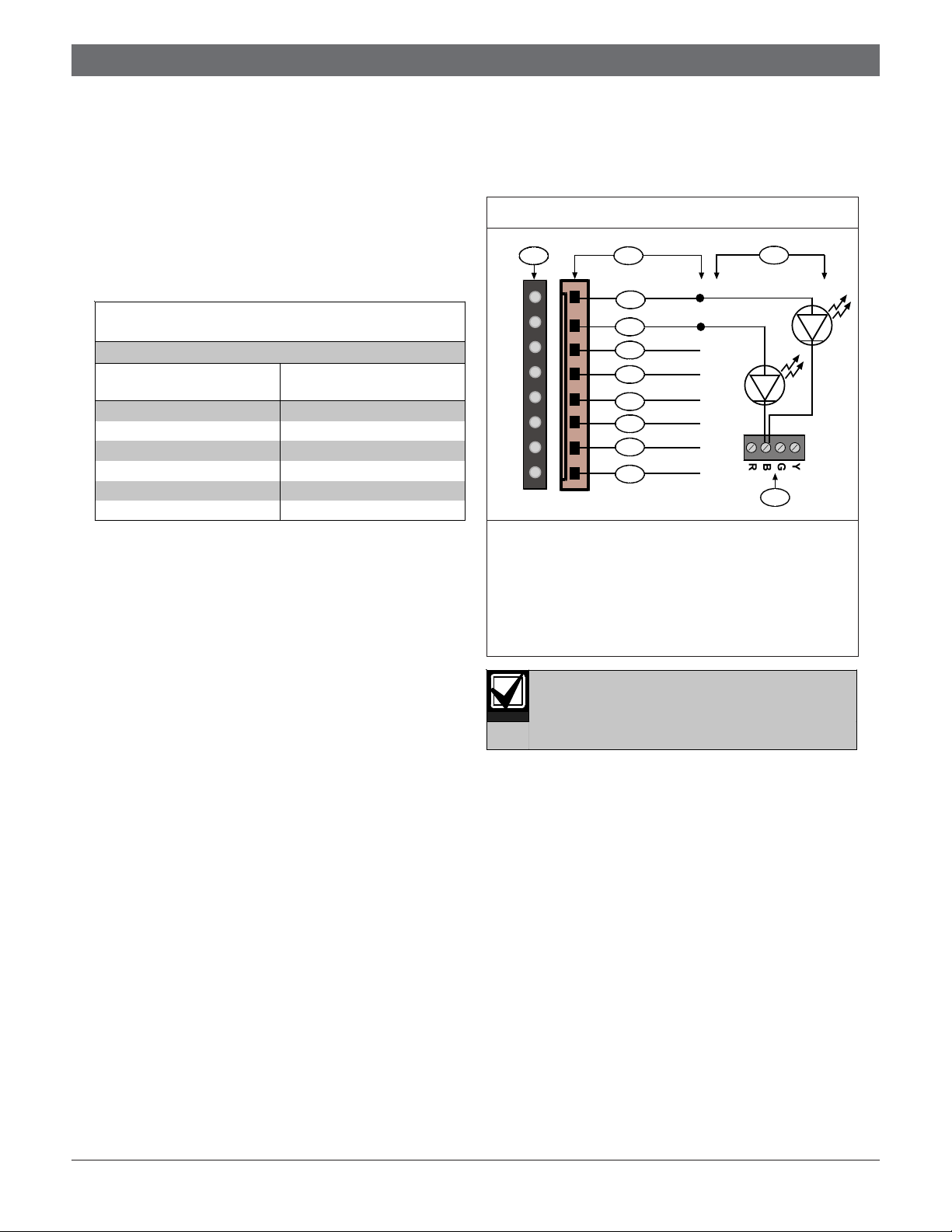

5.0 Adding External LEDs
Add external LEDs for remote indication of the
individual zones by connecting to the remote LED pins
as shown in Figure 5.
The current draw for remote LEDs for any
zone cannot exceed 6 mA.
1
8
1
12
4
5
6
7
8
9
10
11
23
1 - Remote LED pins 7 - Yellow wire
2 - Cable harness 8 - Green wire
3 - Remote LEDs 9 - Blue wire
4 - Brown wire 10 - Violet wire
5 - Red wire 11 - Gray wire
6 - Orange wire 12 - Option bus
Figure 5: External LED Connections
5Bosch | 11/04 | 48176D
D7030X-S8 | Installation Guide | 7.0 Programming
1
2
3
4
5
6
7
8
POWER
ON
SYSTEM
TROUBLE
FIRE SYSTEM
ANNUNCIATOR
TOP
FIRST
FLOOR
SECOND
FLOOR
THIRD
FLOOR
FOURTH
FLOOR
TOP
BASEMENT
GYM ONE
GYM TWO
STORAGE
AREA
1 - Zone 1 5 - Zone 5
2 - Zone 2 6 - Zone 6
3 - Zone 3 7 - Zone 7
4 - Zone 4 8 - Zone 8
Note: All eight zone LEDs are yellow.

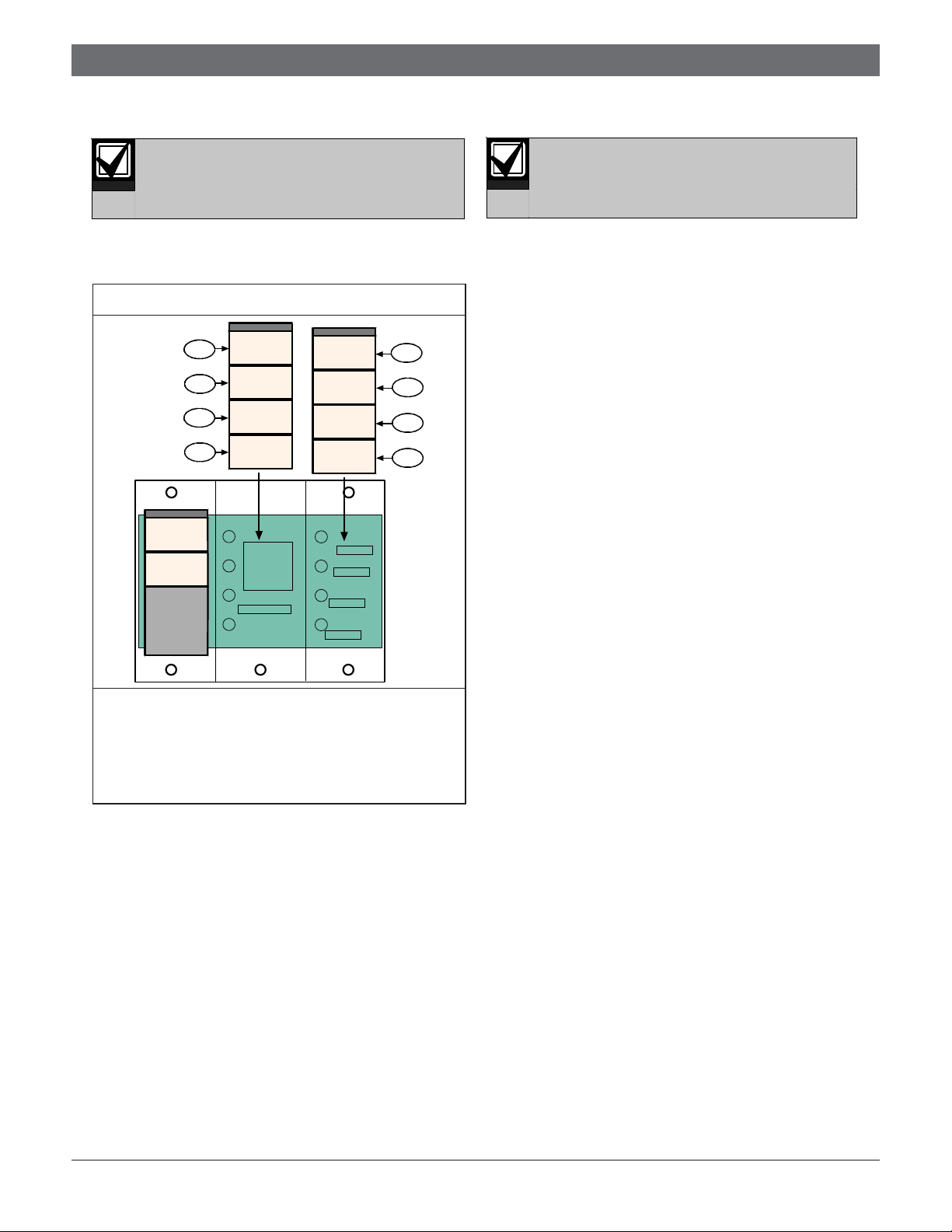

Figure 6: Zone Label Location
6.0 Mounting
Mount the D7030X-S-8 in easily seen
positions at entry locations.
1. Before mounting the D7030X-S8 in a standard
three-gang box, mark the zone labels and insert
them into their respective slots (Figure 6).
2. Set the annunciator in or over the three-gang box.
3. Position the faceplate.
4. Secure the D7030X-S8 to the box using the screws
(supplied).
5. Connect the standby batteries.
6. Close the 120 VAC dedicated breaker controlling
the power input to the control panel.
7.0 Programming
Program the D7030X-S8 by installing
firmware version 2.0 or greater in the FACP.
You can assign program zones to light whenever points
within that zone go into alarm. Do this by assigning an
output zone to each D7030X-S8 input point. For
example, if you assign Output Zone 1 to Input Points 1
through 5, the LED for Output Zone 1 lights when any
input point in this zone goes into an alarm.
1. Press [0/PROG] to enter the Programming Mode.
PROG MODES appears across the top line and the
Programming Menu options scroll across the second
line.
2. Enter a personal identification number (PIN) if a
prompt appears for this information.
3. At the Programming Menu, press [3] for Prog
System.
4. Press [4] for Option Bus.
5. With the D7030X-S8 connected to the option bus,
press [1] for Update Bus.
The FACP indicates a device is added to the option
bus.
6. Press [*/CLEAR] to return to the Programming
Menu.
7. At the Programming Menu, press [4] for Prog
Inputs.
8. Press [1] for Point Number and enter the point
number you want programmed.
9. Press [#/CMND] to accept the entry.
10. Program any supervisory inputs you have to each
zone LED.
11. Press [2] for Output Zone and enter the output zone
for this point.
12. Repeat Steps 6 and 7until all points are
programmed.
13. Press [*/CLEAR] three times to exit the
Programming Menu and return to the Main Menu.
Bosch | 11/04 | 48176D6
D7030X-S8 | Installation Guide | 9.0 Specifications
8.0 Using a D7032 with the D7030X-S8
Each D7030X-S8 processes 16 zones of information. When a D7032 Eight-Zone LED Annunciator Expander is
connected to the D7030X-S8, an additional 8 LED zones appear allowing the D7030X-S8 and D7032 combination to
show a total of 16 LED zones. If no D7032 is attached, only the lower 8 zones appear. Up to 8 D7030X-S8 and
D7032 combinations can connect to the D7024 FACP.
Table 2 identifies the D7030X-S8 and D7032 combinations.
Table 2: D7030x-S8 and D7032 Combinations
D7030X-S8 Zones
Covered
Appears on
D7030X-S8
Appears on
D7032
(if attached)
Comment
1 1 to 16 1 to 8 9 to 16 Combination with lowest option bus address such as
Address 1.
2 17 to 32 17 to 24 25 to 32 Combination with second lowest option bus address such
as Address 2.
3 33 to 48 33 to 40 41 to 48 Combination with third lowest option bus address such as
Address 3.
4 49 to 64 49 to 56 57 to 64 Combination with fourth lowest option bus address such as
Address 4.
5 1 to 16 1 to 8 9 to 16 Fifth combination repeats first combination.
6 17 to 32 17 to 24 25 to 32 Sixth combination repeats second combination.
7 33 to 48 33 to 40 41 to 48 Seventh combination repeats third combination.
8 49 to 64 49 to 56 57 to 64 Eighth combination repeats fourth combination.
Note: The column labeled “Appears on D7030X-S8” applies whether or not the D7032 is connected to any D7030X-S8.
9.0 Specifications
Table 3: Specifications
Operating Voltage 12 VDC nominal
Standby Current 35 mA (27 mA for battery calculation)
Alarm Current 175 mA (132 mA for battery calculation)
Dimensions (H x W x D) 4.5 in. x 6.5 in. x 0.75 in. (11.4 cm x 16.5 cm x 1.9 cm)
Wire Type Non-shielded, four-wire
Maximum Distance Allowed Between
the Control Panel and Annunciators
1000 ft (305 m)
Maximum Distance of Annunciator
Wire for each System
4000 ft (1219 m)
Listings and Approvals UL 864
Number for each System Eight D7030X-S8, eight D7032 maximum
7Bosch | 11/04 | 48176D
D7030X-S8 | Installation Guide | Notes
Notes
Bosch
130 Perinton Parkway
Fairport, NY 14450-9199 USA
Customer Service: (800) 289-0096
Technical Support: (888) 886-6189
© 2004 Bosch
48176D
