Bosch Performance CX 2020 Manuel utilisateur
Via Pontestura 124 Camino 15020 (AL) Italy
Tel. +39 0142 469815
eplus
PERFORMANCE LINE CX - 2020
EN
BOSCH ENGINE
MANUAL VER. 8.03
2. INSTALLATION
INDICE
Attention ............................................................................... pag. 3
Unplug the connectors ....................................................... pag. 3
Activation of the Speed Ulocker ........................................ pag. 9
Data view on the display .................................................... pag. 9
Menu 0,5 ............................................................................. pag. 10
Intuvia ................................................................................ pag. 11
Nyon ................................................................................... pag. 13
Kiox ..................................................................................... pag. 15
Purion ................................................................................. pag. 17
App Eplus ........................................................................... pag. 20
3. INSTALLATION
INSTALLATION
Connection
ATTENTION
It is forbidden by law to activate EPLUS speed unlocker in public places such as streets,
squares and cycling paths. So it is only possible to activate EPLUS speed unlocker in private
places such as circuits and private properties.
The maker denies responsibility due to any damage to pedal assisted bicycles
where Eplus is set up. The maker denies responsibility due to any harm to people or objects.
Unplug the connectors
After removing the protective cover, identify the two plugs of the display (the second
connector from left of 4 wires colored: yellow-green-black-red) and the speed sensor (2
wire plug fully right: black-red).
1
4. INSTALLATION
2
3
Once the cover has been removed, locate the two connectors on the display (black
4-wire connector: yellow-green-black-red) and the speed sensor (gray 2-wire connec-
tor: black-red).
With a long pliers carefully remove the two plugs paying attention not to pinch them
ruining plugs or wires.
5. INSTALLATION
4
Slide the thermoshrinking sheath (enclosed) in the two disconnected wires,
pushing it over the plug.
5
Insert plugs (output cables from the chip) in their respective two sockets
(cables disconnected from the engine) respecting the correct wire color:
DISPLAY PLUG > YELLOW-YELLOW / GREEN-GREEN / BLACK-BLACK / RED-RED
AND SPEED SENSOR PLUG > BLACK-BLACK / WHITE-RED
USE EXTREME ATTENTION TO CORRECTLY ASSEMBLE THE COLORS! CAUTION: WRONG CONNEC-
TION LEADS TO SHORTCIRCUIT, DAMAGES NOT COVERED BY WARRANTY!
6. INSTALLATION
SPEED SENSOR
SOCKET
PEED SENSOR
PLUG
HMI (DISPLAY)
PLUG
HMI (DISPLAY)
SOCKET
TO THE DISPLAY
(HMI) PLUG:
RED => RED
BLACK => BLACK
GREEN => GREEN
YELLOW => YELLOW
(SEE PHOTO 5)
TO THE SPEED
SENSOR PLUG:
BLACK => BLACK
RED => WHITE
(SEE PHOTO 5)
7. INSTALLATION
6
Carefully cover the two plugs with shrink wrap and with a hair dryer or a lighter heat uniformly the
sheath (turning it from right to left) until you have the sheath that takes the shape of the plugs.
Be careful not to burn wires or plugs.
7
8. INSTALLATION

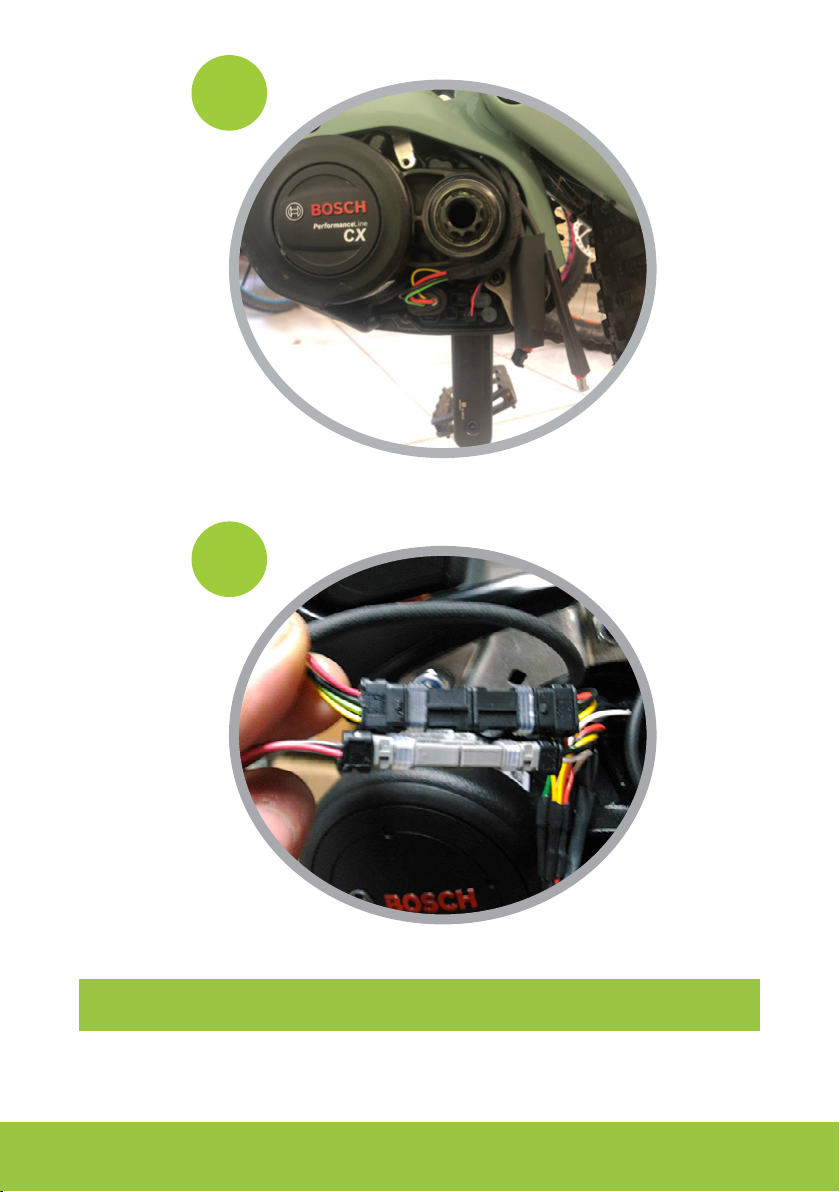

Now connect the two plugs remaining on the chip to the engine, respecting the correct posi-
tion of the colors (display RED WIRE and speed sensor WHITE WIRE get to the RIGHT), push
the connectors rmly to the end; CAUTION: WRONG CONNECTION LEADS TO SHORTCIRCUIT,
DAMAGES NOT COVERED BY WARRANTY!
8
9
Possibly arrange the cables with electrician clamps paying attention that there are no wires in
correspondence with holes where cover’s screws are.
9. INSTALLATION
The engine unlock at 25 km / h is activated by pressing the Walk button on
the on-board computer. The activation button can be changed (see pag. 9).
The display will show the value 2.2 if the unlock has been activated and 1.1 if
it is deactivated.
Racing Speed Unlocker/Advanced is compatible with Purion, Nyon and Intu-
via displays.
If you have Intuvia or Nyon displays, for correct operation follow the instruc-
tions on page. 9/10.
RACING MODE
ACTIVATION OF
THE SPEED UNLOCK
DATA VIEW ON THE DISPLAY
Purion: correct speed, correct km done
Intuvia: correct speed, correct km done, total km 00
Nyon: correct speed, km done with unlock activated halved
Kiox: correct speed, correct km done
The battery life indicated is statistical, to obtain a correct value it is necessary
to make a few km with the unlock on.
10. INSTALLATION
YOUTUBE VIDEO:
https://youtu.be/q-WgL76yRss
For changes to the factory settings
The SPEED UNLOCKER chip, factory mode, is set to be switched on / o using the WALK button
and calibrated for 27.5 “wheels (2170 mm in circumference) and to be used with Purion/Nyon
Display.
MENU 0.5
