Bosch WTW87568SN Manuel utilisateur

en Installation and operating instructions

Tumble dryer

WTW87568SN

Your new tumble dryer

You have opted for a tumble dryer

manufactured by Bosch.

Please take a few minutes to read and

become familiar with the advantages of

your tumble dryer.

To meet the high quality demands

required by Bosch, every tumble dryer

that leaves our factory is carefully

checked to ensure that it functions

correctly and is in perfect condition.

For more information on our products,

accessories, replacement parts and

services, see our website www.bosch-

home.com or contact our Customer

Service centres.

If the operating and installation

instructions describe different models,

any differences will be pointed out at the

relevant points in the text.

Read these operating and installation

instructions before operating the tumble

dryer.

Display rules

:Warning!

This combination of symbol and signal

word indicates a possibly dangerous

situation. Not heeding the warning can

cause death or injuries.

Caution!

This signal word indicates a possibly

dangerous situation. Not heeding the

caution can cause property and/or

environmental damage.

Note/tip

Information about the optimum use of

the appliance/any other useful

information.

1. 2. 3. / a) b) c)

The steps are represented by numbers

or letters.

■/ -

Lists are represented by a small box or

a dash.

Contents

en Installation and operating instructions

8Intended use. . . . . . . . . . . . . . . . .4

(Safety instructions . . . . . . . . . . .4

Electrical safety. . . . . . . . . . . . . . . . . . 4

Safety for children. . . . . . . . . . . . . . . . 4

Appliance safety . . . . . . . . . . . . . . . . . 5

7Environmental protection . . . . . .6

Packaging/old appliance . . . . . . . . . . 6

Coolant . . . . . . . . . . . . . . . . . . . . . . . . 6

Energy-saving tips. . . . . . . . . . . . . . . . 6

YThe main points in brief . . . . . . .7

*Getting to know your appliance .8

Dryer. . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control panel . . . . . . . . . . . . . . . . . . . 9

Display panel . . . . . . . . . . . . . . . . . . 10

ZLaundry . . . . . . . . . . . . . . . . . . .11

Preparing the laundry . . . . . . . . . . . . 11

Sorting washing according to: . . . . . 11

/Programmes and buttons . . . . .12

Programmes . . . . . . . . . . . . . . . . . . . 12

Buttons . . . . . . . . . . . . . . . . . . . . . . . 14

1Operating the appliance . . . . . .15

Loading laundry and switching on the

dryer . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting a programme . . . . . . . . . . . . 15

Starting the programme . . . . . . . . . . 15

Programme sequence . . . . . . . . . . . 15

Changing the programme or adding

laundry . . . . . . . . . . . . . . . . . . . . . . . 16

Cancelling the programme . . . . . . . . 16

Programme end . . . . . . . . . . . . . . . . 16

Removing laundry and switching

off the dryer . . . . . . . . . . . . . . . . . . . 16

Clean the fluff filter . . . . . . . . . . . . . . 16

Emptying the

condensate container . . . . . . . . . . . . 17

MSignal setting. . . . . . . . . . . . . . . 19

>Noises . . . . . . . . . . . . . . . . . . . . 20

DCleaning . . . . . . . . . . . . . . . . . . . 20

Cleaning the dryer and the

control panel . . . . . . . . . . . . . . . . . . .20

Cleaning the moisture sensor . . . . . .21

Cleaning the filter in the

condensate container . . . . . . . . . . . .21

3Faults and what to do

about them . . . . . . . . . . . . . . . . . 22

JAfter-sales service . . . . . . . . . . 24

[Consumption values. . . . . . . . . 25

Consumption values table . . . . . . . . .25

Most efficient programme for cotton

fabrics . . . . . . . . . . . . . . . . . . . . . . . .25

JTechnical data . . . . . . . . . . . . . . 26

5Installation and connection . . . 26

Scope of delivery. . . . . . . . . . . . . . . .26

Installing and connecting the dryer . .26

Optional accessories. . . . . . . . . . . . .27

Transport and frost protection . . . . . .27

en Intended use

8Intended use

Intended use

The dryer should:

■Not be operated in outdoor areas,

■Be operated for domestic use only

and

■Only be used for drying and

refreshing fabrics that are labelled

as suitable for tumble-drying on the

care label.

■The dryer can be operated by

children 8 years old and older, by

persons with reduced physical,

sensory or mental abilities and by

persons with insufficient experience

or knowledge if they are supervised

or have been instructed in its use by

a responsible adult.

■Keep children under three years of

age away from the dryer.

■Do not allow children to clean or

carry out maintenance work on the

dryer unsupervised.

■Keep pets away from the dryer.

(Safety instructions

Safety instructions

Electrical safety

:Warning

Risk of death!

There is a risk of electric shock

as the dryer is operated with

electricity.

You should therefore observe

the following:

■Never touch or hold the

mains plug with wet hands.

■Only pull out the mains cable

directly at the plug and never

by the cable, as this could

damage it.

■Do not use extension cables,

multiple plugs or connectors.

■Only have the mains cable

replaced by our after-sales

service.

Safety for children

:Warning

Risk of death or injury!

You should therefore observe

the following:

■Do not leave the dryer

unattended when children or

other people who cannot

assess the risks are nearby.

■Do not let children play with

the dryer.

■Children may become

entangled in packaging or

film if allowed to play with

them, or they may pull them

over their heads and

suffocate. Keep packaging,

packaging parts and film out

of the reach of children.

■Children may lock

themselves in the dryer.

Therefore, when an

appliance has reached the

end of its service life, unplug

it from the mains, cut through

the mains cable and destroy

the lock on the dryer door.

Safety instructions en

Appliance safety

:Warning

Danger of death!

■Do not use the dryer if

industrial chemicals have

been used to clean it.

■Laundry that has come into

contact with solvents, oil,

wax, wax remover, paint,

grease or stain remover may

ignite or cause an explosion

when drying is in progress.

Before drying, wash the

laundry in hot water with

detergent.

■Coal dust or flour in the area

around the dryer may cause

an explosion.

■Only replace defective

components with genuine

spare parts.

Caution!

Risk of material damage to the

dryer or fabrics.

■Only use the dryer for drying

and freshening up fabrics at

home and for fabrics that

have been washed with

water and are suitable for

tumble-drying.

Any other use is not

considered intended use and

is prohibited.

■Foamed material or foam

rubber may become

deformed or melt during

drying. Do not dry any

laundry that contains foamed

material or foam rubber.

■Do not lean or sit on the

dryer door, as the dryer may

tip over.

■Loose cables or hoses may

cause you to trip. Avoid

tripping hazards.

■Light things, such as hair,

may be sucked into the air

inlet while drying is in

progress; keep these away

from the dryer.

■Heat is not added during the

last part of the drying cycle

(cooling cycle), to ensure

that the laundry remains at a

temperature that will not

damage it.

en Environmental protection

7Environmental

protection

Environmental protection

Packaging/old appliance

)

Dispose of packaging in an

environmentally-responsible manner.

This appliance is designated according

to European directive 2012/19/EC

which governs waste electrical and

electronic equipment (WEEE).

The directive provides a framework for

the collection and recycling of old

appliances, which is valid across the

EU.

Coolant

The heat exchanger in the dryer

contains a fluorinated greenhouse gas

covered by the Kyoto protocol.

Dispose of the dryer properly.

Energy-saving tips

■Spin the laundry before drying. The

drier the laundry, the shorter the

drying time will be, thus consuming

less energy.

■Load the dryer with the maximum

load.

Note: Do not exceed the maximum

load for the programs, as this

prolongs the drying time and

increases energy consumption.

■Ventilate the room and keep the air

inlet on the dryer free to ensure air

exchange.

■Clean the fluff filter after each drying

cycle. If the fluff filter is dirty, the

drying time is prolonged and energy

consumption is increased.

■Energy saving mode: If the dryer is

not operated for a prolonged period,

it automatically switches off before

the program starts and when the

program has ended to save energy.

The display panel and indicator

lamps go off after a few minutes and

the Start button flashes. To activate

the lighting, press any button, open

or close the dryer door or turn the

program selector.

Greenhouse gas: R407c

Capacity (g): 385

GWP (kgCO2/kgRefrig): 1653

Total GWP (kgCO2): 636.4

The main points in brief en

YThe main points in brief

The main points inbrief

--------

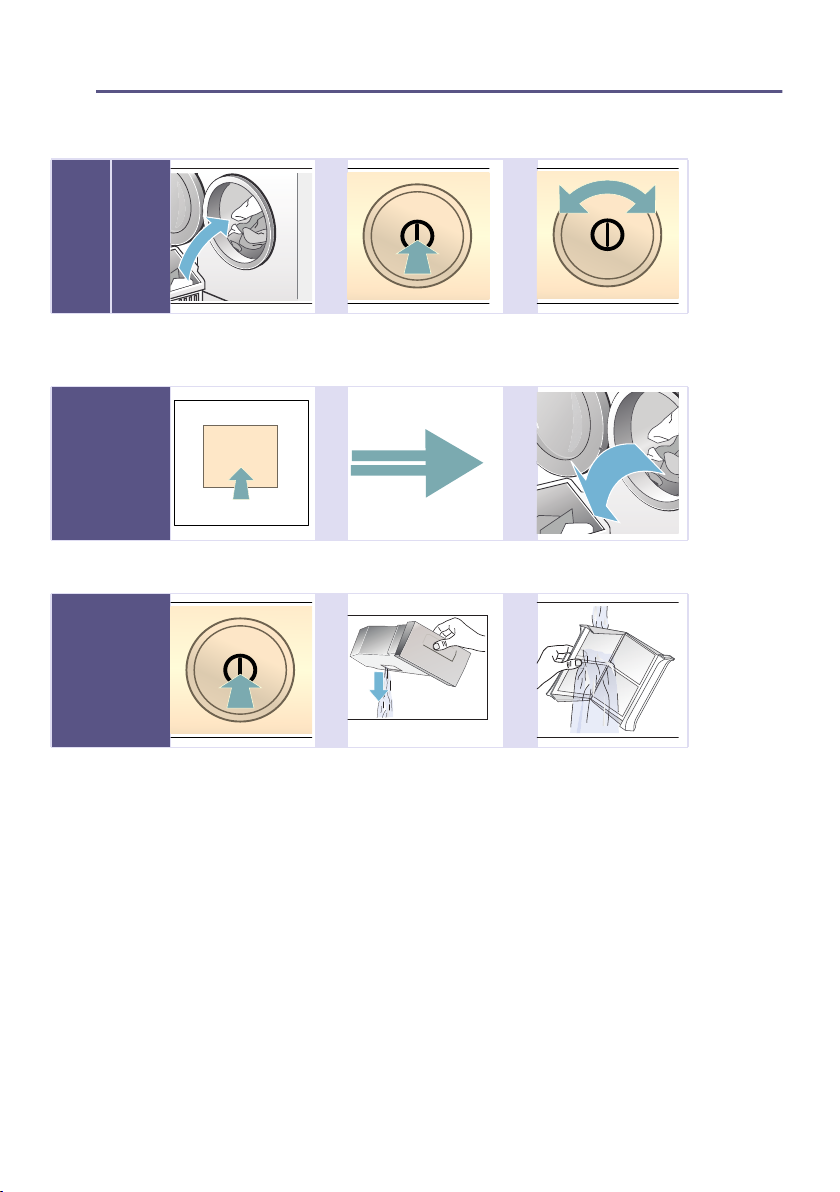

1@ @

Load the laundry and

close the door.

Switch the dryer on. Select a programme and, if

necessary, adjust the

programme default settings.

2@ @

Select

the start button A.

Dry. Remove the laundry.

3@ @

Switch the dryer off. Empty the

condensate

container.

Clean the fluff filter.

en Getting to know your appliance

*Getting to know your appliance

Getting toknow your appliance

Dryer

* Depending on the model







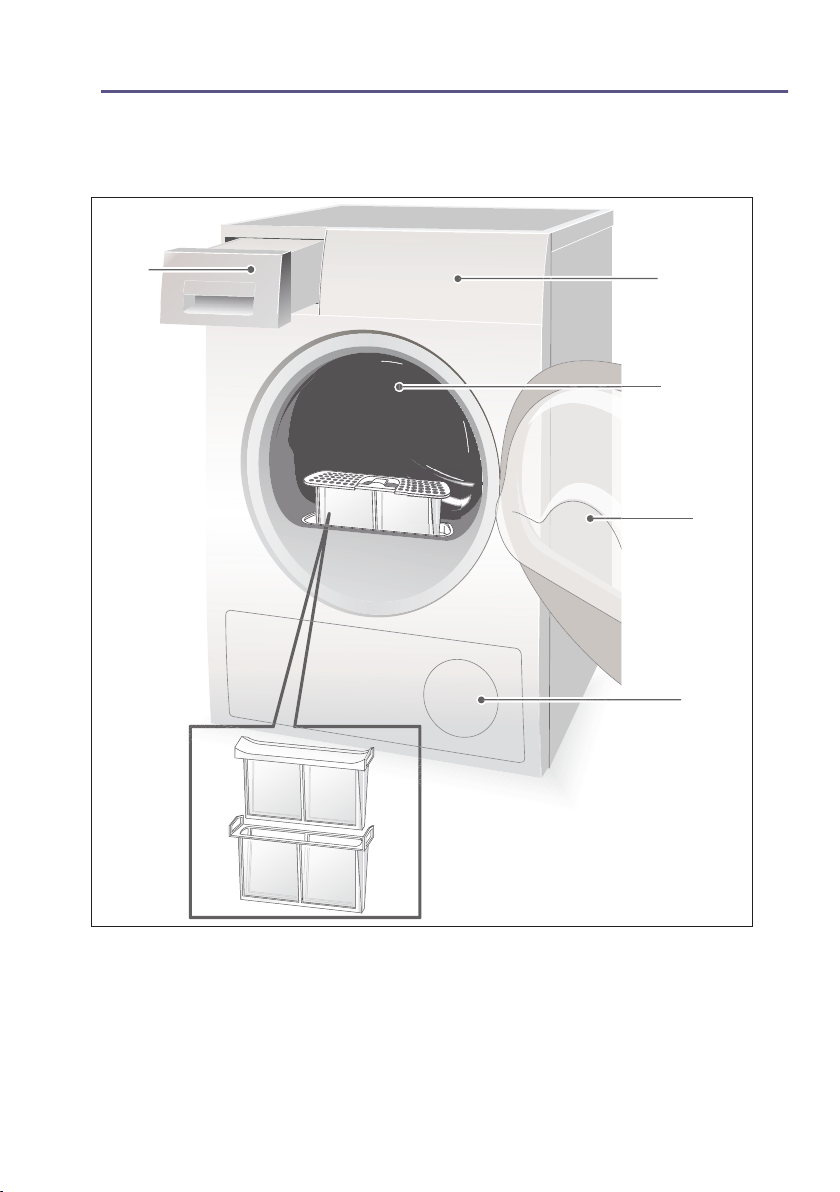

(Condensate container

0Control and display panel

8Drum interior light*

@Dryer door

HAir inlet

PFluff filter

Getting to know your appliance en

Control panel

Note: All buttons are sensitive and only need to be touched briefly.





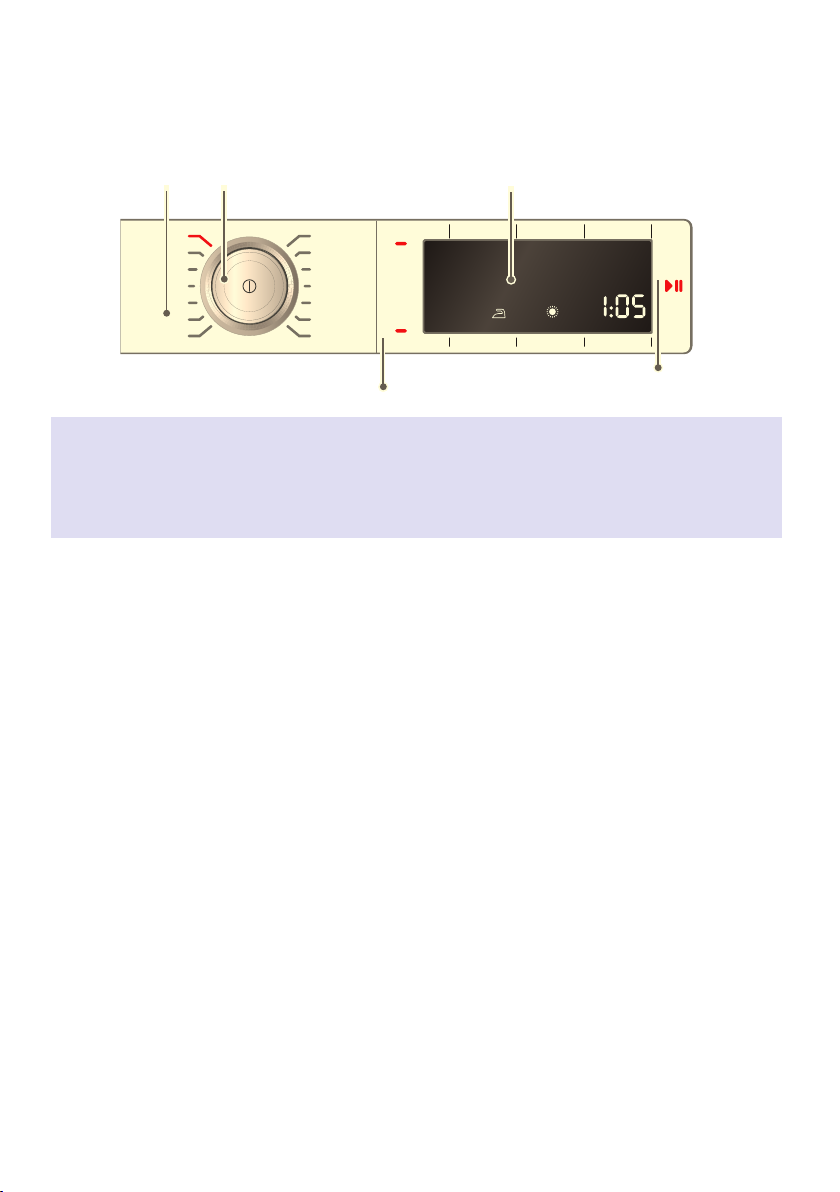

(Programmes.

0Programme selector and On/Off

button

8Display panel with buttons

~Page 12.

@Start button for starting, interrupting

or cancelling the programme.

HButtons~Page 14.

en Getting to know your appliance

Display panel

Buttons on the display panel

(Selects the childproof lock.

0Selects Anti-Crease.

8Selects Anti-Crease.

@Selects Low-Heat Drying.

HSwitches the audible signal on or off.

PAdjusts the dryness level.

XThe degree of dryness finely adjusts

the dryness levels.

`- Ready in + delays the start of the pro-

gramme.

For a detailed description of all buttons, see

~Page 14 onwards.

#

3;C

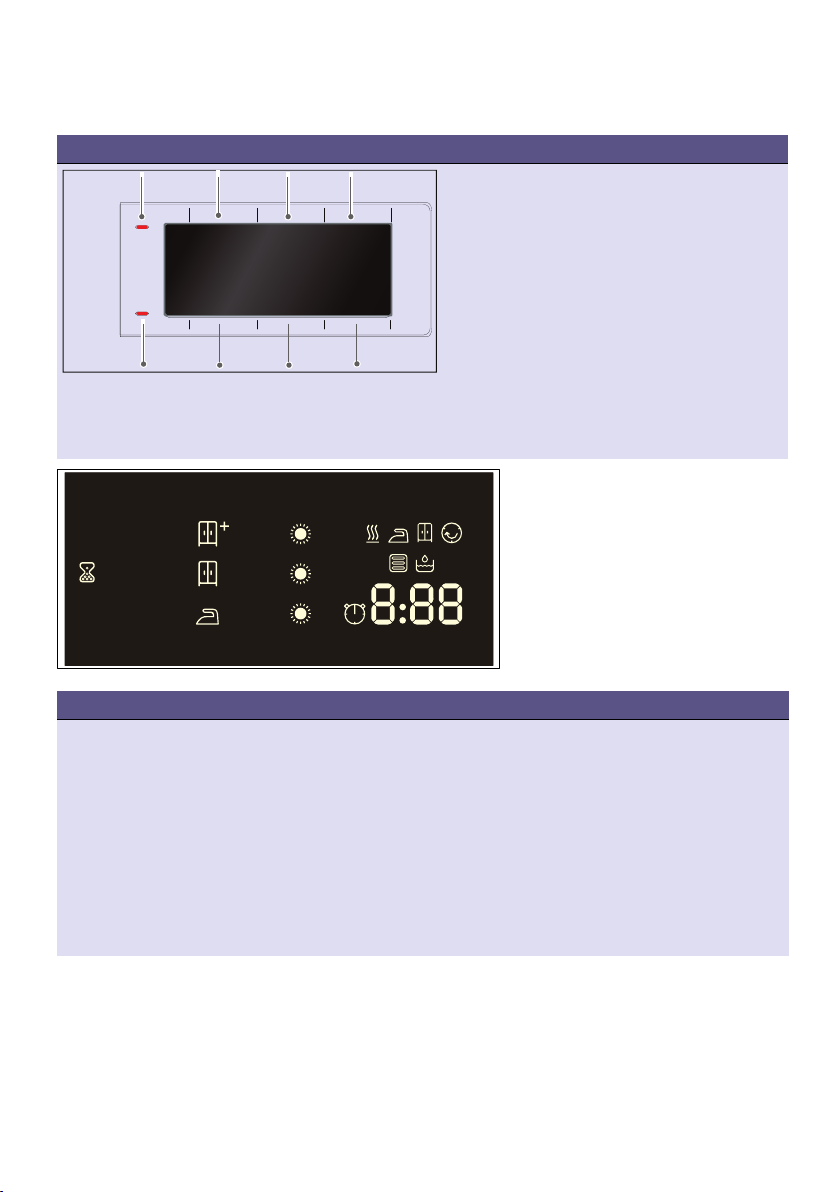

Display panel

ö e e+: Dryness levels.

ˆˆˆ: Fine adjustment for the degree of dryness.

„: Timed programme selected .

1:47: Expected programme duration in hours and minutes.

3 h: Programme delay in hours when "Ready in" time is selected.

ð: Empties the condensate container; ~Page 17.

é: Cleans the fluff filter; ~Page 16.

’: The heat exchanger is cleaned automatically.

eö e Q- ‹- - ˜-: Programme progress: Dry; Iron Dry; Cupboard Dry; Anti-Crease; End and Pause.

Autres manuels pour WTW87568SN

Table des matières

Autres manuels Bosch Séchoir

Bosch

Bosch WQG245C0BY Manuel utilisateur

Bosch

Bosch WTMC332RCN Guide d'installation

Bosch

Bosch WQG245DCFG Instructions d'utilisation et d'entretien

Bosch

Bosch WQG233D8GB Manuel utilisateur

Bosch

Bosch WTW86560AU Guide de configuration

Bosch

Bosch WTU87RHOOW Manuel utilisateur

Bosch

Bosch WTW85430IL Manuel utilisateur

Bosch

Bosch WTW85491GB Manuel utilisateur

Bosch

Bosch WTMC 652SUC Guide d'installation

Bosch

Bosch WTX8HKL9SN Manuel utilisateur

Bosch

Bosch WTW85471GB Manuel utilisateur

Bosch

Bosch WQA254D00W Manuel utilisateur

Bosch

Bosch WTG8640SGC Manuel utilisateur

Bosch

Bosch Nexxt 700 Series Guide d'installation

Bosch

Bosch WTM85260SG Manuel utilisateur

Bosch

Bosch WTM8327SZA Manuel utilisateur

Bosch

Bosch WTG8640XIR Manuel utilisateur

Bosch

Bosch WTH85V10GC Manuel utilisateur

Bosch

Bosch WTG86260ES Manuel utilisateur

Bosch

Bosch WTG8640XME Manuel utilisateur

Bosch

Bosch WTH83VP6SN Manuel utilisateur

Bosch

Bosch WTMC5521 Manuel utilisateur

Bosch

Bosch WTW85530EE Manuel utilisateur

Bosch

Bosch Nexxt 100 Series Guide d'installation

Manuels Séchoir populaires d'autres marques

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Sharp

Sharp KD-NHH9S7GW2-PL Manuel utilisateur
