Bosch SHP68TL5UC Manuel utilisateur

Installation Instructions

Notice d’installation

Instrucciones de instalación

9000 965 903 Rev D (9412)

To avoid possible injury or property damage, OBSERVE ALL WARNINGS

AND CAUTIONS.

These instructions are intended for use by qualied installers only. The

dishwasher must be installed by a qualied service technician or installer.

• In addition to these instructions, the dishwasher shall be installed to

meet all electrical and plumbing codes and ordinances (both national

and local).

Read these installation instructions completely and follow them

carefully. They will save you time and effort and help to ensure safety and

optimum dishwasher performance.

IMPORTANT

• The dishwasher drain hose must be installed with a portion of it at least

20″ (508 mm) off the cabinet oor; otherwise the dishwasher may not

drain properly.

• This dishwasher is intended for indoor residential use only, and should

not be used in commercial food service establishments.

• This dishwasher is designed to be enclosed on the top and both sides

by cabinetry.

• NEW INSTALLATION - If the dishwasher is a new installation, ensure

all connections are properly made before the dishwasher is moved into

place.

• REPLACEMENT - If the dishwasher is replacing another dishwasher,

check the existing dishwasher connections for compatibility with the

new dishwasher, and replace parts as necessary.

• This appliance has been found to be in compliance with CAN/CSA-C22.2

No. 167/UL 749. It is the responsibility of the owner and the installer

to determine if additional requirements and standards apply in specic

installations.

• Not for outdoor use.

Inspect the Dishwasher

After unpacking the dishwasher and prior to installation, thoroughly inspect

the dishwasher for possible freight or cosmetic damage. Report any

damage immediately. Cosmetic defects must be reported within 30 days

of installation.

NOTE: Do not discard any bags or items that come with the original package

until after the entire installation has been completed.

Important Safety Instructions:

Please READ and SAVE this information

Avoiding General Hazards

Do not use the dishwasher until it is completely installed. When opening

the door on an uninstalled dishwasher, carefully open the door while

supporting the rear of the unit. Failure to follow this warning can cause the

dishwasher to tip over and result in serious injury.

Before installing the supplied counter top mounting brackets, decide which

method will be used to secure the dishwasher into its opening. Once these

mounting brackets are installed on the dishwasher, removing them is dif-

cult and will damage the mounting brackets and the dishwasher.

In some conditions, hydrogen gas can form in a hot water system that

has not been used for weeks. Hydrogen gas is explosive. Before lling a

dishwasher from a system that has been off for weeks, run the water from

a nearby faucet in a well ventilated area until there is no sound or evidence

of gas.

Removing any cover or pulling the dishwasher from the cabinet can

expose hot water connections, electrical power and sharp edges or points.

Handle with care.

Avoiding Electrical Shock/Fire Hazards

Do not work on an energized circuit. Doing so could result in serious

injury or death. Only qualied electricians should perform electrical work.

Do not attempt any work on the dishwasher electric supply circuit until

you are certain the circuit is de-energized.

Make sure electrical work is properly installed. There should be no loose

electrical connections. Ensure all electrical connections are properly

made.

The customer has the responsibility of ensuring that the dishwasher

electrical installation is in compliance with all national and local electrical

codes and ordinances. The dishwasher is designed for an electrical supply

of 120 V, 60 Hz, AC, connected to a dishwasher-dedicated, properly

grounded electrical circuit with a fuse or breaker rated for 15 amps.

Electrical supply conductors shall be a minimum #14 AWG copper only

wire rated at 75°C (167°F) or higher.

WARNING

This appliance must be connected to a grounded metal, permanent wiring

system, or an equipment-grounding conductor must be run with the circuit

conductors and connected to the equipment-grounding terminal or lead on

the appliance. Do not use extension cords.

Avoiding Plumbing/Scalding Hazards

Do not perform any work on a charged hot water line. Serious injury could

result. Only qualied plumber should perform plumbing work. Do not

attempt any work on the dishwasher hot water supply plumbing until you

are certain the hot water supply is shut off.

Properly tighten all water connections. Not doing so could result in a leak.

Temperatures required for soldering and sweating will damage the dish-

washer’s base and water inlet valve. If plumbing lines are to be soldered

or sweated, keep the heat source at least 6″ (152.4 mm) away from the

dishwasher.

Check local plumbing codes for approved plumbing procedures and ac-

cessories. All plumbing should be done in accordance with national and

local codes.

If using copper tubing or other material not depicted in this manual for

water supply, defer to a licensed plumber for proper installation.

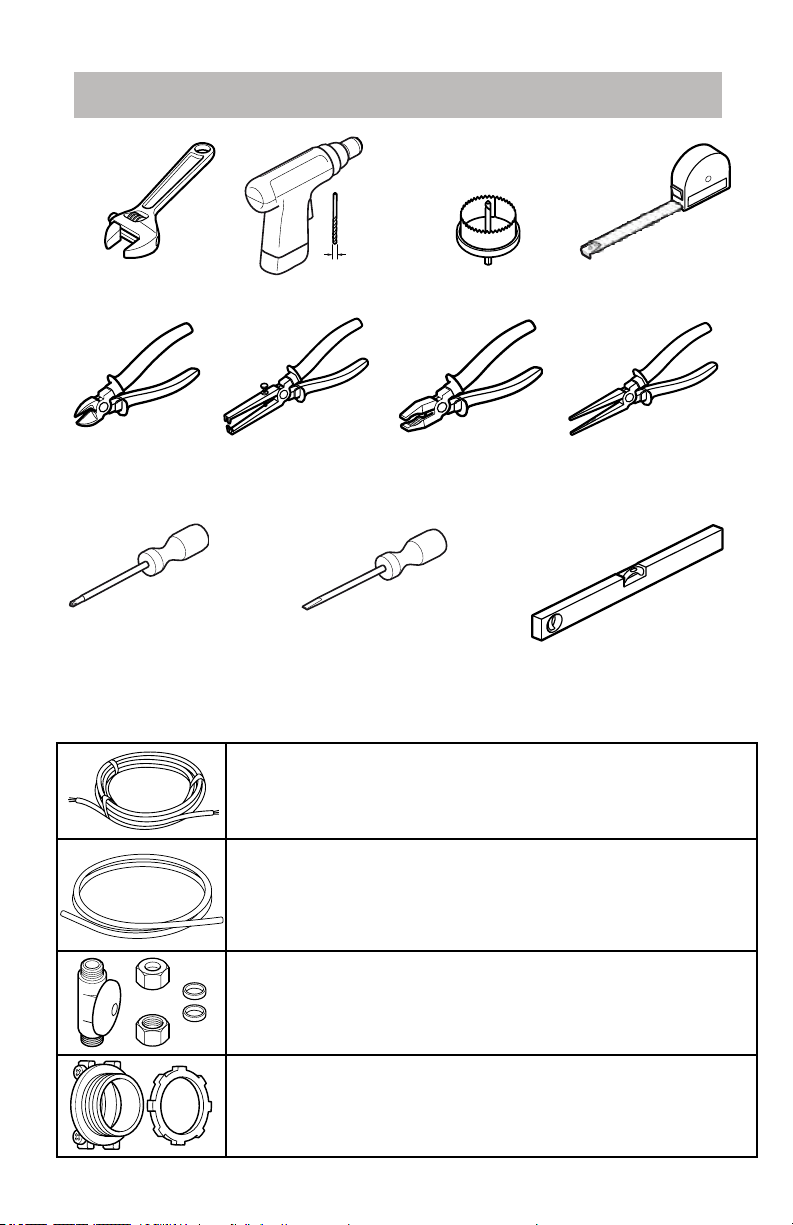

Electrical Supply Cable - Minimum #14 AWG, 2 conductor,

1 ground, insulated copper conductors rated 75°C or higher

Only needed if house electrical line is not adequate.

Hot Water Supply Line - Minimum 3/8″ O.D. copper tubing

or metal braided dishwasher supply line

Only needed if house water supply line is not sufcient.

Shut-off valve and ttings appropriate for hot water supply

line (copper tubing/compression tting, or braided hose)

UL listed conduit connector or strain relief is required if you

attach the eld wiring directly to the terminal block

Tools and Materials Needed

Adjustable Wrench



Tape Measure

Wire Cutter Needle Nose Pliers

Pliers

Slot Screwdriver Level

Wire Stripper

Drill







Hole Saw

Phillips Screwdriver

Materials supplied (all models)

Screw Clamp (for drain hose)

Junction Box

Edge Protector

Mounting Brackets

Mounting Bracket Screws Ø 4x13 mm

Adhesive Backed Cord Clip

Materials supplied (model dependent)

Slotted Toe Panel (model dependent)

Installation Guide for Fully Integrated

Door Panel (model dependent)

Slotted Toe Panel Screws Ø 4x16 mm

(model dependent)

Non-Slotted Toe Panel (model dependent)

Non-Slotted Toe Panel Screws (model

dependent) - Black or silver depending on

toe panel color

Toe Panel Mounting Brackets

(model dependent and only used with

non-slotted toe panel shown above)

Non-Slotted Toe Panel (model dependent)

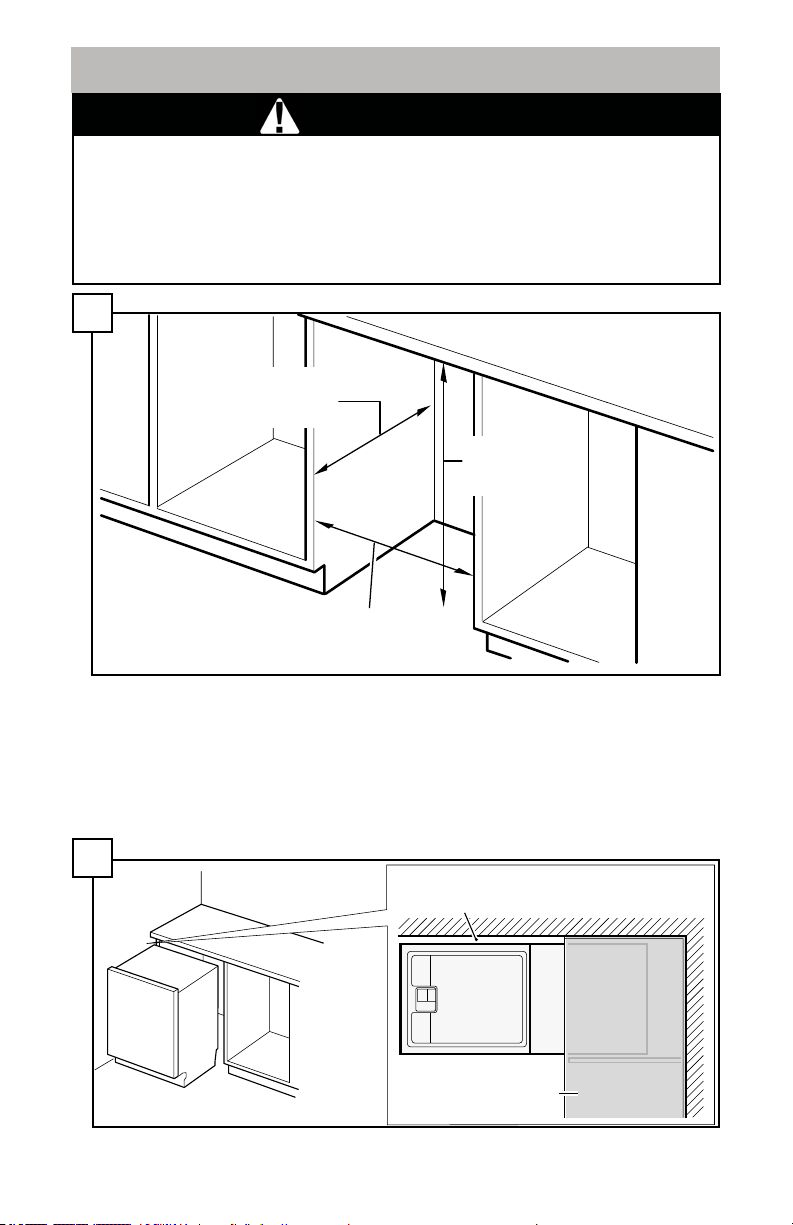

Enclosure Requirements

Avoid Scalding or Electrical Shock Hazard!

Make sure the water supply and electrical supply are shut off before

installation or service.

Avoid Electrical Shock/Fire Hazard!

Do not allow the electrical and supply lines to touch.

WARNING

Note: This dishwasher is designed to be enclosed on the top, back and

both sides by standard residential kitchen cabinetry.

Select a location as close to the sink as possible for easy access to water

supply and drain lines.

For proper dishwasher operation and appearance, ensure that the

enclosure is square and has the dimensions shown.

If the dishwasher is to be installed in a corner, ensure that there is

adequate clearance to open the door as shown.

min 34"

(864 mm)

min 24"

(610 mm)

5/8

"- 24

1/4

(600 - 616 mm)











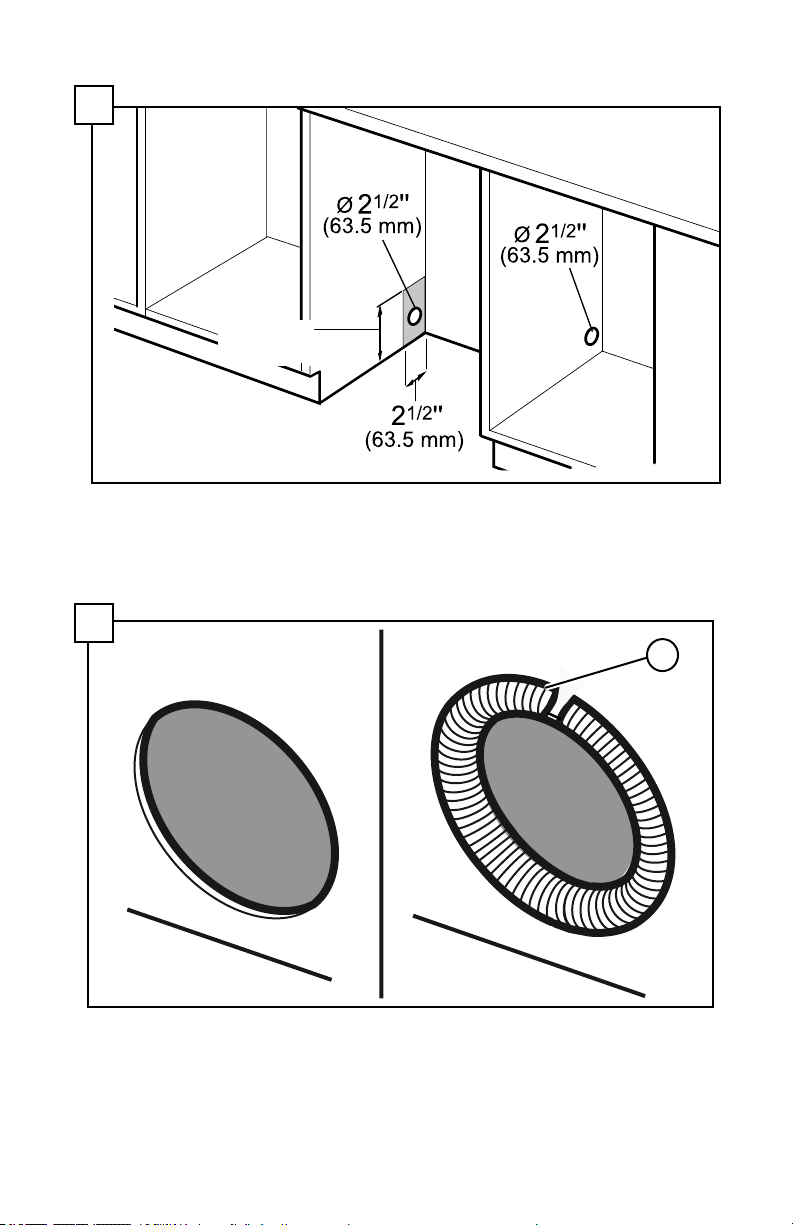

After locating the proper place for your dishwasher, create required

openings in your cabinets in order to allow for water, drain and electrical

lines on the appropriate side. The holes should be cut within the 4x2.5”

area shown.

(177.8 mm)

If the opening is made through wood, sand it smooth. If the opening is

made through metal, use the provided edge protector (B) or other approved

method to protect wiring from damage.
