en UL Installation manual

Control panels Table of contents | en 3

Bosch Security Systems B.V. UL Installation manual 2019-12 | 10 | F.01U.287.185

Table of contents

1Introduction 4

1.1 About documentation 4

1.1.1 Related documentation 4

1.2 Bosch Security Systems, Inc. product manufacturing dates 5

2System overview 6

2.1 Parts list 6

2.2 Control panel capacities 6

3Control panel installation 7

3.1 Installing the enclosure and wiring label 7

3.2 Installing the control panel 7

3.2.1 Earth ground 9

3.2.2 OUTPUT A jumper 9

3.3 Control panel to module wiring overview 9

4Power supply 11

4.1 Primary (AC) power 11

4.2 Secondary (DC) power 11

4.2.1 Install the battery 11

4.2.2 Battery maintenance 13

4.2.3 Battery supervision 13

4.2.4 Battery discharge and recharge schedule 13

4.3 B520 aux power supply 13

4.3.1 SDI2 address settings 14

4.3.2 Supervision 14

4.3.3 Auxiliary power supply trouble conditions 14

4.3.4 Installation and control panel wiring (B520) 14

4.3.5 Powered device and battery wiring 16

5On-board outputs 19

5.1 Circuit protection 19

5.2 Total available power 19

5.3 Open collector outputs 20

6Control panel board overview 21

7System wiring diagrams 22

7.1 System wiring overview 22

7.2 Battery lead supervision wiring 23

7.3 2-wire smoke wiring (B201) 24

7.4 2-wire smoke wiring (D125B) 25

7.5 Input point wiring, dual EOL resistor circuit style 26

7.6 Notification appliance circuit wiring 26

7.7 Keyswitch wiring 28

7.8 SDI2 devices general system wiring 28

7.8.1 SDI2 bus wiring recommendations 29

7.9 Wiring label 32

8Specifications 33

8.1 Wire requirements 34

4en | Introduction Control panels

2019-12 | 10 | F.01U.287.185 UL Installation manual Bosch Security Systems B.V.

1 Introduction

This section includes an introduction to documents for this product and other document-

related instructions.

1.1 About documentation

This document has instructions for a trained installer to install, configure, and operate this

control panel, and optional peripheral devices.

(Bosch Security Systems, Inc. recommends that installers follow good wiring practices such as

those described in NFPA 731, Standard for the Installation of Electronics Premises Security

Systems.)

Throughout this document, the words “control panel” refer to all control panels covered by

this document (B6512/B5512/B5512E/B4512/B4512E/B3512/B3512E).

Notifications

This document uses Notices, Cautions, and Warnings to draw your attention to important

information.

Notice!

These include important notes for successful operation and programming of equipment, or

indicate a risk of damage to the equipment or environment.

Caution!

These indicate a hazardous situation which, if not avoided, could result in minor or moderate

injury.

Warning!

These indicate a hazardous situation which, if not avoided, could result in death or serious

injury.

This document is the intellectual property of Bosch Security Systems, Inc. and is protected by

Trademarks

All hardware and software product names used in this document are likely to be registered

trademarks and must be treated accordingly.

1.1.1 Related documentation

Control panel documents

Control Panels (B6512/B5512/B4512/B3512) Release Notes*

Control Panels (B6512/B5512/B4512/B3512) Installation Manual+

Control Panels (B9512G/B8512G/B6512/B5512/B4512/B3512) Operation Manual* +

Control Panels (B5512/B4512/B3512) Program Entry Guide+

Control Panel (B6512) Program Entry Guide

Control Panels (B6512/B5512/B4512/B3512) UL Installation Manual* +

Control panels Introduction | en 5

Bosch Security Systems B.V. UL Installation manual 2019-12 | 10 | F.01U.287.185

Control Panels (B6512/B5512/B4512/B3512) SIA Quick Reference Guide* +

Control Panels (B9512G/B8512G/B6512/B5512/B4512/B3512) ULC Installation Manual*

*Shipped with the control panel.

+Located on the documentation CD shipped with the control panel.

Keypad documents

Basic Keypad (B915) Installation Guide*

Two-line Alphanumeric Keypad (B920) Installation Guide*

Two-line Capacitive Keypad with Inputs (B921C) Installation Guide*

ATM Style Alphanumeric Keypad (B930) Installation Guide*

B940W Touch screen KP, White Quick installation guide*

Touch Screen Keypad (B942/B942W) Installation Guide*

*Shipped with the keypad.

Optional module documents

2-wire Powered Loop Module (B201) Installation and Operation Guide*

Octo-input Module (B208) Installation and Operation Guide*

Octo-output Module (B308) Installation and Operation Guide*

Conettix Ethernet Communication Module (B426) Installation and Operation Guide* +

Plug-in Telephone Communicator (B430) Installation Guide Installation Guide*

Conettix Plug-in GPRS Cellular Communicator (B442) Installation and Operation Guide*

Conettix Plug-in HSPA+ Cellular Communicator (B443) Installation and Operation Guide*

Conettix Cellular Communicators B44x Installation Manual

Conettix Plug-in cellular module VZW LTE B444/B444-C Installation Manual*

B444‑A | B444‑V Quick installation guide*

Conettix Plug-in Communicator Interface (B450) Installation and Operation Guide* +

Auxiliary Power Supply (B520) Installation and Operation Guide*

RADION receiver SD (B810) Installation Guide*

SDI2 Inovonics Interface Module (B820) Installation Guide*

*Shipped with the module.

+Located on the documentation CD shipped with the module.

1.2 Bosch Security Systems, Inc. product manufacturing dates

Use the serial number located on the product label and refer to the Bosch Security Systems,

Inc. website at http://www.boschsecurity.com/datecodes/.

6en | System overview Control panels

2019-12 | 10 | F.01U.287.185 UL Installation manual Bosch Security Systems B.V.

2 System overview

This section has the following information:

–Parts list, page 6

–Control panel capacities, page 6

– Accessories

– Features

2.1 Parts list

Control panels ship assembled from the factory with the following parts:

Literature

–Control Panels (B6512/B5512/B4512/B3512) UL Installation Manual

–Control Panels (B6512/B5512/B4512/B3512) Operation Manual

–Control Panels (B6512/B5512/B4512/B3512) SIA Quick Reference Guide

–Control Panels (B6512/B5512/B4512/B3512) Documentation CD

–Enclosure Wiring Label (B6512/B5512/B4512/B3512)

HW pack

– Mounting clips

– 1 kΩ EOL resistors

– Battery wires

– Four #6 x 3/4 in self threading screws

Assembly

– PC board

2.2 Control panel capacities

Features B6512 B5512/

B5512E

B4512/

B4512E

B3512/

B3512E

Number of users 100 50 32 10

Number of custom functions 6 4 2 1

Number of areas 6 4 2 1

Number of points 96 48 28 16

Number of outputs 91 43 27 3

Number of keypads 12 8 8 4

Number of doors 4 0 0 0

Number of octo-intput modules (B208) 9 4 2 0

Number of octo-output modules (B308) 9 5 3 0

Number of on-board Ethernet ports (“E” control panel variants

do not include an Ethernet port)

1111

Number of B426 or B450 modules 1 1 1 1

Number of plug-in modules (B430, B440/B441/B442/B443/

B444/B444-A/B444-V)

1111

Number of auxiliary power supply modules (B520) 4 4 2 2

Number of wireless receivers (B810/B820) 1 1 1 1

Control panels Control panel installation | en 7

Bosch Security Systems B.V. UL Installation manual 2019-12 | 10 | F.01U.287.185

3 Control panel installation

Refer to Enclosures to determine if the application requires a specific enclosure.

Enclosure overview

1 2 3

22 5

Callout ᅳ Description

1 ᅳ Control panel wiring label

2 ᅳ Enclosure mounting holes (4)

3 ᅳ Three-hole pattern for mounting modules (4)

4 ᅳ Mounting location for the tamper switch

5 ᅳ Mounting location for the control panel

3.1 Installing the enclosure and wiring label

Notice!

Electromagnetic interference (EMI)

EMI can cause problems on long wire runs.

1. Remove the knockouts.

2. Mount the enclosure. Use all enclosure mounting holes. Refer to the mounting

instructions supplied with the selected enclosure.

3. Pull the wires into the enclosure through the knockouts.

4. Position the supplied enclosure wiring label on the inside of the enclosure door.

3.2 Installing the control panel

1. Identify the control panel mounting location in the enclosure.

8en | Control panel installation Control panels

2019-12 | 10 | F.01U.287.185 UL Installation manual Bosch Security Systems B.V.

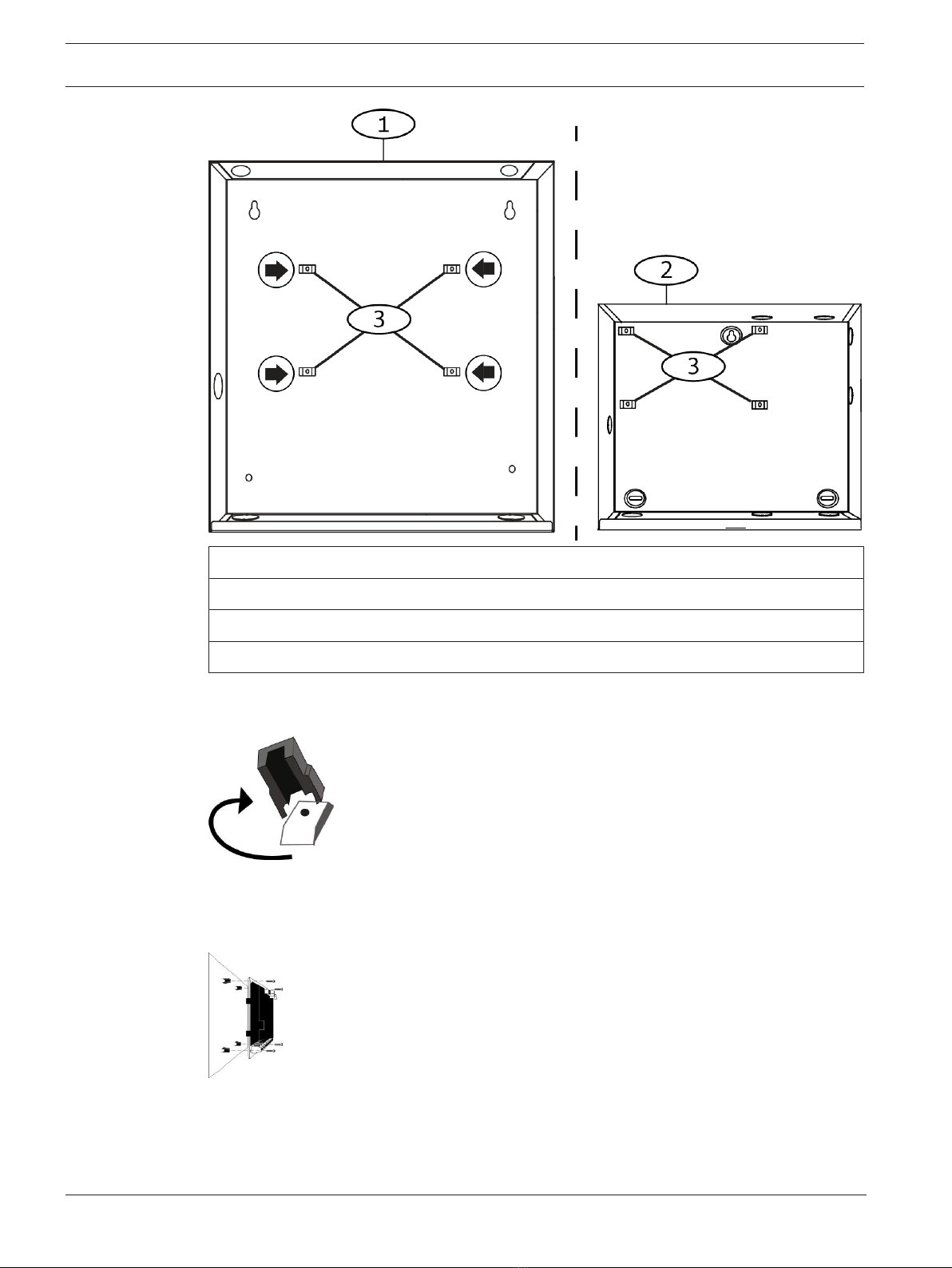

Callout ᅳ Description

1 ᅳ B10 Medium Control Panel Enclosure

2 ᅳ B11 Small Control Panel Enclosure

3 ᅳ Mounting clip locations for the control panel

2. Snap the four plastic standoffs onto the four enclosure support posts. If you install a B12,

attach the standoffs to the plate support posts. Do not attach the standoff screws.

3. Position the control panel on top of the standoffs.

4. Align the holes in the corners of the control panel with the openings at the top of each

standoff.

5. Attach and tighten the control panel to the standoffs with the supplied screws.

6. If you install a B12, rest the hook tabs on the mounting plate hooks within the enclosure.

Secure the lock-down tab to the plate mounting hole with the screw provided.

Control panels Control panel installation | en 9

Bosch Security Systems B.V. UL Installation manual 2019-12 | 10 | F.01U.287.185

3.2.1 Earth ground

To help prevent damage from electrostatic discharges or other transient electrical surges,

connect the system to earth ground before making other connections. The earth ground icon

identifies the earth ground terminal. Recommended earth ground references are a grounding

rod or a cold water pipe. Make the connection using 14 AWG (1.8 mm) to 16 AWG (1.5 mm)

wire.

3.2.2 OUTPUT A jumper

OUTPUT A is a form C relay.

4Choose one of the following uses before you install and configure OUTPUT A:

– +12 VDC (AUX power)

– COM terminal (parallel to all COM terminals)

– Dry contact (no voltage, not common)

7 COM 8

RPMT

8MOC72MOC1 3 COM 4 5 COM 6

TESER T

EHTE

COM AUX R Y G B

PWR A B COM

+ BAT -18VAC

NO C NC

OUTPUT A

OUTPUT A (C terminal) = AUX PWR

OUTPUT A (C terminal) = COM

OUTPUT A (C terminal) = DRY

The control panel ships with the jumper in the default position, AUX power. (OUTPUT A, ‘C’

terminal providing AUX PWR).

4To reconfigure the ‘C’ terminal as a COM terminal (parallel to all COM terminals), remove

the door covering the jumper pins, and move the jumper to the left two pins.

PThe OUTPUT A LED lights when OUTPUT A is active.

3.3 Control panel to module wiring overview

You can use interconnect or terminal wiring to connect devices to the control panel.

10 en | Control panel installation Control panels

2019-12 | 10 | F.01U.287.185 UL Installation manual Bosch Security Systems B.V.

Using terminal wiring in parallel

Notice!

Wire size

For terminal wiring, use 18 AWG to 22 AWG (1.0 mm to 0.6 mm) wire.

7 COM 8

RPMT

8MOC72MOC1 3 COM 4 5 COM 6

TESER TENREHTE

COM AUX R Y G B

PWR A B COM

+ BAT -18VAC

TUPTUO

NO C NC

OUTPUT A

PWR A B COM PWR A B COM

Using interconnect wiring

Notice!

More information

For more information on interconnect wiring, refer to SDI2 interconnect wiring.

7 COM 8

RPMT

8MOC72MOC1 3 COM 4 5 COM 6

TESER TENREHTE

COM AUX R Y G B

PWR A B COM

+ BAT -18VAC

UPTUO

NO C NC

OUTPUT A

PWR A B COM PWR A B COM

Autres manuels pour B6512

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Bosch Panneau de contrôle

Bosch

Bosch AMAX panel 2000 ICP-AMAX-P Manuel utilisateur

Bosch

Bosch AVENAR Series Manuel utilisateur

Bosch

Bosch Rexroth IndraControl VCP 20 Manuel technique

Bosch

Bosch D7024 Guide de démarrage rapide

Bosch

Bosch B9512G Guide de dépannage

Bosch

Bosch DS7200V2-EXP Manuel utilisateur

Bosch

Bosch ICP-SOL2-P Manuel utilisateur

Bosch

Bosch Rexroth IndraControl VAM 11.1 Manuel technique

Bosch

Bosch Radionics D8024 Guide de démarrage rapide

Bosch

Bosch Rexroth VAM 10.1 Manuel technique

Bosch

Bosch DS3MX-E-U Manuel utilisateur

Bosch

Bosch Solution-16 safecom Manuel utilisateur

Bosch

Bosch B5512 Manuel utilisateur

Bosch

Bosch FPA-5000 Guide de l'utilisateur

Bosch

Bosch B9512G Manuel utilisateur

Bosch

Bosch ICP-CC488 Manuel utilisateur

Bosch

Bosch BT220 Manuel utilisateur

Bosch

Bosch DS3MX-E-U Manuel utilisateur

Bosch

Bosch AddressiFire DS9400M Instructions de montage

Bosch

Bosch DS7400XiV4-EXP Manuel utilisateur

Bosch

Bosch AMAX panel 2100 Manuel d'instructions

Bosch

Bosch ICP-CC404 Manuel utilisateur

Bosch

Bosch B9512G Manuel utilisateur

Bosch

Bosch ICP-EZM2 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques

Truma

Truma CP plus Manuel utilisateur
