Bosch TPS110 EU Manuel utilisateur

Parking Lot Sensor TPS110 EU

1 | 14

Parking Lot Sensor TPS110 EU

User manual

Parking Lot Sensor TPS110 EU

2 | 14

Table of contents

General description 3

Assembly and commissioning 3

Installation requirements .............................................................................................................................................3

Installing the sensor base ...........................................................................................................................................3

Required material for installing the parking lot sensor ................................................................................................4

Preparation of the parking space ................................................................................................................................4

Installation of the sensor base ....................................................................................................................................6

Installing the sensor ....................................................................................................................................................8

Replacing/removing the BOSCH Parking Lot Sensor.................................................................................................9

Setup and operation of the parking lot sensor in the backend.................................................................................. 11

Technical specifications 11

Legal information 12

Disposal note in accordance with ElektroG and WEEE Directive 2012/19/EU ........................................................12

EU Declaration of Conformity....................................................................................................................................12

Note for transport ......................................................................................................................................................12

OSS note...................................................................................................................................................................13

Parking Lot Sensor TPS110 EU

3 | 14

1. General description

The TPS110 EU Parking Lot Sensor is used for detecting parked vehicles in parking lots. Only use the parking lot

sensor in conjunction with approved components.

2. Assembly and commissioning

1. Installation requirements

Before installing the sensors, make sure that the necessary infrastructure is working properly - make sure the

gateways are switched on, that a stable Internet connection has been established, and that there is a backend

connection. The backend, as well as the associated management software, must be functional. Make sure that all ofl

the required components (see Fig. 1 TPS110 EU sensor), as well as the tools, are ready.

Figure 1 TPS110 EU Sensor

2. Installing the sensor base

The sensor base is attached to the substrate (e.g., concrete, asphalt). To do this, we recommend a two-component

adhesive.

The adhesive is available in various package sizes (e.g., DELO®-PUR 9692; universal 2k polyurethane adhesive

available

in 50 ml and 200 ml cartridges); we would be happy to help with procurement. We recommend attaching several

sensor bases

first and only then installing the sensors.

1 Cap

2 Screw

4 Base (sensor base)

3 Core (sensor)

Parking Lot Sensor TPS110 EU

4 | 14

Required material for installing the parking lot sensor

Figure 2 Material for attachment

3. Disposable gloves (protection against contact with adhesive)

4. Two-component adhesive (here: DELO®-PUR 9692, 50 ml)

5. Adhesive press (these differ, depending on the cartridge size)

6. Mixing tip

7. Tape rule

8. Sensor base

9. Sensor core (sensor)

10. T20 screw

11. Sensor cap (sensor sealing cap)

Preparation of the parking space

The parking space must be free of dirt, dust, oil, water and other contaminants. For this purpose, at least one swept

area should be prepared. However, it is recommended to clean the surface to remove contamination using a high-

pressure cleaner and a burner.

The installation must take place in the center of the parking space (intersection of the two diagonals, see Fig. 3) in

order to ensure optimum sensor accuracy.

Figure 3 Determination of the center of the parking space

Parking Lot Sensor TPS110 EU

5 | 14

Figure 4 Available parking space for sensor installation

To provide the adhesive with a closed substrate, the surface intended for the installation of the sensor base should be

free of any gaps or misalignment (see Figure 4 Available parking space for sensor installation). This is crucial for the

contact surface and the adhesive effect of the sensor.

Figure 5 Substrate example (continuous) Figure 6 Substrate example (gap)

INFORMATION:

For the bonding procedure, please follow the instructions of the adhesive manufacturer (e.g.,

temperature, safety information and work instructions).

A parking space cleaning should be clarified in advance with the parking lot operator so that the

treatment does not result in removal of existing coatings.

Parking Lot Sensor TPS110 EU

6 | 14

Installation of the sensor base

Insert the adhesive cartridge into the glue gun/adhesive press (Fig. 7 Inserting the adhesive cartridge; in the case of

DELO®-PUR 9692, the mixing ratio is 1:1, so you do not have to pay attention to the orientation of the cartridge). Then

attach the mixing tip on the cartridge by removing the cartridge cap (Fig. 8 Sealing cap adhesive cartridge) and

attaching the mixing tube (Fig. 9 Mixing tube on adhesive cartridge; here, bayonet fitting).

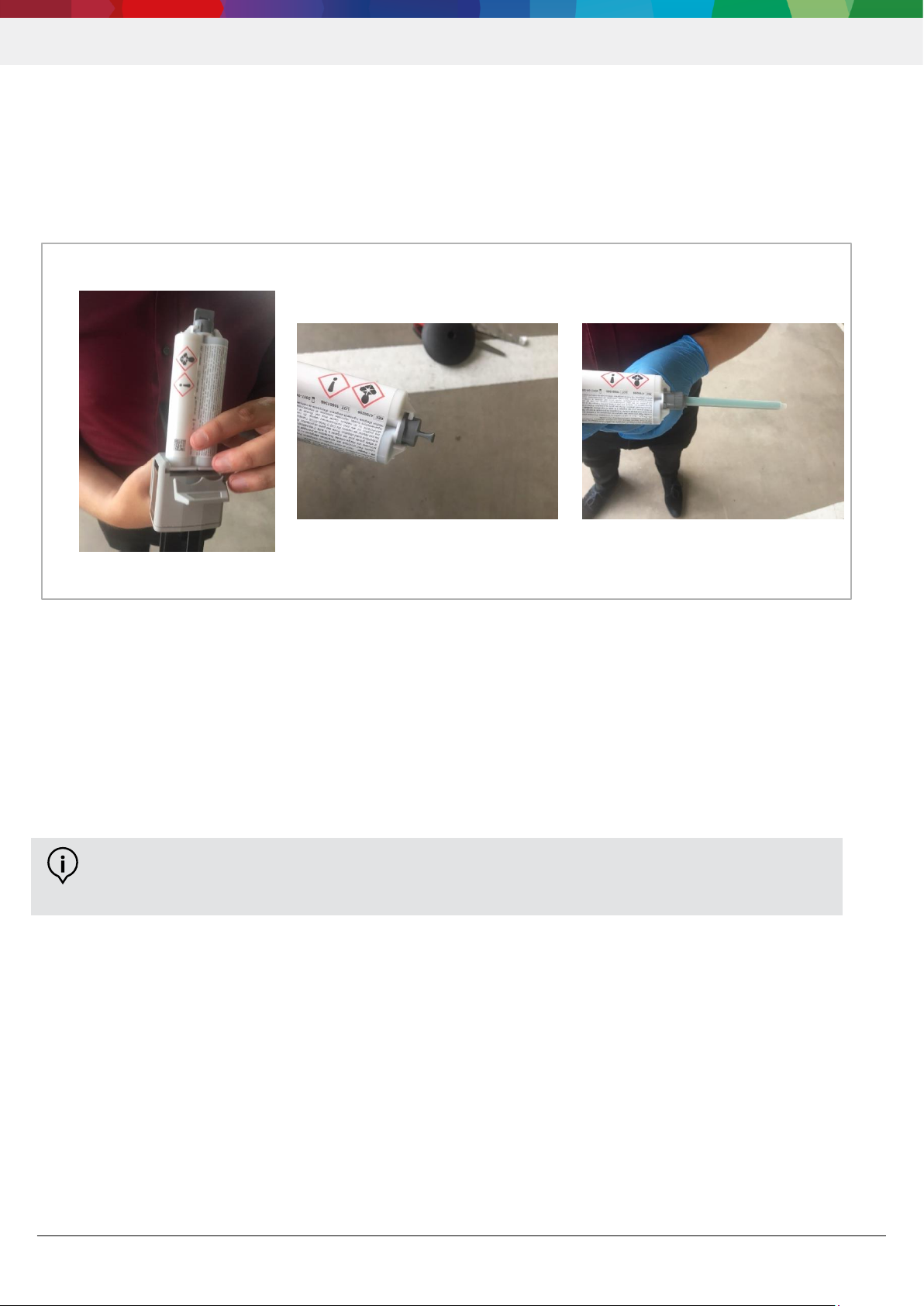

Figure 7 Inserting the cartridge Figure 8 Sealing cap Figure 9 Mixing tube

To avoid contamination and to get the maximum use out of the plasma cleaning process, open the sensor base

package just before applying the adhesive. Apply about 40 ml of the DELO-PUR 9692 adhesive in the center (see Fig.

10 Adhesive application and Fig. 11 Adhesive amount). If you use a 50 ml cartridge, you can empty it completely.

Apply the adhesive in the form of a bubble in the center of the sensor base (no screws or even surface).

INFORMATION:

The use of the mixing tube is important for mixing the two components of the adhesive and for the

resulting adhesive effect.

Parking Lot Sensor TPS110 EU

7 | 14

Figure 10 Adhesive application Figure 11 Adhesive amount

Please note that, as soon as the two components are mixed, the adhesive cures within a few minutes.

Now you can mount the sensor in the center of the parking space by applying light pressure on the sensor base (see

Fig. 12 Sensor base attachment). Make sure that the sensor is centered in the parking space and that the Bosch logo

on the sensor base points towards the access road (see Figure 13 Sensor base installed). Subsequent twisting of the

sensor base is not possible.

INFORMATION:

Once the adhesive in the mixing tube has cured, it cannot be used again. At room temperature, a

typical processing time for the adhesive is about 5 minutes.

Parking Lot Sensor TPS110 EU

8 | 14

Figure 12 Sensor base attachment Figure 13 Sensor base installed

Allow the two-component adhesive > 12 h to cure (hand-tight at room temperature after 30 min) before you screw in

the sensor. Keep the parking space closed off until the sensor is installed to prevent damage (such as breaking the

dome) to the sensor base.

1. Installing the sensor

Warning

Defective seals can cause water to get into the sensor and damage it. The functionality of the parking lot

sensor is not guaranteed if it is installed incorrectly.

⇒ Make sure that the sealing rings on the cap and sensor are seated correctly!

⇒ Do not install the sensors when it is raining.

⇒ Do not use damaged components!

⇒ Do not open the sensor housing!

⇒ Only use original replacement parts!

Warning

Risk of explosion

Extreme heat can damage the battery and the sensor.

⇒ Do not expose the sensor to temperatures above 85 °C!

⇒ Do not expose the sensor to open flames!

When using a gas burner (for example, when removing weeds), keep a distance of at least 1.50 m between

the flame and the sensor!

Parking Lot Sensor TPS110 EU

9 | 14

The sensor can be screwed into the base after the adhesive has cured. To simplify insertion, the arrow on the bottom

of the sensor points towards the Bosch logo (see Figure 14 Installing/screwing in the sensor). After inserting the

sensor, it will take approx.

2 minutes until the first measurements are carried out. During this time, the sensor should be completely screwed in to

ensure optimum teaching of the sensor. To tighten it, use the T20 screw and then close the opening with the sensor

sealing cap.

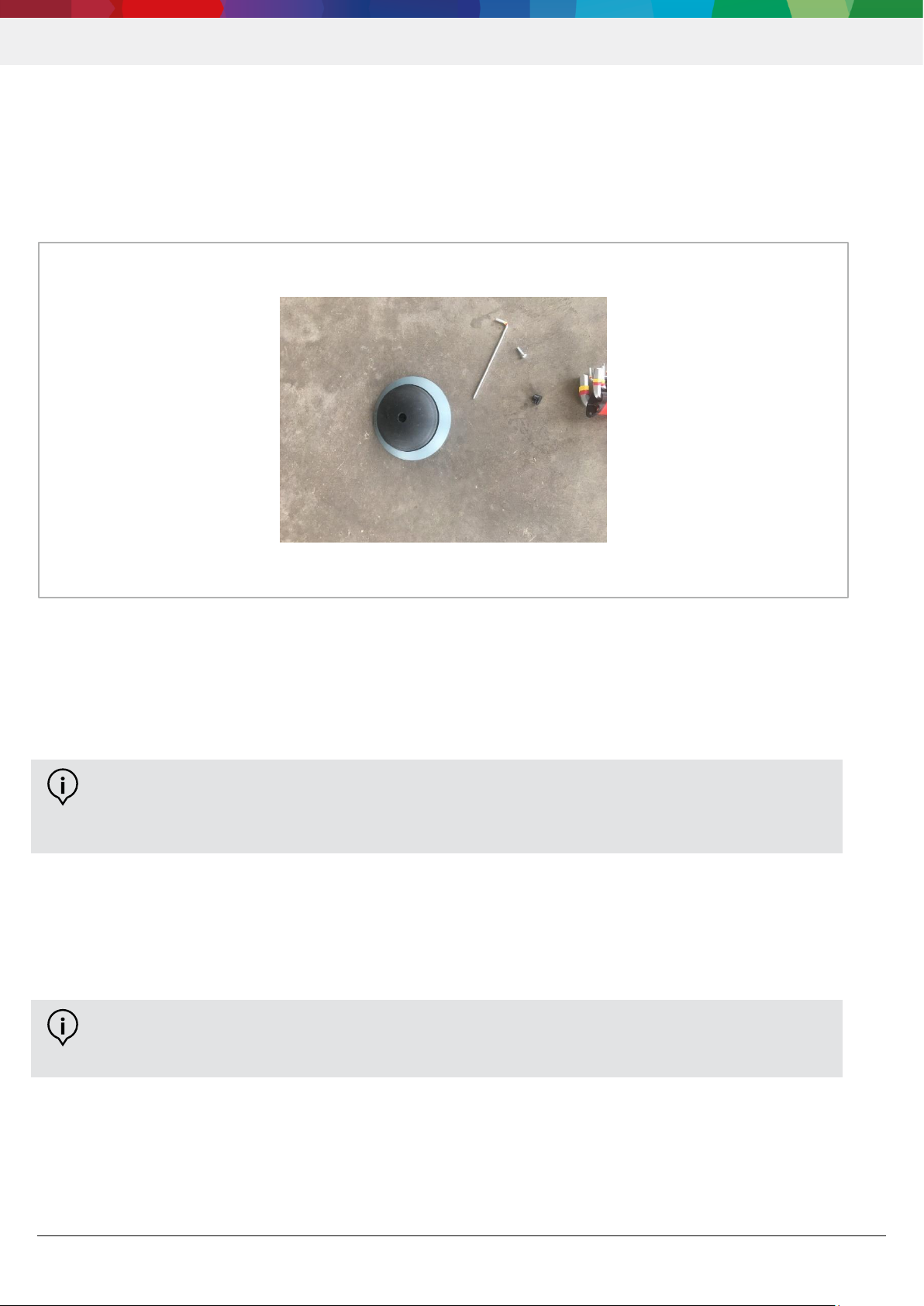

Figure 14 Installing/screwing in the sensor

After the installation of the sensor, the sensor learns about parking changes, which happens in its vicinity. After

approx.

10 parking changes, the sensor is in its taught-in state.

Replacing/removing the BOSCH Parking Lot Sensor

place the parking lot sensor, only the sensor needs to be replaced. To do this, remove the sensor cap and loosen the

T20 screw; then remove the sensor from the sensor base.

INFORMATION:

During operation, a continuous automatic calibration of the parking lot sensor takes place through "parking"

and "exiting parking space'' events.

INFORMATION:

A battery replacement is not intended; instead, the sensor must be replaced.

Parking Lot Sensor TPS110 EU

10 | 14

To completely remove the sensor base from the parking space, it is necessary to use a hammer and chisel to destroy

the adhesive effect by chiseling the sensor base parallel to the parking space surface. As a result, there is no

permanent damage to the parking space.
