Clothes Dryer Side Exhaust Conversion Kit Instructions 5070000698

Clothes Dryer Side Exhaust Conversion Kit

Instructions

1Clothes Dryer Side Exhaust Conversion Instructions 5070000698

CLOTHES DRYER BOTTOM EXHAUST CONVERSION INSTRUCTIONS

• Do not use these instructions or the materials contained in the Clothes Dryer Side Exhaust

Conversion Kit for any other purpose than that for which they are intended, which is the conver-

sion of the clothes dryer from a rear exhaust unit to a side exhaust unit.

• As the manufacturer has no control over the customer’s selection of the service technician who will perform

the work described in this manual, the manufacturer can not be held responsible for death, injury, or

property damage that may result from work performed improperly or from the use of inferior tools and/or

materials.

Carefully read and understand these instructions before attempting the appliance conversion.

SAVE THESE INSTRUCTIONS

Your clothes dryer is manufactured as a rear exhaust unit. Using the Side Exhaust

Conversion Kit, the dryer can be configured to exhaust from the side of the unit.

2 Clothes Dryer Side Exhaust Conversion Kit Instructions 5070000698

CLOTHES DRYER BOTTOM

EXAUST CONVERSION

INSTRUCTIONS

1. Materials Supplied

• Straight Duct

• Elbow Duct

• Exit Duct with Collar

• Self Tapping Screws (5)

• Cover

•Aluminum Tape

• Instructions

2. Materials Needed

• Torx T20 Driver

• Hammer

• Marker, Scratch Awl, or Punch

• Drill

• Drill Bit, 1/8”

• Cutting Tool, 4” diameter (“Knock-out

Punch” tool), Bosch part no. WTZ1310,

Siemens part no. WZ20410

• Large sheet of cardboard or other

protective barrier for dryer front

3. Procedure

1) If the unit is secured to the floor with

anti-tip restraints, remove the

restraints.

2) If the unit is a gas dryer, turn off the

gas supply to the dryer.

3) Disconnect the electrical power to

the dryer.

4) If the unit is a gas dryer, disconnect

the gas connection from the dryer.

5) Move the dryer away from the wall.

7) Remove the top panel and back

panels, being careful to remove the

power cord from the back panel as

shown in Figure 2.

Figure 2

NOTE: After removing the belt from the

drive pulley, do not allow the tension

lever to slam to its resting position

9) Pull the tension lever to the right as

shown by the arrow in Figure 4,

and remove the belt from the drive

pulley.

Figure 4

Figure 1

6) Use a Torx T20 driver to remove the

screws that secure the back and top

panels to the dryer as shown in

Figure 1. Set the secrews aside for

reinstallation later. Figure 3

8) Use a Torx T20 driver to remove the

four screws shown in Figure 3. Set

the screws aside for reinstallation

later.

3Clothes Dryer Side Exhaust Conversion Kit Instructions 5070000698

Figure 9

11) Remove the screw that secures the

duct bracket as shown in Figure 6.

Figure 6

Figure 10

19) Use a supplied self tapping screw to

secure the straight duct to the dryer

floor as shown in Figure 10.

10) Remove the drum as shown in

Figure 5.

Figure 5

12) Remove the duct from the dryer as

shown in Figure 7.

Figure 7

NOTE: The Exit Duct Template is printed

on the back cover of this manual.

13) Cut out the Exit Duct Hole Template

from the back cover of this manual.

14) Apply the Exit Duct Template to the

dryer side panel location shown in

Figure 8, matching the round edge of

the template to the round contour

on the dryer side panel.

Dryer Side Panel

Dryer

Front

Place Exit Duct

Template here,

following

contours in

dryer side

panel.

20) Install the elbow duct as shown in

Figure 11.

Figure 11

Figure 8

15) Using the Exit Duct Hole Template as

a guide, mark the center point for the

4” diameter exit duct hole through the

template and onto the dryer side.

16) Remove the template.

17) Use a 4” diameter cutting tool to cut

the exit duct hole into the dryer side

panel.

18) Install the supplied straight duct as

shown in Figure 9.

CAUTION

POSSIBLE DRYER DAMAGE: Do not

attempt to cut the exit duct hole in

the dryer side panel unless 1) you

have the proper tools with which to

do so, and 2) you know how to

properly use them.

INSTRUCTION SHEET FOR DRYER SIDE VENT KIT

General:

This kit is intended to be used by qualified installation or service professionals.

UBe careful to avoid electric shock (all dryers) or fire/explosion (gas

dryers). Carefully follow dryer installation instructions.

Tools required:

• Special cutting tool (cutting tool kit purchased separately

as Bosch kit # WTZ1310 or Siemens kit # WZ20410).

• 1-7/16” wrench or socket with long handled breaker bar

or ratchet wrench.

• 1” hole drill with (3/8”) pilot bit, suitable for metal.

• Drill bit (3/8” suggested) for hole drill pilot hole.

• Awl or punch.

• 1/8” drill bit for screw pilot holes.

• T-20 Torx screwdriver.

•Hammer.

Kit parts supplied:

• 1) Long duct

•2)Elbow(duct)

• 3) Cover (for existing rear exhaust hole)

• 4) Flange for short duct (included with short duct)

• 5) Short duct

• 6) Duct support

• 7) Aluminized duct tape (not shown)

…

Cutting 4” exhaust duct hole in side panel:

• 1) Cut out paper template on next page, then place

inside dryer left rear corner next to side panel.

• 2) Use punch/awl & hammer to mark center of pilot

hole in side panel so drill bit won’t skip.

• 3) Using 3/8” drill bit, drill pilot hole in side panel.

• 4) Using 1” hole saw (with 3/8” pilot bit), carefully

cut 1” pilot hole – taking care to prevent saw from

seizing when bit or saw breaks through side panel.

• 5) As shown in sketch at right, assemble cutting

tool with cutter and bolt outside dryer, threaded

base inside dryer & bolt through 1” pilot hole.

• 6) Using 1-7/16” wrench or socket with breaker bar

(or long ratchet wrench), tighten bolt onto cutting

tool (by pushing down on wrench) until tool cuts

completely through side panel.

• 7) Carefully tap tool out from hole, then unscrew

tool and remove panel cutout from tool.

NOTE: Since dryers are relatively lightweight (with

drums removed), push down on wrenches to prevent

lifting up dryers or dragging dryers across floors.

…

4 Clothes Dryer Side Exhaust Conversion Kit Instructions 5070000698

27) Reinstall the dryer back and top.

28) Use the supplied self-tapping

screws to secure the supplied cover

over the exhaust hole in the dryer

back panel.

29) Reconnect and restore the dryer

gas (if applicable) and power

supplies.

30) If anti-tip restraints were removed,

reinstall them.

31) Start a program (Air Fluff).A

significant airflow should exhaust

from the exit duct. If the airflow is

low, check the internal connection

of the kit again. If the dryer doesn’t

start, make certain that power has

been restored and the broken belt

switch has been reset.

21) Insert the exit duct through the

previously cut exit duct hole in the

dryer side panel, and onto the elbow

duct as shown in Figure 12.

Figure 12

22) Using the three holes in the duct

collar as a template, drill three 1/8”

holes through the dryer side panel.

23) Use the supplied self-tapping

screws to secure the exit duct collar

to the dryer side panel.

24) Use the supplied aluminum tape to

seal all duct joints.

25) Reinstall the dryer drum and belt.

26) Reset the broken belt switch by

pressing it in the direction shown in

Figure 13.

Figure 13

Clothes Dryer Side Exhaust Conversion Kit Instructions 5070000698

BSH Home Appliances, Corp.

5551 McFadden Avenue

Huntington Beach, CA 92649

1-800-944-2904

www.boschappliances.com

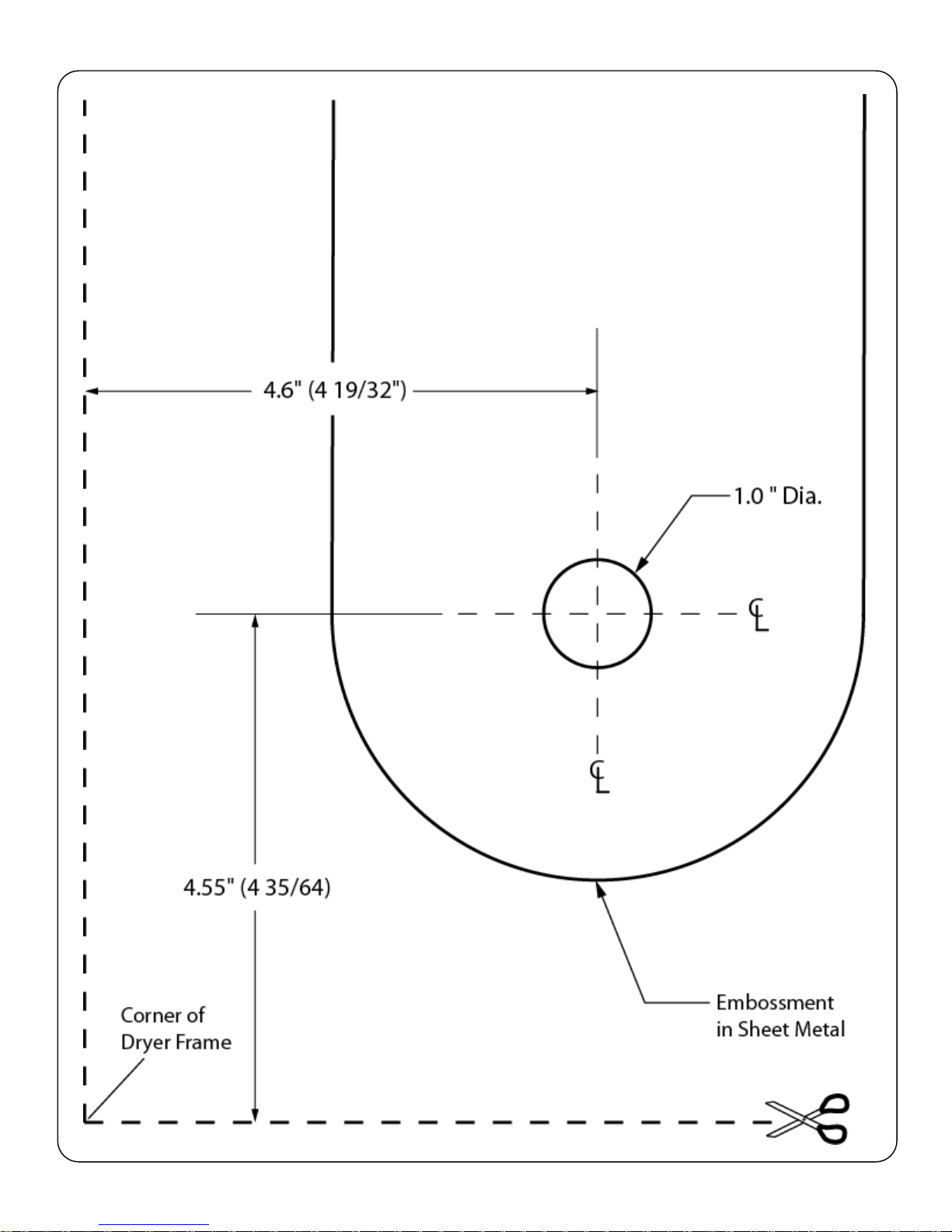

Exit Duct Hole Template


