BonsenKitchen AF8901 Manuel utilisateur
OperationInstructions
Model: AF8901
Air Fryer Oven
www.bonsenkitchen.com
Contents
IMPORTANT SAFEGUARDS TIPS
PRODUCT STRUCTURE DIAGRAM
PRODUCT USAGE INSTRUCTIONS
PRODUCT OPERATING INSTRUCTIONS
MENU FUNCTION SELECTION
SETTING OF COOKING TIME AND TEMPERATURE
PAUSE FUNCTION
ROTATING FUNCTION
COOKING FINISH
CLEANING AND MAINTENANCE
TROUBLESHOOTING
WARRANTY CLAIM PROCEDURE
ENVIRONMENT FRIENDLY DISPOL
1-2
3-4
4-8
9
9-10
10
11
11-13
13
14
14
15
15
..........................................................................
...............................................................................
....................................................................................................
........................................................................
...................................................................................................
.......................................................................
.......................................................................
........................................................................
.............................................
...........................................................................
...............................................................
.............................................................................................
.............................................................................................
Danger
Warning
Do not immerse the power cord, plug or housing in water or under the tap
during cleaning, to avoid of make damage or occur danger.
Avoid any liquid enter the appliance to prevent from electric shock or short-
circuit.
Do not cover the air vents when the appliance is being used.
Do not touch the inside cavity of the appliance when it is operating or shortly
thereafter.
The accessories will be hot during use, handle with care. Please use the handle,
tong or glove instead of hand touching directly.
Make sure that your output voltage corresponds the voltage stated on the
rating label of the appliance.
Before using, please check the power cord of appliance and the accessories,
do not use with any damage.
Do not let cord hang over the sharp edge of counter.
Do not plug in the appliance or operate the control panel with wet hands.
Do not place or use the appliance on or near combustible materials , such as
tablecloth, curtain or wallpaper, in order to avoid something burning.
External power cord connection is not allowed.
High temperature in fryer inner chamber during operation, please do not put
plastic dishes, bowls or protection film into it.
The appliance should be placed on a horizontal and stable surface when using.
Do not place on plastics, board or any other hot-short, easy-wear surface.
Do not place the appliance against wall or other appliances, all around 10cm
of space required to remain.
Do not place anything on the top of appliance.
Do not use the appliance beyond the specification of this manual.
Do not use this product in the unattended.
1
IMPORTANT SAFEGUARDS TIPS
2
Caution
During the appliance frying, hot steam will exhaust through the hind side air
outlet.Keep your hands and face at a safe distance from the steam and the air
outlet openings.Also be careful of hot steam and air when you remove the
basket, tray toast rack from the appliance.
Once cooking done and taking out pan component, the heater component with
very high temperature, Do not touch it.
If the pre-set time is too long, the food will be burnt and smokes and would
release from air outlet, Plug off immediately and clean the food and oil of the
basket, toast rack and tray.
After using the fryer, please press the power button, then pull the plug from the
socket, avoid direct strong pulling power cord.
Unplug the appliance from outlet when it is not in use or before cleaning.
Allow it to cool down first. And then make cleaning.
Do not use any accessories provided by non-native.
This appliance is intended to be used in household. Do not use outdoors.
Clean and wipe dry the basket, toast rack and tray, before putting the food
inside.
The appliance with built-in safety switch. Only the cooking window component
propulsion in correct place, it can be switched to standby mode.
Always unplug the appliance while not using.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are older than 8 and
supervised.
Keep the appliance and its cord out of reach of children less than 8 years.
Appliances are not intended to be operated by means of an external timer or
separate remote-control system.
The door or the outer surface may get hot when the appliance is operating.
1.Housing
2.Control panel
3.Power cord
4.Inner chamber
5.Door
6.Door handle
7.Knob
8.Cage tong
9.Rotisserie fork
10.Wire rack
11.Mesh basket
12.Drip tray
13.Rolling cage
14.Skewer rack
3
10
12
11
13
14
1
8
2
9
4
5
6
7
3
PRODUCT STRUCTURE DIAGRAM
Product Components:
4
Product Components:
Powers the Unit ON and OFF ON/OFF
Cycle through cooking PRESETS MENU
Adjust the temperature of cooking PRESETS TEMP
Adjust the cooking TIMETIME
Increase or decrease TEMP and TIME KNOB
Select and confirm the cooking PRESETS
Activate the Rotisserie functionROTISSERIE
PRODUCT USAGE INSTRUCTIONS
Before first use
1. Remove all packaging materials, stickers and labels.
2. Clean all other accessories with hot water, dishwashing liquid, and a non-
abrasive sponge.
3. Wipe the inside and outside of the appliance with a cloth.
4. When you use it for the first time, you may smell a slight smell and soot.
Don't be nervous, because it is affected by the production residue dropped
during combustion, which is completely normal and will slowly disappear
after use.
5

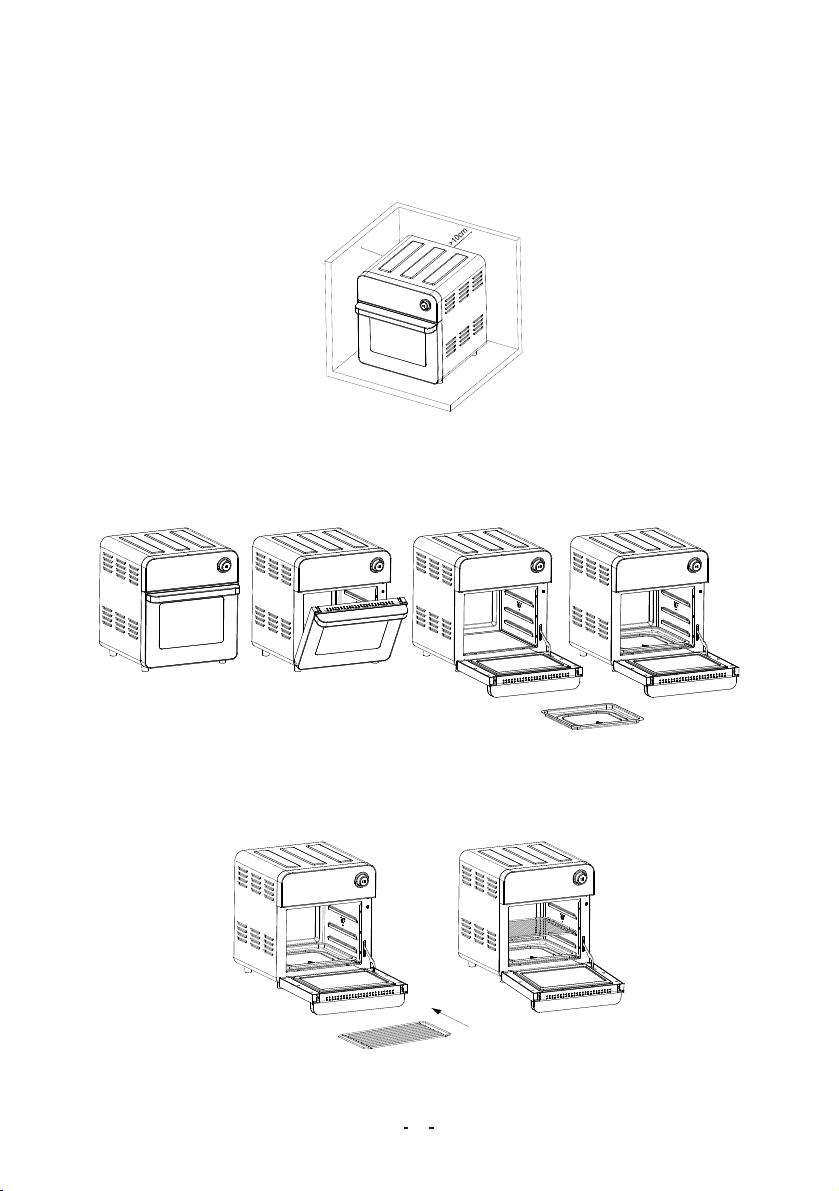

Preparing for use
1. Put the appliance on a horizontal surface. Leave at least 10cm free space
from the back and sides, and pay attention keep machine away from
curtains/wall covering and other combustible materials.
2. Drip Tray
3. Wire Rack
Open front door, put drip tray into the appliance (under the bottom heating
element) according to the directions shown in the figure below.
Insert the wire rack or other accessories into the appliance according to the
directions shown in the figure below.
>10cm
6
4. Mesh Basket
5. Cage Tong
6. Rolling Cage
Put the food into the mesh basket, put it into the inner chamber, close the door.
As below photos.
Use the tong to take the rotisserie fork into or out of the appliance. As shown
in the figure below. This tong helps prevent any possible burns from hot metals
and food.
Put the spindle into the rolling cage, open the mouth and put the food into it.
Close the opening and the put the rolling cage into the inner chamber, then
close the front door. As below picture (a)-(f):
(a) (b)
7
(c)
(e)
(a) (c)(b) (d)
(d)
(f)
Switch
7. Skewer Rack
Withthesetscrewstomakethetwoplatesfixedonthespindle.Skewerthe
foodandmakesurethereisenoughspacebetweenfood;andthenputthe
pointedendofskewerintotheholesontheplatesedgeandbucktheother
endintonotchontheoppositeplate.10skewersareavailableeachtime.
Puttheskewerrackintoairfryerandbeginyourtastetrip.
As below picture: (a) - (i)
(e) (g)(f)
(i)
(h)
Note:
Choose proper accessories for different cooking.
Please use personal GLOVE to take out the drip tray, wire rack, mesh basket
after cooking finished. Use cage tong to take out the rotisserie fork or rolling
cage.
Please always keep the drip tray stay in the lowest layer for gathering oil from
fried food.
Don't put the food close to the heating tube, keep the distance of 40mm at a
minimum, because the food may become bigger after heating, depending on
the actual situation.
There is a safety switch as shown in the picture (f).
The appliance will work only when the door is closed. If the switch is not
touched, while the unit shutdown,the digital screen will display “--”.
8
