Contents

ContentsContents

Contents

Introduction..............................................................................................Page 3

General Notes……………………………………………….………….…….Page 3

Special safety Information for this Unit……………………………………..Page 4

Unpacking the Appliance………………...………………….………..…..…Page 6

Overview of the Appliance……………….…………………….……..……..Page 7

Installation…………….……...…………...………………………...………...Page 7

Startup / Operation………....……...………………………..…..…….……Page 13

Start the Washing cycle………………………...…………….……………Page 21

Tips for Energy saving……………...….………………………....………..Page 27

Cleaning and Maintenance.....…………………………...……..……..…..Page 27

Repairs……………….……………………………………………………....Page 31

Troubleshooting……………………..………………………………......….Page 31

Technical Data……………...……………………………..……..…………Page 33

Disposal….………………………..……….……………………..……..…..Page 35

Introduction

IntroductionIntroduction

Introduction

Thank you for choosing our product. We hope you will enjoy using the appl

ance.

Symbols in these Instr

Symbols in these InstrSymbols in these Instr

Symbols in these Instructions for Use

uctions for Useuctions for Use

uctions for Use

Important information for your safety is specially marked. It is essential to

comply with these instructions in order to avoid accidents and prevent da

age to the machine:

WARNING:

WARNING:WARNING:

WARNING:

This warns you of dangers to your health and indicates

possible injury risks.

CAUTION:

CAUTION:CAUTION:

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE

NOTENOTE

NOTE:

: This highlights tips and information.

General Notes

General NotesGeneral Notes

General Notes

Read the operating instructions carefully before putting the appliance into

operation and ke

ep the instructions including the warranty and the receipt. If

you give this device to other people, please also pass on the operating i

structions.

•

The appliance is designed exclusively for private use and for the envi

aged purpose. This appliance is not fit for commercial use.

•

The appliance is only to be used as described in the user manual. Do not

use the appliance for any other purpose. Any other use is not intended

and can result in damages or personal injuries.

•Do not use it outdoors. Keep it away fr

om sources of heat, direct sunlight

and humidity. Do not use the appliance with wet hands.

Thank you for choosing our product. We hope you will enjoy using the appl

Important information for your safety is specially marked. It is essential to

comply with these instructions in order to avoid accidents and prevent da

possible injury risks.

This refers to possible hazards to the machine or other objects.

Read the operating instructions carefully before putting the appliance into

ep the instructions including the warranty and the receipt. If

you give this device to other people, please also pass on the operating i

The appliance is designed exclusively for private use and for the envi

The appliance is only to be used as described in the user manual. Do not

use the appliance for any other purpose. Any other use is not intended

om sources of heat, direct sunlight

•Do not

notnot

not leave the device unattended. Do not

not not

not

leave the house during oper

tion.

•

When cleaning, for user maintenance work or with disruption, switch off

the appliance and always pull out the plug from the socket

(pull the plug i

self, not the lead).

•

The device and the mains lead have to be checked regularly for signs of

damage. If damage is found the device must not be used.

•For safety reasons, alterations or modificatio

ns of the device are prohibi

ed.

•

In order to ensure your children’s safety, please keep all packaging (pla

tic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

WARNING:WARNING:

WARNING:

Do not allow small children to play with the foil. There is a

danger of su

danger of sudanger of su

danger of su

focatio

focatiofocatio

focation!

n!n!

Special safety Information for this U

Special safety Information for this USpecial safety Information for this U

Special safety Information for this U

WAR

WARWAR

WARNING

NINGNING

NING:

: :

Hot surface! Danger of burns!

Hot surface! Danger of burns!Hot surface! Danger of burns!

Hot surface! Danger of burns!

During operation the temperature of the bull’s-

eye may be

very hot.

•

Before using the transportation locking screws must be

removed, otherwise it may cause serious damag

•

The dry weight of laundry must not exceed 7 kg.

•

Do not use any flammable/explosive cleaning agents

such as benzene in the device.

leave the house during oper

When cleaning, for user maintenance work or with disruption, switch off

(pull the plug i

The device and the mains lead have to be checked regularly for signs of

ns of the device are prohibi

In order to ensure your children’s safety, please keep all packaging (pla

danger of su

danger of sudanger of su

danger of su

f-f-

Special safety Information for this U

Special safety Information for this USpecial safety Information for this U

Special safety Information for this U

nit

nitnit

nit

Hot surface! Danger of burns!

Hot surface! Danger of burns!Hot surface! Danger of burns!

Hot surface! Danger of burns!

eye may be

Before using the transportation locking screws must be

removed, otherwise it may cause serious damag

es.

The dry weight of laundry must not exceed 7 kg.

Do not use any flammable/explosive cleaning agents

•In the bottom of the washing machines are located ven-

tilation openings. These may not be clogged/blocked

e.g. by carpet. Pay attention to free circulation of air.

•If the device is used in the bathroom, unplug the power

cord after using as the proximity of water presents a

danger. This even applies when the unit is turned off.

•This appliance can be used by children

children children

children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or in-

struction concerning use of the

use of theuse of the

use of the appliance

applianceappliance

appliance in a safe way

and understand the hazards involved.

•Chi

ChiChi

Children

ldrenldren

ldren shall not play with the appliance.

•Cleaning and user maintenance

user maintenanceuser maintenance

user maintenance shall not be made by

children

childrenchildren

children unless they are older 8 years and supervised.

•The unit must be connected with a new set of hoses to

the water supply; old hose sets should not be reused.

•The maximum permissible inlet water pressure is

1 MPa.

•The lowest permissible water inlet pressure is

0.05 MPa.

•

The device must be cleaned regularly. Follow the i

structions in the chapter "Cleaning and Maintenance".

•Do not try to repair the appliance on

your own.

contact an authorized technician. To avoid the exp

sure to danger, always have faulty cable be replaced

only by the manufacturer, by our customer service or by

qualified person and with a cable of the same type.

not use the device if the device or plug is

damaged

Unpacking the

Unpacking theUnpacking the

Unpacking the

Appliance

ApplianceAppliance

Appliance

1. Remove the appliance from its packaging.

Remove all packaging material, such as foils, filler, cable holder and car

board packaging.

To prevent hazards, check the appliance for any transport damage.

4. In

case of damage, do not put the device into operation. Contact your

distributor.

NOTE

NOTENOTE

NOTE:

Production residue or dust may have collected on the appliance. We reco

mend cleaning the appliance according to chapter “Cleaning

and Maint

nance”.

The device must be cleaned regularly. Follow the i

structions in the chapter "Cleaning and Maintenance".

your own.

Always

contact an authorized technician. To avoid the exp

sure to danger, always have faulty cable be replaced

only by the manufacturer, by our customer service or by

qualified person and with a cable of the same type.

damaged

Remove all packaging material, such as foils, filler, cable holder and car

To prevent hazards, check the appliance for any transport damage.

case of damage, do not put the device into operation. Contact your

Production residue or dust may have collected on the appliance. We reco

and Maint

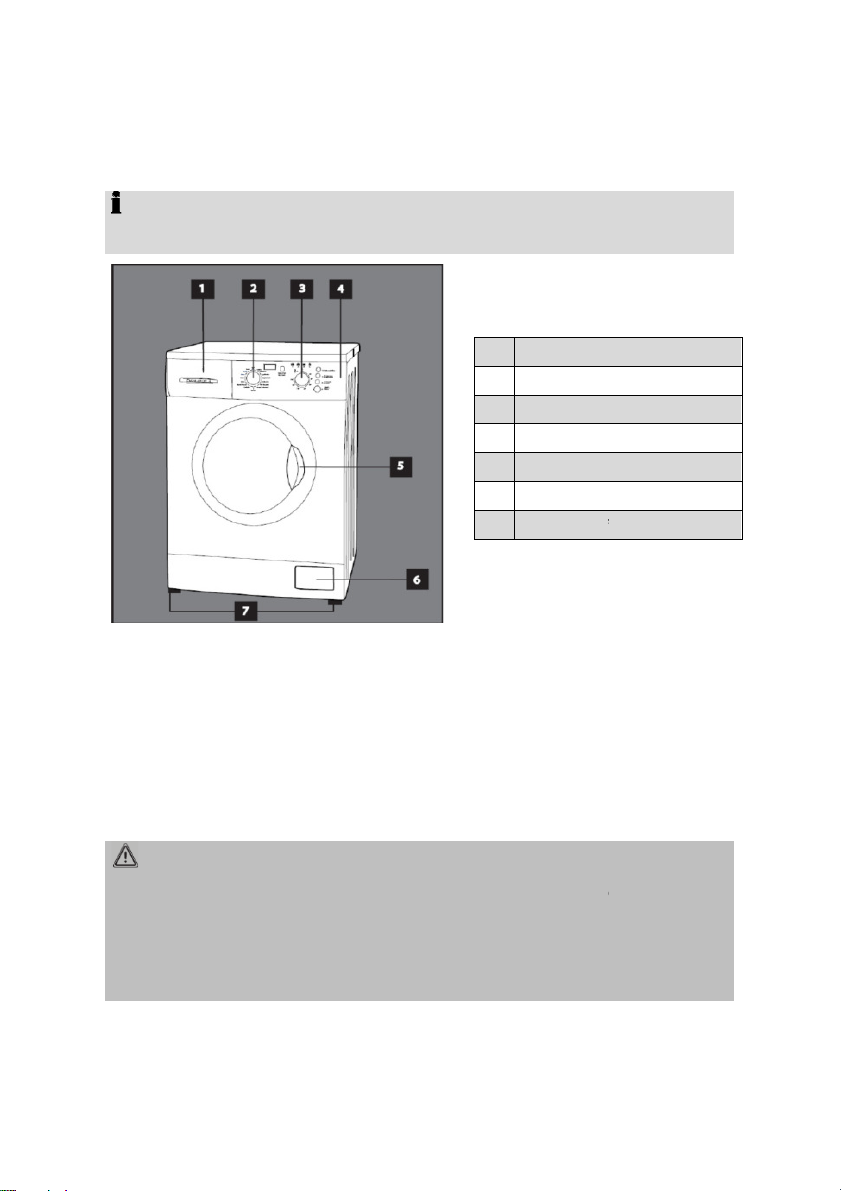

Overview of

Overview of Overview of

Overview of the appliance

the appliancethe appliance

the appliance

NOTE

NOTENOTE

NOTE:

The drawing can deviate from the original device.

Delivery scope

Delivery scopeDelivery scope

Delivery scope

1 x Water inlet hose 4 x

Transportation locking screw caps

1 x Hose holder

Installation

InstallationInstallation

Installation

WARNING:

WARNING:WARNING:

WARNING:

•

The installation of pipes and electrical supplies may only be performed by

qualified personnel.

•

The unit must not be connected to the mains during installing. Otherwise

there is d

danger to life

anger to lifeanger to life

anger to life or electric shock hazard

electric shock hazardelectric shock hazard

electric shock hazard!

Detergent drawer

2 Program

selector knob

Temperature selector knob

Control panel

Door handle

6 Filter pump

Adjustable feet

Transportation locking screw caps

The installation of pipes and electrical supplies may only be performed by

The unit must not be connected to the mains during installing. Otherwise

Detergent drawer

selector knob

Temperature selector knob

Control panel

Door handle

Adjustable feet

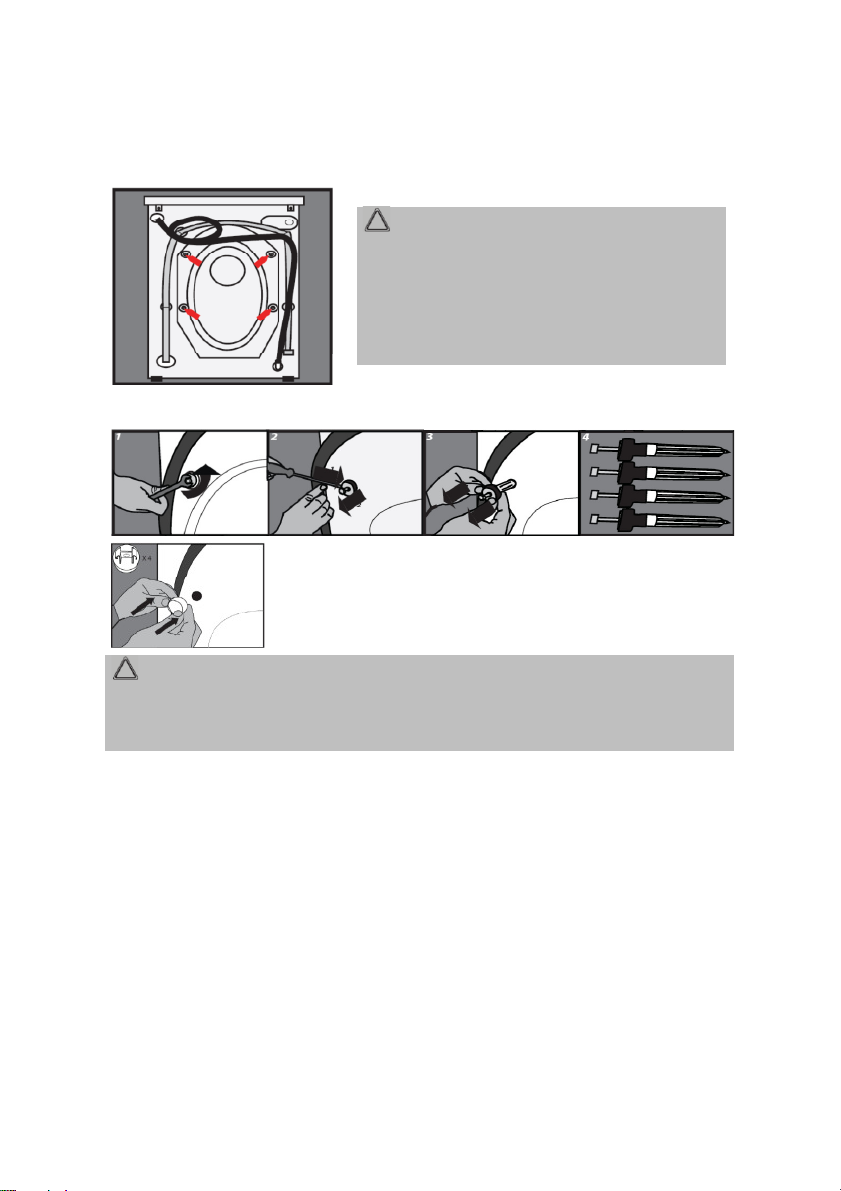

Removal of transportation locking screws

Removal of transportation locking screwsRemoval of transportation locking screws

Removal of transportation locking screws

CAUTION

CAUTIONCAUTION

CAUTION:

Before using the transportation locking

screws must be removed from the device

backside. Otherwise it may cause serious

damages.

•Loosen all locking screws with a spanner and remove them.

•Plug the holes with the supplied transportation

locking screw caps.

CAUTION

CAUTIONCAUTION

CAUTION:

Keep the transportation locking screws properly for future use / transport.

Whenever the device will be transported, the locking screws must be refitted.

Conditions for the installation location

Conditions for the installation location Conditions for the installation location

Conditions for the installation location

•Good ventilation around the unit is required so that the heat can be de-

rived correctly. The distance between the machine and wall must be

approx. 10 cm.

•The device must be installed in a clean place.

•A concrete floor is the most suitable installation surface for a washing

machine, being far less prone to vibration during the spin cycle than

wooden floorboards or a carpeted surface.

•Only place the device on a steady and safe surface in order to reduce

vibration and noise to a minimum.

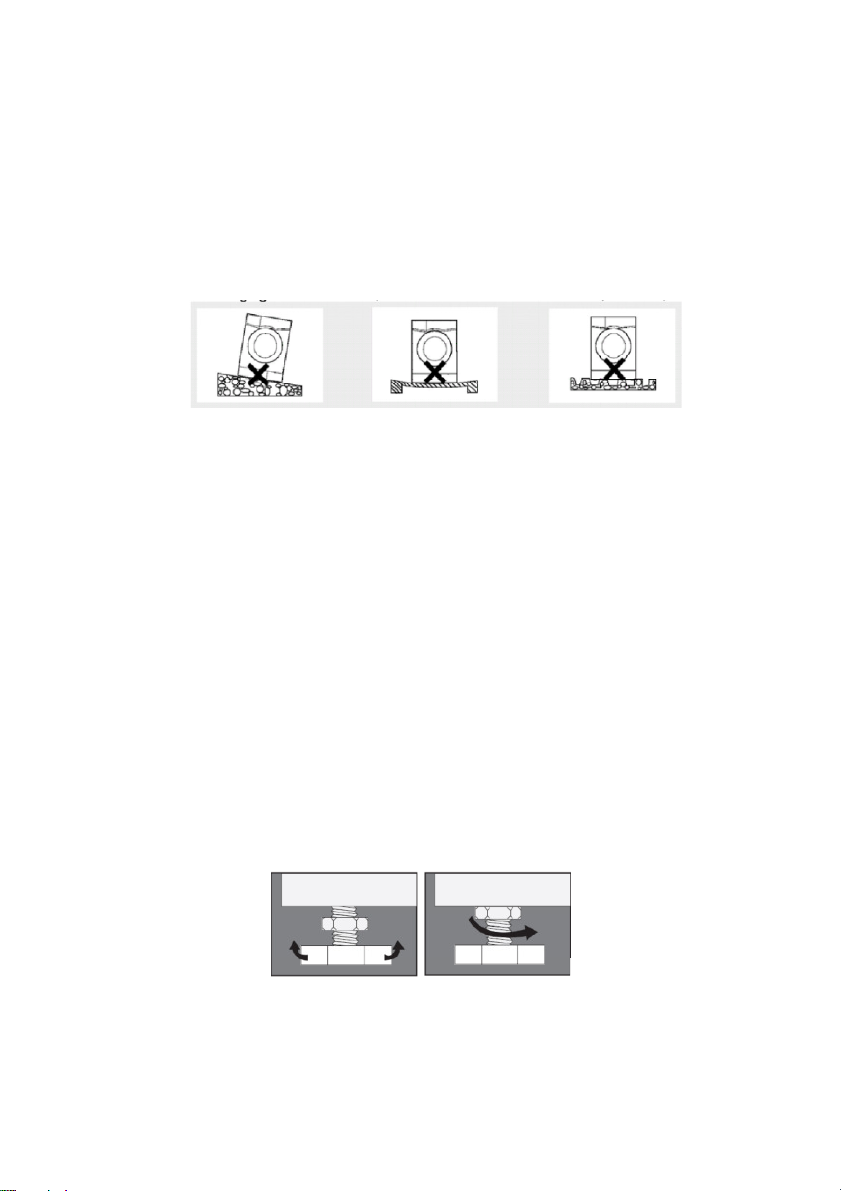

•If the ground is evidently uneven (the maximum allowed tilt angle is 2°), it

must be balanced; otherwise the unit is wrong, vibrates or moves. If the

floor is uneven, adjust the adjustable feet (see “Feet adjustment”).

•Install the device for the wall socket to be freely accessible.

•Power cord and water hoses must not be squashed.

•Avoid the installation:

Avoid the installation:Avoid the installation:

Avoid the installation:

- near heaters, next to a stove, direct sunlight or any other heat

sources;

- at locations with high humidity (e.g. outdoors), as metal parts would

be susceptible to corrosion under such circumstances;

- in rooms where the temperature could drop below freezing. Do not

expose the device any weather.

- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint,

etc.).

Feet

Feet Feet

Feet a

adjustment (level adjustment)

djustment (level adjustment)djustment (level adjustment)

djustment (level adjustment)

Take care to a firm and horizontal position of the device. If the device moves,

adjusts the feet. Loosen the locknuts with a spanner.

Adjust the feet

Adjust the feetAdjust the feet

Adjust the feet: turn to the right to let down the unit, turn to the left to lift up the

unit. Tighten the lock nut with the wrench when the device is oriented. The

feet must have solid ground contact. Check with a spirit level

leveled well horizontally.

If the appliance is not in balance, the feet must be

adjusted again.

CACA

CAUTION:

UTION:UTION:

UTION:

•The locknuts

must be tightened after adjustment. Any looseness can

cause vibration and noise.

•

The feet must never be removed. Do not restrict the floor clearance

through deep pile carpets, strips of wood or similar. This might cause heat

build-up wh

ich would interfere with the operation of the appliance.

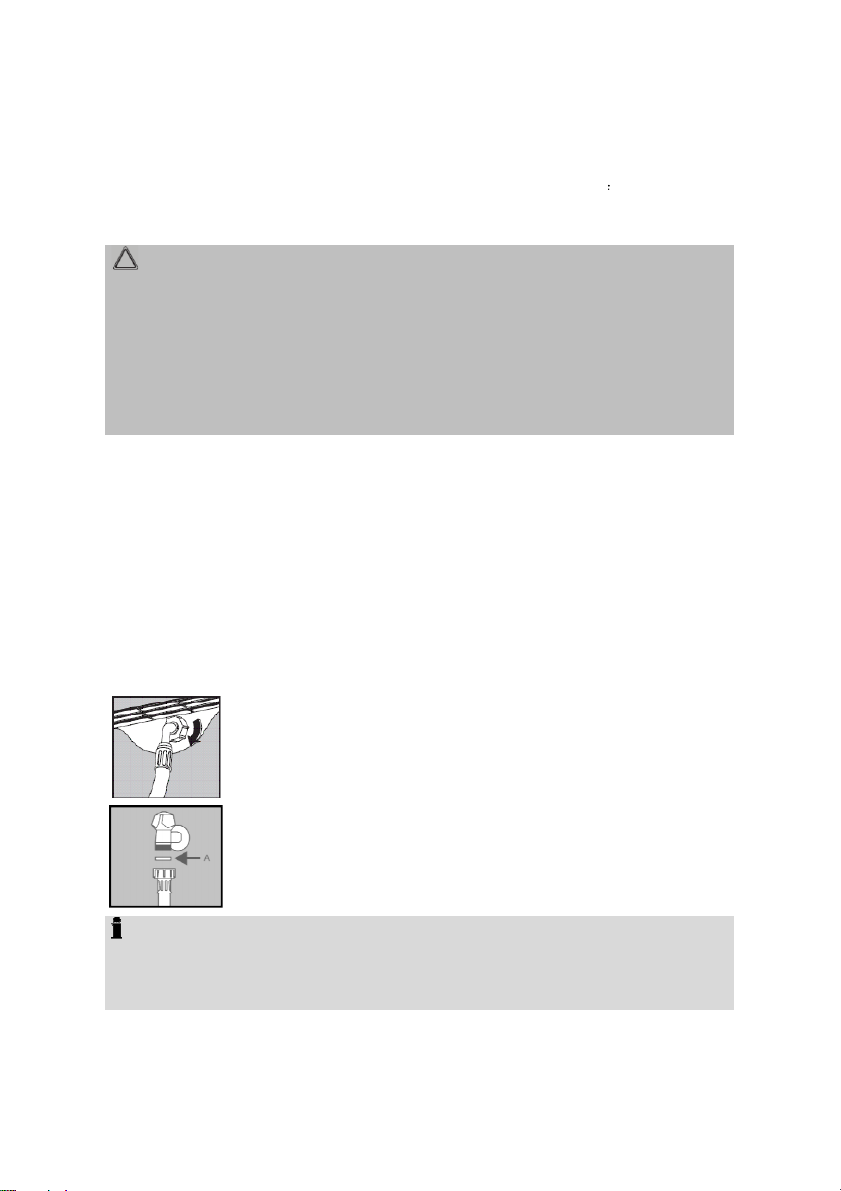

Water Connection

Water ConnectionWater Connection

Water Connection

Install the w

Install the wInstall the w

Install the water

ater ater

ater inlet hose (c

inlet hose (cinlet hose (c

inlet hose (cold

old old

old w

water)

ater)ater)

ater)

Use the new included inlet hose to connect the machine at the water supply

(cold water). Old hose-sets

should not be reused. Installation s

with local water authority and building regulation requirements.

•The water inlet pressure must be between 0.05 MPa

and

pressure is lower, contact an authorized specialist.

•

Connect the water supply hose to the tap with a 3/4

thread and tighten it firmly to the right.

•

Connect the other end of the inlet hose to the inlet valve

on the back of the device and tighten it firmly to the right

too.

NOTE

NOTENOTE

NOTE:

If a leak develops remove the inlet hose and reconnect. Connect to a stan

ard water tap.

the unit is

If the appliance is not in balance, the feet must be

must be tightened after adjustment. Any looseness can

The feet must never be removed. Do not restrict the floor clearance

through deep pile carpets, strips of wood or similar. This might cause heat

ich would interfere with the operation of the appliance.

Use the new included inlet hose to connect the machine at the water supply

should not be reused. Installation s

hould comply

and

1 MPa. If the

Connect the water supply hose to the tap with a 3/4

Connect the other end of the inlet hose to the inlet valve

on the back of the device and tighten it firmly to the right

If a leak develops remove the inlet hose and reconnect. Connect to a stan

Table des matières

Autres manuels BOMANN Rondelle

BOMANN

BOMANN WA 5722 Manuel utilisateur

BOMANN

BOMANN WA 5711 Manuel utilisateur

BOMANN

BOMANN WA-921 Manuel

BOMANN

BOMANN WA 7193 Manuel utilisateur

BOMANN

BOMANN WA 9310.1 Manuel utilisateur

BOMANN

BOMANN WA 7194 Manuel utilisateur

BOMANN

BOMANN WA 5612 Manuel utilisateur

BOMANN

BOMANN WA 7190 Manuel utilisateur

BOMANN

BOMANN MWA 9481 CB Manuel utilisateur

BOMANN

BOMANN MWA 948 CB Manuel utilisateur

BOMANN

BOMANN WA 5729 Manuel utilisateur

BOMANN

BOMANN WA 7160 TL Manuel utilisateur

BOMANN

BOMANN WA 5716 Manuel utilisateur

BOMANN

BOMANN WA 7170.1 Manuel utilisateur

BOMANN

BOMANN WA 5721.1 Manuel utilisateur

BOMANN

BOMANN WA 7174 Manuel utilisateur

BOMANN

BOMANN WTK 5020 Mode d’emploi

BOMANN

BOMANN WA 7192 Manuel utilisateur

BOMANN

BOMANN WA 5712 Manuel utilisateur

BOMANN

BOMANN WA 7182 Manuel utilisateur

BOMANN

BOMANN WA 5715 Manuel utilisateur

BOMANN

BOMANN WA 9312.1 Manuel utilisateur

BOMANN

BOMANN WA 5727 TL Manuel utilisateur

BOMANN

BOMANN WA 5719 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
