Power Stride 21 Elliptical

PRODUCT SAFETY ---------------------------------------------------------- 1

PART DRAWING & CONTENTS ------------------------------------------ 2

HARDWARE & TOOLS ------------------------------------------------------ 3

ASSEMBLY --------------------------------------------------------------------- 4

ADJUSTMENTS --------------------------------------------------------------- 16

TROUBLE SHOOTING & MAINTENANCE ----------------------------- 17

COMPUTER -------------------------------------------------------------------- 18

WARM UP ----------------------------------------------------------------------- 28

PART LIST ---------------------------------------------------------------------- 29

EXPLODED VIEW ------------------------------------------------------------ #

WARRANTY -------------------------------------------------------------------- 31

Basic precautions should always be followed, including the following safety instructions when

using this equipment: Read all instructions before using this equipment.

1. Read all the instructions in this manual and do warm up exercises before using this equipment.

2. Before exercise, in order to avoid injuring your muscles, warm-up exercise for every muscle group is

highly recommended. Please refer to the Warm Up pages for pre and post workout.

3. Please make sure all components are not damaged and in w3+orking order before use. This

equipment should be placed on a flat surface while in use. Using a mat or other material on the

ground is recommended.

4. Please wear proper clothes and shoes when using this equipment; do not wear clothes that might

catch in any part of the equipment.

5. Do not attempt any maintenance or adjustments other than those described in this manual. Should

any problems arise, discontinue use and consult an Authorized Service Representative.

6. Be careful when stepping on or leaving the pedals. Always hold the handlebars first and make sure the

pedal at your side is at its lowest position. Step on the pedal, and stride over the main frame then step

on the other pedal. When using, please hold onto the handlebars. To ensure the pedals run smoothly

push or pull on the handlebars first, then follow with leg motion. When stepping off the machine, make

sure one pedal is at its lowest position and step out of there before stepping out of the pedal at the

highest position.

7. Do not use the equipment outdoors.

8. This equipment is for household use only.

9. Only one person should be on the equipment while in use.

10. Keep children and pets away from the product while in use. This machine is designed for adults only.

This product requires a minimum of 6 feet of space for safe operation.

11. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising

immediately and consult your physician before continuing.

12. The maximum weight capacity for this product is 330 lbs / 150 kgs.

WARNING:Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have pre-

existing health problems. Read all instructions before using any fitness equipment.

CAUTION:Read all instructions carefully before operating this product. Retain

this Owner’s Manual for future reference.

BOX A

A01

Main Frame 1Set

A12

U Shape Guide Rail 1Set

A16

Hand Pulse

Handlebar 1Set

A09

Front Stabilizer 1Set

D02

Computer 1PC

C12

Pedal 2PC

C27

Bottle Holder 1PC

Water Bottle 1PC

BOX B

A13/A14

Handrail 2Set

A03/A05/A07

A04/A06/A08

Left/Right

Foot Bar Set 2Set

A02

Upright Post 1Set

D15

AC Adaptor 1PC

C17/C18

Handrail Arm (A/B)

Decorative Cover 2Set

C07/C08

Upright Post

Decorative Cover 1Set

C11

Nut Cap 8PC

C28

Foot Pedal Plug 8PC

Lubricant 1PC

F02

B20(1) 2PC

Bolt 3/8”x64mm

B33(2) 4PC

Washer 5/16”x20x2.0t

B47(3) 2PC

Bolt M8x25mm

B32(4) 4PC

Hexagon Head Bolt M8x16mm

B21(5) 4PC

Washer 3/8”x20x2.0t

B30(6) 4PC

Curve Washer M8x20x1.5t

B28(7) 4PC

Bolt M8x50mm

B40(8) 10PC

Screw M5x16mm

B44(9) 4PC

Bolt M8x20mm

B22(13) 2PC

Dome Nut 3/8”

B29(14) 4PC

Nut M8

(10) 1PC

Hex Tool with Phillips Screwdriver (13mm/14mm)

(11) 1PC

Allen Key (M5)

(12) 1PC

Allen Key (M4)

B23 8PC

Bolt M6x15mm

(B20) Bolt 3/8"x64mm 2 PCS

(B21) Washer 3/8"x20x2.0T 4 PCS

(B22) Dome Nut 3/8" 2 PCS

1. Front Stabilizer Installation

Place a Block of Wood to raise the Main Frame (A01) for easier to install the Front Stabilizer (A09).

Position the Front Stabilizer in front of Main Frame and align bolt holes.

Attach the Front Stabilizer onto the front curve of the Main Frame with Two 3/8"x64mm Bolts (B20),

Four 3/8"x20x2.0T Washers (B21), and Two 3/8" Dome Nuts (B22).

[Tighten bolts with the Hex Tool with Phillips Screwdriver provided.]

Hardware:

Hex Tool with Phillips

Screwdriver (14mm)

Tool:

2. U Shape Guide Rail Installation

Place a Block of Wood to raise the Main Frame (A01) for easier to install the U Shape Guide Rail

(A12).

Remove Eight M8x20x1.5T Curve Washers (B30) and Eight M8x16mm Bolts (B41) from the Main

Frame.

Attach the U Shape Guide Rail onto the tubes of the Main Frame with Eight M8x20x1.5T Curve

Washers and Eight M8x16mm Bolts which were removed.

[Remove/Tighten bolts with the M5Allen Key provided.]

Allen Key (M5)

Tool:

(B44) Bolt M8x20mm 4 PCS

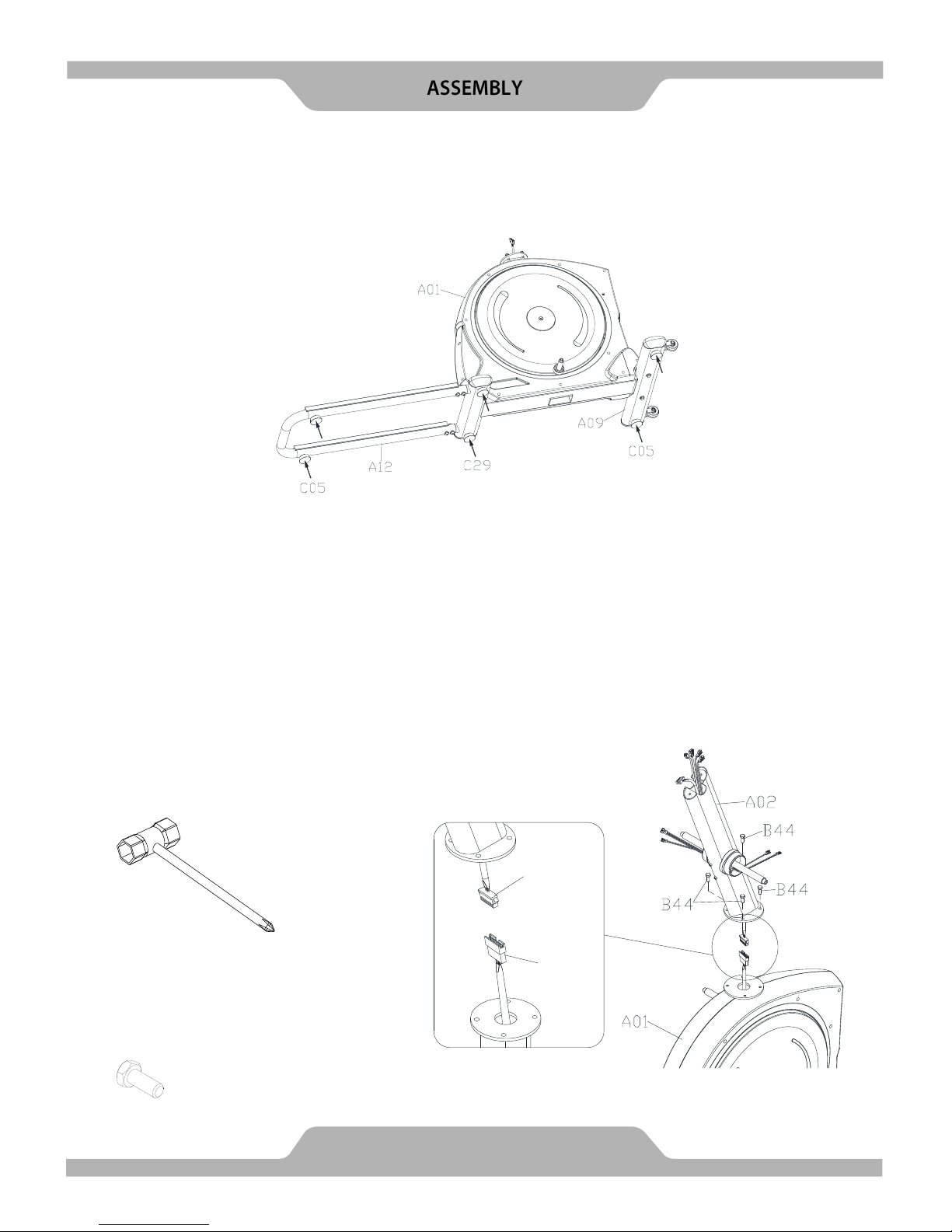

3. Adjusting the Adjustable Leveler

Turn the Adjustable Levelers (C05, C29) on the Front Stabilizer (A09), Main Frame (A01) and U

Shape Guide Rail (A12) as needed to level the elliptical trainer.

The elliptical trainer has to be leveled to prevent from wobble or shaking during the exercise.

4. Upright Post Installation

Pull out the Sensor Wire II (D05) from the Main Frame. Connect the Sensor Wire II (D05) from the

Main Frame to the Sensor Wire I (D04) from the Upright Post (A02) and carefully tuck the Wires into

the Main Frame before attaching the Upright Post onto the Main Frame.

Attach the Upright Post onto the Main Frame with Four M8x20mm Bolts (B44).

[Tighten bolts with the Hex Tool with Phillips Screwdriver provided.]

NOTE: Please do not fully tighten M8x20mm bolts (B44) with the Hex Tool with Phillips Screwdriver

provided, only hand tighten.

Hardware:

Hex Tool with Phillips

Screwdriver (13mm)

Tool:

D04

D05

5. Lubricating the Horizontal Axle and Crank Axle

Put some lubricants onto both horizontal axles of the Upright Post (A02) and both axles of the Crank

(A11).

Remark: Gently apply lubricant evenly on Upright Post (A02). Brush tool is recommended.

Lubricant

1 PC

Lubricating the horizontal axle

and crank axle.

(B32) Hexagon Head Bolt

M8x16mm

1 PC

(B33) Washer

5/16"x20x2.0T

1 PC

(B32) Hexagon Head Bolt

M8x16mm

1 PC

(B33) Washer

5/16"x20x2.0T

1 PC

6. Left and Right Foot Bar Sets Installation

Remove One M8x92 Bolt (B24), One M8 Nylon Nut (B29), and 5/16”x20x2.0T Washer (B33) from the

Right Foot Bar (A06). Then pull Right Handrail Arm (A04) and Right Foot Bar apart from each other.

Remove the tapes from both joints of the Right Handrail Arm (A04) and Right Rotate Bar (A08).

Insert the Right Handrail Arm (A04) all the way onto the horizontal axle of the Upright Post (A02) and

secure the Right HandrailArm in position with One M8x16mm Hexagon Head Bolt (B32) and One

5/16"x20x2.0T Washer (B33).

[Tighten bolt with the Hex Tool with Phillips Screwdriver provided.]

Insert the Right Rotate Bar (A08) onto the Crank (A11) axle. The Rotate Bar Wheel (C20) has to be

placed on the Aluminum Plate (F01) of U Shape Guide Rail (A12).

Secure the Right Rotate Bar (A08) in position with One M8x16mm Hexagon Head Bolt (B32) and

One 5/16"x20x2.0T Washer (B33).

[Tighten bolt with the Hex Tool with Phillips Screwdriver provided.]

A04

B29

B33

A06

B24

A08

CAUTION: Make sure the bush

(C21) was perfectly in position

before securing the bolts.
