Installation Instructions
CCS100
DMX Controlled Dimmable LED Light Strips
Fixtures must be installed by a
qualied and licensed electrician in
accordance with all national, state and
local electrical codes and regulations.
If any part of this manual does
not meet the necessary codes and
regulations, contact the factory for
more information before attempting
to install.
Model Dependent
Max temp: 55C
Min. temp: -40C
DAMP LISTING
IP65
WET LISTING
IP68
Turn Power Off At Circuit Breaker Before Beginning Installation!

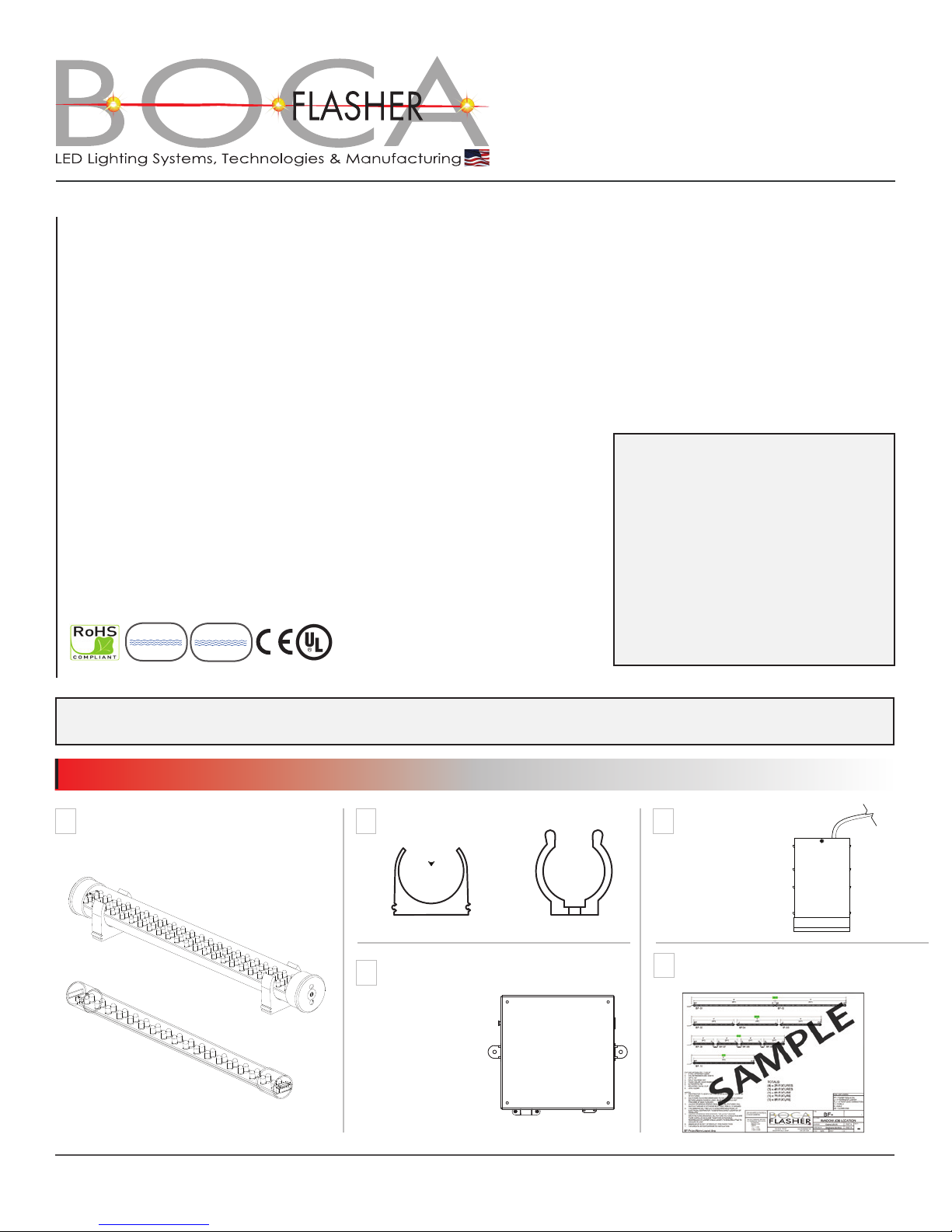

INCLUDED IN THIS PACKAGE:
OR
Tube
Underwater Tube
Mounting Brackets
(2 brackets per xture)
Remote Transformers
(If ordered)
12 3
PAGE 2 OF 6
CCS100 Fixtures
(In lengths shown on job specic drawings)
4I.M.C.S. Distribution Box
(If ordered)
5Job Specic Drawings
AC100
Introduction:
The Boca CCS100 is designed for low power applications where energy consumption and size are the main concerns. It can be specied
with either one row or two rows, depending on the light output required. It oers seamless LED conguration, easy installation, and vibrant
monochromatic color. The CCS100 can be used with any magnetic low voltage dimmer and is available in dierent housings for dierent uses,
including underwater installations where IP68 is required.
Maintenance:
CLEANING Dry and Damp (IP65) Rated Fixtures: To clean surface use a soft damp cloth.
Wet (IP68) Rated Fixtures: To clean surface use a soft cloth with mild soap and water.
STORAGE Store in a dry, well-ventilated area when product is not in use.
Keep the electrical cord away from heated surfaces when in use or not in use.
If cord shows signs of damage do not use, return product to manufacturer.
Electrical Specifications:
1. Input Voltage: 24 VDC or 24 VAC
(See layout drawings for spec.)
2. Total linear ft per distribution box:
80 ft (10 ft per port)
3. Total linear ft per 100watt transformer: 22 ft
4. Total linear ft per 300watt transformer: 66 ft
5. Input Current: 150mA RMS per linear ft
For Underwater Tube For Tube
OR
Power
Supply
