BobsCNC QUANTUM MINI Manuel utilisateur

Assembly Manual

Rev 1.0

MINI

Welcome to the Family.

We’re excited that you purchased the Quantum MINI CNC

Router Kit from BobsCNC, and we know you’re just as excited

to put it together. This manual gives you step by step

instructions to ensure your success in assembling the

Quantum MINI and provides all the information you need to

get your machine up and running.

Before beginning the assembly, take all the time you need to

completely review the manual. It’s good to be familiar with

the entire assembly process before diving in. Be sure to

check out the recommended tools you’ll need for the

assembly.

Welcome to the BobsCNC family. It’s time to… Unleash Your

Creativity!

Version 0.37


2

Contents
Information/Warning Boxes.........................................................................................................................5
Safety Precautions and Warnings..............................................................................................................6
Getting Started..................................................................................................................................................7
Required Tools:.............................................................................................................................................7
To Assemble the Quantum CNC Kit.....................................................................................................7
To Operate the BobsCNC Quantum CNC Router, you need will need:..................................7
Recommended for the electronic setup include: ............................................................................7
Assembly Recommendations: .....................................................................................................................8
Belt Drive.............................................................................................................................................................9
Wood Components (Included with Kit)...............................................................................................9
Required Hardware.....................................................................................................................................9
Illustrated Step by Step Instructions................................................................................................. 10
X Frame Instructions .................................................................................................................................... 16
Required Wood Components.............................................................................................................. 16
Required Hardware.................................................................................................................................. 17
Illustrated Step by Step Instructions................................................................................................. 17
Z Spindle Mount Assembly: ...................................................................................................................... 24
Required Wood Components.............................................................................................................. 24
Required Hardware.................................................................................................................................. 25
Illustrated Step by Step Instructions................................................................................................. 26
Y Carriage Assembly and Z Assembly................................................................................................... 38
Required Wood Components.............................................................................................................. 38
Required Hardware.................................................................................................................................. 39
Illustrated Step by Step Instructions ................................................................................................. 41
Gantry Assembly............................................................................................................................................ 59


3

Required Wood Components.............................................................................................................. 59
Required Hardware.................................................................................................................................. 60
Illustrated Step by Step Instructions................................................................................................. 61
Final Assembly................................................................................................................................................ 88
Required Wood Components.............................................................................................................. 88
Required Hardware.................................................................................................................................. 88
Illustrated Step by Step Instructions................................................................................................. 90
T-Slot Spoilboard ........................................................................................................................................125
Wood Components ...............................................................................................................................125
Required Hardware................................................................................................................................125
Illustrated Step by Step Instructions...............................................................................................125
Completed Views ........................................................................................................................................130
Tramming.......................................................................................................................................................132
Clamping System ........................................................................................................................................134
Wood Components (Included with Kit)..........................................................................................134
Required Hardware................................................................................................................................134
Congratulations! You Just Completed the Assembly of Your BobsCNC Quantum CNC
Router, Mini...................................................................................................................................................135
Appendix ........................................................................................................................................................136
Firmware Values......................................................................................................................................136
Quantum Washer Size Table..............................................................................................................137






BobsCNC Quantum Specifications

The assembled footprint:

Length: 38" (965 mm)

Width: 40" (1016 mm)

Height: 22" (559 mm)

Assembled Weight: 35 lbs.

Cutting Area:

X: 16" (407 mm)

Y: 16" (407 mm)

Z: 3.8" (98 mm)

Safety is always the First Priority. Always wear proper

protective equipment and use "safety sense" when

assembling and operating your Quantum Series CNC

Router.

Information/Warning Boxes

CAUTION Indicates a possible risk of

injury that can result from failure to follow

this instruction

WARNING Indicates the possible

damage to the machine, its components,

the work piece, or injury that can result

from failure to follow this warning.

DANGER Indicates a serious risk of

bodily harm, injury and death. This is a

serious warning and should not be

ignored. Any work must be carried out

with extreme caution.

TIPs Contains helpful information,

shortcuts, and hints to simplify assembly

and make machine operation easier and

safer.

TIP

Safety Precautions and Warnings

BobsCNC Routers have a 110 v. Power Supply and use bits that spin at 30,000

rpm with cutting edges that are sharp and hazardous. The operator must

understand the potential hazards and is responsible to take appropriate

safety precautions before operating the Router.

•Only use extension cords rated for 20 amps plugged into a dedicated

outlet.

•Inspect the machine before every use for maintenance issues: loose

fasteners, belts, etc.

•Do not operate the machine with dull or damaged router bits.

•Always unplug machine after each use and when cleaning the router or

changing router bits.

•Remove rings, bracelets, watches, necklaces before using the machine.

•Wear snug fitting clothing and/or roll up long sleeves to prevent snagging.

•Use appropriate personal protective equipment (PPE) when operating

machine including safety glasses and hearing protection.

•Keep hands, hair, and clothing away from the moving parts of the

machine.

•Do not operate the machine when under the influence of alcohol or

prescription medications.

•Make certain the workpiece is clamped securely in place before starting

the machine.

•Never leave the machine running unattended.

•Children must be supervised by adults when operating the machine.

•Do not operate the machine in the presence of flammable materials.

•Keep floors clean, dry, and free of debris to eliminate slip and/or trip

hazards.

•Have a suitably rated fire extinguisher on hand when the machine is in

operation.

Getting Started

Required Tools:

To Assemble the Quantum CNC Kit

Metric Socket Set

#1, #2 and #3 Phillips Screw Drivers

Needle Nose Pliers

Set of Metric Allen Wrenches

Pliers

Utility Knife

Clear Nail Polish or Locktite™

Scissors

Blue Painter’s

Tape

To Operate the BobsCNC Quantum CNC Router, you need will need:

Computer with control software for GRBL.

Materials for Projects.

1/4” Shaft Router bits.

Recommended for the electronic setup include:

Multimeter to correctly connect the Power Supply and to set the

current for the Stepper Motors (a great tool for general electronic

trouble shooting).

Assembly Recommendations:

Use a large, flat, clean work surface for assembling your Quantum

Mini.

All Screws (unless noted) should be installed snug, then rotated 1-2

½ turns.

Apply LOCTITE™or clear fingernail polish to all M4 X 16 mm Machine

Screw that are used to secure plywood pieces. Machine Screws that

are secured with Lock Nuts do not need LOCTITE™.

Light sanding of the wood components may be performed if desired.

Painting or applying stain with a clear coat will provide extra

protection to the wood components.

Clean the rails with acetone to remove rust preventative and apply a

light coat of PTFE (Teflon®) lubricant.

We recommend using strips of 1-inch blue painters’ tape behind the

T-Slots to help hold the Nuts in place during assembly.

Lock Nuts are never used to secure components that have T-Slots.

They are only used to mount components where the Nut is not

held in a T-Slot.

CAUTION This kit contains numerous small

components that pose a choking risk for small

children and pets. Keep kit pieces in a secure

location out of the reach of small children and

pets.

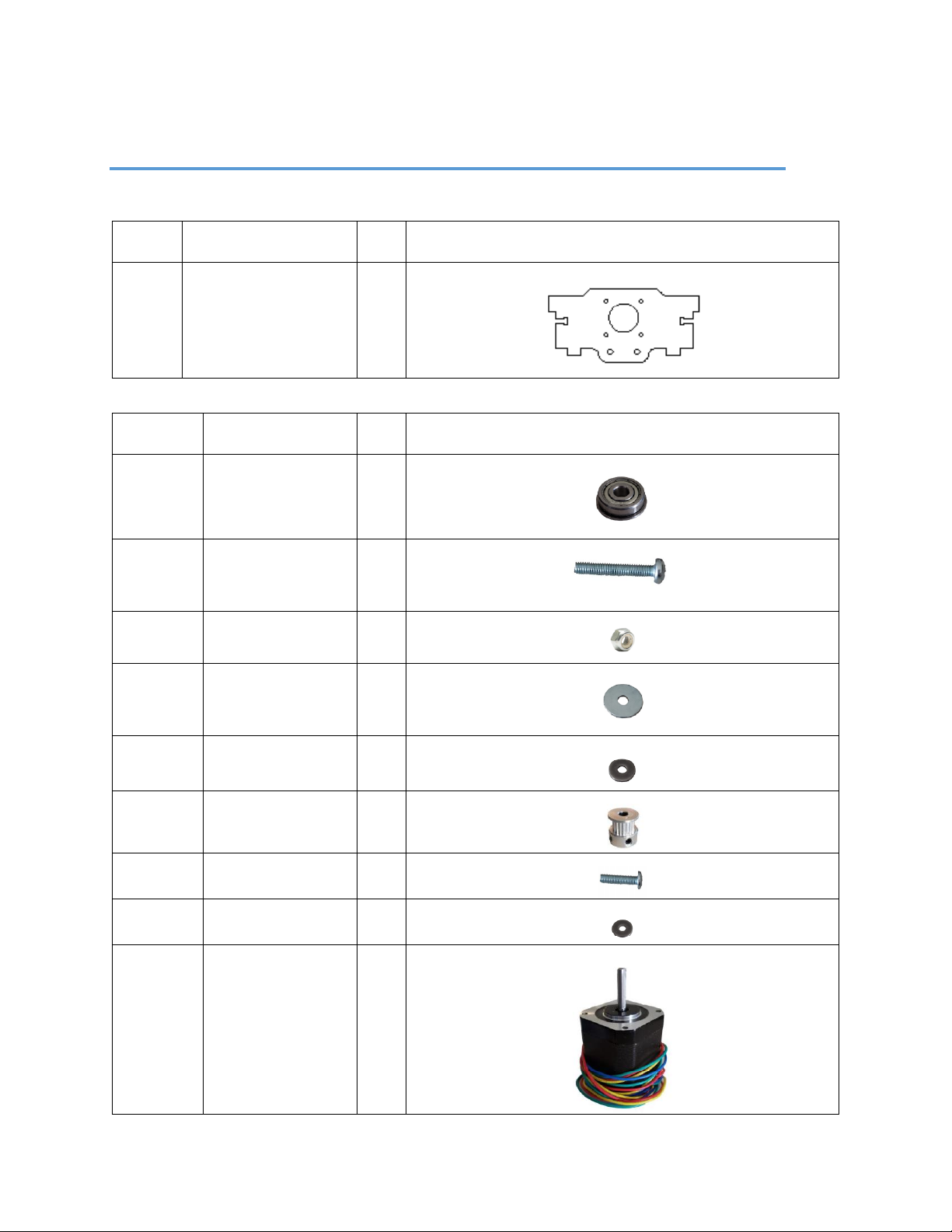

Belt Drive

Wood Components (Included with Kit)

Part #

Description

Qty


QR2

XY Stepper Motor

Mount

Required Hardware

Part #

Description

Qty


H86

Flanged Bearing

F635Z

H48

M5 x 30 Machine

Screw

H49

M5 Lock Nut

H50

Idler Fender

Washer

H89

Small Black

Washer

H84

GT2 Pulleys

H37

M3 x 10

H88

M3 Washer

CB11

Stepper Motor
