DWA 5 Anti-Theft Alarm System

DWA_5_2_eng.book Seite 41 Dienstag, 1. März 2005 4:59 16

dWarning:

This symbol indicates pre-

cautions and measures which

are essential in order to pro-

tect the rider and other per-

sons from possibly severe or

fatal injury.

eAttention:

Special instructions and

precautions intended to avoid

damage to the motorcycle.

Non-compliance can void the

guarantee.

LNote:

Specific instructions on how to

operate, control, adjust or look

after items of equipment on the

motorcycle.

Note:

DWA_5_2_eng.book Seite 42 Dienstag, 1. März 2005 4:59 16

Details described or illustrated

in this booklet may differ from

the motorcycle’s actual specifi-

cation as purchased, the

accessories fitted or the

national-market specification.

No claims will be entertained as

a result of such discrepancies.

Dimensions, weights, fuel con-

sumption and performance

data are quoted to the custom-

ary tolerances.

The right to modify designs,

equipment and accessories is

reserved.

Errors and omissions excepted.

Not to be reproduced either

wholly or in part without written

permission from

BMW Motorrad, After Sales.

Printed in Germany

DWA_5_2_eng.book Seite 43 Dienstag, 1. März 2005 4:59 16

BMW Motorrad

Order No.:

01 41 7 695 361

01.2005

2nd edition GB / RF The Ultimate

Driving Machine

BMW recommends Castrol

DWA_5_2_eng.book Seite 44 Dienstag, 1. März 2005 4:59 16

Introduction

Welcome to BMW

Congratulations on your pur-

chase of this BMW anti-theft

alarm.

It acts as a deterrent for poten-

tial thieves, while at the same

time being easy and straightfor-

ward to use.

Your authorised BMW motorcy-

cle dealer will be glad to assist

you in all matters relating to

your motorcycle.

We hope you will enjoy familiar-

ising yourself with these

instructions for use, and we

would like to take this opportu-

nity of sending you our very

best wishes.

Yours sincerely,

BMW Motorrad

Welcome to BMW

DWA_5_2_eng.book Seite 1 Dienstag, 1. März 2005 4:59 16

Introduction

i Introduction

Welcome to BMW ................. 1

General ................................. 3

1 Overview and operation

Controls ................................ 4

Functions of the remote

control unit............................ 5

Code card ............................. 6

2 Immobiliser

Activation .............................. 7

Deactivation .......................... 9

3 Alarm function

Activation ............................ 10

Activation phases................ 12

How the alarm is

triggered ............................. 13

Deactivation ........................ 14

Reasons for an alarm .......... 16

4 Central locking system

Manual operation ................ 19

Remote control unit............. 20

Emergency unlocking.......... 21

Safety shutdown ................. 22

5 Lights

Lights.................................. 23

6 Programming

Customising the anti-theft

alarm system ...................... 24

Default settings ................... 25

Accessing the

programming mode ............ 26

Programming ...................... 27

Exiting

programming mode ............ 28

7 Remote control units

Registering remote

control units ........................ 29

Exiting registration mode .... 32

Synchronising the

remote control unit.............. 33

8 Care and maintenance

Changing the battery .......... 34

9 Technical data

Technical data .................... 36

i Index

Index................................... 37

Contents

DWA_5_2_eng.book Seite 2 Dienstag, 1. März 2005 4:59 16

Introduction

Any attempt to move the motor-

cycle, change its position, start

it without your permission, or

disconnect the battery will trig-

ger the alarm. The sensitivity of

the system is set in such a way

that slight vibrations of the

motorcycle will not trigger a

false alarm.

Once you have activated the

alarm, any attempted theft is

indicated acoustically by the

siren and visually by all four turn

indicators flashing at the same

time, and the integrated immo-

biliser suppresses engine start.

Your anti-theft alarm is com-

bined with a central locking sys-

tem that enables you to open

and close the cases, the top-

case, and the radio compart-

ment by remote control.

It also enables you to switch on

the map-reading light and the

ground lights automatically.

You can customise the anti-

theft alarm in certain ways to

suit your needs and prefer-

ences.

LNote:

In order to protect the motorcy-

cle’s battery and ensure that

the engine can be started, the

alarm system deactivates itself

automatically a certain number

of days after being activated, al-

though it always remains active

for at least 7 days.

General

DWA_5_2_eng.book Seite 3 Dienstag, 1. März 2005 4:59 16

Overview and operation

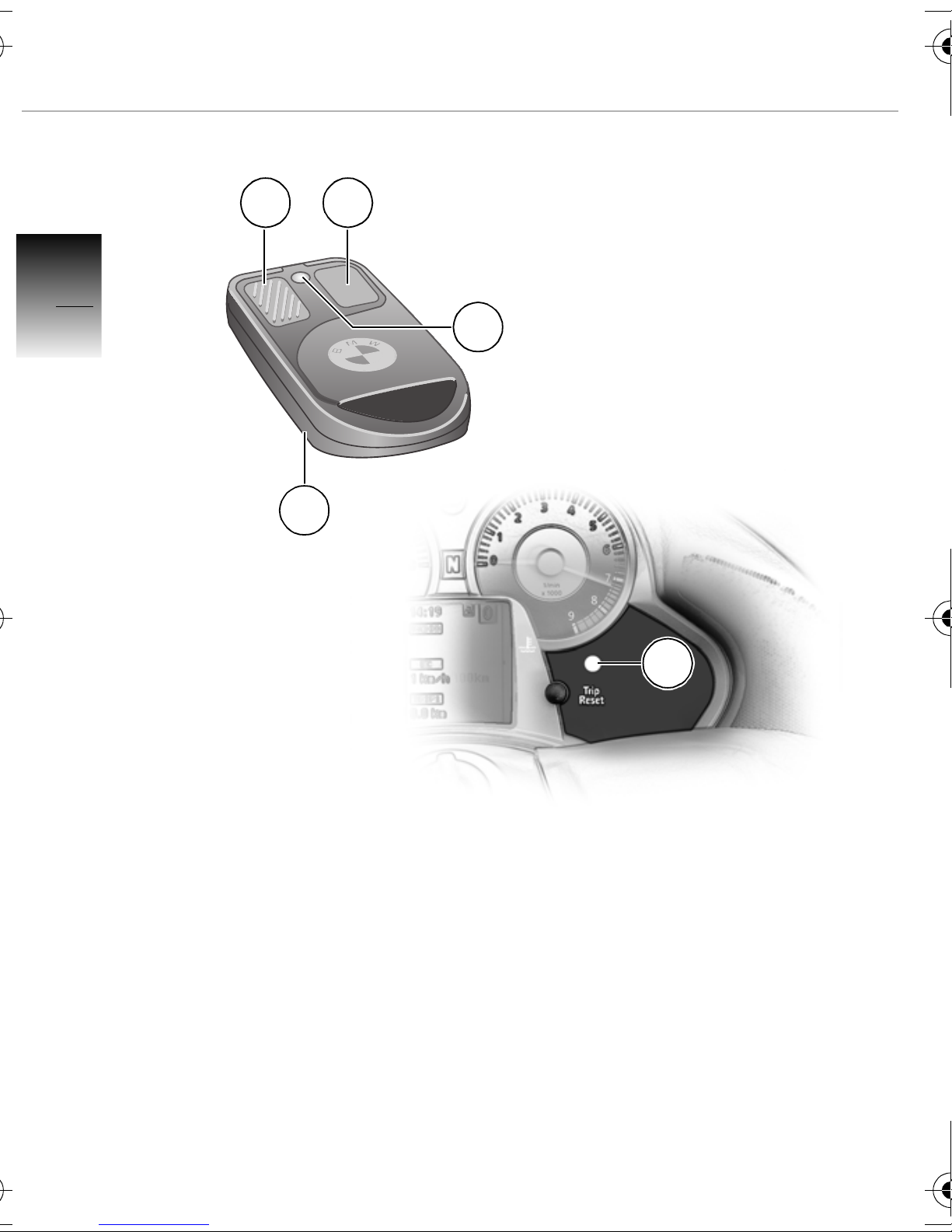

1Left button (ribbed)

2Right button

3LED

4Radio remote control unit

5Status LED

(on the vehicle)

LNote:

Do not be tempted to use the

remote control unit to lock the

keys inside a stowage compart-

ment. If you were to mislay the

remote control unit the keys

would be inaccessible and you

would be able neither to open

the cases by means of the

emergency unlocking routine

nor to deactivate the electronic

immobiliser.

Controls

DWA_5_2_eng.book Seite 4 Dienstag, 1. März 2005 4:59 16

Overview and operation

Functions of the remote control unit

Operation Button 1 Confirmation

Press once Lock central locking –

Press again Activate alarm func-

tion and immobiliser

Turn indicators flash

2x Alarm tone

sounds 2x (if pro-

grammed)

Press for third time Deactivate motion

sensor (for transport,

for example)

Indicators flash 3x

Alarm tone sounds

Operation Button 2 Confirmation

Press once Deactivate alarm

function and immo-

biliser, unlock cen-

tral locking

Indicators flash 1x

Alarm tone sounds

1x (if programmed)

Press again – –

Press for third time – –

LNote:

The signals from your remote

control unit could be disrupted by

interference from other radio sys-

tems or devices transmitting on

the same frequency.

If you encounter this problem, try

pointing the remote control unit at

the motorcycle from a different di-

rection.

DWA_5_2_eng.book Seite 5 Dienstag, 1. März 2005 4:59 16

Overview and operation

Code card

The anti-theft alarm is supplied

complete with a sealed enve-

lope containing a code card 1.

The number stated on the code

card (remove the adhesive

label) is the code for deactivat-

ing the anti-theft alarm by

means of the ignition (b17).

It is advisable to keep the code

card with the vehicle registra-

tion papers, and carry both with

you when you ride the motorcy-

cle.

The code number is stamped in

encrypted form on the anti-theft

alarm and it is also printed on

an adhesive label 2supplied

with the anti-theft alarm. You

should affix the label at a con-

cealed location on the motorcy-

cle.

If you forget the code and are

unable to find the code card, an

authorised BMW motorcycle

dealer will be able to forward

the encrypted number to BMW

on your behalf and obtain the

correct code.

DWA_5_2_eng.book Seite 6 Dienstag, 1. März 2005 4:59 16
