BMW S1000 RR
Children Battery Powered Trike
Owner’s Manual with Assembly Instructions
Styles and colo(u)rs may vary.
Made in China.
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions. The Ride-on Car must be assembled by an adult who has read
and understands the instructions in this manual. Keep the package away from children
and dispose of properly before use. Keep this manual for future reference.
Importer/Maahantuoja/Importör/Maaletooja/Importētājs/Importuotojas: Tammer Brands Oy,
Viinikankatu 36, 33800 Tampere, Finland
ko1121
329633
EN
2
1. About Your New Ride-On
On the purchase of your new Trike
This ride-on car will provide your child with many miles of riding of
enjoyment. To help assure you and your rider a safe ride we ask you to
please read this manual carefully, and keep it for future reference.
Follow the recommendations in this manual, they are designed to improve
the safety and operation of your ride-on car and rider.
BMW S1000RR Children Battery Powered Trike manufactured by Zhejiang Jiajia Ride-On
Co., Ltd. (Xincang Industrial Zone, Pinghu City, Zhejiang Province, P.R.China). The BMW
logo and the BMW word mark are trademarks of BMW AG and are used under license.
Battery 6 V, 4 Ah x 1
Charger 6 V, 500 mA
Suitable age: 18-36 Months
Load Capacity: Under 20 kgs
Speed: 3km/h
Size of car: 66 x 37 x 44 CM
Power way: Charging type
Charge time: 8 – 12 hours
Max user’s weight 20 kg. Not to be used by children over
36 months. This product is suitable for children aged 18-36 months.
3
2. Part list
Part no. Part name Qty (pcs)
1 Vehicle body 1
2 Faceguard 1
3 Handle bar 1
4 M5x35 machine screw 1
5 Ø5 nut 1
6 Charger 1
7 Gear box 1
8 Rear wheel 2
9 Ø8 washer 3
10 Lock nut 2
11 Front wheel assembly 1
12 Spanner 2
4
1
7
8
9
9
9
10
2
11
3
6
4
5
8
12
10
3. Diagram of the parts
NOTE: Some of the parts shown are to be assembled on both sides of vehicle.
5
4. Before You Begin the Assembly
Warning!
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL THE WARNINGS AND INSTRUCTIONS
FOR ASSEMBLY/USE. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. This product contains small parts, which must be assem-
bled by an adult only. Keep children away when assembling.
• Always remove the protective packaging and polythene bags and dispose of them
before beginning the assembly.
• Make sure that the power switch is turned to‘OFF’before assembling the ride-on car.
• Before using the product for the rst time, charge the battery for 4–6 hours.

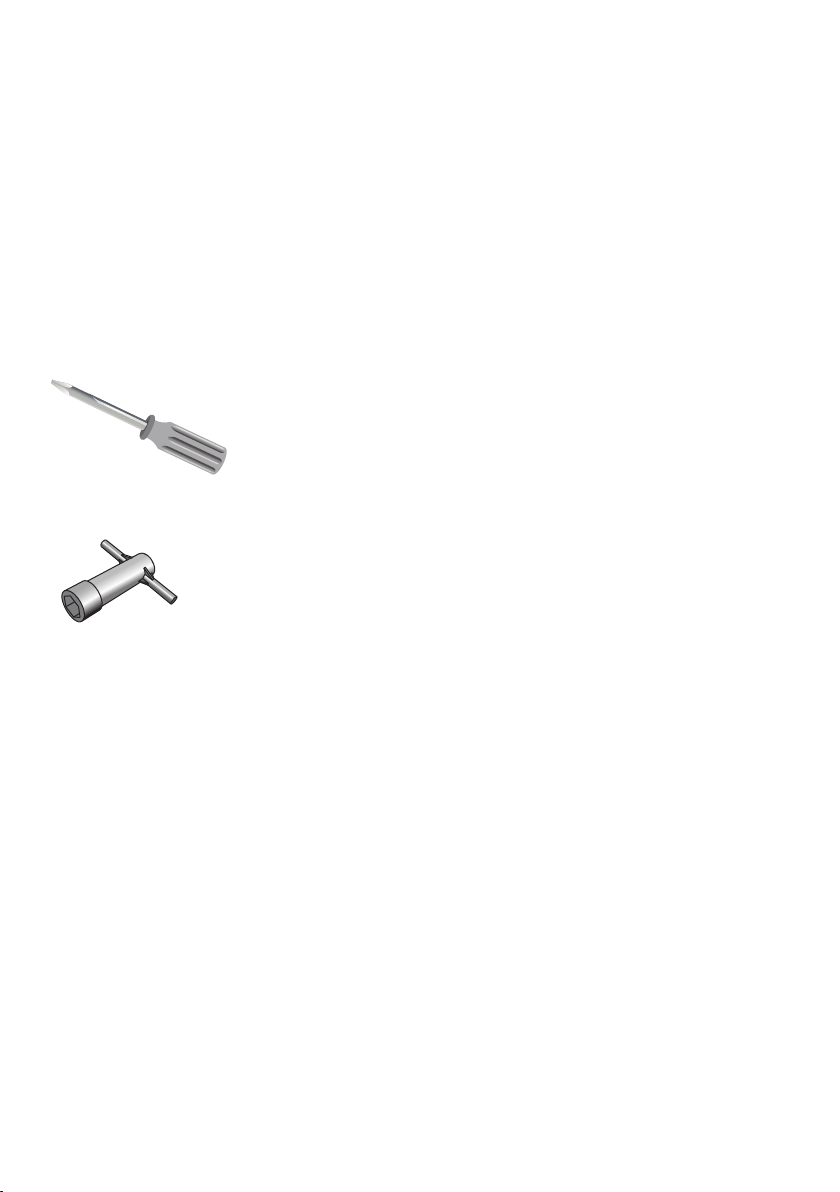

• Assembly tools required:
Screwdriver (not included)
Spanner
BATTERY INFORMATION
• Non-rechargeable batteries must not be recharged.
• If removable rechargeable batteries are used, they must be charged only under adult
supervision.
• Remove rechargeable batteries from the product before charging.
• Do not mix old and new batteries. Do not mix dierent types of batteries: alkaline,
standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment: anode to anode, cath-
ode to cathode.
• Remove batteries during long periods of non-use. Always remove exhausted batteries
from the product. Battery leakage and corrosion can damage this product. Dispose of
batteries safely.
• Never short-circuit the battery terminals.
6
6
7
8
1
2
4
5
3
7
8
9
10
5. Attach the Rear Wheels
Remove all the parts from the rear axle. Turn the vehice body downside up.
1. Insert the rear axle into the hole located on the rear of the vehicle.
2,3. Slide a gear box onto the rear axle, and plug the connector on the vehicle
into the connector on the motor.
4. Slide a wheel onto the rear axle.
5. Slide a Ø8 washer onto the rear axle.
6. Tighten a lock nut to the end of the front axle with a spanner.
Vehicle
connector
Motor
connector
7. Slide a Ø8 washer onto the front axle.
8. Slide a rear wheel onto the front alxe.
9. Slide another Ø8 washer onto the front axle.
10. Tighten a lock nut to the end of the front axle with a spanner.
HINT: An extra spanner has been provided to hold the Lock Nut on the
other side of the rear alxe while tightening the Lock Nut on the other side.
7
2
3
4
1
6. Attach the Handle Bar
Remove the M5x35 machine screw and Ø5 nut from the
end of the front fork.
1. 1. Insert the front fork into the opening on the front
of the vehicle body from the bottom side, and out
through the hole on the top side of the vehicle.
2. Place the handle bar over the the end of the fork.
3. Align the holes on each side of han-
dle bar with the holes at the end of
the fork.
4. Fasten a nut on the opposite end of
the screw to secure the handle bar.
End of front fork
Front fork
8
1
6
5
1
42
3
7. Attach the Faceguard
If you your vehicle with the sound function, follow the steps 1-4
to add the batteries (not included). Refer to the battery information on page 37.
With a small screwdriver remove the screw on the battery cover on the faceguard.
1. Remove the battery cover from the top of the battery compartment.
2. Insert two AAA batteries in their correct polarities.
3. Replace the battery cover over the battery compartment and fasten with the
screw you removed in step one.
4. Plug the light wire connector on the faceguard into the connector on the vehicle.
5. Insert the tabs on the faceguard into the
slots on the vehicle.
9
8. Connect the Power Supply
1. Using a screwdriver to remove the screw on the seat back.
2. Remove the seat.
3. Plug the red connector into the terminal on battery as shown.
4. Replace the seat.
1
2
3
10
9. Safety
Warning!
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE A CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED.
Always keep your child in view when they are in vehicle.
• This toy should be used with caution, as skill is required to avoid falls or collisions that
may cause injury to the user or others.
• Protective equipment should be worn.
• Never use on roads, near cars, on or near steep inclines or steps, or near swimming
pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Not to be used in trac.
• This product is suitable for children aged 18-36 months. Max user’s weight 20 kg.
• This toy has no brake.
Rules for Safe Riding
• Keep children within safe riding areas:
• Never use on the road, near motor vehicles, on lawn space, on or near steep inclines
or steps, or near swimming pools or other bodies of water.
• Use the toy on at surfaces only; for example, inside your house, in the garden or at a
playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an
accident. Operate the vehicle only in daylight or in a well-lit area.
• It is prohibited to modify the circuit or add other electrical parts.
• Inspect the vehicle’s wires and connections periodically.
• Do not let any child touch the wheels or go near them when the car is moving.
Use the vehicle on generally level ground ONLY!
DO NOT use the vehicle on lawn areas!
