Bmobile AX1010 Manuel utilisateur

Table of Contents

1. Foreword ....................................................................................1

2. Getting to know your phone…………..........................................5

3. Starting up your phone................................................................7

4. Introduce the basic phone functions .........................................10

5. Technical Specifications ............................................................18

6. FCC Cautions…………..............................................................19

Product Name: Mobile Phone

Model: AX1010

Trade mark: Bmobile

1. FOREWORD

Safety

In order to ensure the phone is used safely and correctly, please read the precautions below

carefully before use.

1.1 General precaution

•Your phone is only suitable for the battery and charger approved by our company or else it may

cause the battery to leak, overheat, explode or even catch fire.

•Do not knock, vibrate or throw the phone heavily to avoid malfunction, fire, overheating,

explosion or fire.

•If there are abnormal phenomena, like temperature rising, color change or distortion during the

usage, charging or storage of the battery, please stop using it and replace it with a new battery.

•It may burn the skin if liquid in the battery leaks onto skin or clothes. If this happens please

flush with plenty of clean water immediately and go to a hospital at once.

•Please keep the battery away from fire to avoid fire and explosion if the battery leaks or emits

a strange smell.

•Do not place expose the battery to moisture or it may cause overheating, fumes and corrosion.

•Do not use or place the battery under direct sunlight, or in hot places, it may cause leakage and

overheating, thus reducing performance and shortening the lifespan.

•Do not charge the battery for over 24 hours continuously.

•Use careful with the earphone maybe possible excessive sound pressure from earphones and

headphones can cause hearing loss.

1.2 Precaution for the use of charger

•Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to

the charger.

•Do not use the charger if the power wire is broken, or it may cause fire and electric shock.

•Please remove accumulated dust on the power plug.

•Do not put water containers next to the power supply to avoid overheating, fire, electric shock

and malfunction in case they come into contact.

•Do not disassemble or tamper with the charger or it may cause personal injury, electric shock,

fire and the damage of the charger.

•Do not use the charger in places of high humidity, like bathrooms, or it may cause electric shock,

fire and damage of charger.

•Do not touch the charger, power cord or power plug with wet hands or it can cause electric

shock.

•Do not put heavy objects on the power cord or change the power cord or it may cause electric

shock and fire.

•Please unplug the power socket before cleaning and maintenance.

•Please hold the charger to unplug the socket as pulling the power cord may damage the power

wire and cause electric shock and fire.

1.3 Cleaning and maintenance

•As the phone, battery and charger are not waterproof, do not use them in places of high

humidity and avoid them being wet by rain.

•Please clean the battery and charger with a soft dry cloth.

•Never use alcohol, thinner or solutions, like benzene, to wipe the phone.

•Dirty sockets can cause poor contact and power down, and even make recharging unavailable.

So, please clean them periodically.

1.4 Common Precaution

Mobile Phone:

•Please use the phone in an environment with temperature between -20- 45and humidity of

<75%.

•Please use the phone far away from regular telephones, TV sets, radio sets and office

automation equipment, to avoid affecting the normal use of these equipment and mobile phone.

Battery:

•Store the battery in cool and ventilated place without direct sunlight.

•The battery has a limited lifespan. The usage of battery will be shortened progressively due to

frequent charging. Once the battery is out of use, it means that its lifespan has ended, and you

will need to replace it with an approved new battery.

•Do not dispose of old batteries as household waste. Give them to specified disposal places and

follow any stipulated instructions for disposal.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN INCORRECT TYPE.

DISPOSE USED BATTERIES ACCORDING TO THE INSTRUCTIONS OF YOUR COUNTRY.

Charger:

•Do not charge under following conditions:

-- Places with direct sunlight

-- Places with ambient temperature less than 0or over 40, wet or dusty places with strong

vibrations (it may cause malfunction)

-- Places near electrical appliances (it may affect the image and sound) like TV set, radio, etc.

-- Adapter shall be installed near the equipment and shall be easily accessible. The plug

considered as disconnect device of adapter

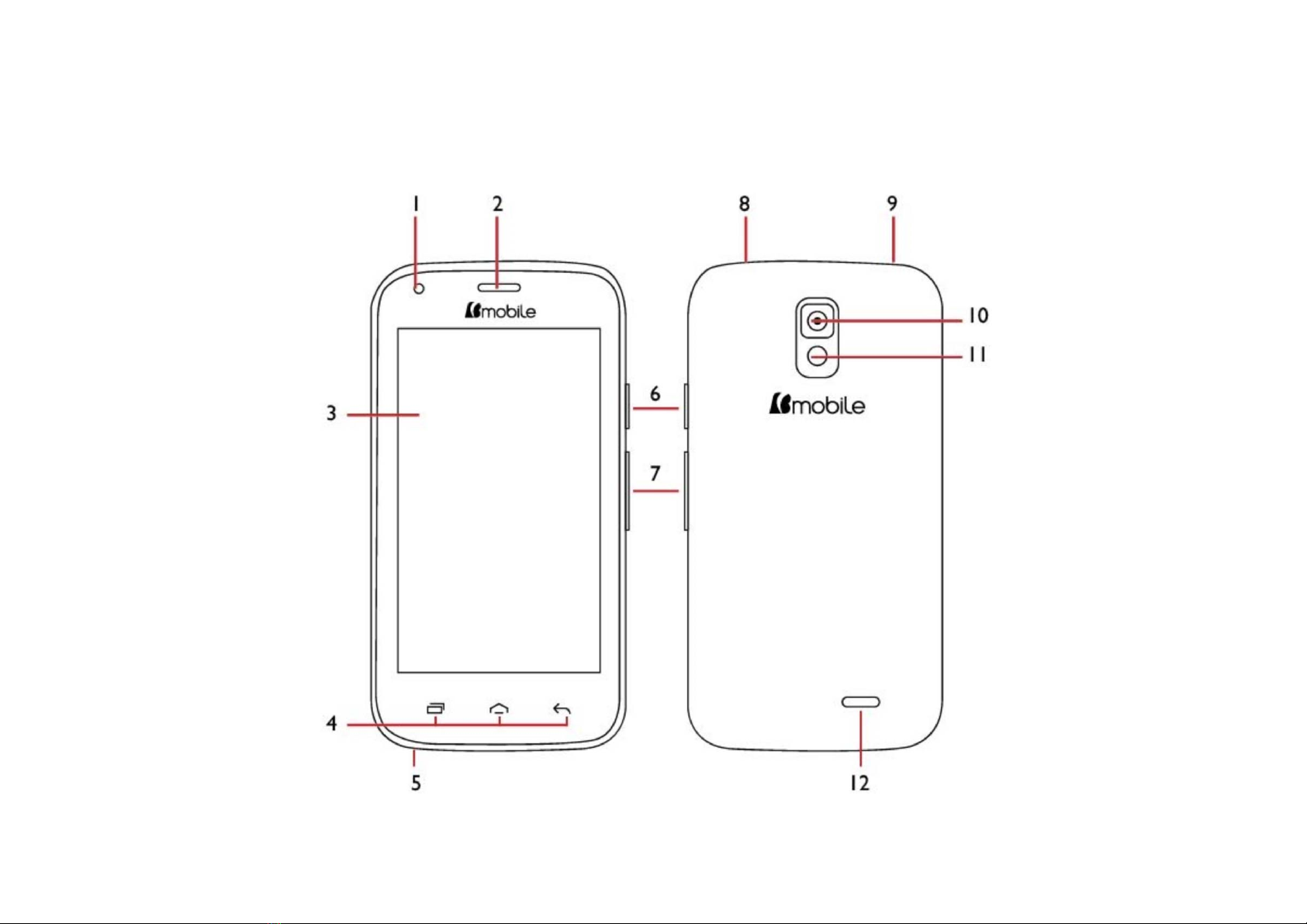

2. GETTING TO KNOW YOUR PHONE

1. Front Camera

2. Receiver

3. LCD Display

4. Settings / Home / Back Buttons

5. Microphone

6. Turn On / Turn Off Button

7. Volume Buttons

8. Headphone connector (Jack 3.5)

9. USB Connector

10. Back Camera

11. LED flash

12. Loudspeaker

The number of icons in the main desk or the main menu will be according the quantity of

applications installed on your device.

3. STARTING UP YOUR PHONE

•Make sure your device is turned off.

•Firmly hold the device with the front panel facing down.

•Slide your finger into the groove designed to open it and gently pull open the back cover.

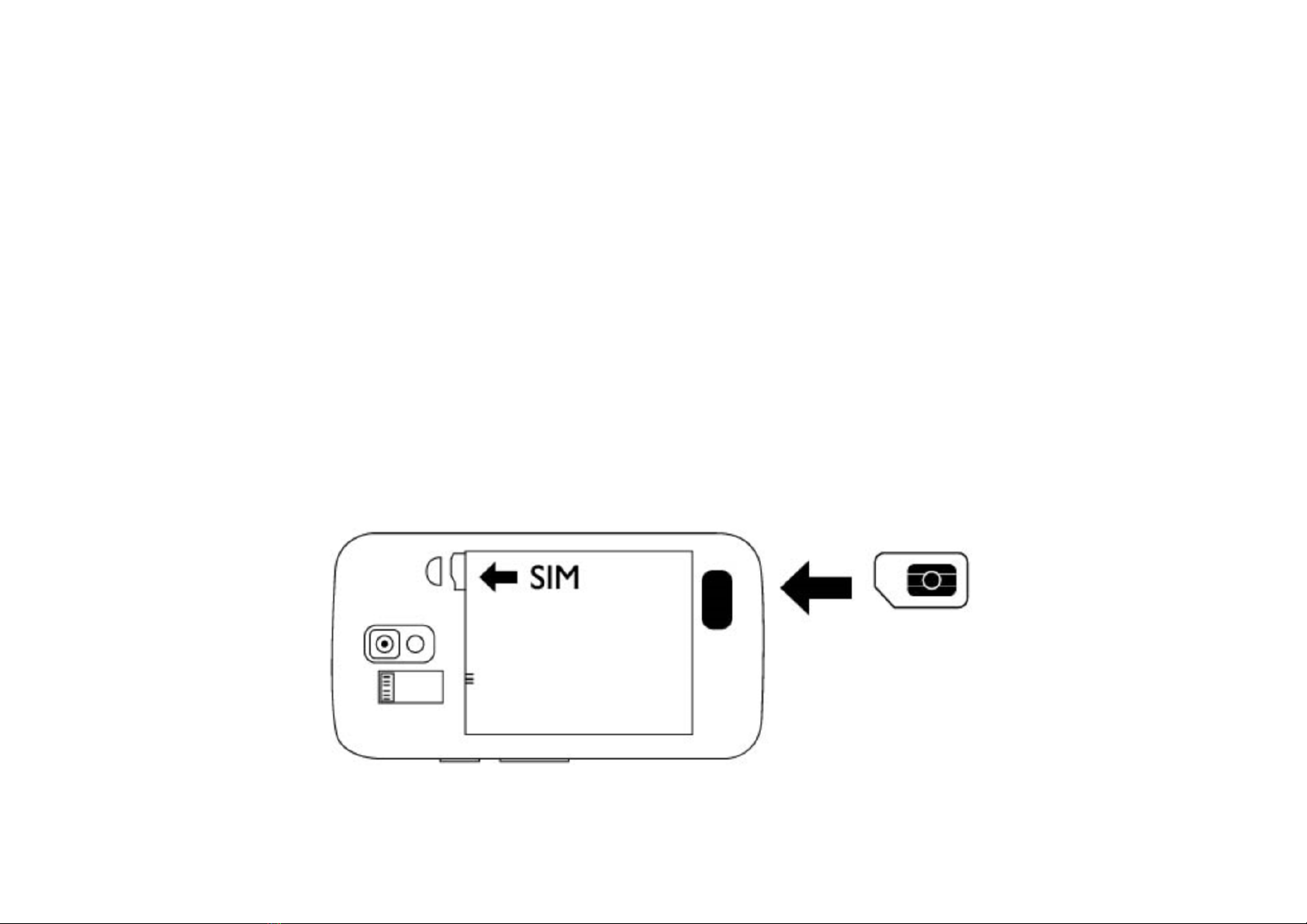

To install the SIM card

•Remove the battery if it is installed.

•Locate the SIM card slot, and then insert the SIM card with its gold contacts and

Its cut-off corner as shown in the diagram.

•Slide the SIM card completely into the slot.

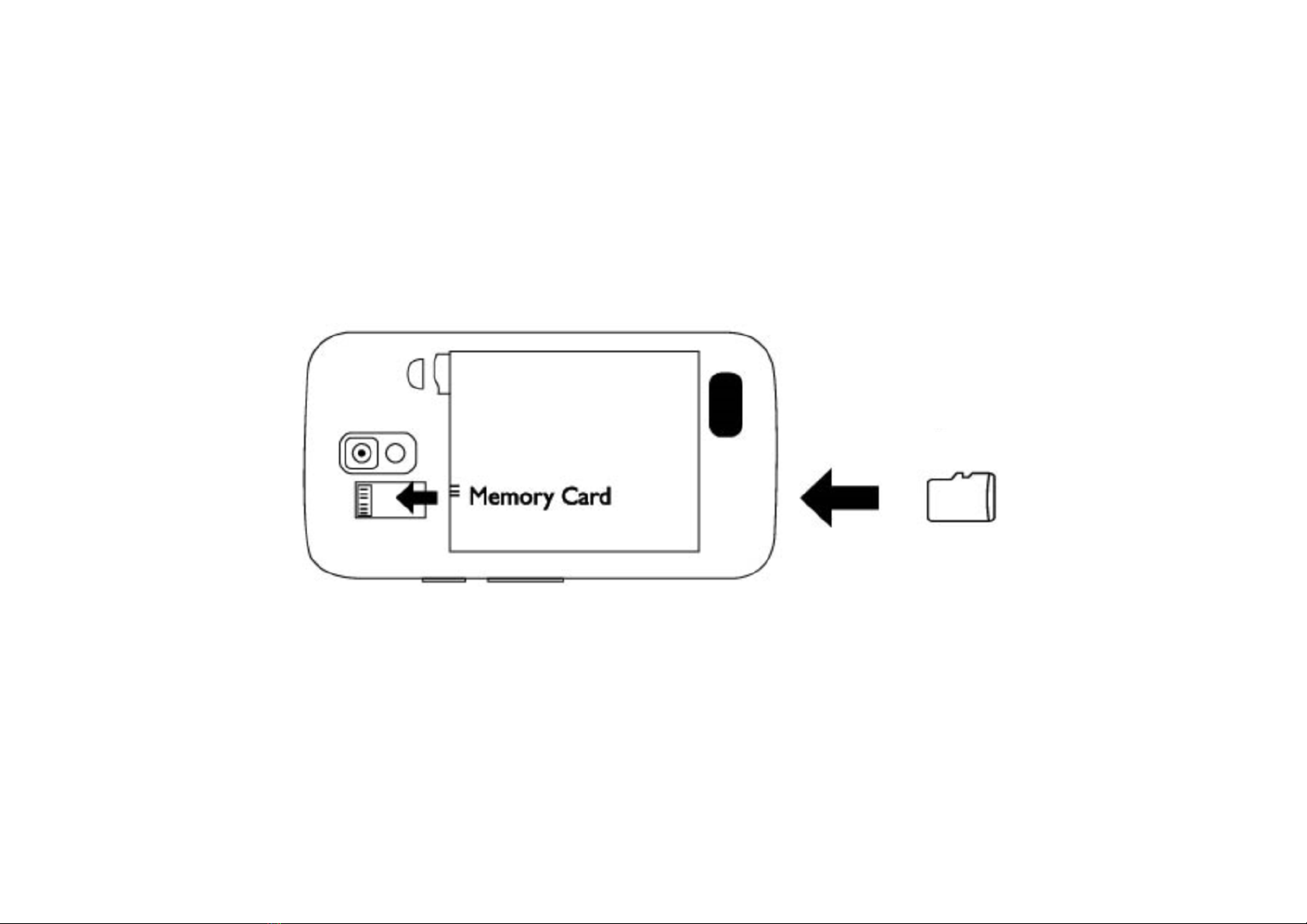

To install a memory card

To have additional storage for your images, videos, music and files, you can purchase a memory

card and install it in your device.

Locate the memory card slot and Insert the memory card into the slot as indicated by the image.

To install the battery

1. Align the battery’s exposed copper contacts with the battery connectors at the bottom part of

the battery compartment.

2. Insert the contacts side of the battery first and then gently push the battery into place. Replace

the back cover.

Charging the Battery

New batteries are shipped partially charged. Before you start using your device, it is

recommended that you install and charge the battery. Some batteries perform best after several

full charge/discharge cycles.

Note: Only the AC adapter and USB sync cable provided with your device must be used to

charge the device.

Connect the USB connector of the AC adapter to the sync connector on your device, and then

plug in the AC adapter to an electrical outlet to start charging the battery.

As the battery is being charged while the device is on, a charging icon appears in the title bar

In the Home screen. After the battery has been fully charged, a full battery icon appears in the

title bar of the Home screen.

Warning:

• Do not remove the battery from the device while you are charging it using the AC or car

adapter.

• As a safety precaution, the battery stops charging before it overheats.

Power on/off

To power off your phone, press & hold POWER. On release, the Phone options menu opens.

Select ‘Power off’ and confirm.

To power on again, press & hold power
