BlueSens YieldMaster Manuel utilisateur

Rev. 170404001

Operating Manual

Betriebsanleitung

Information in thisdocument issubject to change without notice.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or

anymeanselectronic or mechanical, including photocopying and recording for any purpose other than

the purchaser's personal use without the written permission of BlueSens.

Die Informationen in diesem Dokument können ohne vorherige Ankündigung geändert werden.

Diese Publikation darf weder in Teilen noch als Ganzesin jedweder Form, seieselektronisch oder mech-

anisch, einschließlich Fotokopien außerhalb der Grenzen desUrheberrechtsohne ausdrückliche, schrift-

liche Genehmigung der Firma BlueSensvervielfältigt, bearbeitet oder verbreitet werden.

BlueSens

Snirgelskamp 25

45699 Herten, Germany

+49 2366 / 4995-500

CONTENTS / INHALT

1 About this document 5

1.1 Function 5

1.2 Target group 5

1.3 Symbols used 5

2 For your safety 7

2.1 General information 7

2.2 Authorized personnel 7

2.3 Proper use 7

2.4 Misuse warning 7

2.5 General safety instructions 8

2.6 CE conformity 8

3 Product description 9

3.1 Yieldmaster 9

3.2 BCP-CH4 sensor 11

3.2.1 Measuring principle CH4 sensor 12

4 Installation 13

4.1 General information 13

4.2 Connecting the BCP-sensors and CounterBox to a PC 14

4.3 Preparing CounterBox 14

4.3.1 Option 1: connect the CounterBox to the BACCom12 14

4.3.2 Option 2: connect the CounterBox directly to the PC 15

4.3.3 Connect the BACCom12 to the PC 15

4.3.4 Settings of the Network Enabler Administrator for the BACCom 17

4.3.5 Connecting the sensors: option 1: connecting the BCP- sensors to the

BACCom12 25

4.3.6 Connecting the sensors: option 2: connecting the BCP-sensors dir-

ectly to the PC via USB 26

4.4 Installation of the Yieldmaster with one way valve and vessel 27

4.5 Installation with the preserving jar 32

4.5.1 Preparations for the measurement in the preserving jar 33

4.6 1-point calibration with the use of jars 38

4.6.1 Dismounting the flow adapter for preserving jars 41

Rev. 170404001 3

Contents / Inhalt

4.7 The compensating reservoir 42

5 Maintenance 44

5.1 1-point calibration 44

5.2 Recalibration 44

5.3 Filter change – coarse filter 45

5.3.1 Removing the filter cover 45

5.3.2 Changing the filter and seals (Z-XX-00052) 46

5.4 Minimization of dilution effects 47

5.5 Exchange of the Battery of the CounterBox 48

6 Appendix 49

6.1 Calibration table 49

7 Technical data 52

Yieldmaster Operating Manual

1About this document

1.1 Function

This operating manual provides you with all of the necessary information for quick start-up

and safe operation of the Yieldmaster. Therefore, please read this operation manual before

starting operation.

1.2 Target group

This operating manual is intended for use by trained specialist personnel. The content of this

manual must be made available to the corresponding personnel and followed by them.

1.3 Symbols used

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death

or serious injury.

WARNING

WARNING indicatesa hazardoussituation which, if not avoided, could result in

death or seriousinjury.

CAUTION

CAUTION indicatesa hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE

Notice about a harmful situation, possible consequences: the product itself or sur-

rounding objectscould be damaged.

This symbol indicates helpful, additional information.

Rev. 170404001 5

About this document

1. Sequence of actions

Numbers indicate stepsto be performed in a certain sequence.

Yieldmaster Operating Manual

2For your safety

2.1 General information

The Yieldmaster system wastested and readyfor operation when it left our plant.

Please read this operating manual carefully before installing the device and starting oper-

ation. The operating manual contains safety instructions that must be observed to ensure

safe operation.

The system maynever be operated in conditionsthat do not correspond to the specifications

on the type plate.

Maintenance and servicing mayonly be performed by speciallytrained personnel who are

familiar with the hazards inherent to the work aswellasthe guarantee terms.

2.2 Authorized personnel

All actions described in this operating manual may only be conducted by specialist personnel

who have been authorized bythe plant operator. Work on the device other than that

described in this manual may only be performed by personnel of the BlueSens gassensor

GmbH companyfor safetyreasonsand to ensure compliance with the terms of the guar-

antee.

2.3 Proper use

The Yieldmaster is an analysis system for simultaneousgasconcentration analysis(CH4and

other gases like CO2, O2, EtOH, H2also addable) and volume determination in the specified

concentration area and under the conditionsdescribed in the technicaldata. It is used to mon-

itor metabolism in biological processes such as fermentation. The BPC-sensors of the Yield-

master may only be used in well ventilated rooms.

DANGER

The sensor does not have an ATEX certificate and may therefore only be used in

well ventilated rooms.

2.4 Misuse warning

Partsof the Yieldmaster system maynot be used asa safetycomponent for monitoring

gassesin systemsor as a gaswarning device. It mayalso not be used in areassubject to explo-

sion hazards.

Rev. 170404001 7

For your safety

2.5 General safety instructions

If the device isnot used correctly, or used for itsintended purpose, application-specific haz-

ards mayarise.

DANGER

If the device isincorrectlyinstalled or set, there isa danger of explosionsand pois-

oning.

After installation, check all connections for leaks.

NOTICE

Please note the safety instructions in all the following chapters.

2.6 CE conformity

The Yieldmaster conforms to the EMC Directive (89/336/EEC, 92/31/EEC and 93/68/EEC)

when applying the harmonized standardsEN50081–1, EN61000.

The low-voltage directive (72/23/EEC und 93/68/EEC) isnot applicable as no voltage greater

than 24 Visused. You can find the EC Declaration of conformityon one of the last page of this

manual.

Yieldmaster Operating Manual

3Product description

3.1 Yieldmaster

The Yieldmaster is an analysis system for the simultaneousmethane (CH4) and volume

determination. The biogasanalyzer Yieldmaster is a highly developed measuring system con-

sisting of microprocessor controlled infrared-gassensors, precision volumenometers (Mil-

liGascounter®) and the related BlueVis bioprocessing software. It isconsisting of up to 12

sets of BCP-CH4 sensors(other sensorsfor CO2, O2, EtOH, H2also addable) and the same

number of MilliGascounters. The CH4 concentration will be detected by the BCP-CH4

sensors and the produced volume will be detected by the MilliGascounter.

The CH4 sensorsBCP-CH4 are connected to a multiplexer boxBACCOM12 for the meth-

ane measurement inside the vessel. Alternatively, the sensorscan be connected with power

supply for each sensor and USB adapter. The MilliGascounter are connected to the Coun-

terBoxfor the detection of the volume. The CounterBoxwill be connected to the BACCom12

for the power supply and the data transfer. Alternatively, the CounterBoxcan be connected

with power supplyand USB adapter directlyto the PC. The BACCom12 will transfer the meas-

urement data of the Methane and the volume to a PC. The BACCom12 can be connected to

a PC via a serial connection or an Ethernet connection. The BACCom12 also can be integ-

rated into your local area network (LAN) by the Ethernet connection.

Every MilliGascounter isprotected by a one-wayvalve. This device secures that no fluid from

the MilliGascounter could be sucked into the fermentation vessel due to change of pressure

during longer experiments. During the experiment, Methane is produced inside of the fer-

mentation vessel.

Rev. 170404001 9

Product description

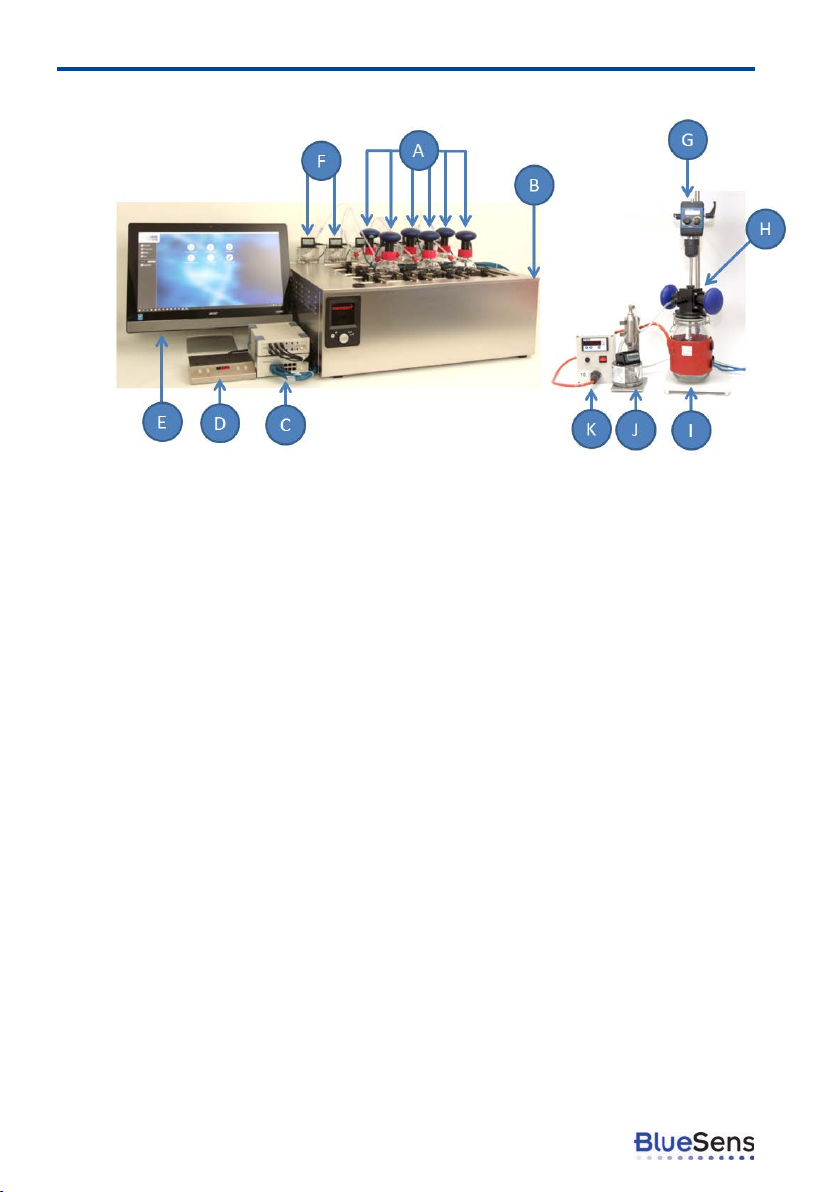

AUp to 12 CH4-sensors, other

sensors(CO2, O2, EtOH, H2) also

addable

FMilliGascounter® with one-wayvalve

BWater bath with integrated ther-

mostat and water compensation

GStirrer

CMultiplexer BACCom12 with integ-

rated pressure sensor and Coun-

terBoxwith integrated temperature

sensor

HSpecial flow adapter POM with two

gassensorsfor use with preserving

jars

DControl unit for magnetic stirrer

plate (water resistant magnetic stir-

rer plate is inside the water bath

and not shown on image)

IHeating jacket for preserving jars

EBlueVis Software for data logging

and process management

JMilliGascounter® with compensating

reservoir device

KControl unit for heating jacket

Yieldmaster Operating Manual
