Bluefin SUP E-SWIFT Manuel utilisateur
INSTRUCTION
MANUAL
20PSI AIR PUMP
CONTENTS
PAGE
1
Parts List
Inflation Process
Deflation Process
Troubleshooting
Safety
Precautions
Breakdown Cover
3
5
8
9
10
11
12
2
UK
WELCOME
TO THE CLUB
Hey,
Welcome to the Bluefin SUP community! We’re glad to have you on board. Your journey
with us doesn’t end at the point of purchase.
As a member of our community, you’re entitled to many benefits including lifetime
support from our customer service team and an extended warranty on all our products.
Remember to activate your warranty by scanning the QR code (see ‘Breakdown cover’)
or by visiting our website.
We hope you enjoy your product and choose to explore the full Bluefin SUP range. To get
the best of your product, we recommend that you read and refer back to the contents of
this manual.
You can also find additional help and resources at www.bluefinsupboards.com.
The Bluefin SUP team
E-SWIFT

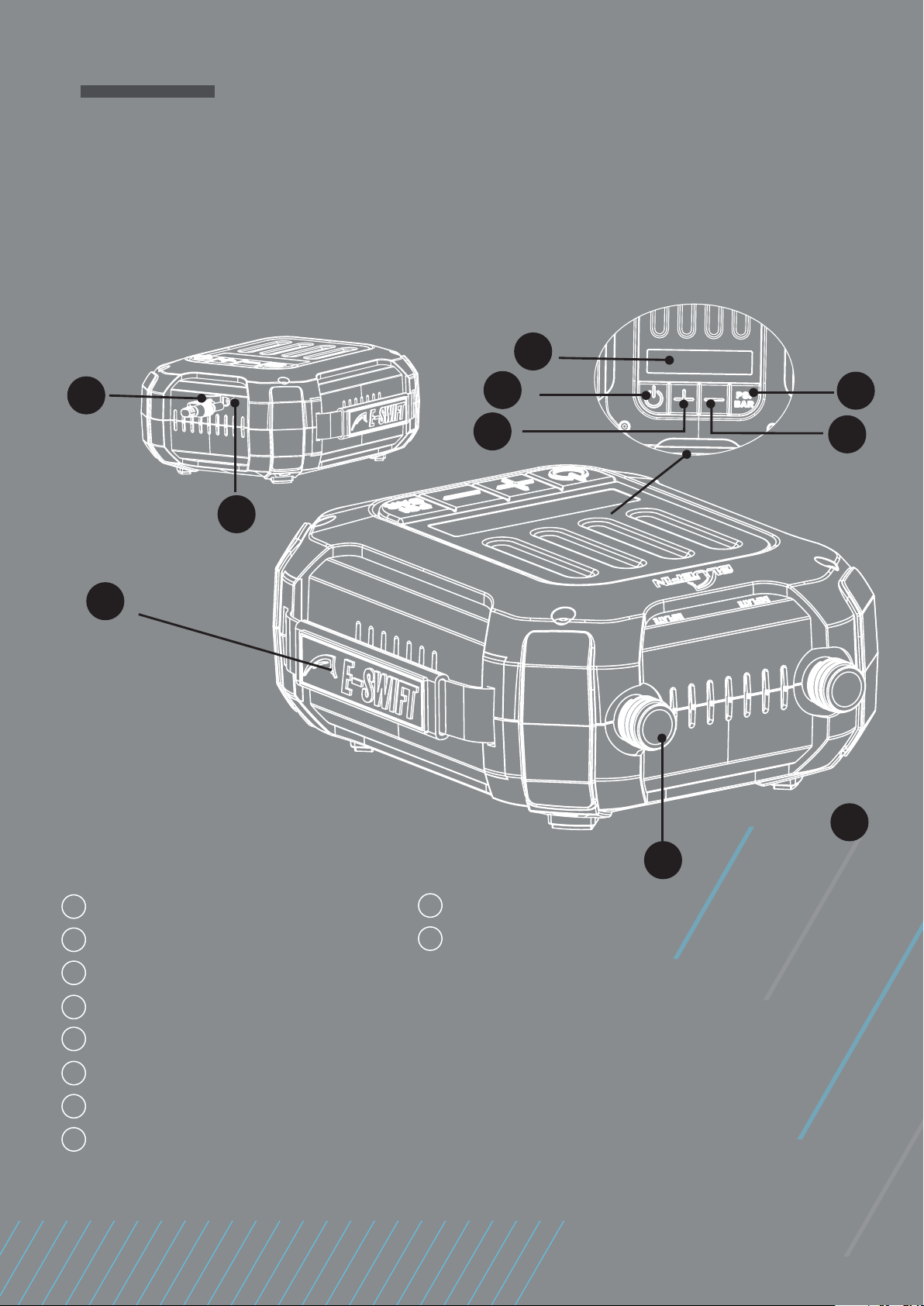

PARTS LIST
Inflation inlet
Deflation outlet
Pressure value display
On/Off button
Pressure increase button
Pressure decrease button
Pressure unit toggle button
Silicone power cover
Power input
Webbing handle
1
2
3
4
5
6
7
8
9
10
1
10
8
9
2
3
4
56
7
3
4
UK
Pump hose fixing
Pump hose
Hose nozzle adapters
Power connector
12V Power adapter
Battery power clips
11
12
13
14
15
16
11
12 13 15
14
14 16
INFLATION
PROCESS
INFLATEDEFLATE
Figure 1.
Figure 2.
Connecting The Hose
Connect the pump hose fixing to the inflation inlet and twist clockwise to tighten it,
as Figure 1. Install the required nozzle adapter to the other end of the hose and
twist clockwise to tighten it. Insert the nozzle adapter into the inflatable and twist
clockwise to fix it as Figure 2. Some Inflatables need a different nozzle adapter so
please check the manufacturers guidance on this before choosing the correct one.
5
6
UK
INFLATION
PROCESS

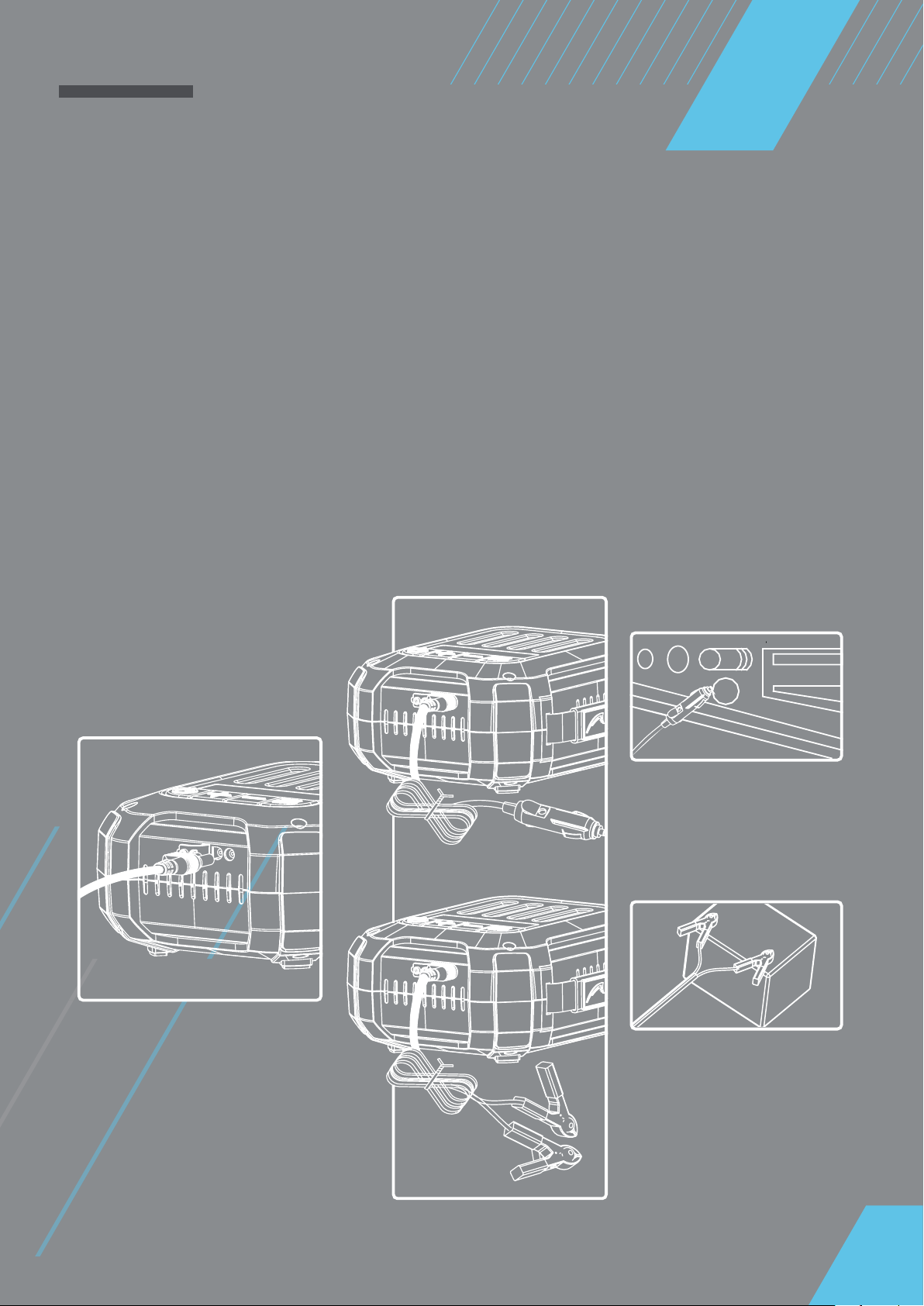

Connecting The Power
Lift the silicon power input cover and insert the power connector into the power
input on the pump as Figure 1.
Insert the 12V power adapter into a 12V DC socket as Figure 2a. Alternatively
connect the battery power clips to a battery on its positive and negative poles (the
red colour to the positive pole and the black colour to the negative pole) as Figure 2b.
Figure 2a.
Figure1.
Figure 2b.
12V
INFLATION
PROCESS
Operating The Pump
Press the pressure unit toggle button to select the until you need.
Press the pressure increase button +or decrease button -to set the required
pressure value you need. The pressure value can range from 0 to 20PSI.
After finishing the above steps, press the On/Off button to start to inflate.
During the inflation process, you can press the pressure increase or decrease button to
change the pressure value, press the pressure unit toggle button to swich the unit, and
press the On/Off button to stop.
Press and hold the On/Off button for 3 seconds to start the pump using the most
previously used pressure value.
*Check that this does not exceed the limit for your current inflatable to avoid causing
any damage.*
When the pressure reaches the set value, the air pump will stop working automatically.
7
8
UK
DEFLATION
PROCESS
Switching To Deflate
Remove the hose from the inflation inlet, Connect the pump hose fixing to the
deflation outlet on the pump, and twist clockwise to tighten it, as Figure 1.
Connect the nozzle end of the hose to in inflatable.
Press the On/Off button on the pump to start the deflation function until all the gas
is removed, then press the On/Off button to stop the deflation.
Figure 1.
TROUBLESHOOTING
The pump
will not start
Slow or abnormal
inflation.
E2 on the display
E3 on the display
1. The power is not connected
properly.
2. The motor is overheated
or overloaded, causing motor
stalling.
1. Check whether the hose is
blocked or cracked.
2. The joint between the hose
and air pump or air bag is not
installed properly.
1. Forced shutdown when the
temperature has reached 100.
1. Shutdown protection
without increasing air
pressure.
1. Make sure the hose is not
blocked, and check whether the
hose is cracked.
2. Reinstall the hose.
3. If the problem cannot be
solved, please contact the Bluefin
customer service team.
1. Allow the motor to cool before
restarting.
2. If the problem cannot be
solved, please contact the Bluefin
customer service team.
1. Check for air leaks.
2. If the problem cannot be
solved, please contact the Bluefin
customer service team.
1. Make sure that the power cord
is plugged into a 12V DC electric
outlet.
2. Allow the motor to cool before
restarting.
3. If the problem cannot be
solved, please contact the Bluefin
customer service team.
Fault Inspection Solution
