Blue Wave Cambrian Manuel utilisateur

Cambrian

Round Above Ground Pool Instruction Manual

VER.1218 NB19765

NB19766

m (8ft)

this pool

1 2

PSP3012B

PSP3612B

PSP4612B

PSP5512B

PSP6412B

PSP7312B

PSP3013B

PSP3613B

PSP4613B

PSP5513B

PSP6413B

PSP7313B

Φ3000xH1200mm

Φ3600xH1200mm

Φ4600xH1200mm

Φ5500xH1200mm

Φ6400xH1200mm

Φ7300xH1200mm

Φ3000xH1300mm

Φ3600xH1300mm

Φ4600xH1300mm

Φ5500xH1300mm

Φ6400xH1300mm

Φ7300xH1300mm

1048

1248

1548

1848

2148

2448

1052

1252

1552

1852

2152

2452

Φ10'x48"

Φ12'x48"

Φ15'x48"

Φ18'x48"

Φ21'x48"

Φ24'x48"

Φ10'x52"

Φ12'x52"

Φ15'x52"

Φ18'x52"

Φ21'x52"

Φ24'x52"

Item No. Pool Dimension (metric) Item No. Pool Dimension (imperial)

Ladder, Pool Cover and Groud Sheet may not included in the package due to different

configuration, consult your local pool dealer for these parts.

Images and objects may differ .

POOL

WALL

RESIN

VERTICAL

SUPPORT

SKIMMER

METAL PIECE

SELF-ADHESIVE TAPE

M6 NUT

M6 WASHER

M6X11 BOLT

M4X10 BOLT

LADDER

MAINTENANCE KIT

RESIN TOP PLATFORM

POOL

LINER

GROUND

SHEET

POOL

COVER

BOTTOM RAIL

FIX RAIL

ROUND RAIL

PROTECTOR PLUG

JOINT PROTECTOR

PRODUCT CONTENTS

20001001

20001007

20001003

20001009

20001008

20181001

20181002

20181003

20181004

20181005

20181006

20181007

20001021

20181008

20001022

20001026

20001023

20001024

20001010

20001011

POOL WALL

SKIMMER

POOL LINER

GROUND SHEET

POOL COVER

BOTTOM RAIL

FIX RAIL

ROUND RAIL

RESIN TOP PLATFORM

PROTECTOR PLUG

JOINT PROTECTOR

METAL PIECE

SELF-ADHESIVE TAPE

RESIN VERTICAL SUPPORT

M6 NUT

M6 WASHER

M6X11 BOLT

M4X10 BOLT

LADDER

MAINTENANCE KIT

29 29

109

Mnf. NO. Part Name

NB19765

PSP5513B

NB19766

PSP7313B

QTY

Key

3 4

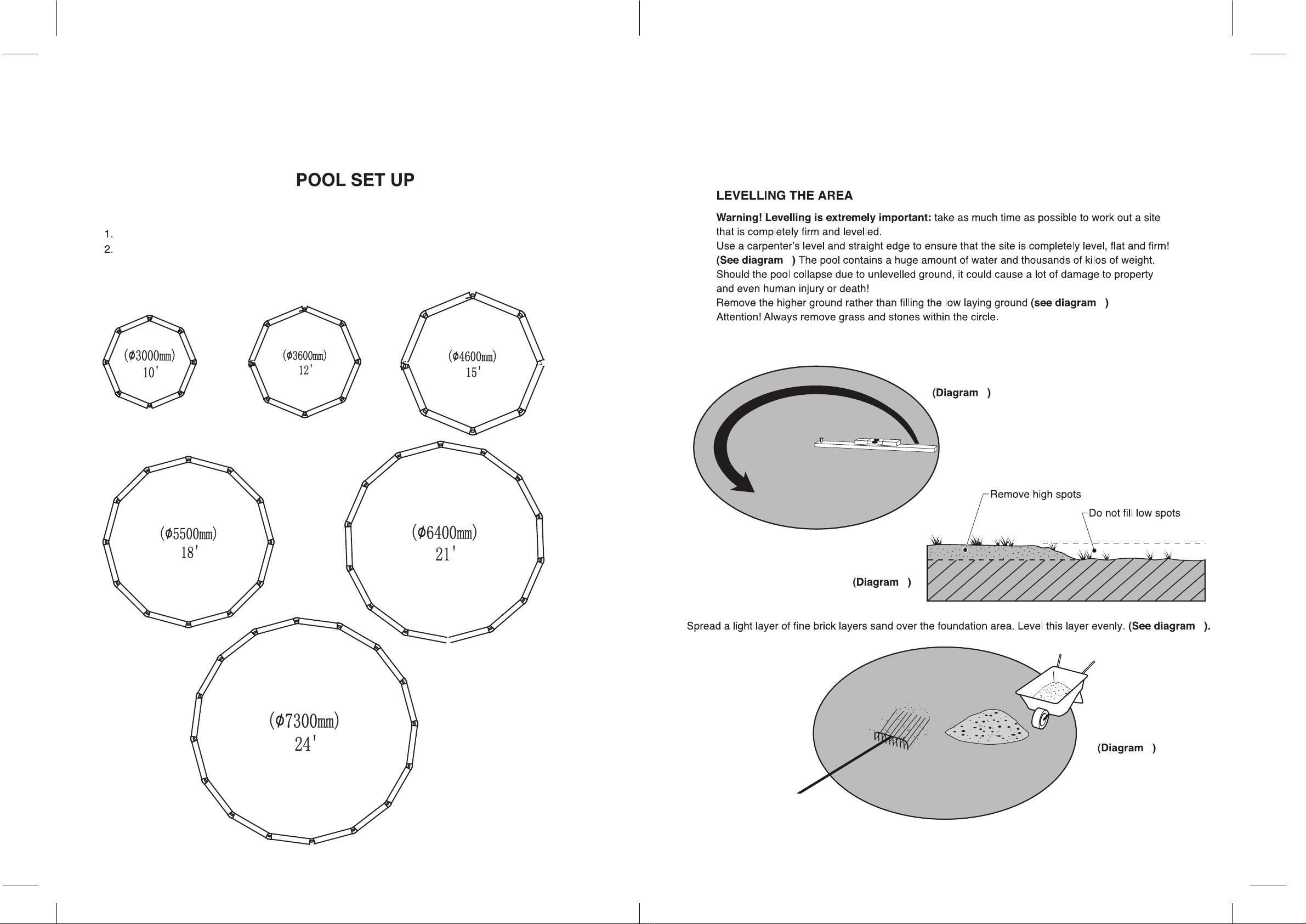

GROUND PREPARATION

The preparation of the ground is the most important step in the installation of the pool.

Mark off your pool area by driving stakes. Have a helper hold a tape measure or a string and

mark off the pool perimeter using flour or chalk. Remove sod inside the pool area to a distance

of 30cm (1ft) beyond dimensions shown in the plot layout around entire perimeter of pool.

Use ground sheet to ensure that the grass doesn't penetrate the pool liner and cause damage.

5 6

8 9 10

1. Slide the Bottom Rail into the Metal Piece.

IMPORTANT: Leave about 1cm (0.4'') gap

between the 2 ends of the Bottom Rail.

Repeat this process for all Bottom Rails.

(See diagram 4)

When all the rails are slided into the Metal Pieces, it should form a complete circle and the diameter should

be equivalent to the diameter of the pool itself. You can shorten or lengthen the gap distance between the

2 ends of Bottom Rails. (See Diagram 5)

the 2 ends of

Bottom Rails.( See diagram8,9)

7 8

1615

1413

0.8"

INSIDE OUTSIDE

Place the Self Adhesive Tape over the

exposed screw heads to seal them off.

6"H x 6" W

15 cm (6")

1 )"6(mc5

SAND COVE

SAND COVE Bottom Rail

OUTSIDE INSIDE

9 10

17 18

19 20

( )

1"-2"

72°F

60°F

Fix all Fix Rails & Round Rails to the top of the pool wall and make sure they are sitting properly

Fix Rail

Round Rail

1.0CM

(0.4”)

( 0.4" )

Fix Rails

then connect another Fix

Rail, continue around the circle until all Fix

Rails are all joined together. And finally

apply the Round Rails to the Fix Rails.

(See diagram 22)

11 12

Make sure that the Metal Piece at the top is directly above the Metal Piece at the bottom.

Metal Pieces at the top

Place the remaining Metal Pieces on top of the Round Rails, between the Rail Joins and in alignment

with the Metal Pieces at the bottom.

Resin Top

Resin

Resin Top

Metal Pieces at the top.

Make sure that you place the Resin Top Platform

with this curved edge outside the pool.

13 14

30,31,32,33

Fix with the screws provided.

Diagram 30

Diagram 32

Diagram 31

Diagram 33

10 10

Resin Top Platforms.

Resin Top Platforms

27,28,29

Diagram 27

Diagram 29

Diagram 28

RESIN

resin

15 16

( ) 34

For antirusting, all edges of cut out have to be covered by vinyl tape or rusting paint.

Begin the installation of the through wall skimmer. Follow separate skimmer installations.

( )

(6")

17 18
