Custom Equipment, Unique Electronic ProductsPhone (303) 651-3794
Blue Point Engineering www.BPEsolutions.com
DMX 4X Splitter
Blue Point
Engineering
Instruction I
Pointing the Way to Solutions!
SPECIFICATIONS:
POWER INPUT: +5VDC regulated, 5.5 x 2.1 x 9.5 connector - center positive
FUSE: .7 ~ 1 Amp Fast Acting 5 X 20 mm
POWER: Apx .35 Amps with 4 outputs sourcing 32 loads each
DATA TYPE: DMX512 (250Khz)

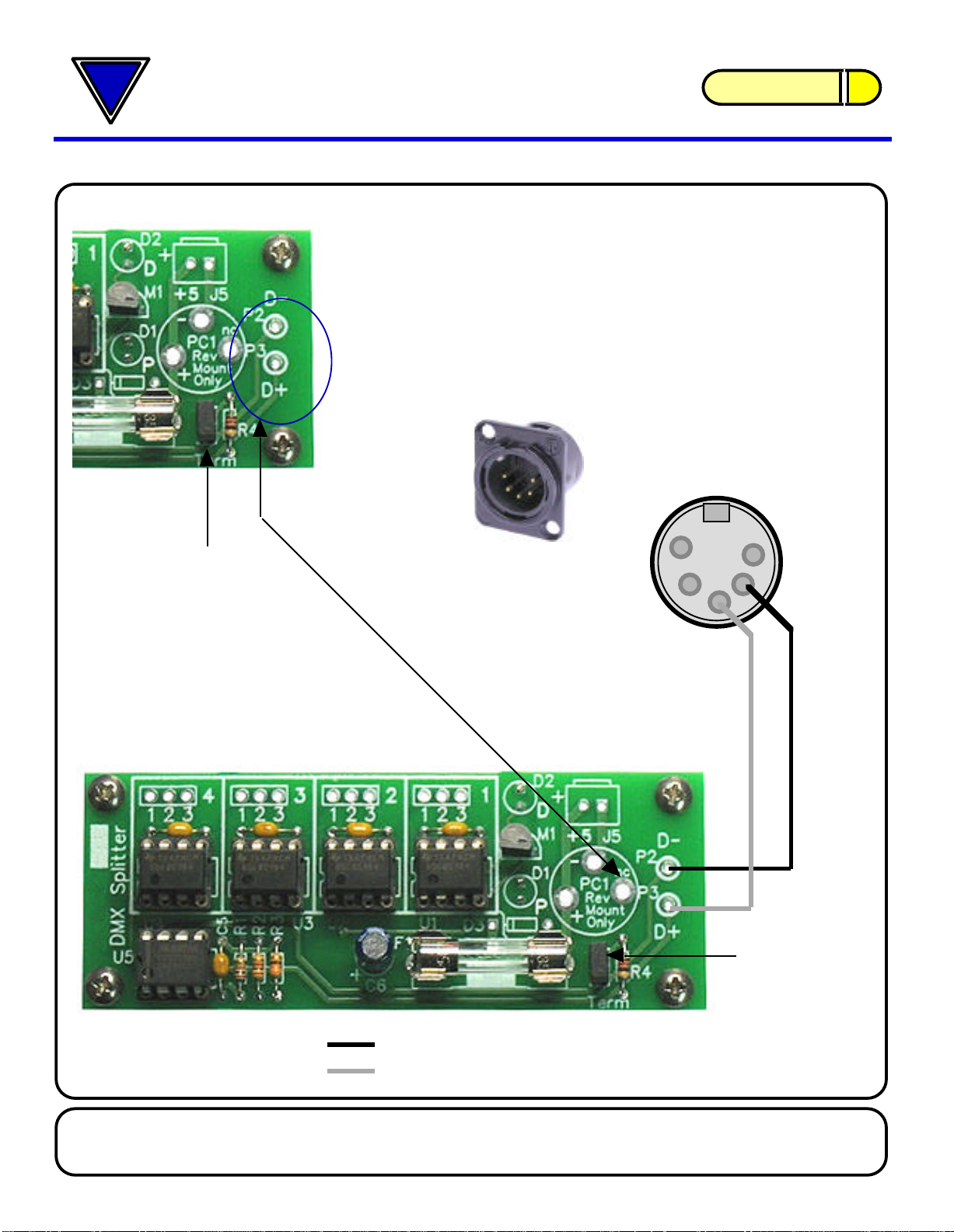

DATA INPUT: DMX512 - 5 pin male XLR, Pin 1 - (Shield) Not connected, Pin 2 Data - ,Pin 3 Data+,

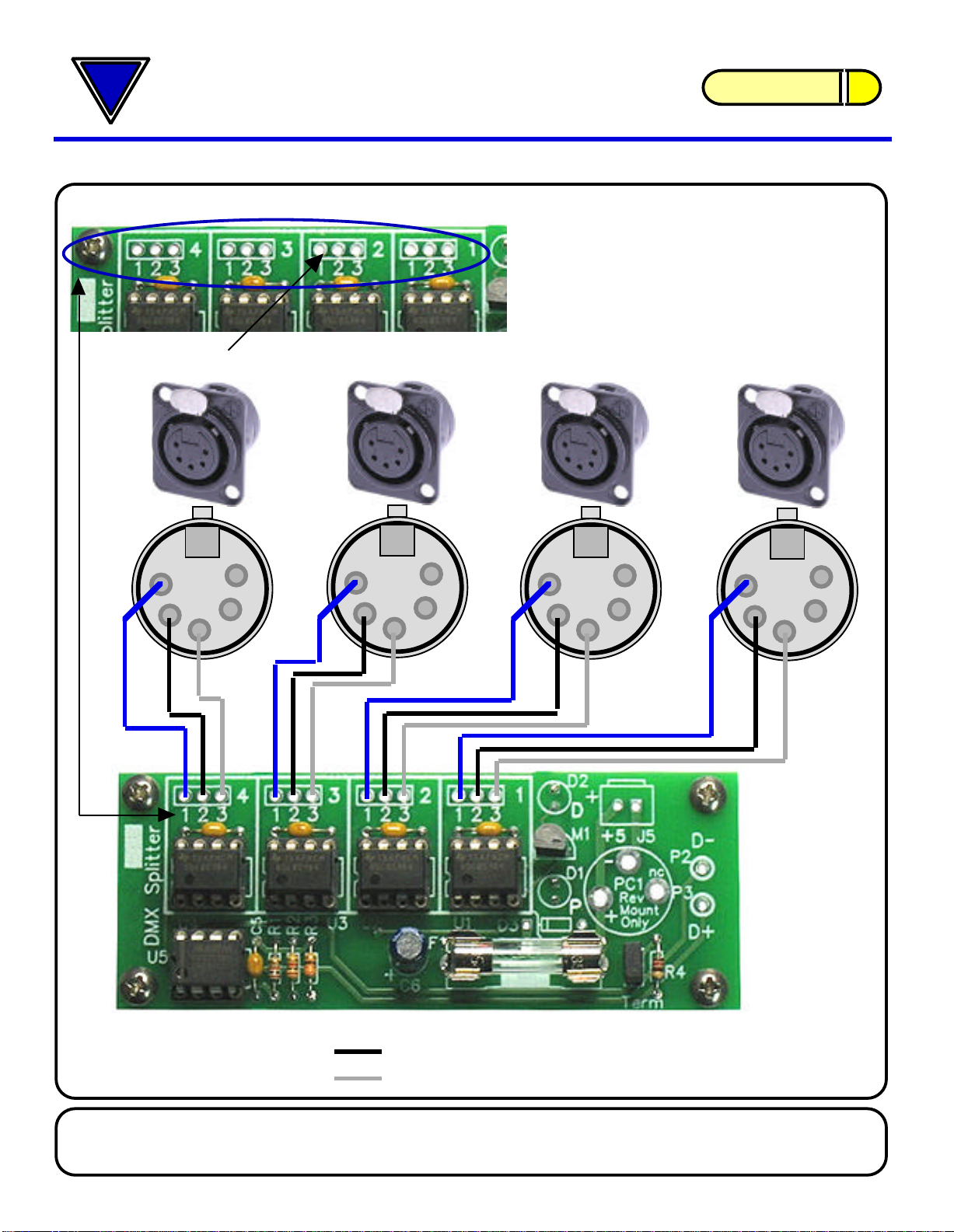

DATA OUTPUT: 4 separate DMX512 outputs - 5 pin female XLR's, Pin 1 - Power supply common,
Pin 2 Data -, Pin 3 Data +
Dimensions Approx: 3.7 x 6.7 x 2.1 inches
The DMX Splitter is a DMX512 1 in 4 out splitter that takes a DMX512 output of a lighting console or
any device that transmits a DMX512 signal and actively splits the signal providing 4 separate
DMX512 outputs, and offers electronic protection by separating the input device and output devices
using a Transient Voltage Suppression on the input from devices on the daisy chain network.

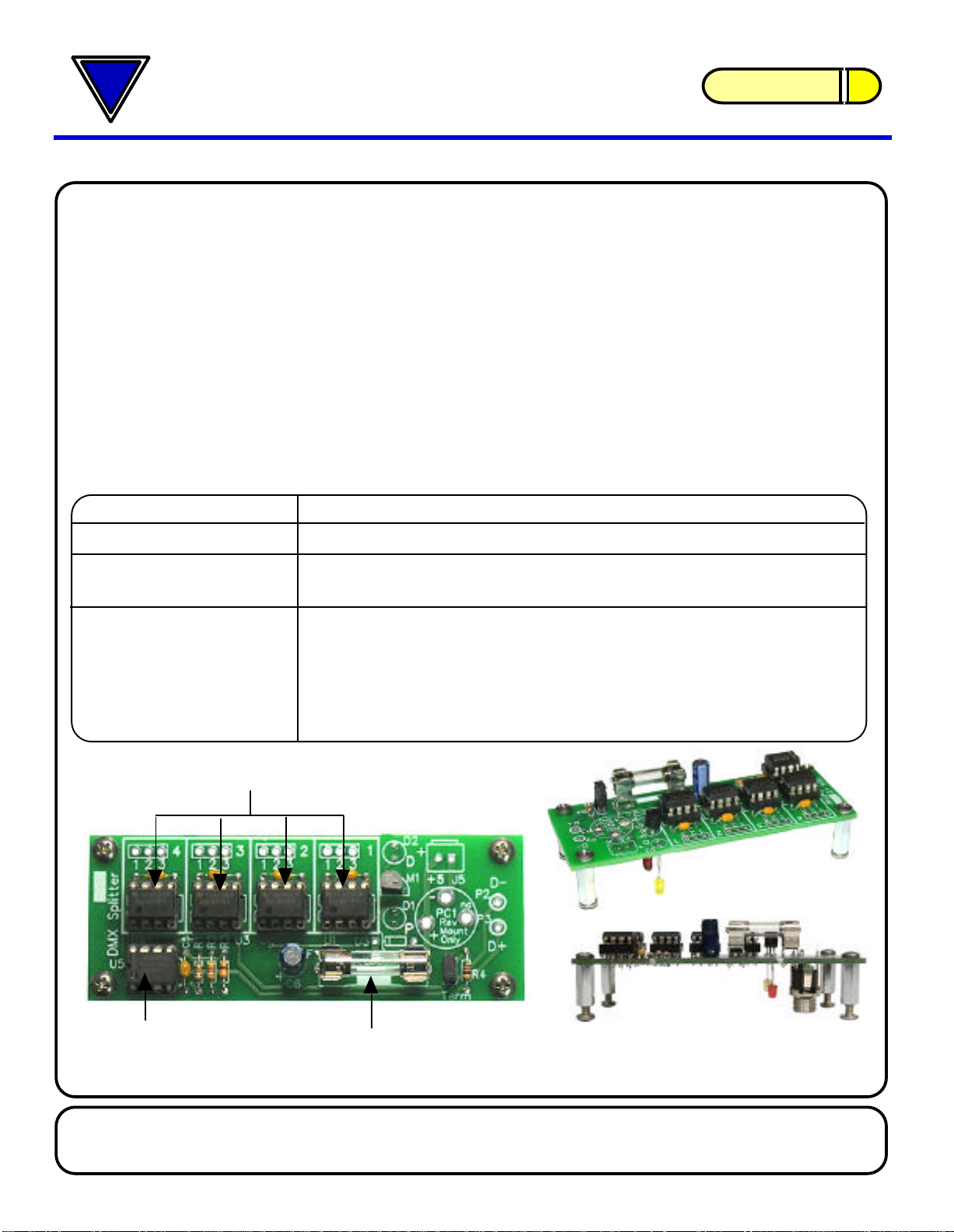

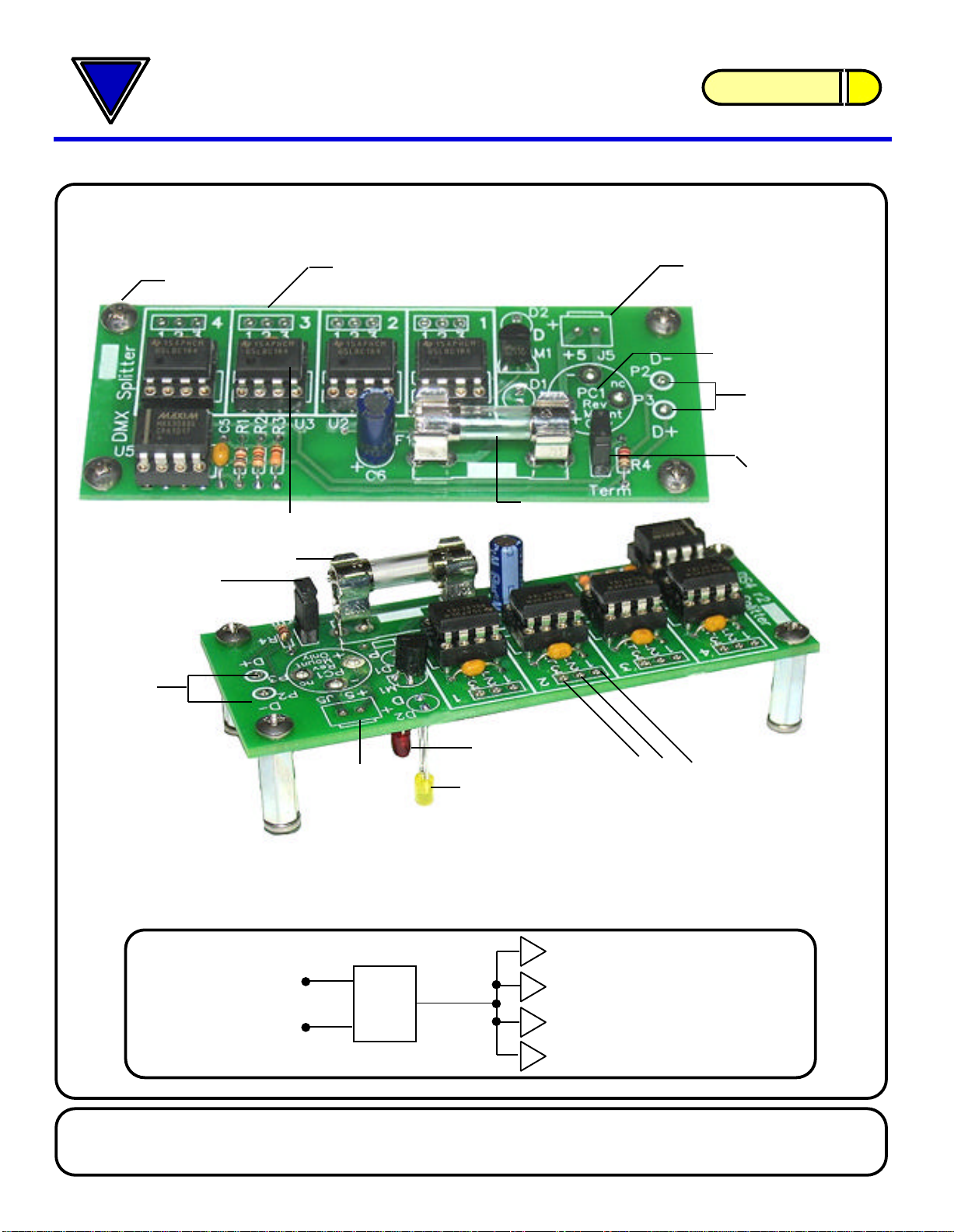

DMX 4X Splitter
PC Board
DMX
Wire
Overview
Field serviceable: socketed IC's for easy replacement, standard IC's available from many electronic
parts suppliers, replaceable power supply, standard 5 x 20mm internal fuse. Power LED indicating
power is present and 'Active' LED indicating DMX signal is present.

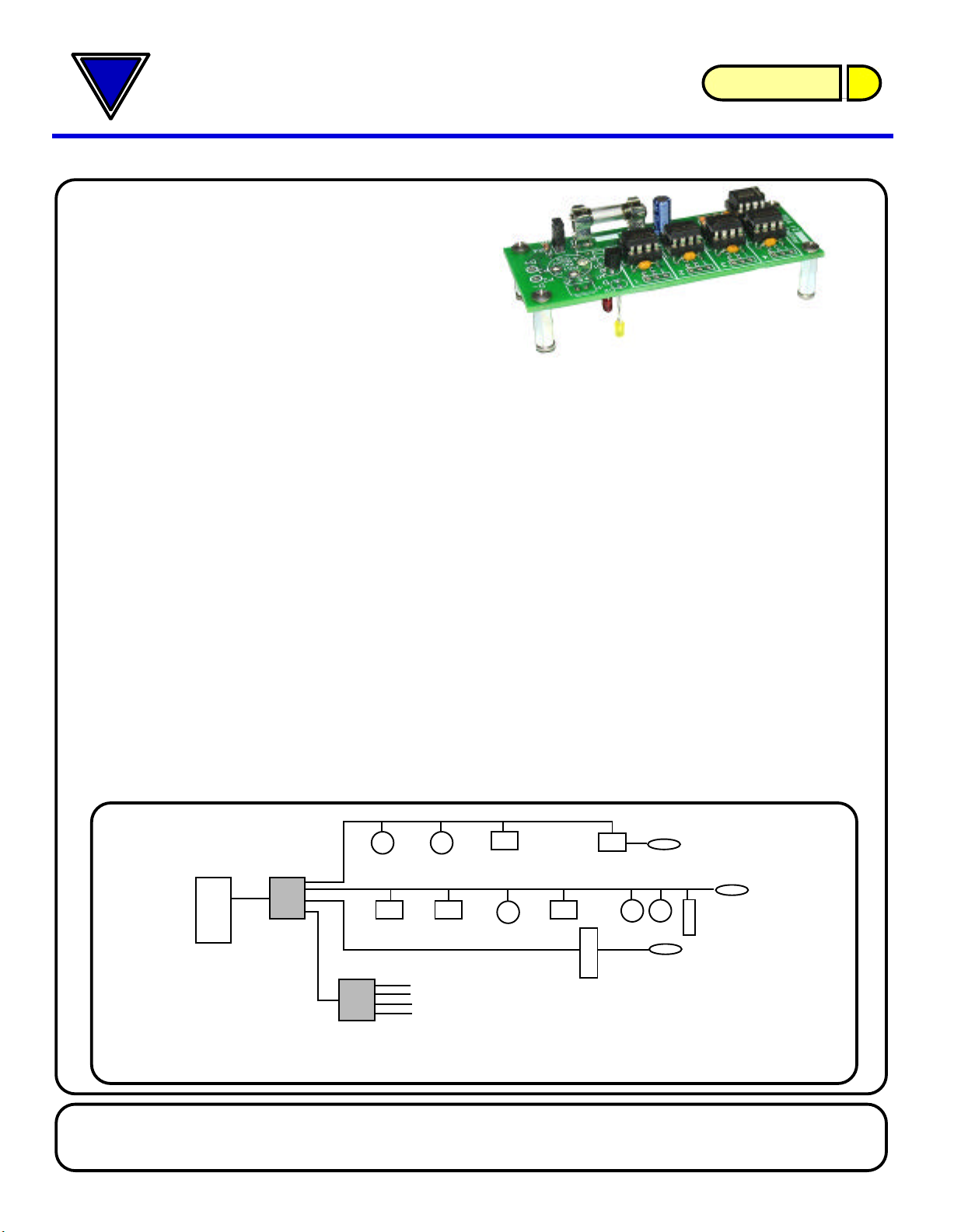

DMX 4-Splitter Configuration Example
Splitter Board Splitter Board
DMX
Wire
DMX512
Lighting
Console
DMX512 Devices (32)
DMX512 Devices (32)
4X DMX
Splitter
4X DMX
Splitter
House
Dimmer
Terminator
Terminator
Terminator
Add 4
Additional
Outputs
DMX Devices:
Relays, Motors, Lights, Dimmers,
Servos, Special FX, LED's
INPUT
OUTPUT
Note - the 4 outputs are separately driven and electronically isolated, not "Transient Voltage
Suppressed" isolated from each other. *IC components SN65LBC184 & SN75LBC184 - A
terminated and open condition is considered an unstable state, the yellow LED could be either full on
or full off. Data traffic is indicated by partially on or flickering illumination.
The standard chip SN75176A can be one of 32 chips on a daisy chain, with the *SN65LBC184 or SN75LBC184 IC,
it could be one of 128 chips on a daisy chain.
